HOBO® Temp/RH 2.5% Data Logger (UX100-011) Manual
HOBO Temp/RH 2.5%
Data Logger
UX100-011
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
Required Items:
• HOBOware 3.4 or later
• USB cable (included with
software)
16210-G

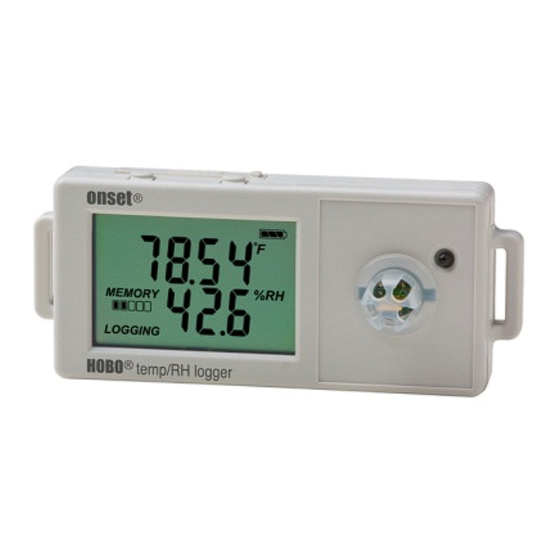

The HOBO Temp/RH data logger records temperature and relative humidity (within 2.5%
accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily
configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst
logging in which the logger records data at a different interval during certain conditions. The
logger can also calculate minimum, maximum, average, and standard deviation statistics. This
compact data logger has a built-in LCD screen to monitor the current temperature, relative
humidity, logging status, battery use, and memory consumption in between readouts.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Response Time
Drift
RH Sensor
Range
Accuracy
Resolution
Response Time
Drift
Logger
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Power Source
Battery Life
Memory
Download Type
Full Memory Download Time
LCD
Size
Weight
Environmental Rating
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
4 minutes in air moving 1 m/s (2.2 mph)
<0.1°C (0.18°F) per year
1% to 95% (non-condensing)
±2.5% from 10% to 90% typical to a maximum of ±3.5% including
hysteresis, see Plot B
0.05% at 25°C (77°F)
11 seconds to 90% in airflow of 1 m/s (2.2 mph)
<1% per year typical
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Fixed interval (normal), burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot C
One 3V CR2032 lithium battery and USB cable
1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greater
128 KB (84,650 measurements, maximum)
USB 2.0 interface
20 seconds
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this range
3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.)
30 g (1.06 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Advertisement
Summary of Contents for Onset UX100-011
-
Page 1: Specifications
HOBO® Temp/RH 2.5% Data Logger (UX100-011) Manual The HOBO Temp/RH data logger records temperature and relative humidity (within 2.5% accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions. - Page 2 HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual Specifications (continued) Plot A: Temperature Plot B: RH Accuracy Plot C: Time Accuracy Accuracy and Resolution Logger Components and Operation Battery Tray LCD Screen: This logger is equipped with an LCD screen that...
- Page 3 HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual HOBO U-Shuttle (unless launched with the “Turn LCD off” LCD Symbol Description option). Once the logger has been offloaded and A sensor reading is above or below the high or low disconnected from the computer, the LCD will turn off alarm that you configured.
- Page 4 HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual for all enabled sensors during logging, sampling at an you can read out the logger at any time (see Reading Out interval you specify. See Statistics for more information. the Logger for details).
- Page 5 HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual you want the alarm to remain visible on the LCD until the 3. Select the High Limit checkbox if you want to set up a next time you relaunch the logger. Select “Sensor reading condition in which burst logging will occur when the sensor within limits”...
- Page 6 HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual to 75.999°F, burst logging can start when the sensor sensors have been selected in the Launch Logger window reading is 75.994°F (which is within the 0.02°C and you select Average, then the average will be calculated resolution).
-
Page 7: Battery Information
HOBO Temp/RH 2.5% Data Logger (UX100-011) Manual Internal Event Name Definition four holes in between the L2 and L3 markings on the board (shown here enlarged and without the logger case for New Interval The logger has entered or exited burst illustrative purposes). - Page 8 It is recommended you only record battery voltage for diagnostic purposes. © 2013–2015 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOware are 1-800-LOGGERS (564-4377) • 508-759-9500 trademarks or registered trademarks of Onset Computer Corporation. All other trademarks are the www.onsetcomp.com •...
