Fine Vu CR-300HD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

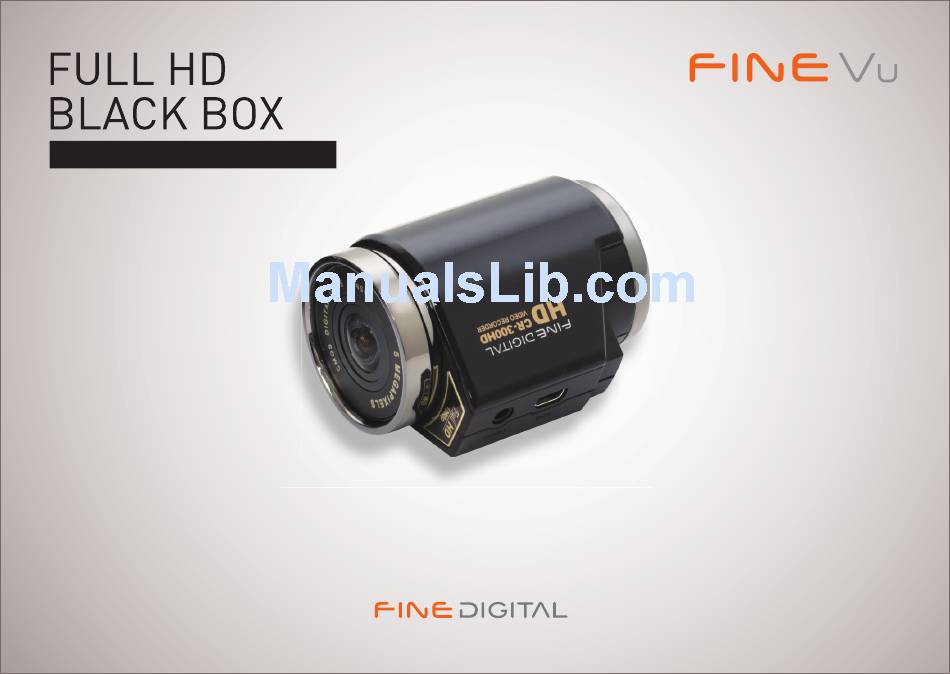

Vehicle HD Video Recorder
CR-300HD
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-300HD and is the answer not in the manual?

Questions and answers

Related Manuals for Fine Vu CR-300HD

Summary of Contents for Fine Vu CR-300HD

  • Page 1 Vehicle HD Video Recorder CR-300HD User Manual...
  • Page 2 Thank you for choosing the Finevu Car black box. Before using the product, please read this manual carefully. Finedigital has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please visit the Finevu website (www.finevu.com) for current updates and the latest information.

  • Page 3: Table Of Contents

    Contents Memory management .....21 Warnings........... 4 Memory map ........22 Caution ............5 Safety and Settings Connecting the black box to PC ...23 Precautions Notes ............5 Setup program ........24 Features ............ 6 Advanced settings ......25 Components ........... 7 Components Recording ..........26 Recording and Accessories ..........

  • Page 4: Warnings

    Safety and Precautions Breaching the following precautions may result WARNING in serious personal injury or even death. Plug the USB and video cables in properly. Failure to do so Power may result in fire or product failure. Do not use a damaged or modified power cable. Doing so may cause explosion or fire, and may result in personal injury or damage to the vehicle.

  • Page 5: Caution

    CR-300HD User Manual Breaching the following precautions may CAUTION result in personal injury or property damage. Installation Management Do not connect the uninterrupted power supply Do not leave the product or its accessories within reach arbitrarily. It may result in vehicular or product failure.

  • Page 6: Features

    Features Clear video quality The built-in battery supplies power to the RTC (Real Time Clock): You can set the system time with the setup 16:9 widescreen and full HD video recording program after connecting the black box to the PC. HD still image capture 5 megapixels digital CMOS image sensor Video display for adjusting the recording angle...

  • Page 7: Components

    Components and names Components 2 pieces of double-sided tape for the installation of the mount Mount CR-300HD 5 clips for arranging cables Video output cable (2m, 4-pole to RCA) Cigarette jack cord (4 m) USB SD card reader (optional) micro SD card adapter USB cable (1.2 m)

  • Page 8: Accessories

    Features Accessories Video output cable External USB USB SD card reader Power adapter Polarizing filter 4-pole to 4-pole battery pack Note All accessories are available from the store where you purchased the product.

  • Page 9: Names

    CR-300HD User Manual Names Speaker Function buttons Alerts you to the operating : Takes pictures status of the product with : Short press: access alarms and voice. emergency recording, Long press: access Playback mode : Voice recording ON/OFF Mount connection area...

  • Page 10: Finding An Installation Location

    Installation Inserting Micro SD card Finding an installation location It is recommended to install the product on the front windshield, to the left or right of the rearview mirror. You can also install it on the dashboard. Note Insert the Micro SD card with the golden contact area facing upwards. You can also install it on the rear windshield.

  • Page 11: Installation

    CR-300HD User Manual Installation Attach the black box to the Install the mounting bracket mount in the vehicle using the double-sided tape Plug in the cigarette jack cord (DC 12 V) Connect the video output cable for adjusting the angle...

  • Page 12: Recording Videos And Taking Pictures

    Using the product Recording videos and taking pictures Basic operation indicates that the LED is blinking. Note color LED Buttons Mode Description Booting White White Green Green Booting is completed within 30 seconds of power-up. Recording while driving LED Buttons Mode Description When booting is complete, the Normal Recording mode starts.
  • Page 13 CR-300HD User Manual Recording while driving LED Buttons Mode Description If you press the button in Normal Recording mode, the mode Emergency changes to Emergency Recording mode. Green Green recording You can record video for max. 1 minute, and the recorded video will be saved in the camcorder folder on the memory card.
  • Page 14 Using the product Recording while parking LED Buttons Mode Description If you press and hold down the button in Normal Recording mode or if there is no movement of the vehicle for 10 minutes, the Parking Green Green mode automatically changes to the Parking mode. If you press the button once again, the mode changes to Normal Recording mode.
  • Page 15 CR-300HD User Manual Recording with built-in battery LED Buttons Mode Description If you press and hold down the button for 2 seconds, booting Booting White White Green Green will be completed within 30 seconds. After booting is completed, the black box goes on Standby mode.
  • Page 16 Using the product Recording with external USB power (external battery) LED Buttons Mode Description Booting White White Green Green Booting is completed within 30 seconds of power-up. If the external power is supplied to the black box through the USB Normal port, booting will be complete and then the black box will switch to Green...

  • Page 17: Viewing Videos And Pictures

    CR-300HD User Manual Viewing videos and pictures Viewing on PC (connecting the black box) When you click “Open folder to view files using Connect the black box to the PC with the USB cable. Windows Explorer”, the folders containing videos and pictures will appear.
  • Page 18 Using the product Viewing on PC (memory card) Remove the Micro SD card from the black box and place When you click “Open folder to view files using it in the micro SD adapter. Use the memory card reader Windows Explorer”, the folders containing videos and for connection with a PC.
  • Page 19 CR-300HD User Manual Viewing on navigation device All video files are played in order from the latest files to Connect the video output cable from the black box to the oldest ones, regardless of the shooting modes. the navigation device.
  • Page 20 Using the product Playback screen You can play the recorded video on the navigation device as below. Previous file Repeat the current file If you press the button If you press the button, the while playing a recorded current video will replay from video, the previous file will the beginning.

  • Page 21: Settings

    Settings Before configuring the settings, find out about the video range of each recording mode and the number of files to be saved in the memory. Memory management The start and end recording times differ for each recording mode, depending on the resolution of the video. Mode Storage time for each recording mode Folder name...

  • Page 22: Memory Map

    Settings Memory map The maximum recording time and number of files for each recording mode are as follows: Shock/Motion Normal Emergency Taking Memory size Category detection Remarks recording recording pictures recording Max. size 7.8 GB 6.0 GB 0.6 GB 0.1 GB 16GB Max.

  • Page 23: Connecting The Black Box To Pc

    CR-300HD User Manual Connecting the black box to a PC Connect the black box to the PC with the USB cable. When you click "Open folder to view files using Windows Explorer", a folder with the executable file will be displayed as shown in the figure.

  • Page 24: Setup Program

    Settings Setup program Information display Displays the model name and the firmware version. Recording Mode Allows you to set a recording mode. Shock Sensitivity Adjust the shock sensitivity in Driving Auto Parking Mode and Parking modes. Set the method for accessing Parking mode to Manual or Auto (auto accessing 10 minutes after parking).

  • Page 25: Advanced Settings

    CR-300HD User Manual Advanced settings Video Quality Set the video resolution (Ultra High/ High/ Standard). Recording fps in Driving Mode Set the recording frames per second. Recording fps in Parking Mode Set the frames per second for video in Parking/Motion Detection Recording Video Recording in Black and White mode.

  • Page 26: Recording And Alarms

    Recording and alarms Recording LED Buttons Status Operation Voice When voice recording is OFF, press the button. Green Green Blue Blue Recording ON An alarm will sound and voice recording will start. Voice When voice recording is ON, press the button.

  • Page 27: Status Alarms

    CR-300HD User Manual Status alarms Status Alarm Status Alarm Booting sound & “Ding-Dong~ Video recording Playback mode for “Ding-Dong~ Video playback Start recording starts. ” recorded video mode. ” Emergency Turning off MIC “Ding~“ “Cha-Re-Rook“ (sound of projector) recording Turning on MIC “Ding-Dong~”...

  • Page 28: Management

    Management Firmware upgrade Download the latest firmware from the website. Unzip the downloaded firmware and copy it to the root directory of the memory card. Remove the Micro SD card from the black box and place it in the micro SD adapter. Use the memory card reader for connection with a PC.

  • Page 29: Cleaning And Storage

    CR-300HD User Manual Cleaning and storage Cleaning Storage If there is a foreign object on the lens, wipe it down with If you are not using the black box, remove it from your a soft cloth. vehicle and keep it indoors.

  • Page 30: Troubleshooting

    Troubleshooting The black box does not turn on. Booting is complete, but there is no sound. Check if the power (cigarette jack cord) is connected. (You On the Setup Program screen, check if the alarm volume is can record video for max. 4 minutes with a fully charged set to its lowest.
  • Page 31 CR-300HD User Manual The black box is recognized on the PC USB, but is There is no recorded video image. disconnected. Check if the black box booted properly. Connect the black box to the USB port of the PC main If only audio plays without a video image display, request board if possible.

  • Page 32: Specifications

    Specifications Item Specifications Remarks Model Name Finedigital CR-300HD Color/ Dimensions/ Weight Black/ 39x64x50mm/ 88g Memory capacity Micro SD 16GB/ 32GB Class 6 or above recommended Normal recording Records video in 3 minute intervals. Records video 5 seconds before and 35 seconds after impact Shock recording (40 seconds in total).

  • Page 33: Limited Warranty

    Limited Warranty This product is guaranteed against manufacturing defects for one (1) year (six (6) months for battery and accessories) from the original date of purchase. Finedigital’s sole obligation in the event of such defects during this period is to repair or replace the defective part or product with a comparable part or product at Finedigital’s sole discretion.
  • Page 34 www.FineVu.com...
