Summary of Contents for Flycomos TK02A
-

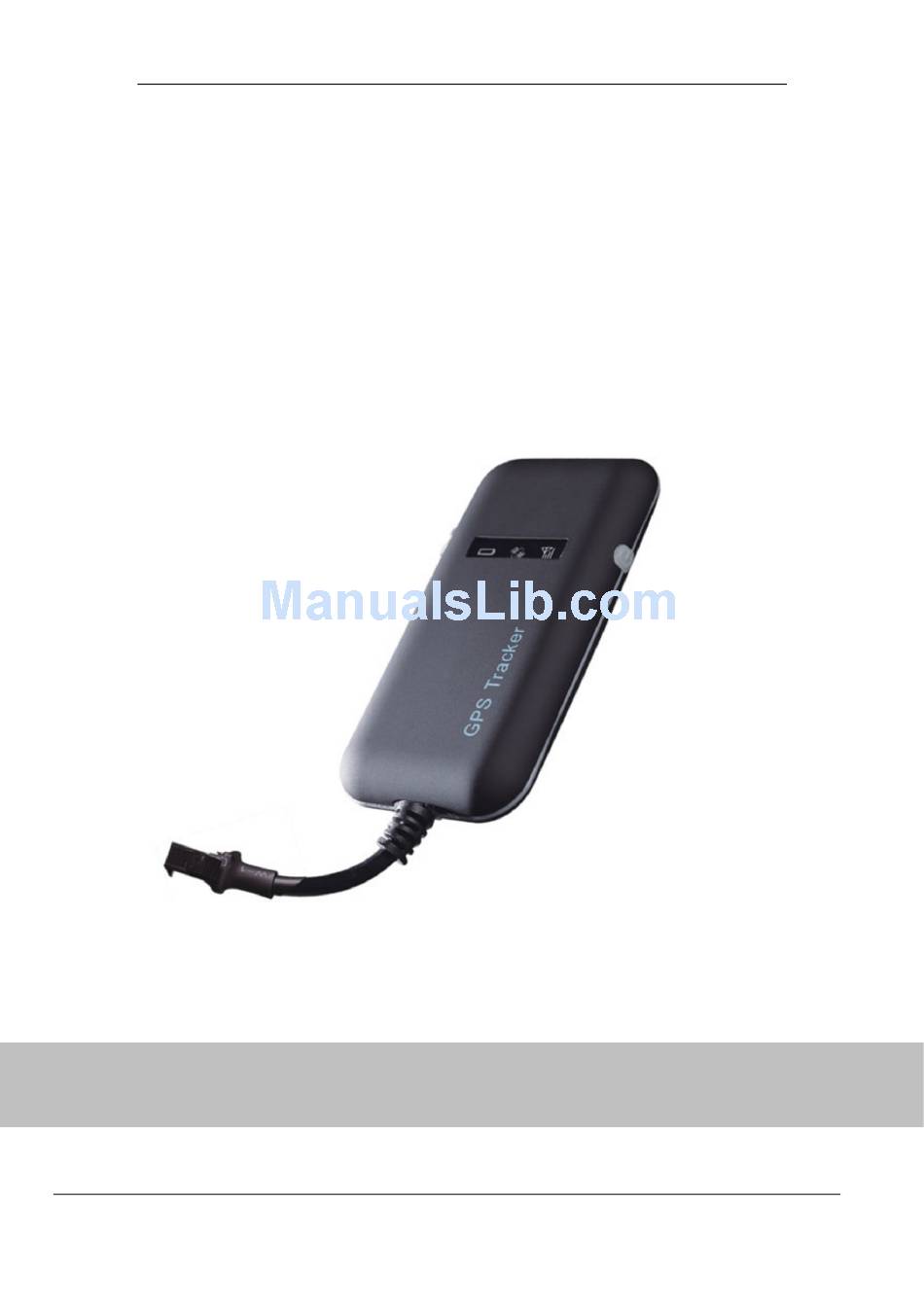

Page 1: User Manual
FUZHOU CANWELL IMPORT & EXPORT CO., LTD. User Manual （Version 2.1） This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker. Tel:0086-591-87610093, 87614264 Fax:0086-591-83640189,87279269 E-mail:qqmd@fcanwell.com... -
Page 2: Specification
FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 1. Accessories Charging cable (Standard) 2. Specification Dimension 90(L) x 45(W) x 13.5(H) mm Weight -30 ℃ - 70℃ Operation Temperature Operation Voltage 9-36vDC Humidity 20% - 80% GSM Frequencies 850/900/1800/1900 MHz GPRS Class 12 GPS Sensitivity -159dBm... - Page 3 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 3. Quick Operation Instructions Change APN parameter by sending SMS “APN,666666,APN name#” and “SERVER,666666,1,www ”to the device. 3.1 Locate current position by GPRS/SMS 3.2 GPS tracking platform: 3.3 Track by time interval via GPRS Send SMS “TIMER,666666,,time(second)#”...
-
Page 4: Led Indications
FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 4. My Device LED Indications GPS LED Indicator Flashing (1s on, 1s off) Searching GPS signal Continuously bright GPS fix Continuously dark No GPS fix or initializing GSM LED Indicator Quick flashing GSM initializing Continuously bright Connected to Server Sucessful Continuously dark... - Page 5 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 6.Method of installation 6.1 Preparation before installation 1)Open the packing box to check whether the type of device is correct and whether the accessories are included. 2)This product is a high-tech electronic device, installation should be undertaken by a professional.
- Page 6 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 6.3 Selecting installation place and fixing it.There are two kinds of installation: covert and non covert. If you need the covert installation, please refer installation to an auto electrical contractor. Note: 1) To prevent theft of the GT02A,the device should be installed as covertly as possible.
- Page 7 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. - Under the dash board below the front windshield; - In the parcel shelf in the rear; - In the front bumper( non-material face), please ensure the device cannot get wet; - Under the wiper version (non-metal), please ensure the device cannot get wet;...
- Page 8 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 8. Power on/ off 8.1 The device will power on automatically when connected to power. During normal operation, red power LED flashes, while blue GPS LED and green GSM LED keep lighting. During signal searching process, GPS or GSM LED will flash.
- Page 9 FUZHOU CANWELL IMPORT & EXPORT CO., LTD. check the installation position of the device, making sure it is not being shielded by any metal. 10.2 If GSM can not receive the signals normally, please check whether SIM card is installed correctly or there is no GSM signal at the current location , such as a basement parking, please drive to a place covered by GSM signal.
-
Page 10: Sms Command
FUZHOU CANWELL IMPORT & EXPORT CO., LTD. 11.SMS command Password,old password,new password# Change password, default password:666666 Example:Password,666666,777777# Change password from 666666 to 777777 Recover,new password# Change password to default password:666666 Example:recover,777777# Change password to 666666 Set server parameter.mode:0,IP mode; Server,password,mode,IP/DNS,port,0# mode:1,DNS Mode.
