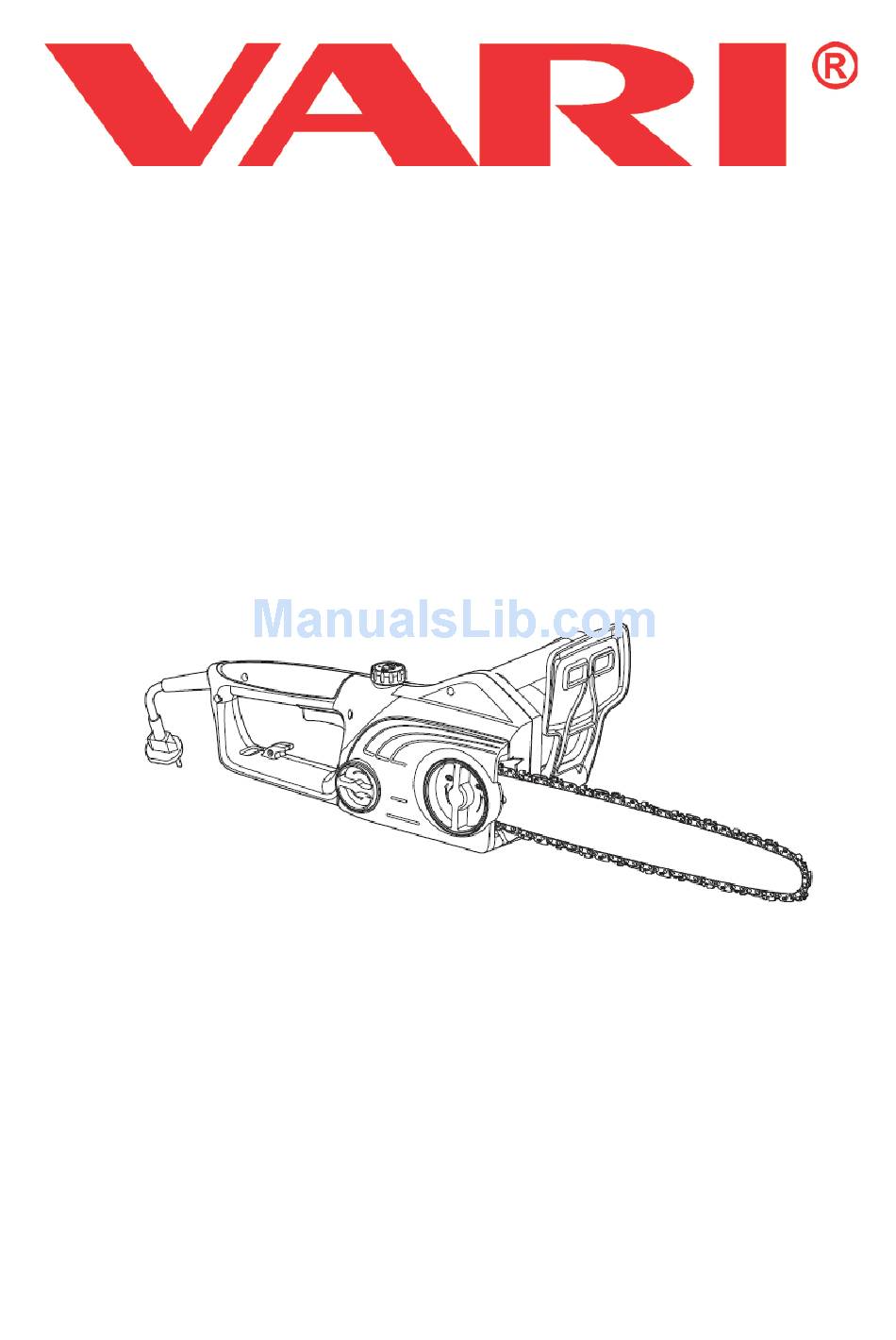

- Page 1 Electric chain saw VARI 2300 W Instructions for use (Original instructions for use) 2010...
-
Page 2: Table Of Contents
Contents Description of symbols ........................2 General safety instructions ......................3 Special safety instructions ......................5 Description of machine parts ......................6 Bar and chain assembly (Fig. 1-4) ....................6 Safety chain brake ..........................7 Switching On/Off ...........................7 Electric motor safety system ......................7 Maintenance ..........................8 Chain sharpening ...........................8 General suggestions for cutting ......................9 Specifications .......................... -
Page 3: General Safety Instructions
Remove the plug from the mains immediately if cable is damaged or cut. Hold the chain saw with both hands. Right way of operation. Bar length 400 mm, maximum cutting length 370 mm. Double insulation. Recycle unwanted materials instead of disposing of them as waste. -
Page 4: Personal Safety
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD with a tripping current of 30 mA or less) protected supply. -
Page 5: Special Safety Instructions
Special safety instructions 1) Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain. -
Page 6: Description Of Machine Parts
21) Contact of guide bar tip with any object should be avoided. Tip contact may cause the guide bar to suddenly move upward or backwards which may cause serious injury to user. 22) Do not operate in rain. 23) Disconnect the saw from power supply when not in use, and before performing maintenance or adjustments. -
Page 7: Safety Chain Brake
7) Adjust chain tension knob (11) on “+” direction so that when lifting the chain and entire drive link is just visible. Ensure chain rotates smoothly on bar, fully tighten knob. 8) Do not over tense the chain as this will reduce life of chain bar and motor. 9) Do not under tense the chain as this will make it fall down while working. -
Page 8: Maintenance
Maintenance The following suggestions deal with the daily maintenance of the chain saw. If they could not be exhaustive, contact an authorised service centre. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. -
Page 9: General Suggestions For Cutting
General suggestions for cutting We suggest that you should cut utilizing the bottom of the bar; this way of operating diminishes the probability of injuring. Be careful when cutting with the top of the bar. Cutting logs Cutting a log resting on the two extremities First cut 1/3 of a diameter from the top. - Page 10 Felling a tree Before felling a tree, consider carefully all conditions including the intended direction of the fall, the natural lean of the tree, surrounding trees and obstacles, the wind direction and speed. Directional cut Cut a wedge (1/3-1/2 of tree diameter) out of the trunk on the side which you want the tree to fall.
- Page 11 How to cut the ramification and log...
-
Page 12: Specifications
Guaranteed level of acoustic performance L = 110 dB The electric chain saw VARI 2300 W is manufactured by SUMEC Hardware & Tools Co., Ltd., 1# Xinghuo Road, National Level Nanjing High-Tech Zone, Nanjing, 210061, P. R. China. Importer to EU and distributor: VARI, a.s., Opolanska 350, 289 07 Libice nad Cidlinou, Czech Republic. -
Page 13: Instructions For Ordering Spare Parts
All components should be ordered in the nearest service shop or at your dealer’s. In the case of any confusion concerning the spare parts or technical issues, the commercial or customer-service departments are prepared to answer all your inquiries. Address of the seller VARI, a.s. phone: (+420) 325 607 111 Opolanska 350... -
Page 14: Spare Part List
Spare part list... - Page 15 Pos. Part No. Name Pos. Part No. Name 410703 power cord 411831 washer 419016 power cord protector 410705 micro switch 401705 cord restrainer B400025F screw ST4.2x16 452001 left housing 452007 medium cover 452702 motor carbon brush 104605 bearing 6001RS 452003 rear cover 452703 motor armature...
-
Page 16: Declaration Of Conformity
40 cm Electric chain saw VARI 2300 W is equipped with a strong engine with an input of 2300 W. This chain saw has a bar with a length of 40 cm. Thanks to its low weight, the chain saw 2300 W is a perfect helper for removal of shrubbery, felling of smaller trees and splitting of wood material. - Page 17 Place of issue of the declaration of conformity: Libice nad Cidlinou Date: 13.4.2010 Name, surname and function of the person authorized to sign this EC declaration of conformity: Jiří BELINGER, Director General and Chairman of the Board of Directors, VARI, a.s. Signature: Stamp:...
-
Page 18: Letter Of Guarantee
GUARANTEE CONDITIONS Subject of warranty: Warranty relates to the basic product including accessories supplied by VARI, a.s. Warranty period: Warranty period for the product and accessories supplied with the product is 24 months from the date of sale to the purchaser. - Page 19 Warranty inspection 1 Warranty inspection 1 Date: ………………………………………Person in charge: ………………………………………………………… Machine model: ………………………………… Service shop stamp and signature Serial No.: …………………………… Warranty inspection 2 Warranty inspection 2 Date: ………………………………………Person in charge: ………………………………………………………… Machine model: ………………………………… Service shop stamp and signature Serial No.: ……………………………...
