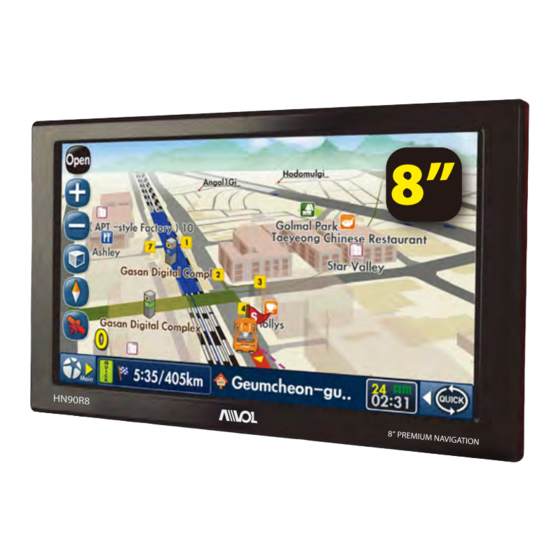

Summary of Contents for Avol HN90R8
- Page 2 Precautions when operating the navigation (gps) 1) In some instances, the road found by this product or the voice guide may not coincide with an actual road. * Please follow the actual traffic guides, regulations and directions. * Names for intersections, directions and facilities may not coincide with the actual names and some data may have been omitted.
- Page 3 7) When updating map and software, user-registered information like registered places and recent destinations may be deleted. 8) If a sharp object is used on the touch screen or if too much pressure is applied, it may lead to damage or a breakdown. (It will be charged to repair damaged LCD panel by customer's inadvertent.) 9) If the product is exposed to direct sunlight for a long time, it may become a cause for a breakdown.
-
Page 4: How To Install
5) Video files can be played without source conversion (Maximum 4Mbps) subtitle is supported. * Video files supported:MPEG4, DivX, XviD (If not supported format, video source conversion is necessary) 6) When using a memory stick, use an extension cable with an electromagnetic shielding function and make sure it is separated from the GPS by a fixed distance since the memory stick may affect the GPS reception sensitivity. - Page 6 Power cable Buffer Cushion Window mount SD card reader (For use in both T-DMB antenna 2~8GB) Camera cable SD card (Optional) Remote controller User's manual and (Optional) warranty card Map manual ※ Jack Standard...
- Page 7 1. Features 1) Faster booting and searching in about 5 to 7 seconds. 2) 8" wide digital LCD panel (Resolution : 800 x 480) with high brightness of 450 cd. 3) Highly sensitive GPS engine. 4) High performance T-DMB/DAB. 5) Various PIP function. - Navi + DMB/ Navi + DAB/ Navi + external input/ Navi + video 6) Analog clock function.
-
Page 8: Video Playback
3. MP3 playback 1) MP3 music files can be played.(MP3, OGG) ① Photos, electronic books, electronic memos and navigation may be used while listening to music. ② One song and all songs repeat function can be selected and an interval search function is available. 2) A desired song can be selected immediately with previous and next song select function. -
Page 9: Other Functions
6. memo 1) Since it is possible to write a memo by hand using a cursive script, memos can be written conveniently while driving. 2) Since it is a touch screen type, memos can be written directly with a touch pen. 3) A list of about 1000 items can be stored.(Depending on the volume at a memory, degradation in storage files is also possible) 4) Since stored memos (Stored in a memo folder of memory card) are displayed in a list,... - Page 10 GPS external antenna terminal Window mount holes speaker Main label KCC certification label SD Card Slot USB input terminal External T-DMB AV input terminal antenna Camera input terminal AV output terminal Power Jack (USE DC 12V~24V) product serial No. Windows CE certification label -10-...
-
Page 11: Main Screen
Main Screen ① ② ③ ④ : Navigation function ① : DMB function ② : Video function ③ ⑤ : Music function ④ : Clock function ⑤ : Setting function ⑥ : AV IN function ⑦ ⑦ ⑩ ⑨ ⑧ ⑥... - Page 12 From the navigation screen, it is possible to select between T-DMB, DAB, external input(1, 2) and video and watch it on PIP. 1. PIP operation screen organization ① MAP screen ② PIP MENU screen ③ PIP 3/4 MENU screen ④ PIP 1/2 MENU screen 2.
- Page 13 <T-DMB SKIN screen> <DAB SKIN screen> <T-DMB/DAB SCAN screen> SCANNING..Volume UP / DOWN Channel LIST UP / DOWN Select FMT channel T-DMB Channe UP / DOWN Convert to PIP screen T-DMB broadcast SCAN Convert to T-DMB/DAB broadcast Mute T-DMB Memo Simple memos can be stored in cursive script.
- Page 14 ☞ For additional functions, electronic album, electronic book, browser and external input functions can be used. Volume Down Volume Up Mute External input EXIT Photo Stop View a file Previous file Next file Slide file Volume UP / DOWN EXIT Mute Zoom out Zoom in...
- Page 15 ① ② ① Touch compensation function - This is a function to adjust the touch position if the touch position is skewed while being used. ③ ② Environment Setup Alarm ③ AUTO DIMMING function ④ This is a function to automatically adjust the ⑤...
- Page 16 Category Specifications TCC-9101/1,440Mhz(1.44G Grade) Dual Core Open GL Win CE6.0 Main Memory ROM NAND Flash 512MB / DDR2 256MB External Memory SD Memory, USB HOST 2.0 Display 8" Wide Digital Panel (Resolution : 800 x 480) with high brightness (450cd/m2) Touch Screen Touch Screen u-BLOX, 32Channel, NMEA, 9600bps, Patch Antenna...
