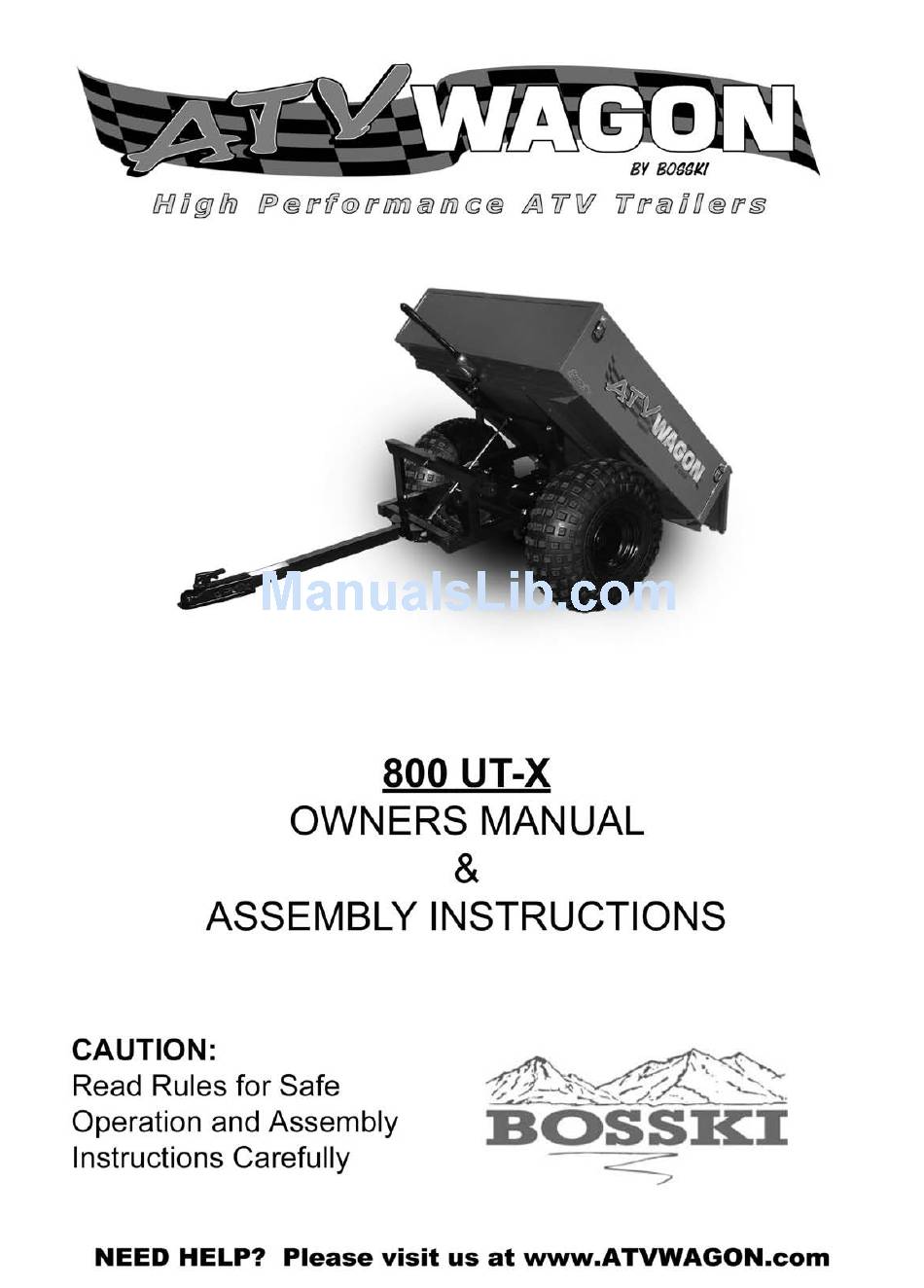

Summary of Contents for Bosski 800 UT-X

  • Page 4 Assembly instructions for 800 UT-X knock down 1. Unpack parts from inside trailer bed, saving 2. With the help of 2 people, turn trailer bed the cardboard lid to be used in Step 18. upside down for assembly. Use cardboard from packaging to protect bed rails- be careful not to damage tailgate pins or D-rings.
  • Page 5 4. Mount subframe struts with shortest section of struts closest to the handle, photo left. Each strut is either Right or Left. Place each strut on the inside portion, flush with the bed, use bolts from package labeled AX. Leave bolts loose- do NOT tighten until Step 8.
  • Page 6 6. Take assembly portion from STEP 5 and install to struts as shown in photo above, with the taillight pointing toward the tailgate. Use pivot bolts from package labeled D. 7. Install cross bar to the struts with direction of ‘angle iron’ on the bottom as shown, use bolts from package labeled EX.
  • Page 7 10. Install slam latch hook by aligning the angle of latch to the striker on the bed rest. See pictures above for proper hardware order. Tighten small bolt from hook to spring loaded pin only tight enough so hook and pin still move freely. Use hardware labeled I. 11.
  • Page 8 Mount each wheel/tire assembly to the hubs with the 4 tapered lug nuts. Install with the valve stems facing away from the frame. Tighten the nuts gradually, alternating between nuts opposite each other to assure even seating of the wheel onto the axle.
  • Page 9 17. First bolt the piston of the gas shock and cable to the cross bar as shown in the photo left. Next raise the frame to position the mounting point for easier assembly. Finally bolt the other end of the gas shock to the frame including the other end of the cable.
