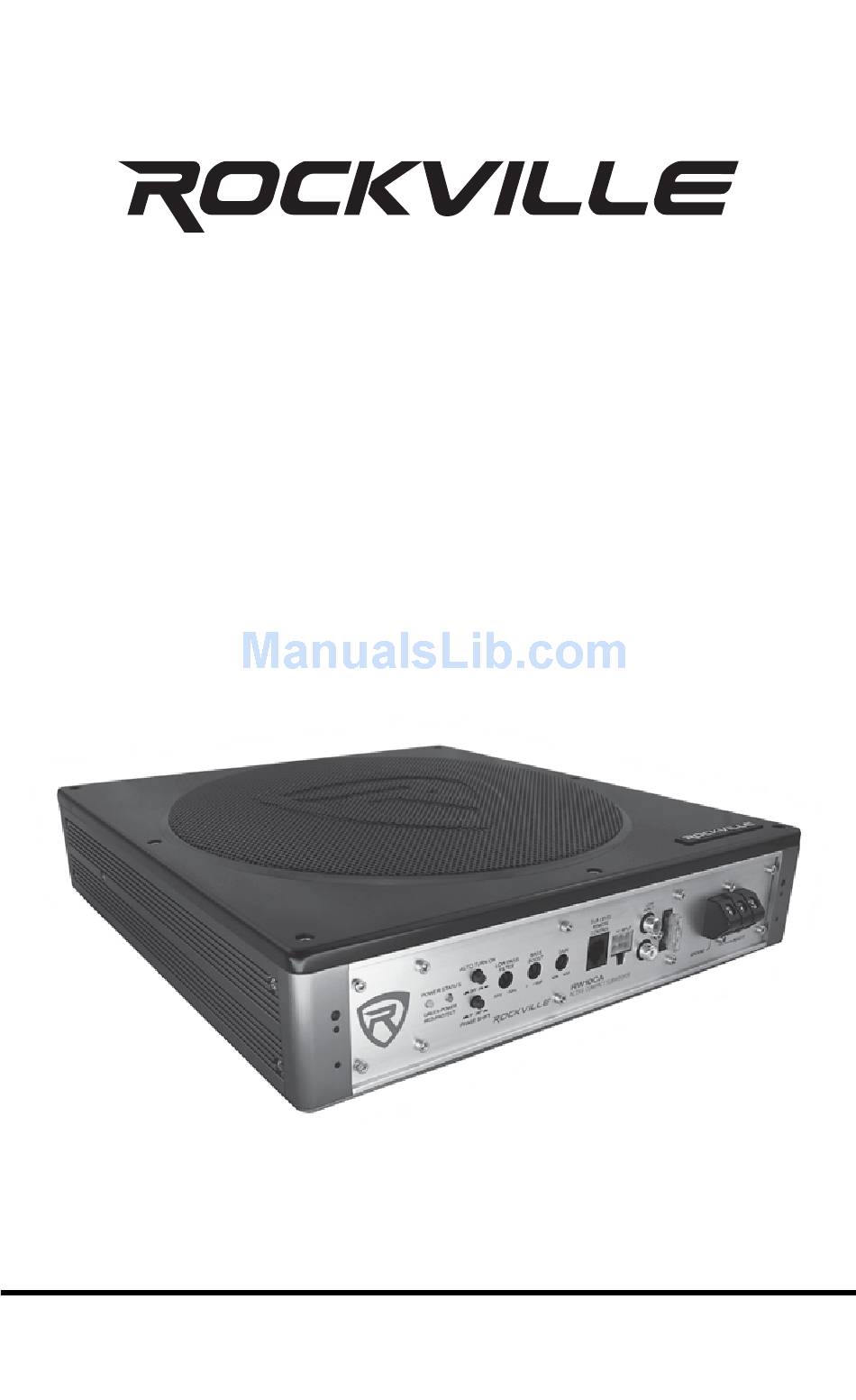

- Page 1 RW8CA 8-Inch Low Profile Powered Subwoofer RW10CA 10-Inch Low Profile Powered Subwoofer User's Manual...

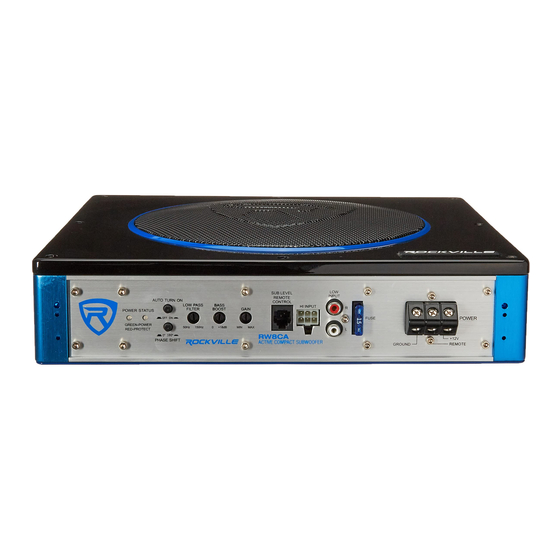

- Page 2 panel controls and features 9 10 POWER STATUS LED BASS BOOST This bi-color LED glows green when The bass boost feature will increase power is on and no problems are the sound level in the bass frequencies. present. If one of the protection circuits INPUT GAIN CONTROL comes on, it will change to red.
- Page 3 panel controls and features 9 10 LOW LEVEL RCA INPUTS Low level inputs are the recommended way to introduce the audio signal to the subwoofer if RCA outputs are present on your head unit or other signal source (such as a sound processor). FUSE RW8C uses a 15 Amp fuse.
- Page 4 Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Most trunk or hatchback installations will require a 15-20 feet RCA cable, while pickup trucks and under-seat installations will require a 6-12 feet RCA cable. Always use a high quality cable.
- Page 5 Power Connections Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire. Connect the remote terminal to the remote output of head unit using 16 gauge ( or heavier ) wire.
- Page 6 Remote Level Control Connection Remote Install the remote control securely under the Level Control dash or in a similar location where using it will not distract the driver. Specifications MODEL: RW8CA RW10CA Max power 600W 800W <0.4% <0.4% >95dB >95dB...
- Page 7 Troubleshooting If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems. SYMPTOM POSSIBLE REMEDY Amplifier will not Check to make sure you have a good ground connection.
