GE Spacemaker JVM1430WD Dimensions And Installation Information

JVM1430BD/WD
GE Spacemaker 1.4 Cu. Ft. Capacity Over-the-Range Microwave
®

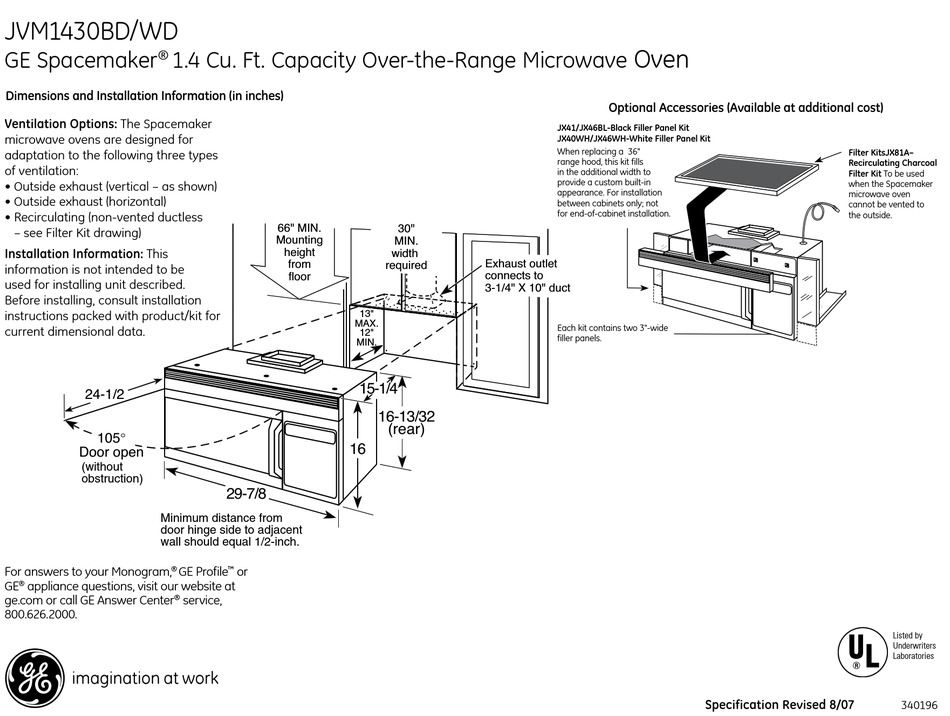

Dimensions and Installation Information (in inches)
Ventilation Options: The Spacemaker
microwave ovens are designed for
adaptation to the following three types
Over-the-Range Microwave Oven
of ventilation:
Dimensions (in inches)
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless
– see Filter Kit drawing)
Installation Information: This
information is not intended to be
used for installing unit described.
Before installing, consult installation
instructions packed with product/kit for
current dimensional data.
24-1/2
105°
Door open
(without
obstruction)
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
66" MIN.
Mounting
height
from
floor
13"
MAX.
12"
MIN.
15-1/4
16
29-7/8
or
™
service,
30"
MIN.
width
Exhaust outlet
required
connects to
3-1/4" X 10" duct
16-13/32
(rear)
Oven
Optional Accessories (Available at additional cost)
JX41/JX46BL-Black Filler Panel Kit
JX40WH/JX46WH-White Filler Panel Kit
When replacing a 36"
range hood, this kit fills
in the additional width to
provide a custom built-in
appearance. For installation
between cabinets only; not
for end-of-cabinet installation.
Each kit contains two 3"-wide
filler panels.
Specification Revised 8/07
Filter KitsJX81A–
Recirculating Charcoal
Filter Kit To be used
when the Spacemaker
microwave oven
cannot be vented to
the outside.
Listed by
Underwriters
Laboratories
340196
