- Page 1 DMX-8631E/F/U Installation Guide Hi-Copy DMX-8631 E/F/U User’s Guide Revision 1.0...

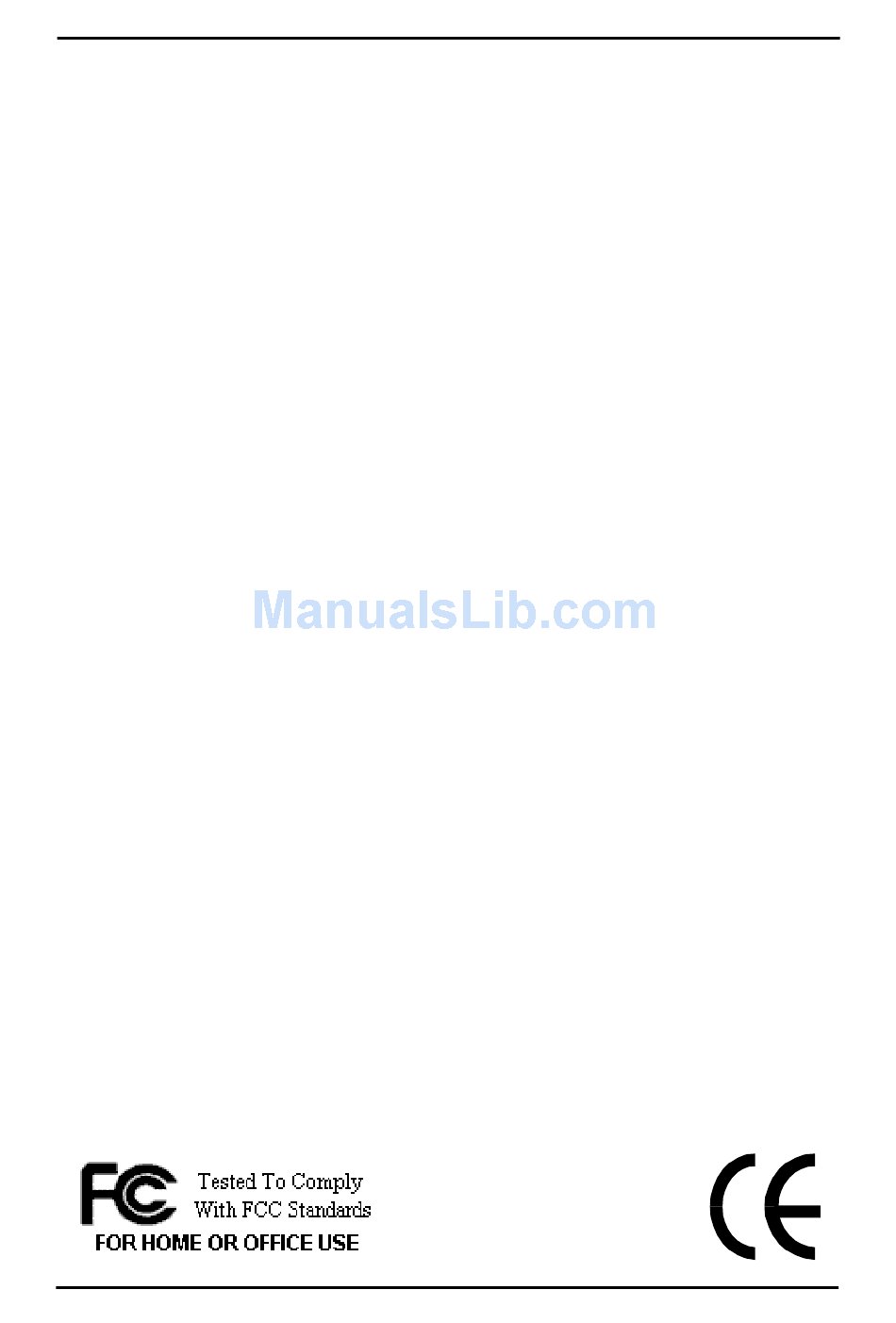

- Page 2 DMX-8631E/F/U Installation Guide This device complies with Part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includ- ing interference that may cause undesired operation.
- Page 3 DMX-8631E/F/U Installation Guide Welcome to the DMX-8631E/F/U User’s Guide Thank you for your purchasing of DMX-8631E/F/U CD duplicator controller. DMX-8631E/F/U features very easy operation with three LEDs on front panel to inform you the operation result. DMX-8631E/F/U uses IDE interface, one CD-ROM and one CD-R/W drive are needed for proper operation.
-
Page 4: Easy Setup
DMX-8631E/F/U Installation Guide 3. Easy Setup Open the case : 1. Release the screw on the back plane. 2. Remove top cover by sliding it toward backplane 1~2 cm, then pulling it up. Push clips on both side panels, to remove the front door. Secure CD-ROM and CD-R (or CD-R/W) drives with attached screws and accessories. - Page 5 DMX-8631E/F/U Installation Guide 1. Install DMX-8631E/F/U controller (and 1394 or USB bridge card, if any), seat it (or them) properly inside the case. 2. Configure CD-RW as master device, and CD-ROM as slave device. Set jumpers on both devices to correct positions. 3.
-
Page 6: Front Panel
DMX-8631E/F/U Installation Guide 4. Front Panel : There are three push buttons and three LEDs on the front panel. Their functions are : Mode : This key has to work with Run and Speed keys to enter special function modes. Mode + Run : Upgrade controller firmware. -
Page 7: Copy Mode
DMX-8631E/F/U Installation Guide 6. Operation for quick duplication 5-1. Power on, a short beep will sound, and green LED lights up. 5-2. Open doors of both CD-ROM and CD-RW drives. 5-3. Put source CD into CD-ROM drive. 5-4. Put blank CD into CD-RW drive. 5-5. - Page 8 DMX-8631E/F/U Installation Guide Update firmware Mode: Operation Error Message Put update CD into CD-ROM. One long beep sounds, Press and halt Mode key, then press Run key. Release Run key, and finally, release Mode key. The update is proceeding. Finish update, all LEDs will be turned off.
- Page 9 DMX-8631E/F/U Installation Guide Accept license agreement. Click “Yes”. Click “Yes” to restart computer. Power on DMX-8631F, after buzzer sounds a short beep, press and halt RUN key for a period of 5 seconds, then three LEDs on the front panel light, release key. At this moment, PC (or Mac) can take control.
- Page 10 DMX-8631E/F/U Installation Guide Remove IDE CD-ROM, such as IEEE 1394 CD-ROM. Select it by clicking on it, then click “OK”. Click “OK”. CD-ROM removed. Repeat again to remove CD-RW drive. Both drives are removed. Removal icon disappeared. Disconnect 1394 cable from back panel of DMX-8631F. Power off DMX-8631F.
- Page 11 DMX-8631E/F/U Installation Guide 9. USB2.0 connection with PC & Mac (DMX-8631U only) : The DMX-8631U can be connected to PC or Mac through a USB interface. A USB Storage Driver must be installed on your PC (or Mac) before the connection is made. Detail about installation can be found in next section.
- Page 12 DMX-8631E/F/U Installation Guide DMX-8631U 1. If connect to a default USB1.1 port of PC, please select writing speed for the external CD-RW drive. If connect DMX-8631U to a USB2.0 host controller in PC, you must first install USB2.0 Windows driver for that controller, then select writing speed for the external drive.
- Page 13 DMX-8631E/F/U Installation Guide Step 3 : Computer automatically setup and finish. Step 4 : Check your Windows Control Panel/Add/Remove Programs, you will find four new programs as follows: TPP storage Driver Installation USB Storage Adapter (TPP) USB Storage Adapter V2 (TPP) USB Storage Adapter V3 (TPP) Removal Icon Removal Icon shown when connect...
- Page 14 DMX-8631E/F/U Installation Guide 9.2 Mac OS 9.X Driver Installation Step 1 : Copy the driver file “CYMSC_MACOS9_3_2.hqx” to Mac hard disk. And double click this file. Step 2: Open the folder “Cypress Msc Driver Installer”, And double click on “Install Cypress Msc Driver”.
- Page 15 DMX-8631E/F/U Installation Guide Install and Removal of External Drive on Mac OS 9.X Connect DMX-8631U to Mac, there is no message shown on the screen until a CD is put into the drive of DMX-8631U. Select “Prepare”. CD shortcut will be displayed if a CD (or CD-R/CD-RW) is put into the drive.
- Page 16 DMX-8631E/F/U Installation Guide 9.3 Mac OS X Driver Installation Step 1: Copy the driver file “CYMSC_MACOSX_1_2.hqx” to Mac Hard disk. And double click this file. Double click on“ Cypress USB Storage.pkg”. Step 2 : Click the lock to make changes. Step 3 : Input the user name and password, Click ”OK”.
- Page 17 DMX-8631E/F/U Installation Guide Step 4 : Welcome to the Cypress USB Storage Driver Installer. Click “Continue”. Step 5 : Click “Continue”. Step 6 : Select a destination volume to install the Cypress USB Storage. Click “Continue”.
- Page 18 DMX-8631E/F/U Installation Guide Step 7 : Click install to perform a basic installation of this software package. Click “Install”. Step 8 : The software was successfully installed. The computer will restart in 30 seconds. Install and Removal of External Drive on Mac OSX Connect DMX-8631U to Mac, there is no message shown on the screen until a CD is put into...
- Page 19 DMX-8631E/F/U Installation Guide A CD shortcut will be displayed if a CD (or CD-R/CD-RW) was put into the drive. You can use burning software such as Toast 5.1P2 to write the CD-R/CD-RW. Drag CD shortcut to Trash to remove the drive. 10.
