Summary of Contents for SSD NEB/3U

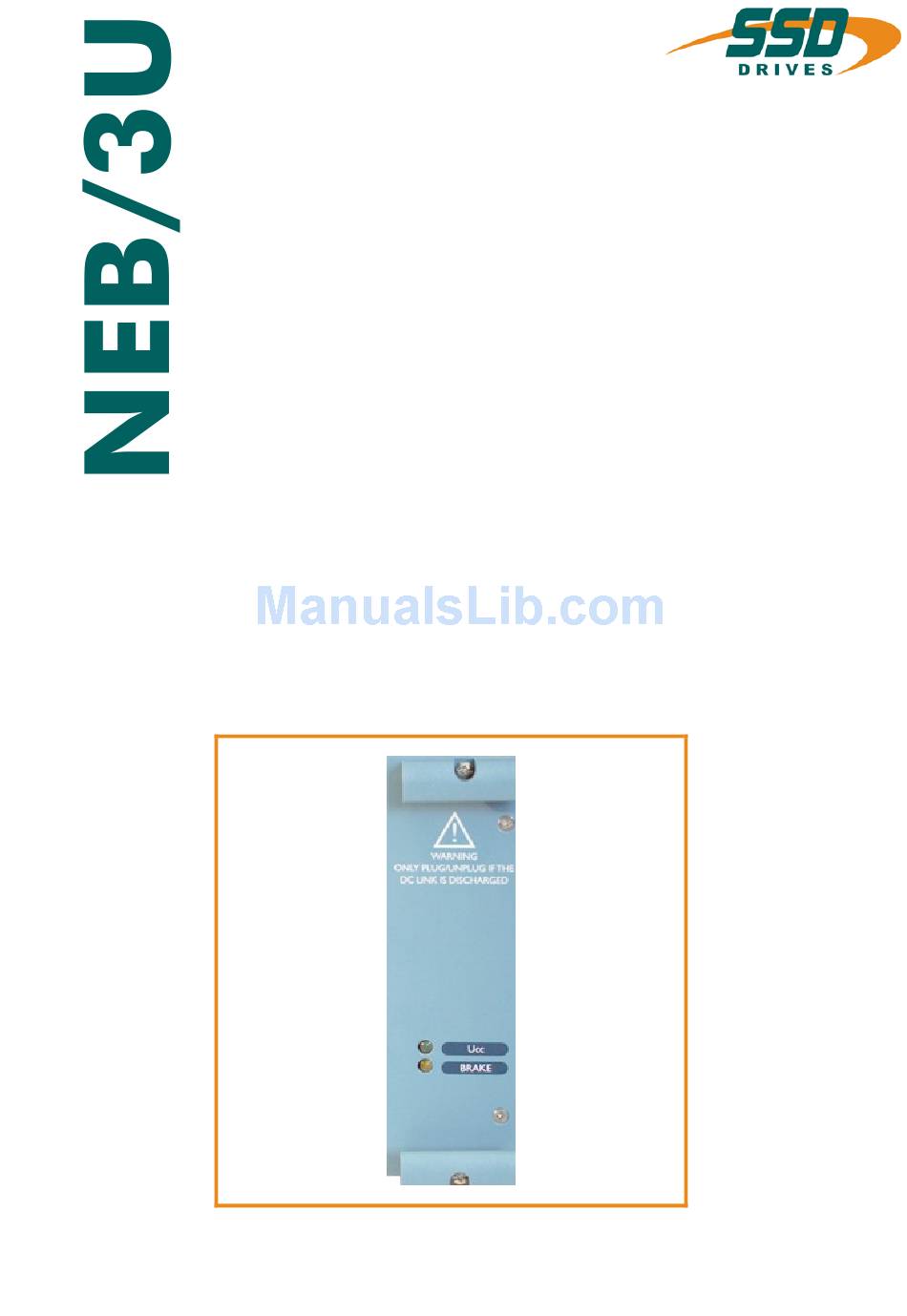

  • Page 1 Power supply plug-in module Product Manual 07-01-02-02-E-V0605.DOC...
  • Page 2 Changes are subject to change without notice. SSD Drives has registered in part trademark protection and legal protection of designs. The handing over of the descriptions may not be construed as the transfer of any rights.
  • Page 3: Table Of Contents

    The ballast power is adjusted in production! ................11 Fuses /Monitorings................. 11 Fuse for overload protection ......................11 Fuse for conducting path protection ..................... 11 Switching current limiting ......................11 Ballast monitoring ......................... 11 Update list ....................12 ________________________________________________________________________________________________________________________________________________________________________________________________________________________ 07-01-02-02-E-V0605.DOC Product Manual Type: NEB/3U...
  • Page 4: The Most Important Thing First

    These operating instructions present themselves as an overview of the technical data and features. Please read the operating instructions before operating the product. If you have any questions, please contact your nearest SSD Drives representative. Improper application of the product in combination with dangerous voltage can lead to injuries.
  • Page 5: Description

    The power-supply-plug-in module NEB/3 is connected to 1 or 3 * 230 V AC. The device makes from the power-supply voltage the rated voltage of 325 V DC for the intermediate circuit for the servo drive 635 from SSD Drives. The power supply module is located extremely left in the rack.
  • Page 6: Type Code

    Example for ordering information corresponding to the type code: NE B 10 -030 /3 A1 Code ballast input power 3U (appr. 128,4mm) 30W internal ballast input power 10Amperes continuous current Ballast circuit Plug-in power supply ________________________________________________________________________________________________________________________________________________________________________________________________________________________ Product Manual Type: NEB/3U 07-01-02-02-E-V0605.DOC...
  • Page 7: Front View, Power-Supply Plug-In Module

    Front view, Power-supply plug-in module Dimensions: Width approx. 40,0 mm (8 HP) Hight approx. 128,4 mm (3 U) Depth approx. 160,0 mm plus jutting out H15 strip Arrangement (standard): left rack socket ________________________________________________________________________________________________________________________________________________________________________________________________________________________ 07-01-02-02-E-V0605.DOC Product Manual Type: NEB/3U...
  • Page 8: Technical Data

    Type of protection: IP 00 according to DIN 40 050 Permissible ambient temperature: Operation: 0°C ... + 40°C in case of power reduction: up to + 55°C storage and transport: - 25°C ... + 85°C ________________________________________________________________________________________________________________________________________________________________________________________________________________________ Product Manual Type: NEB/3U 07-01-02-02-E-V0605.DOC...
  • Page 9: Assignment / Power Connectors

    +Ucc +Ucc Supply voltage 1* or 3* 230 V AC -Ucc DC bus voltage -Ucc -Ucc External Ballast resistor Ground Attention: With 1-phase connection clamps 14 and 16 are used as zero conductors "N". ________________________________________________________________________________________________________________________________________________________________________________________________________________________ 07-01-02-02-E-V0605.DOC Product Manual Type: NEB/3U...
  • Page 10: Miscellaneous

    Miscellaneous Guarantee: Only when using original SSD Drives component racks, drives and ballast resistors SSD Drives guarantees for 1 years . Plug in and out the module: The module may only be plugged in i.e. out when there is no voltage.
  • Page 11: Adjustments

    If the returned electric energy lets rise the voltage of the intermediate circuit above 385 V DC when braking, the corresponding drive switches off in dependence of the drive tolerance (+/- 5 %) with error message = "over voltage at DC-bus". Further information see 635 drive documentation (07-01-05-06-D-Vxx ) ________________________________________________________________________________________________________________________________________________________________________________________________________________________ 07-01-02-02-E-V0605.DOC Product Manual Type: NEB/3U...
  • Page 12: Update List

    Update list Version Amendment Chapter Date Name Remarks V05.16EHST96 None 11.03.99 K. Stadler ET-design Logos V0605 separate German / English SSD Drives 18.02.05 N. Dreilich ________________________________________________________________________________________________________________________________________________________________________________________________________________________ Product Manual Type: NEB/3U 07-01-02-02-E-V0605.DOC...
