Summary of Contents for BFT T-BOX

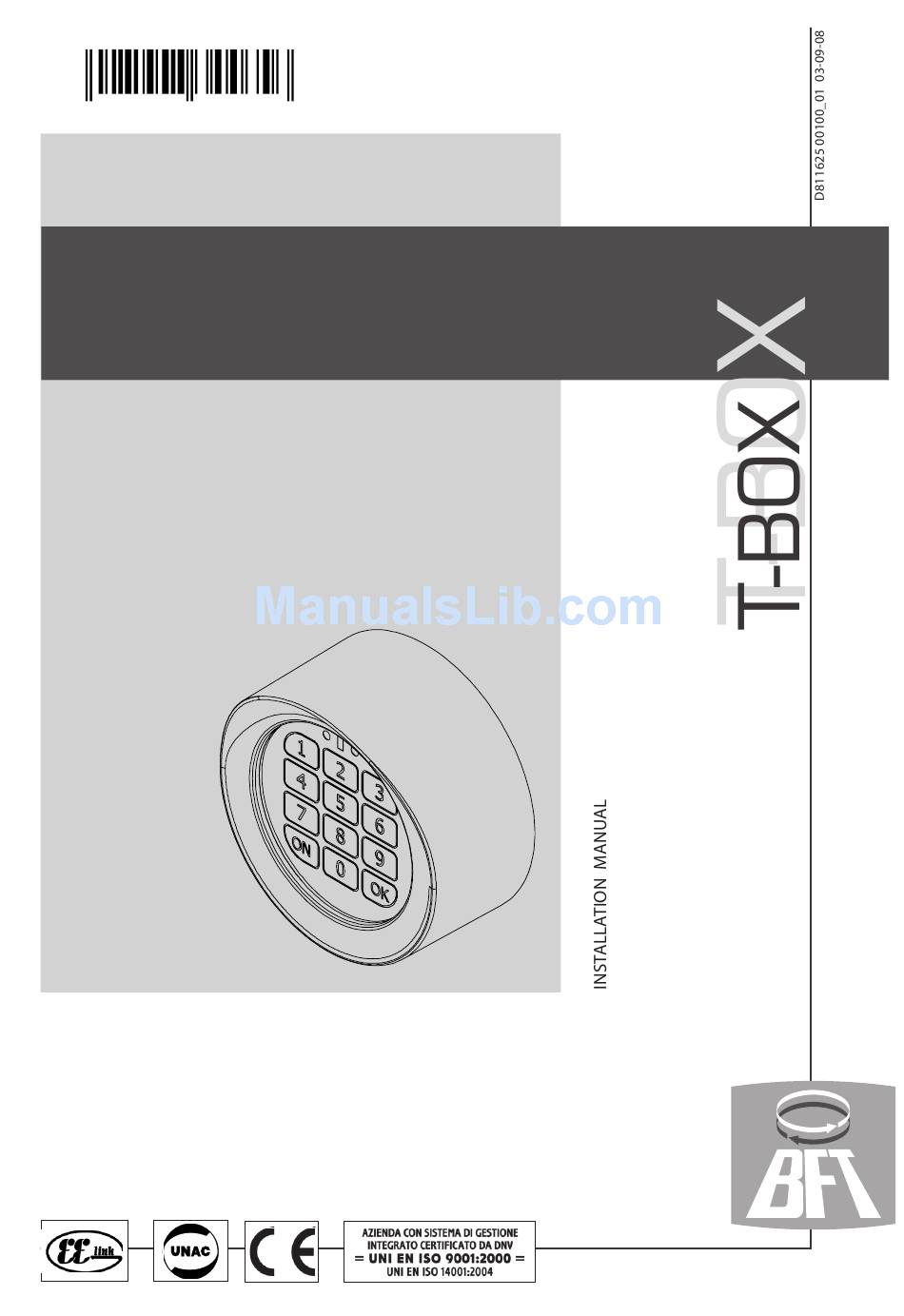

- Page 1 0 2 7 9 0 8 3 4 4 6 5 6 PROgRAMMABLE DIgITAL PUSHBUTTON PANEL...
- Page 2 OR Ø77x2 T-BOX -...
- Page 3 ---> 3333= CH 3 ---> 8888= CH 8 ---> 4444= CH 4 ---> 9999= CH 9 ---> 5555= CH 5 ---> 0000= CH 0 Timeout 5 min. Timeout 20’’ Follow the instructions relating to the receiver/control unit used! (beep x 2) T-BOX T-BOX...
- Page 4 Series of beeps 10” LED state = unlit. T-BOX -...
-
Page 5: Installer Warnings
• The user must avoid any attempt to carry out work or repair on the automation system, and always request the assistance of qualified personnel. • Anything which is not expressly provided for in the present instructions, is not allowed. MAINTENANCE System maintenance is to be regularly carried out by qualified personnel. When the T-BOX unit’s Red LED flashes after entering the correct code, it means the batteries are low. Repe- at the installation procedure in reverse and have the batteries replaced. T-BOX T-BOX... -
Page 6: General Outline
1) GENERAL OUTLINE opening with channel 1 and overhead door opening The T-BOX is a 10-channel transmitter. Each channel is with channel 2). The T-BOX has a sensor which, in case associated with a code to be typed on the keyboard. of poor light, activates keyboard lighting to make it The transmitter is powered by batteries, therefore no easier to enter the code. -
Page 7: Normal Use
Timeout 10’’ (x 4) WARNING: T-BOX will lockout after 3 consecutive incorrect codes are entered and will not accept further codes for 90 seconds. If another incorrect code is entered, T-BOX will lockout at the first attempt. 6 1 8 -... - Page 8 It is advisable to delete the codes of channels that are not associated with anything (e.g. code 2222, 3333, 4444, 0000 etc. when using a single control unit). 20 - T-BOX T-BOX...
- Page 9 Repeat new code Code added! WARNING: To add a code, you need to know the system password. T-BOX can handle up to 100 different codes. The new code will serve the same purpose as the existing code (activates the same channel).
- Page 10 Timeout 20’’ Enter old password (5sec) Timeout 20’’ Enter old password Timeout 20" Enter new password Timeout 20’’ Enter new password Password changed! DEFAULT PASSWORD: NEW PASSWORD: 22 - T-BOX T-BOX...
