Summary of Contents for SMART MAX GEOSYSTEMS VS1000

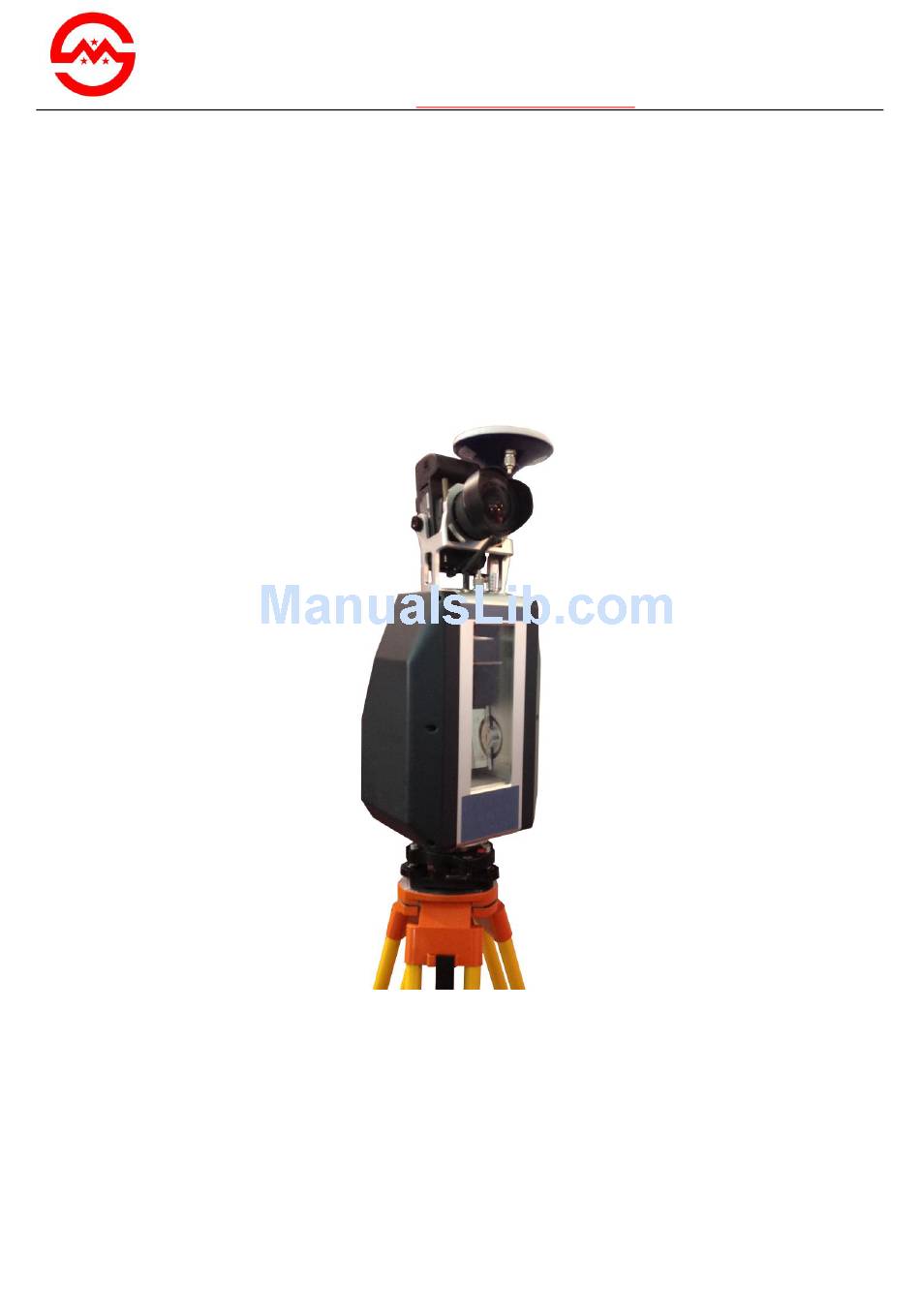

- Page 1 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com 3D Laser Scanner VS1000 User Manual...
- Page 2 Through an external full- frame camera Canon 5D Mark II, which can get the point cloud and image data from the measured object in each surveying. VS1000 Field-of-View up to 360° x 100° , angle control precision 5 ", the effective measuring distance 600m, Data acquisition speed of up to 36,000 points / sec, point accuracy ±...
- Page 3 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com 1.2 Specifications Instrument Type Pulsed, High-speed, Long distance 3D laser scanner Camera External Canon 5D Mark II Type VS1000 ± 1.2mm@50m Position Accuracy of single ± 50mm Distance measurement(50m) 5″ Angle(horizontal/vertical) Pulsed Type...
- Page 4 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com Built-in high accuracy tilt sensor, automatic compensation 24V DC（Built-in lithium battery） Power supply Power Power consumption <35W Duration >8 h (room temp) Operating temp. 0℃ to +40℃ Storage temp. -25℃ to +65℃ Environmental...
- Page 5 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com Click “Enter the home page…” into the home page for scanning setting and management. 2.2“Home Page”——Main Interface This interface display the settings of the project name, site name, scan mode and other information, “Photo” Button for the camera setting,“Setting”Button for the system setting,“Modes”Button for the corre...
- Page 6 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com The scanning range and the angular resolution for user setting. 2.3 Setting- Main Menu Main menu include:“Project&Scanning Setting…”,“Position Setting…”,“System Setting…”,“Auxiliary Equipment…”,“Status…”,“File Browser…”&“Scanning Mode Details…”. 2.3.1 Project &Scanning Setting “Project &Scanning Setting”page for the management of project, wireless network, log files, position and camera.
- Page 7 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com “Position Setting”page for the origin position setting of scanner, choosing “Auto” setting the origin position automatically rely on internal tilt sensor and GPS board or choosing “Input ” manual input the GPS coordinate and tilt data.
- Page 8 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com “Reset”and“Shut”buttons. 2.3.3.1 Network& Wireless 2.3.3.4 Interface Setting 2.3.3.2 Version & Type Information 2.3.3.5 Date & Time Setting 2.3.3.3 Scanner Information 2.3.3.6 Power Management 3.3.3.7 System Update In“System Setting”page the IP address, Language, Screensaver Time, Date&Time can be set, Version, Type and Scanner Information can be looked up, and also include the Power Management and System Update.
- Page 9 SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com Internal GPS Data Manage the Camera 2.3.5 Status “Status”page, Scanner working state can be looked up. 2.3.6 File Browser “File Browser”page, view the scanned engineering documents. 2.3.7 Scanning Mode Details...
-
Page 10: Quick Start
SMART MAX GEOSYSTEMS CO., LTD www.smartmaxgeosystems.com info@smartmaxgeosystems.com “Scanning Mode Details”page, view the last scanning data. 3 Quick start a. Set project name, Home page“Setting”-“Project &Scanning Setting…”-Project Name（Default Project1）- “OK”; b. Set Scan Position name, Home page“New”-Set Scan Position name（Default ScanPos001）;...
