eBridge 4PCRX Installation Manual

Ip over coax receiver four (4) channel receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IP over Coax Receiver

Installation Guide

Models Include:
eBridge4PCRX
- Four (4) Channel Receiver
Z1409
I.T.E. 43KC
More than just power.™
Rev. 072412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4PCRX and is the answer not in the manual?

Questions and answers

Summary of Contents for eBridge 4PCRX

  • Page 1: Installation Guide

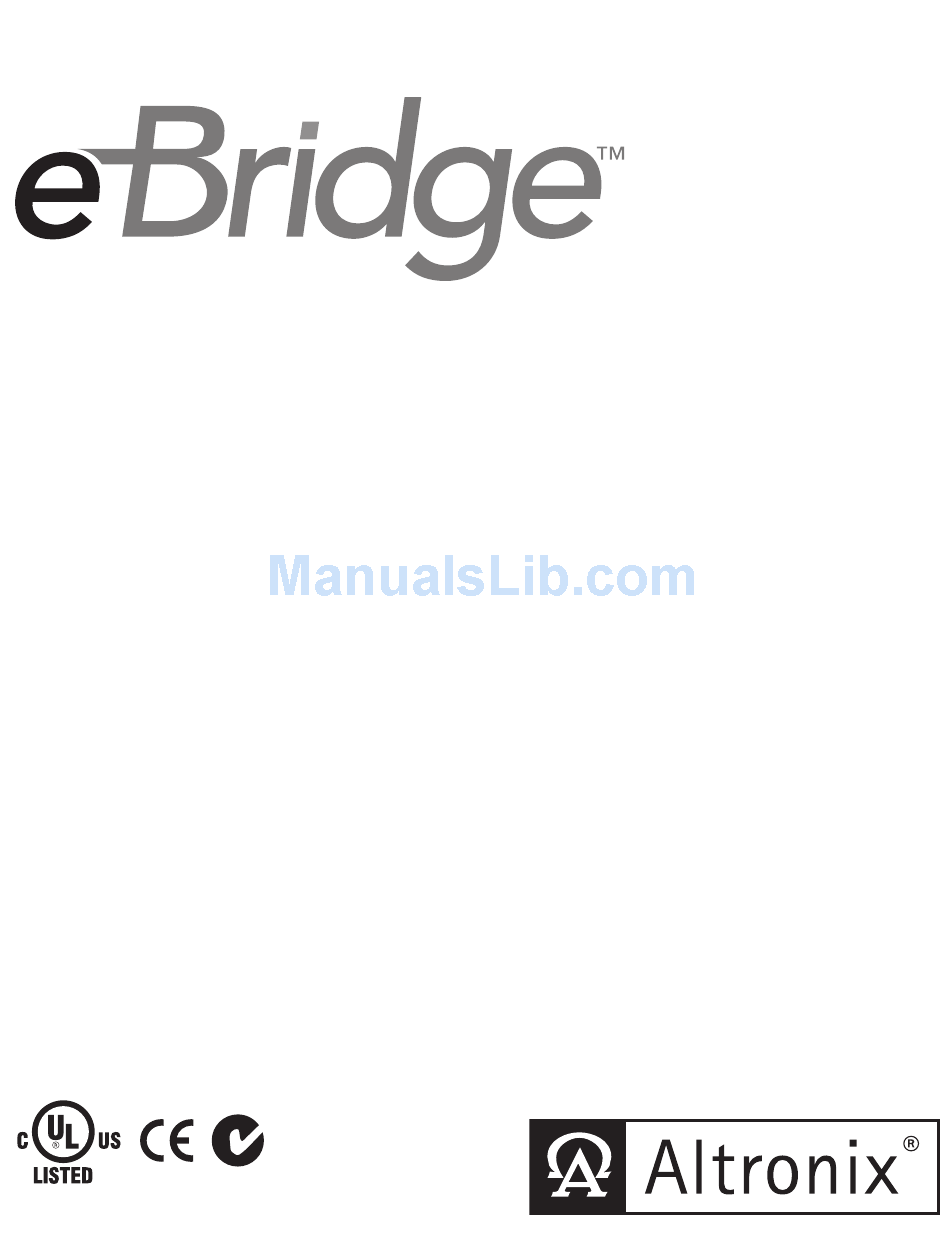

    IP over Coax Receiver Installation Guide Models Include: eBridge4PCRX - Four (4) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072412...

  • Page 2: Installation Instructions

    Overview: The eBridge4PCRX is a CAT5 to Coax cable Managed Ethernet Midspan receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. An eBridge4PCRX receiver sends power over the coax to the eBridge1PCT 15.4W (PoE) or eBridge1PCTX 30W (PoE+) transmitter under PoE protocol. The eBridge1PCT/PCTX in turn delivers that power to a PoE enabled camera or IP device.

  • Page 3: Technical Specifications

    5. Connect Coax cable to BNC connector marked [Data In] (Fig. 1, pg. 2). Note: The eBridge is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is important to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as a PC graphics card to present a quality image.
  • Page 4 Single IP Camera: Fig. 2 RE2 - Rack Battery Enclosure (cross section of rear) with four (4) 12VDC/7AH batteries (Altronix model # BT126) eBridge1PCTX eBridge1PCTX IP Camera IP Camera eBridge1PCTX eBridge1PCTX IP Camera IP Camera BAT4 BAT3 BAT2 BAT1 500m 500m 500m 500m...

  • Page 5: Network Type

    c. Click the Networking tab. Under this connection uses the following items, click either Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), and then click Properties. d. To specify IPv4 IP address settings, click Obtain an IP address automatically, and then click OK. e.

  • Page 6: Reset Features

    2. If using a Static IP (recommended), you will need to input the information manually. In order for DDNS to work, you must enter valid data, compatible with your network, for all of the network setting fields: IP address, Subnet Mask, Inbound Port and Host Name. 3.
  • Page 7 eBridge4PCRX Chassis Mechanical Drawing & Dimensions (H x W x D approx.): 1.7” x 5.25” x 9.25” (43.8mm x 133.35mm x 235mm) Fig. 4 Input 1 1.7” 43.8mm 5.25” 133.35mm 9.25” 235mm 8.42” 213.9mm Ethernet eBridge4PCRX - 7 -...

  • Page 8: Mounting Options

    Mounting Options: Shelf Installation 1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 5). Mounting Hardware (Included): 2- Place unit in desired location. Four (4) rubber pads. Fig. 5 Left Side Rubber Pad Altronix is not responsible for any typographical errors.
