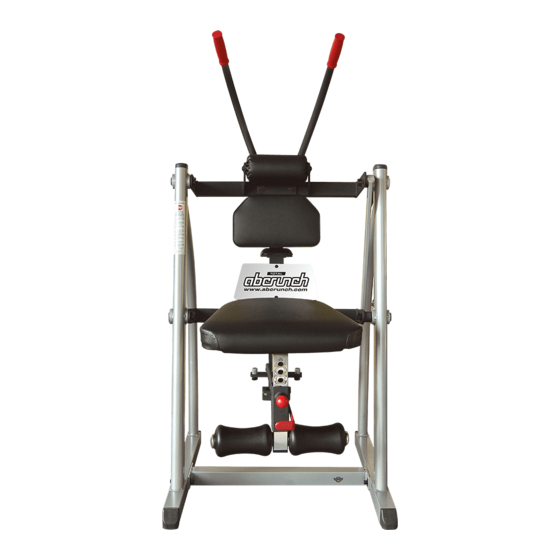

Summary of Contents for ABCORE WAB-400

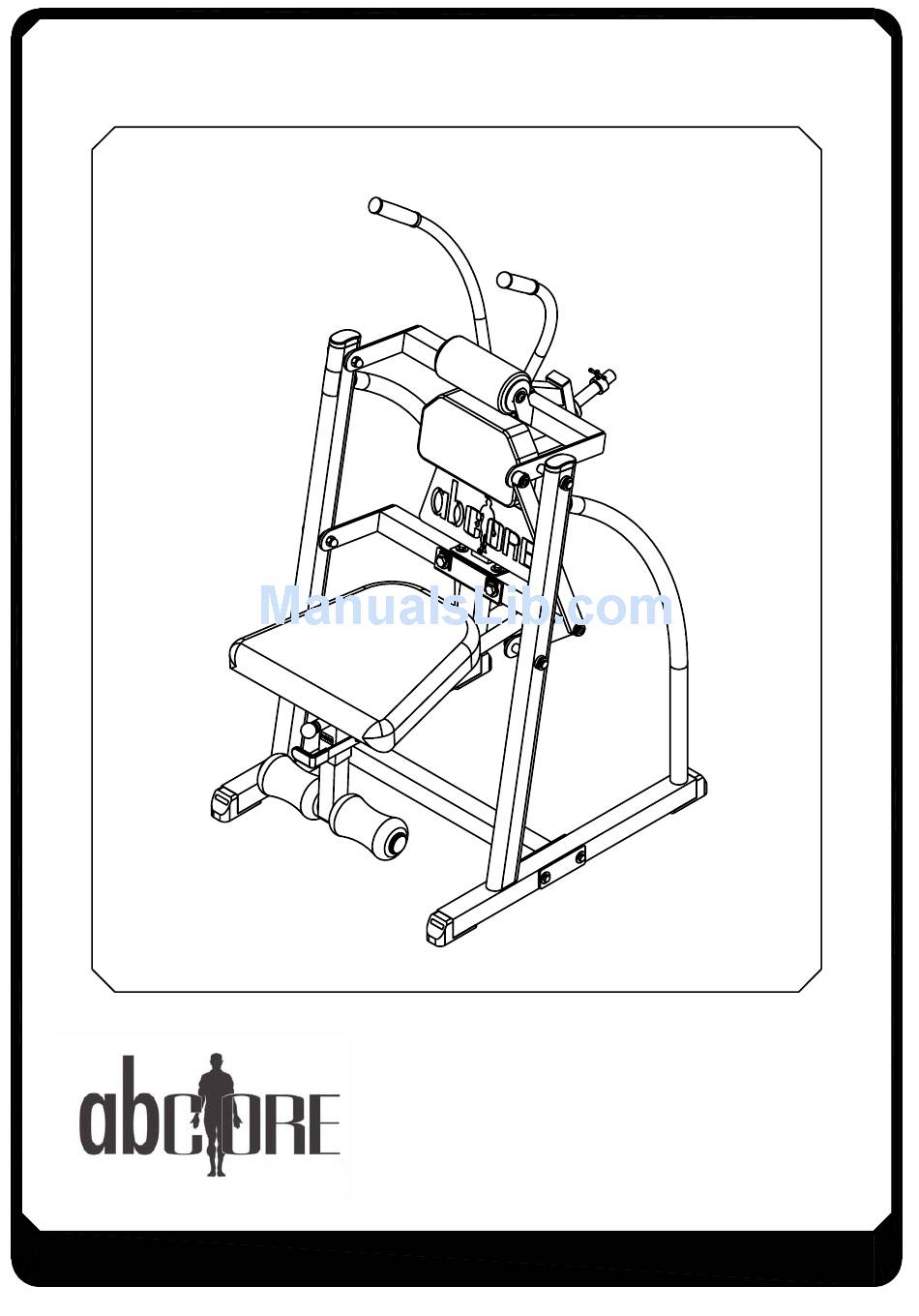

- Page 1 ABCORE FITNESS,Inc. Corporate Office 20 Progress Street, East Stroudsburg, PA 18301 Tel. (570) 424.1006 ． Toll Free (800)748-8525 www.fitnessabcore.com WAB-400 OWNER'S MANUAL...
- Page 2 WAB-400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2'X3-1/2"L PARTIAL QTY.2 (A2)HEX BOLT 3/8"'X3"L PARTIAL QTY.8 (A3)HEX BOLT 5/16"X2-3/4"L PARTIAL QTY.2 (A4)HEX BOLT 5/16"X1"L PARTIAL QTY.4 (A5)ROUND CROSS SCREW M5X10L PARTIAL QTY.2 WAB400-012007 Page...
- Page 3 WAB-400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.2 (C3)5/16"(I.D)FLAT WASHER Ø24 QTY.6 (C4)M5(I.D)FLAT WASHER Ø12 QTY.2 (B2)NYLON LOCK NUT3/8" QTY.8 (B3)DOMED CAP NUT1/2" QTY.4 (C5)Ø29XØ16X2t FLAT WASHER QTY.6 (C6)SPRING WASHER 5/16" QTY.6 (C1)1/2"(I.D)FLAT WASHER Ø34 QTY.4 (C2)3/8"(I.D)FLAT WASHER Ø27 QTY.16...
- Page 4 WAB-400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION --------------------------[2PCS] D1. Ø3/4"XØ15.8X25L STEEL BUSHING (8110-072) ---------------------------------------------[2PCS] D2. Ø1" ROUND END CAP (8341-033) -------------------------------------------------------[6PCS] D3. 1"X2" END CAP(9211-009) -------------------------------------[4PCS] D4. 50mmX50mmX1.8t END CAP(9211-082) -------------------------------------[1PCS] D5. 45mmX45mmX1.8t END CAP(9211-091) ------------------------------------------[2PCS] D6. 40X80X2tX35H END CAP(9211-113) ------------------------------------------[2PCS] D7. Ø1"X135L RUBBER GRIP(9212-055) ------------------------------------------------[4PCS] D8.
- Page 5 WAB-400 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[2PCS] B[1PCS] C[1PCS] F[1PCS] D[1PCS] E[1PCS] G[1PCS] H[1PCS] I[1PCS] 6650-001 WAB400-012007 Page...
- Page 6 WAB-400 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET J[1PCS] K[1PCS] L[1PCS] 6660-001 6630-001 6640-004 M[1PCS] N[1PCS] O[2PCS] 8220-079 8220-079 8312-090 P[1PCS] Q[2PCS] R[2PCS] 25.4X2.5tX420L 210-100 210-101 S[1PCS] T[1PCS] U[1PCS] 80217 121-059 111-062 WAB400-012007 Page...
- Page 7 WAB-400 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET V[1PCS] W[2PCS] 9161-049 9161-052 WAB400-012007 Page...
- Page 8 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed Warning Labels A2X2 C2X2 C2X2 B2X2 B2X2 C2X2 C2X2 A2X2 D4X4 WAB400-012007 Page...
- Page 9 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed WAB400-012007 Page...
- Page 10 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed FLAT ALLEN HEAD M12X15L X2 A2X2 C2X2 B1X2 C1X2 A1X2 C1X2 C2X2 B2X2 WAB400-012007 Page...
- Page 11 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed WAB400-012007 Page...
- Page 12 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed M8 WASHER ROUND INNER HEAD M8X16L M8 WASHER ROUND INNER HEAD M8X16L WAB400-012007 Page...
- Page 13 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed D7X2 3/8"X2-3/4"L HEX BOLT 3/8" WASHER B2X2 M8 WASHER ROUND INNER HEAD M8X16L C2X2 C2X2 A2X2 1/2" WASHER 1/2"X1"L HEX BOLT M8 WASHER ROUND INNER HEAD M8X16L WAB400-012007 Page...
- Page 14 WAB-400 ASSEMBLY INSTRUCTIONS step 1. Above shows STEP 7 assembled and completed 3/8" WASHER Ø27 step 2. 3/8" LOCK NUT 1/2" WASHER 1/2"X3/4"L HEX BOLT WAB400-012007 Page...
- Page 15 WAB-400 ASSEMBLY INSTRUCTIONS A4X4 C6X4 C3X4 Above shows STEP 8 assembled and completed 5/16"X1/2"L ROUND BOLT 5/16" SPRING WASHER WAB400-012007 Page...
- Page 16 WAB-400 ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 5/16"X1/2"L ROUND BOLT 5/16" SPRING WASHER D8X2 D2X2 D8X2 WAB400-012007 Page...
