AND-Tech AVR Prog USB v2 Manual Booklet

Programming device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Programming Device
Manual Booklet
AVR Prog USB v2
Programming device manual booklet: AVR Prog USB v2, STK500 v2
Page
1
www.and-tech.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR Prog USB v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AND-Tech AVR Prog USB v2

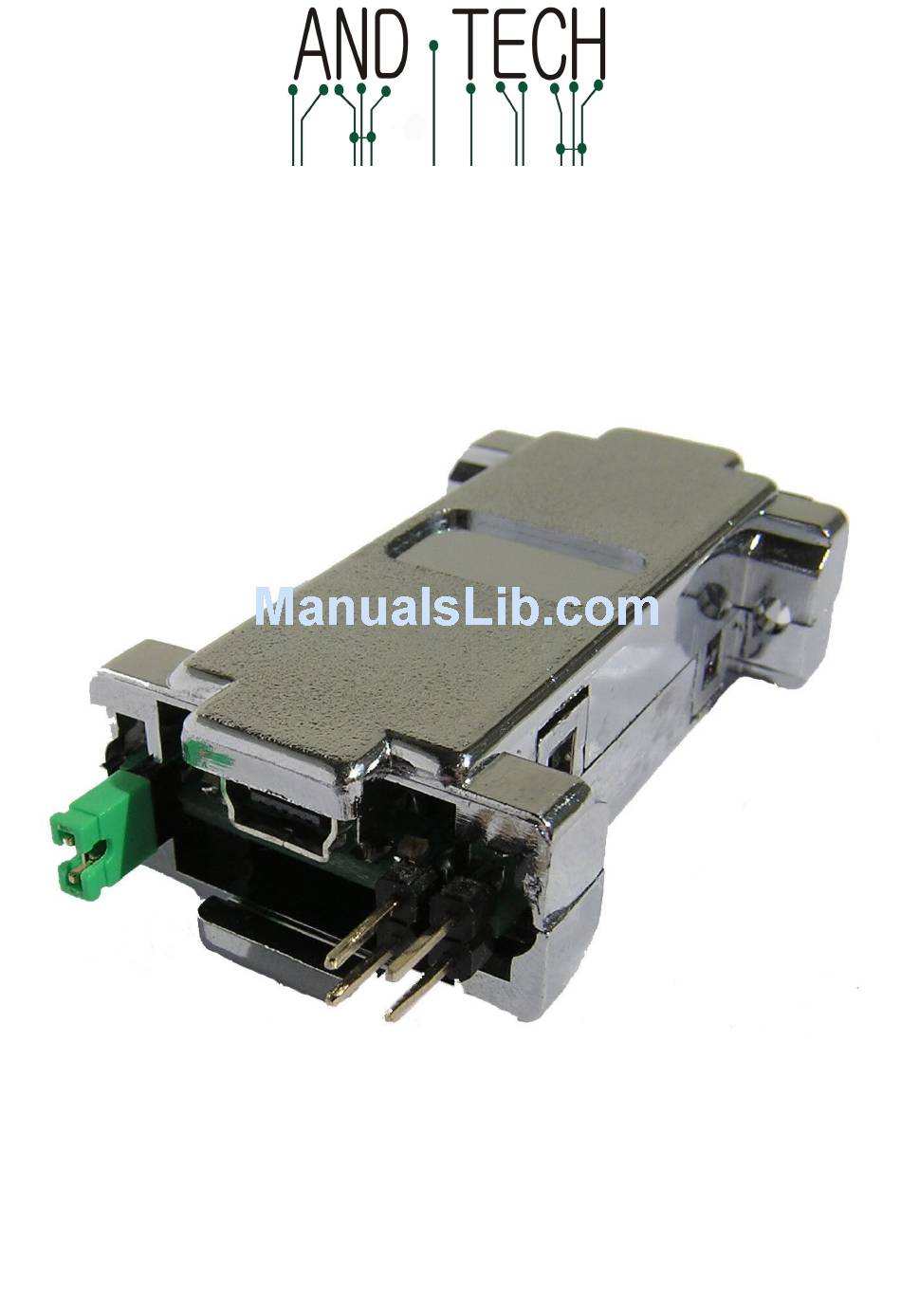

  • Page 1 Programming Device Manual Booklet AVR Prog USB v2 Programming device manual booklet: AVR Prog USB v2, STK500 v2 Page www.and-tech.pl...

  • Page 2: Table Of Contents

    6. AVR Studio environment programming............13 7. Programming with AVR Dude software............14 8. AVR Dude – HID mode..................15 9. Other software.....................15 10. ISP connector....................16 11. Jumpers and LEDs description..............17 Programming device manual booklet: AVR Prog USB v2, STK500 v2 Page www.and-tech.pl...

  • Page 3: Installation

    1. Installation The programmer is connected to a computer using a USB A-B mini connection (most frequently used with digital cameras ). It is advised to use a cord not longer than 1.8m. A connection with the programmed set is conducted by a IDC-10 data tape. A connection with a programmed device performed by IDC-10 connectors on both ends.

  • Page 4: Hid Mode Programming

    A programmer in the HID mode uses the Avrdude software. In order to obtain a better comfort of work is suggested to install a graphic Avrdude interface named GUI. Download GUI from our websit: http://www.and-tech.pl/avr-prog-usb-v2 In order to programme a processor, set the following fileds: Programmer and Port (see picture below).

  • Page 5: Com Mode Installation

    4. COM mode installation. To install a programmer as a COM port, remove the jumper marked as JP3 (see picture below). Than connect the programmer with a computer and follow the below instructions.
  • Page 6 At your first application of a programmer, it will be detected by a computer as a new device. It will require a path leading to the driver. Drivers are avaliable at: http://www.and-tech.pl/avr-prog-usb-v2...
  • Page 8 After installing a driver, the programming device should be visible at your system device manager under the name: AVRProg USB v2. Installing it at any other USB port will effect in another installation. After installing the programmer, change PORTU COM settings at your system device manager, where the programmer is installed as follows:...
  • Page 9 If the programmer installs at a distant COM port (it is advised to install it between COM1 and COM9). See the below picture for more details. In order to change the COM port, enter programmer’s advanced settings to choose a port between COM1 and COM9 (if these are already in use, try to relieve one and than check programmer’s correct operation).

  • Page 11: Bascom Environment Programming

    Choose STK500 programmer and set it according to below orders: COM-port: serial COM with installed AVR Prog USB v2 (check Control Panel ->devices System-Manager -> COM i LPT ports), STK500 EXE: destination path to STK500 programmer (included in the set) Other...
  • Page 12 Now you can program microprocessor by click “Program chip” icon.

  • Page 13: Avr Studio Environment Programming

    6. AVR Studio environment programming If there are no other programmers connected to the computer, click AVR icon (marked green). AVR Studio should detect the programmer its self automatically. If not, choose programmer type: STK500 and the port name where it is installed. When a programmer is not detected by the software, the below window will appear on the screen, and the programmer has to be disconnected from a USB port and reconnected again, pressing the AVR icon.

  • Page 14: Programming With Avr Dude Software

    7. Programming with AVR Dude software In order to programme a processor, set the Programmer field as on the below illustration. At the Port field, choose COM port where the programmer was installed (see page 8 of this booklet) and at the Device field choose the processor type you are using. Afterwards choose the file which will programme the microprocessor at the Flash field Start the programming by pressing Terminal button.

  • Page 15: Avr Dude - Hid Mode

    8. AVR Dude – HID mode 9. Other software AVR Prog USB v2 programmer is able to use any software capable of choosing STK500v2 programmer.

  • Page 16: Isp Connector

    10. ISP connector Programmer equipped with a 10-pin ISP connection with KANADA standard. (see below for detailed signals description.

  • Page 17: Jumpers And Leds Description

    11. Jumpers and LEDs description Programmer’s jumpers functions: JP1 – programmer’s programmed circuit power source (approx. 4.8V) JP2 – Lowering work frequency of ISP, useful when a programmed microcontroller is clocked with 1MHz. JP3 – HID mode LED colours: Green –...

Table of Contents
