Audiovox HOMEBASE DPF710K User Manual

Audiovox HOMEBASE DPF710K User Manual

Digital message center and picture frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

DPF710K

Advertisement

Table of Contents
loading

Summary of Contents for Audiovox HOMEBASE DPF710K

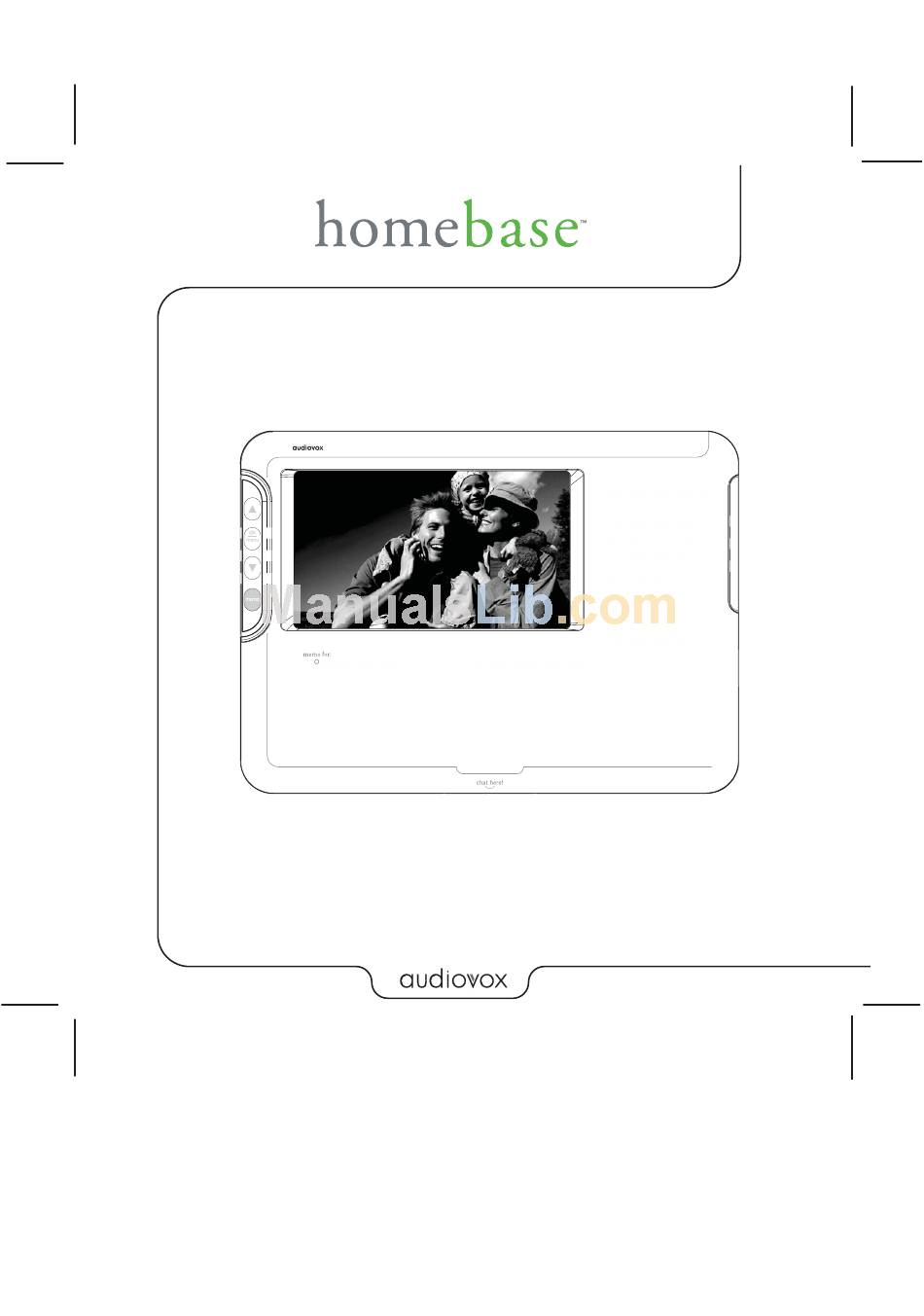

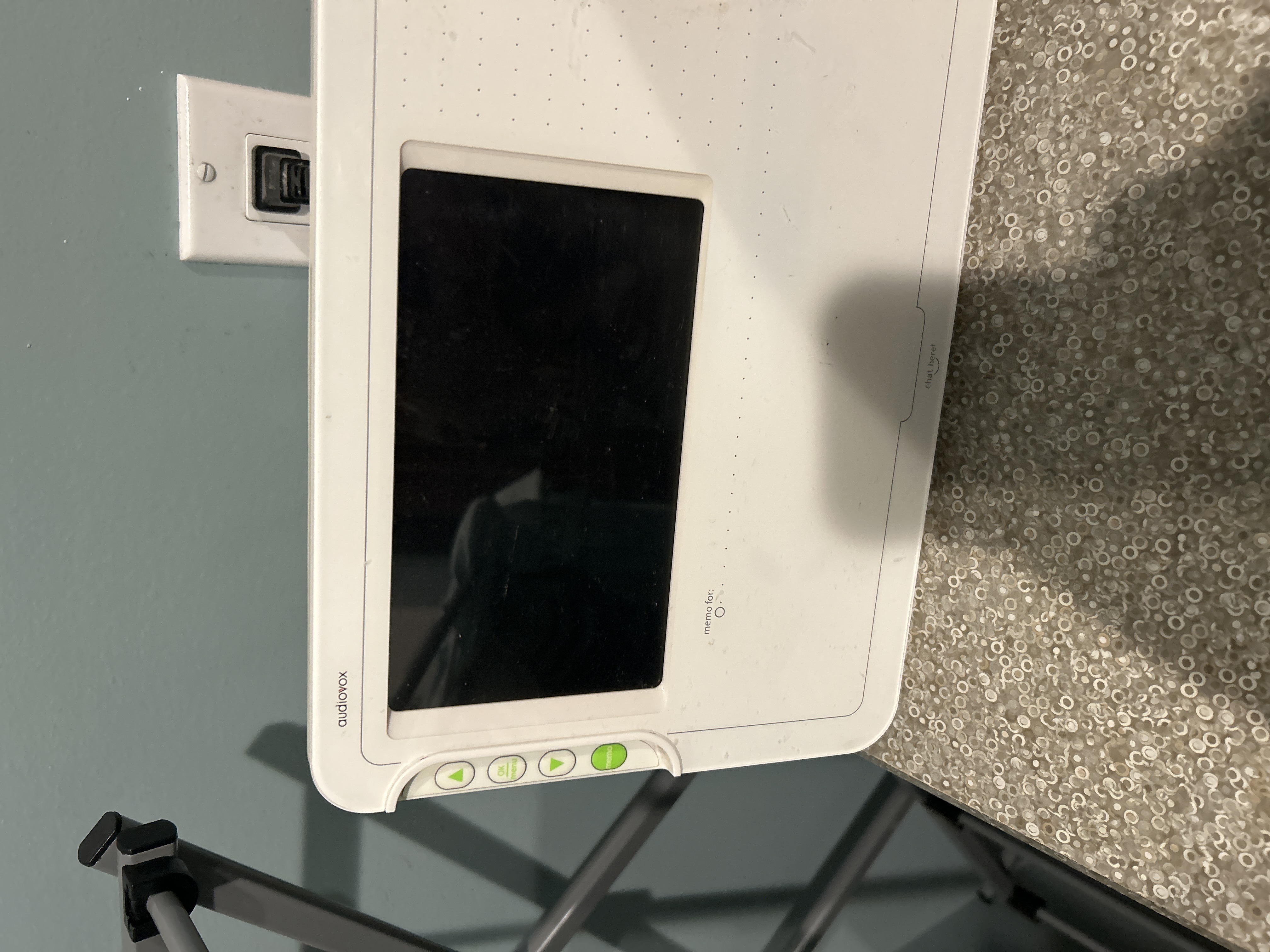

  • Page 1 DPF710K...

  • Page 2: Table Of Contents

    Important Safety Instructions ---------------------------------------------------------------------------------------------------------- 3 Introduction ---------------------------------------------------------------------------------------------------------------------- 4 Product Features ---------------------------------------------------------------------------------------------------------------------- 5 What’s in the Box? ---------------------------------------------------------------------------------------------------------------------- 6 Installation ---------------------------------------------------------------------------------------------------------------------- 7 homebase Refrigerator Installation --------------------------------------------------------------------------------------------- 7 homebase Countertop Installation ---------------------------------------------------------------------------------------------- 8 homebase Wall Mount Installation Using the Wall Mount Bracket ---------------------------------------------------- 9 homebase Wall Mount Installation Using the Angle Mount Brackets ------------------------------------------------- 10 Internal Battery Activation and/or Replacement ---------------------------------------------------------------------------- 11 Controls, Indicators and Connectors ------------------------------------------------------------------------------------------------ 12...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Please read all safety and operating instructions carefully before installation, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. 1. Water and Moisture: The unit should not be used near water. For example: near a bathtub, swimming pool, etc. 2.

  • Page 4: Introduction

    Introduction Your homebase allows you to: Display your digital photos from its internal memory, a memory card, or USB memory devices Record and retrieve audio messages Use the calendar to set audio and/or event reminders Display time and date Use a timer, set an alarm ®...

  • Page 5: Product Features

    Overall Description : • 7-inch color LCD displays photos, calendar and clock • 512 MB of memory-enough for more than 100 pictures depending on image size • Internal microphone for recording digital voice messages • Internal speakers with volume control •...

  • Page 6: What's In The Box

    homebase AC to DC Power Adapter (1) Dry Erase Marker (1) Flat-Head Self-Tapping Screw (2) What’s in the Box? Wall Mount Bracket (1) ® Post-It Note Pad (1) Adhesive Foam Pad (2) Wire Management System (3) Plastic Wall Anchor (2) Double-Sided Tape (1) Mounting Hole Template (1) Angle Mount Bracket (2)

  • Page 7: Installation

    homebase Bracket Mounting Holes Wire Post(s) Power Adapter Wire Notch Adhesive Foam Pads homebase Refrigerator Installation 1. Remove the protective backing from one side only of the two adhesive pads and position them on the back of the wall mount bracket as shown. 2.

  • Page 8: Homebase Countertop Installation

    Angle Bracket Mounting Holes homebase Unit Angle Mount Brackets homebase Countertop Installation 1. Find a suitable location on the countertop adjacent to an AC wall outlet. 2. Connect the power adapter plug to the DC input connector at the rear of the homebase. 3.

  • Page 9: Homebase Wall Mount Installation Using The Wall Mount Bracket

    Flat-Head Self-Tapping Screw (2) Wall Bracket Mounting Tabs homebase Wall Mount Installation Using the Wall Mount Bracket Note: If the wall bracket is to be mounted using the foam adhesive pads, the procedure will be the same as that for the refrigerator mount as described on page 7. If the wall bracket is to be mounted using screws, proceed as follows: 1.

  • Page 10: Homebase Wall Mount Installation Using The Angle Mount Brackets

    Angle Mount Bracket Mounting Tabs Flat-Head Self-Tapping homebase Wall Mount Installation Using the Angle Mount Brackets Note: Foam adhesive pads are not recommended when mounting the angle mount brackets to a wall surface. Mount the brackets to the wall surface as follows: 1.

  • Page 11: Internal Battery Activation And/Or Replacement

    Internal Battery Activation and/or Replacement A type CR2032 battery is installed in a compartment behind the front panel of the homebase. If the unit is being used for the first time, the battery must be activated. A plastic insulator prevents contact with the battery terminals.

  • Page 12: Controls, Indicators And Connectors

    Controls, Indicators and Connectors 1. Power On/Off Switch 2. USB Connector 3. SD/MMC/MS/XD Connector 4. CF Connector 5. Up ( ) Navigation Button 6. OK / MENU Button 7. Down ( ) Navigation Button 8. MEMO Button 9. LCD Display 10.

  • Page 13: Accessory Placement

    Accessory Placement Note Pad Storage Receptacle ® Post-It Note Pad Dry Erase Marker Marker Storage homebase Receptacle DPF710K...

  • Page 14: Operating The Homebase

    Operating the homebase Preliminary Connections Prior to initial operation, connection must be made to the power source and the tab (“REMOVE THIS TAB”) on the right side of the unit must be removed to enable backup battery operation. Connecting the Power. Power to the homebase is provided by the AC-to-DC wall adapter which delivers +9VDC to the DC input connector at the rear of the unit.

  • Page 15: Power On/Main Menu

    OK / MENU button is pressed; the main menu appears once again. If an input device containing pictures is connected while the main menu is displayed, the slide show thumbnail pictures are displayed. No internal images audiovox DPF710K Power On/Main Menu Turn unit on audiovox...

  • Page 16: Memo Feature

    Highlight MEMO in the main menu using the up/down buttons ( exit memo calendar timer photo settings Or press the memo button Highlight play / erase and press OK; the memo list appears on the screen exit play erase memo 1 (00/00/00) memo 2 (00/00/00) keep memo 3 (00/00/00)

  • Page 17: Calendar Memos

    1. Recording Calendar Memos Highlight calendar in the main menu using the up/down buttons ( / ) exit memo memo calendar timer photo setting December 2008 Highlight event memo and press OK back birthday anniversary holiday special Press OK and use the up/down buttons ( / ) to highlight the event type.

  • Page 18: Reviewing Calendar Memos

    Calendar Memos (Cont) 2. Reviewing Calendar Memos Highlight calendar in the main menu using the up/down buttons ( / ) exit memo memo calendar timer photo setting December 2008 Highlight event memo and press OK When the calendar is displayed, press and hold the up or down button ( / ) more than 2 seconds to select the month;...

  • Page 19: Countdown Timer

    Highlight timer in the main menu using the up/down buttons ( / ) exit memo calendar calendar timer photo setting When the timer display appears, the hours (h) digits are flashing and 10 minutes is indicated. Use the up/down buttons ( / ) to set the hours and press OK. The minutes digits are now flashing;...

  • Page 20: Photo Menu

    Highlight photo in the main menu using the up/down buttons ( / ) exit memo memo calendar timer photo settings Highlight photo library using the up/down buttons ( / ) and press OK to access photos stored in the library file. If none exists, this feature is not supported.

  • Page 21: Photo Library Menu

    Photo Library Menu Slide show thumbnail display appears when input device connected / 62 Select back and press OK to return to thumbnail screen; select exit and press OK to display full screen slide show Single Slide Display - Stops slide show and displays only selected picture. To resume the slide show, turn the Single Slide Display function to off.

  • Page 22: External Media Menu

    External Media Menu Slide show thumbnail display appears when input device connected Select back and press OK to return to thumbnail screen; select exit and press OK to display full screen slide show Use the up/down buttons highlight the next option exit back copy...

  • Page 23: Settings

    1. General Setup - Photo Mode Selection Highlight settings in the main menu using the up/down buttons ( / ) Highlight general setup using the up/down buttons ( / ) Photo Mode - Select between normal mode and wide screen. Activation Time - Set a time for the unit’s display to turn off and turn on to conserve energy.

  • Page 24: General Setup - Time/Date Setting

    2. General Setup - Time / Date Setting In the Settings menu, highlight time / date setup using the up/down buttons ( / ) and press OK. The time / date display appears with the hour digit(s) flashing. Use the up/down buttons ( / ) to set the hour and press OK. The minutes digits are now flashing;...

  • Page 25: General Setup - Alarm Setting

    3. General Setup - Alarm Setting In the Settings menu, highlight alarm using the up/down buttons ( / ) and press OK exit alarm on/off alarm set The time / date display appears with the hour digit(s) flashing. Use the up/down buttons ( / ) to set the hour and press OK.

  • Page 26: General Setup - Clock Display

    4. General Setup - Clock Display In the settings menu, to display the clock on the screen, highlight clock display using the up/down buttons ( / ) exit general setup memo time / date setup alarm clock display The clock can be positioned at the bottom edge of the screen, in large letters in the center of the screen, in the split screen configuration, or be turned off completely (off).

  • Page 27: Technical Data

    Specifications • Digital Picture Frame • • • Internal Flash Memory • • SD/MMC/MS/xD Card Slot • • • • • • Message Indicator • Reminder Function • Memory Backup for the Clock • Image File Type Handling DPF710K Technical Data 7”...

  • Page 28: Warranty

    Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 29 Notes DPF710K...
  • Page 30 Notes DPF710K...
  • Page 31 Notes DPF710K...
  • Page 32 Audiovox Electronics Corp. 150 Marcus Boulevard Hauppauge, NY 11788 DPF710K 128-8269B...
