Summary of Contents for Marq Gesture Spot 300

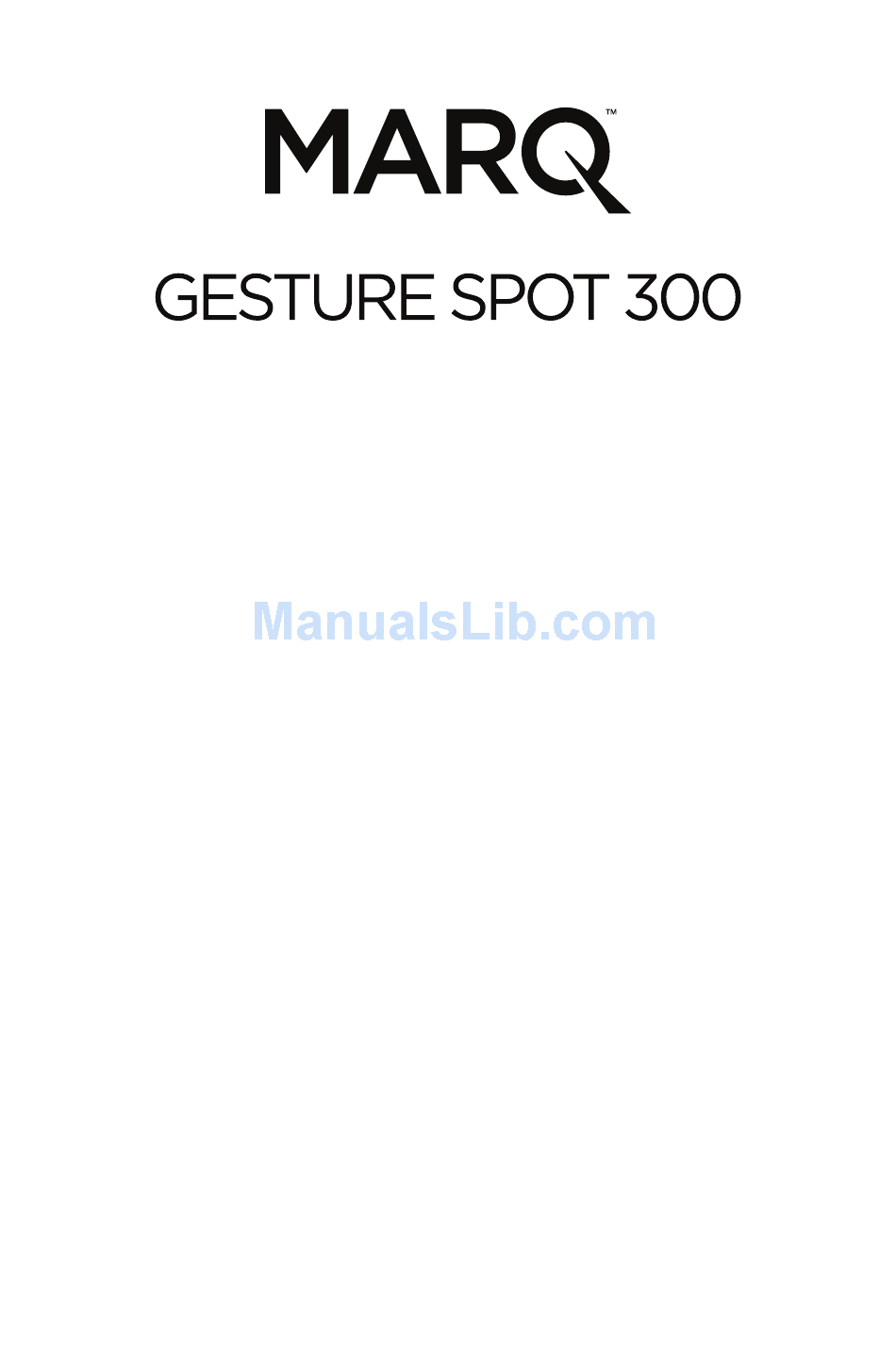

- Page 1 English Quickstart Guide...
-
Page 2: Box Contents
Introduction Box Contents Gesture Spot 300 Quickstart Guide Power Cable Safety & Warranty Manual DMX Cable Important: Visit marqlighting.com to download the complete User Guide. Support For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit marqlighting.com. -
Page 3: Rear Panel
3. DMX In: Use a standard 3-pin DMX cable to connect this input (A) to your DMX controller or (B) to another fixture that will pass DMX data through it to this one. Gesture Spot 300 receives DMX data over this connection. Please see Setup >... -
Page 4: Power Information
Also, make sure the power outlet’s voltage is within the range stated on this product (on its housing or decal). Before cleaning or replacing the fuse, disconnect Gesture Spot 300 from its power source. Use a screwdriver or other tool to remove the compartment (do not pull it out by the tab only). Replace the fuse only with a new fuse with the same rating (250 V, 4 A). - Page 5 Linking When using multiple Gesture Spot 300 fixtures, you can link (“daisy-chain”) them so that each each fixture sends DMX data to the next one. This helps reduce clutter in your cabling and save you setup time. Use a standard 3-pin DMX cable to connect the DMX Out of one fixture to the DMX In of another.
-
Page 6: Operation
Operation Menu Options Menu Submenu Settings/Values Description DMX Address 001–512 DMX address setting Function Channel Mode 13Ch 13-channel operation 8-channel operation No DMX Signal Keep When no DMX signal, do nothing (hold) Auto When no DMX signal, enter Run Mode Clear When no DMX signal, black out DMX Monitor... -
Page 7: Dmx Functions
Restore all default settings Reset All DMX Functions You can control Gesture Spot 300 by linking it to a DMX controller. Please see the complete User Guide at marqlighting.com to learn how to do this. See below for charts of available functions. - Page 8 13-Channel Operation (continued) Channel Function Value Description Color Wheel 000–006 White 007–013 Red 014–020 Green 021–027 Blue 028–034 Yellow 035–041 Purple 042–048 Light Blue 049–055 Orange 056–063 Pink 064–127 Color indexing 128–189 Clockwise, fast (128) to slow (189) 190–193 Stop 194–255 Counterclockwise, slow (194) to fast (255) Gobo Wheel 000–007 Open/white...
- Page 9 13-Channel Operation (continued) Channel Function Value Description Macro Functions 000–007 No function 008–023 Automatic movement 1 024–039 Automatic movement 2 040–055 Automatic movement 3 056–071 Automatic movement 4 072–087 Automatic movement 5 088–103 Automatic movement 6 104–119 Automatic movement 7 120–135 Automatic movement 8 136–151...
- Page 10 7-Channel Operation Channel Function Value Description 000–255 Pan angle, 0° (000) to 540° (255) Tilt 000–255 Tilt angle, 0° (000) to 270° (255) Shutter 000–003 Closed 004–007 Open 008–076 Strobe, slow (008) to fast (076) 077–145 Pulse, slow (077) to fast (145) 146–215 Random strobe, slow (146) to fast (215) 216–255...
-
Page 11: Technical Specifications
Technical Specifications Specifications are subject to change without notice. Light Type Power 60 W 8 + white, split colors, scrolling Colors 7 + open, slot-and-lock replaceable with rotation, Gobos indexing, gobo shake & scrolling 0.93” (23.5 mm) outside 0.75” (19 mm) image 0.04”... -
Page 12: Lumen Output
Lumen Output Lumens: 41700 3700 1390 18° Distance (m): 0 (ft.): 0 16.4 Diameter (cm): 0 (in.): 0 13.0 42.1 70.9 Gobos These are the 7 gobos included with Gesture Spot 300. marqlighting.com Manual Version 1.2...
