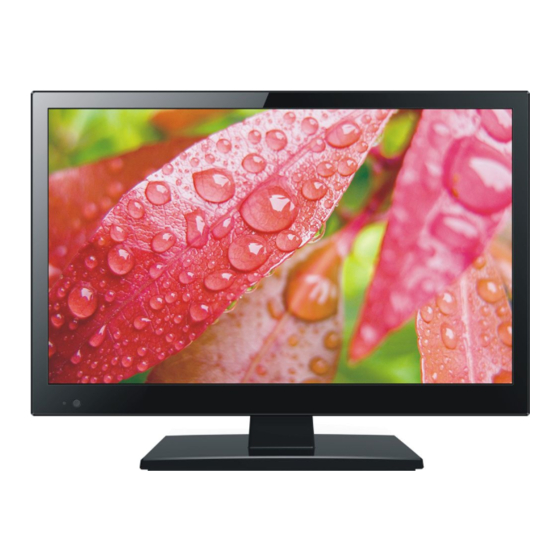

16" WIDESCREEN LED TV
MODEL NO.: SP-LED16

USER MANUAL

Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-LED16 and is the answer not in the manual?

Questions and answers

Related Manuals for Speler SP-LED16

Summary of Contents for Speler SP-LED16

  • Page 1: User Manual

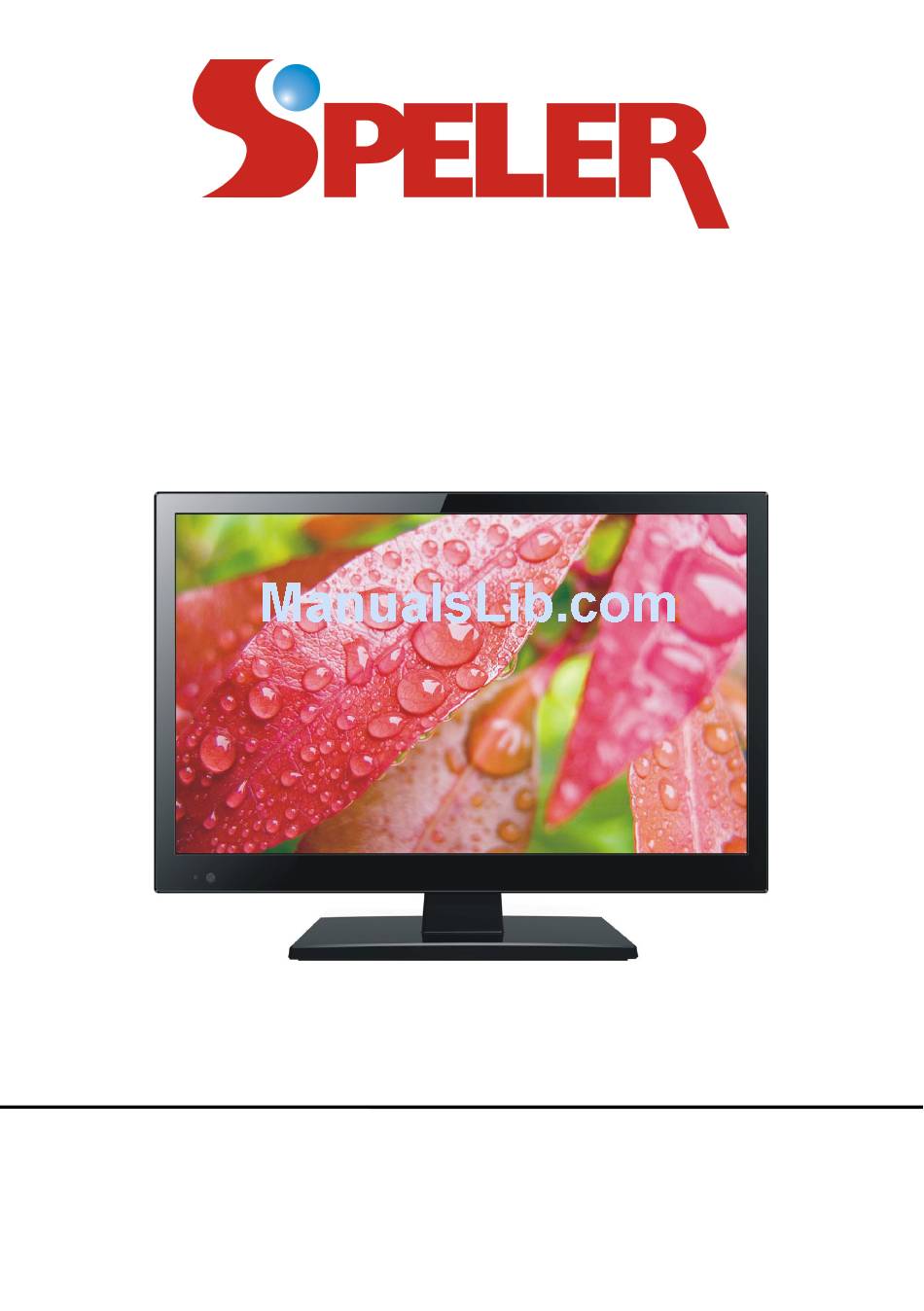

    16” WIDESCREEN LED TV MODEL NO.: SP-LED16 USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 3 15. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. 16.

  • Page 4: Accessories

    - The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance instructions in the literature accompanying the appliance. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED IMPORTANT SAFETY INSTRUCTIONS................1-3 ACCESSORIES……….......................3 FEATURES........................5 GENERAL PARTS......................6-7 REMOTE CONTROL.....................8-9 REMOTE CONTROL PREPARATION.................10 BASIC CONNECTION....................11-14 OPERATIONS BASIC OPERATIONS....................15-19 MAIN MENU........................20-28 TV MODE.........................20-27 AV AND OTHER MODES....................27 PC/VGA MODE…......................28 FOR REFERENCE WALL MOUNTING……………………………………………………………….……………..29 STAND INSTALLATION…………………………………………………………………………..30 MAINTENANCE........................31 SPECIFICATIONS.......................31 TROUBLESHOOTING......................3...

  • Page 6: Features

    FEATURES 16" LED DISPLAY This player has a built-in 16” LED display to provide clear vision and low radiation. Support auto program scanning Support digital broadcasting reception Support Electronic Program Guide Compatible with USB for music and photo playback Support multi-languages on screen display Support full function remote control Compatible with HDMI, PC AUDIO, VGA, CVBS and AUDIO L/R input Compatible with EARPHONE and COAXIAL output...

  • Page 7: General Parts

    GENERAL PARTS MAIN UNIT Front View 1. LED display screen 2. Remote control sensor 3. Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 4. Stand holder 5. VOL +/- button- To increase/decrease the volume level or move left/right.

  • Page 8: General Parts

    GENERAL PARTS Back View 1. Power input 2. USB input terminal 3. HDMI input terminal 4. VGA input terminal 5. PC AUDIO input terminal 6. CVBS and AUDIO L/R input terminals 7. RF input terminal- To connect the external antenna. 8.

  • Page 9: Remote Control

    REMOTE CONTROL 1. POWER: Press to enable standby mode; press again to turn on. 2. MUTE: To mute the sound. 3. RED button 4. GREEN button 5. BLUE button 6. YELLOW button 7. YPbPr: No function for this model. 8. CC: To switch the Closed Caption mode. 9.

  • Page 10: Remote Control

    REMOTE CONTROL 21. ENTER: To confirm a selection. 22. UP/DOWN/LEFT/RIGHT navigation buttons 23. EXIT: To exit menu page. 24. TV DISPLAY: To display program information. 25. SOUND MODE: To switch the sound mode. 26. VOL +/-: To increase/decrease the volume level.

  • Page 11: Remote Control Preparation

    REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used.

  • Page 12: Basic Connection

    BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE Main unit To power outlet AC Adaptor CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture.
  • Page 13 COMPOSITE AV CONNECTION For basic connection, use the composite Audio L/R (white/red) and CVBS cable to connect the unit with other devices. AV cable (Optional) Back of DVD/VCR EARPHONE CONNECTION Earphone cable (Optional)

  • Page 14: Hdmi Connection

    HDMI CONNECTION Use HDMI cable to connect HDMI cable the unit with other devices to (Optional) receive high-definition multimedia signal. Back of DVD/VCR PC/VGA CONNECTION Audio cable (Optional) Back of DVR or PC VGA cable (Optional) Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.
  • Page 15 CONNECTING TO USB MEMORY DEVICE USB Memory Device (Optional) COAXIAL OUT CONNECTION Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output.

  • Page 16: Basic Operations

    MAKE SURE ALL THE EQUIPMENTS AND POWER ADAPTOR ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATING. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
  • Page 17 SOUND MODE - When watching an available program, press SOUND MODE button on remote control repeatedly to select SOUND mode directly. Available options: Standard, Music, Movie, User. VIDEO SIZE SETTING - When watching an available program, press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.
  • Page 18 CLOSED CAPTION - When watching an available program, press CC button on remote control repeatedly to turn it ON/OFF. FAVOURITE LIST - When watching an available program, press FAV button on remote control to enter FAVORITE LIST menu page. - Press navigation buttons to select desired channel. - Press ENTER button to confirm selection.
  • Page 19 USB MULTIMEDIA PLAYBACK - Before following operations, insert a USB memory device first, which contains Photo and Music files. - Press SOURCE button on the unit or remote control to set the unit in USB mode. - Press LEFT/RIGHT navigation button to select Photo/Music in the main menu. - Press UP/DOWN navigation button to select preferred file.
  • Page 20 - Press EXIT button to return to file selecting page. Music Playback - Select Music item in the main menu. - Press UP/DOWN navigation button to select preferred folder/file and press ENTER button to enter a folder or play selected file. During normal playing: - Press TV DISPLAY button to display/hide the tool bar.

  • Page 21: Main Menu

    MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until it’s changed, and the unit can always be operated under the same conditions. ● This settings will be remained in the memory until the settings are changed even after setting the player to standby mode.
  • Page 22 Highlight Auto Scan, press ENTER to search and store all available channels. 1. PICTURE 1.1 Picture Mode Available options: Standard, Dynamic, Mild, User. 1.2 Contrast The value of Contrast can be adjusted from 0-100. 1.3 Brightness The value of Brightness can be adjusted from 0-100. 1.4 Color The value of Color can be adjusted from 0-100.
  • Page 23 2. AUDIO 2.1 Sound Mode Available options: Standard, Music, Movie, User. 2.2 Bass The value of Bass can be adjusted from 0-100. 2.3 Treble The value of Treble can be adjusted from 0-100. 2.4 Balance The value of Balance can be adjusted from -50 to 50. NOTE: If the value of Bass, Treble, or Balance has been changed, the sound mode will turn to User automatically.
  • Page 24 3. TIME 3.1 Sleep Timer Available options: Off, 5 min, 10 min, 15 min, 30 min, 45 min, 60 min, 90 min, 120 min, 180 min, 240 min. 3.2 Time Zone Available options: Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic. 3.3 Daylight Saving Time Available options: On, Off.
  • Page 25 This item is used to select preferred OSD menu language. 4.2 Transparent This item is used to turn on/off Transparent OSD menu. 4.3 Zoom Mode This item is used to select preferred zoom mode of display screen. Available options: Normal, Wide, Zoom, Cinema. NOTE: The available zoom mode may be different for different input source.
  • Page 26 Available options: Default, Solid, Flashing, Translucent, Transparent. NOTE: Advanced Selection and Option are adjustable only for digital programs. 4.7 DLC This item is used to turn on/off Dynamic Luminance Control. 4.8 Restore Default This item is used to reset to factory default settings. 5.
  • Page 27 Available options: E, C, C8+, G, PG, 14+, 18+. Canada French Available options: E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+. NOTE: US, Canada, RRT Setting and Reset RRT items are adjustable only when System Lock is On. 5.5 RRT Rating This item is available only when viewing programs which contain related Advance Rating information.

  • Page 28: Av And Other Modes

    6.21 Cable System This item is used to select preferred cable system. Available options: AUTO, STD, IRC, HRC. NOTE: This item is adjustable only when your signal type is set to Cable. 6.22 Start to Scan - Press RIGHT or ENTER button to start auto scanning. - Press MENU or EXIT button to exit auto channel searching.

  • Page 29: Pc/Vga Mode

    PC/VGA MODE - Connect your computer to this unit using a VGA cable. - Power on this unit and your computer. - Press SOURCE button on the unit or remote control to set the unit in VGA mode. - Press MENU button to display the main menu and select Setup item. Then press DOWN navigation button to enter Setup menu page.

  • Page 30: Wall Mounting

    WALL MOUNTING WARNING: ● Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own. ● Do not wall mount the TV while TV is turned on or connected to power. It may cause personal injury due to electric shock.

  • Page 31: Stand Installation

    STAND INSTALLATION Your TV may be packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

  • Page 32: Maintenance

    MAINTENANCE ● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

  • Page 33: Troubleshooting

    GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom Remedy No power. Insert the power adaptor securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
