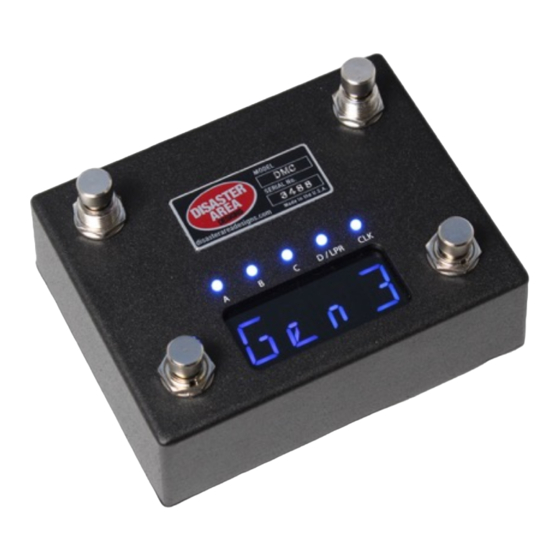

DMC-3XL Gen3
DMC-4 Gen3
User Manual
v1.01b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMC-3XL Gen3 and is the answer not in the manual?

Questions and answers

Related Manuals for Disaster Area Design DMC-3XL Gen3

Summary of Contents for Disaster Area Design DMC-3XL Gen3

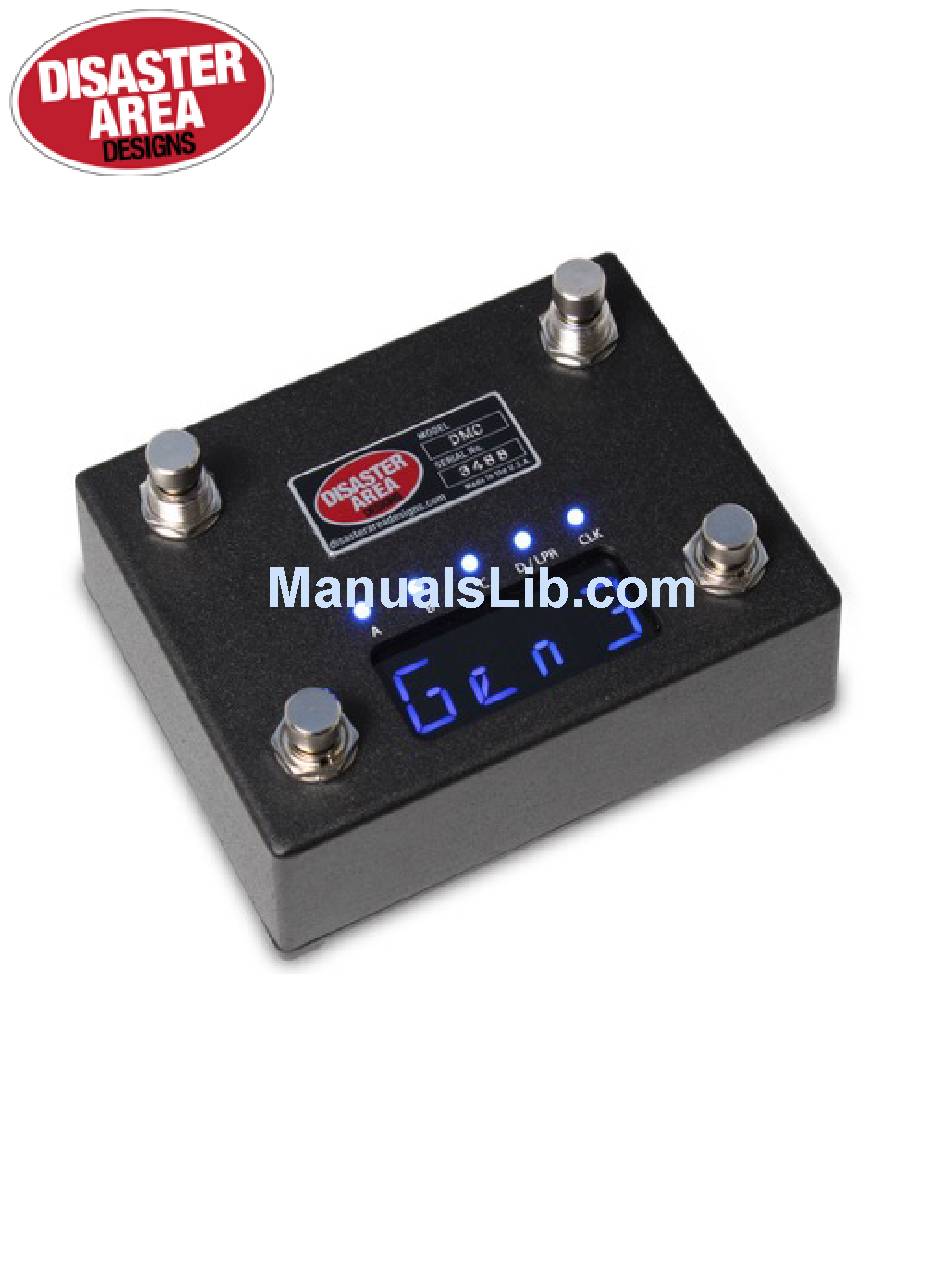

  • Page 1
 DMC-3XL Gen3 DMC-4 Gen3 User Manual v1.01b...
  • Page 2 Revision History: v1.01b - 08/19/2016 * Added support for the Source Audio Nemesis delay * Fixed an issue using expression input for bank down switch * Fixed an issue sending MIDI clock stop * Changed the expression config to make sure we send on the D device * Added checks to ensure MIDI was sending out the MultiJack for the D device if present * Fixed an issue with Preset Clock mode not working with 0.5 BPM increments v1.01a - 07/22/2016...

  • Page 3: Connectivity Features

    DMC-3XL / DMC-4 Gen3 Operation Manual Firmware Revision 1.01b / Revised 08.19.2016 1. Introduction Thanks for purchasing a Disaster Area Designs DMC-3XL / DMC-4 Gen3 controller. We’ve worked hard for the last two years developing and refining our MIDI controller technology, and we’ve incorporated suggestions from players all over the world. The Gen3 controllers have more features, more functions, and more connectivity than any of our previous controllers.

  • Page 4: Controls And Display

    3. Controls and Display LED Indicators: A: Lights when the A MIDI device is engaged. B: Lights when the B MIDI device is engaged. C: Lights when the C MIDI device is engaged. D / LPR: Blinks when the looper is recording or overdubbing. Lights when the looper is playing. If the D scrolling mode is active, lights when the D MIDI device is engaged.

  • Page 5: Setup Parameters

    SETUP PARAMETERS: PRST - Preset Mode 0-127 presets EXP - Expression Pedal input (black jack) configuration If PRST is set to zero, Preset Mode is disabled OFF - disable expression pedal input jack EXPR - expression pedal P CH - Preset Mode channel selection LPLV - looper volume level A B C Preset Modes enable / disable...
  • Page 6 T CH - Tap Tempo channel selection (continued) A B C Expression Pedal enable / disable If the location shows as zero, the controller will not 4BTN - Button 4 configuration (DMC-4 only) transmit tap tempo commands to that channel from the Tap OFF - Button 4 is disabled, this should be selected if and Clock mode.
  • Page 7 Strymon Mobius and BigSky: Enter the Globals menu and configure as follows: MIDITH ON MIDIPA OFF MIDICT OFF MIDICH 1, 2, 3, 4 (A, B, C, D device) BYPASS BUFBYP (recommended for BigSky, optional for Mobius) MIDICL ON Mobius, OFF BigSky Eventide devices have a robust MIDI mapping capability, but none of their functions are set from the factory.

  • Page 8: Preset Mode

    6. Preset Mode The DMC Gen3 Preset Mode lets the player change sounds and statuses on all connected devices simultaneously during performance. Each connected device program number and bypass state is saved as part of a preset, as is the MIDI clock and clock subdivision setting if the Clock mode is enabled.
  • Page 9 7. Scrolling Modes The Scrolling Modes are the heart of single-device control on the DMC Gen3. Up to four Scrolling Modes may be enabled, each set to control a separate device on its own MIDI channel. Scrolling Mode Controls: Tap the left button to move down one program / patch on the selected device. Hold the left button to quickly scroll down.

  • Page 10: Tap Tempo

    Hold the center button to toggle the looper position between PRE and POST. Consult your looper documentation to learn how your PRE / POST function operates. Looper Volume Mode Tap or hold the left button to decrease the looper volume. Tap or hold the right button to increase the looper volume.
  • Page 11 Note that if Preset or Global MIDI clock is enabled, the clock messages will be sent to all MIDI devices. Whether the devices react to or follow the clock signal is dependent on the devices themselves. Most devices support a way to ignore MIDI clock, consult your device manual for more details.
  • Page 12 11. MultiJack The MultiJack is pure magic. How else would you describe a single connector that can act as an expression pedal input, remote footswitch input, tap tempo output, or even as a dedicated MIDI output? Magic, we say. Inside the DMC Gen3 is a bank of three DIP switches. These switches allow the tap tempo output to be fully isolated and floating, to prevent possible ground loops with your pedals.
