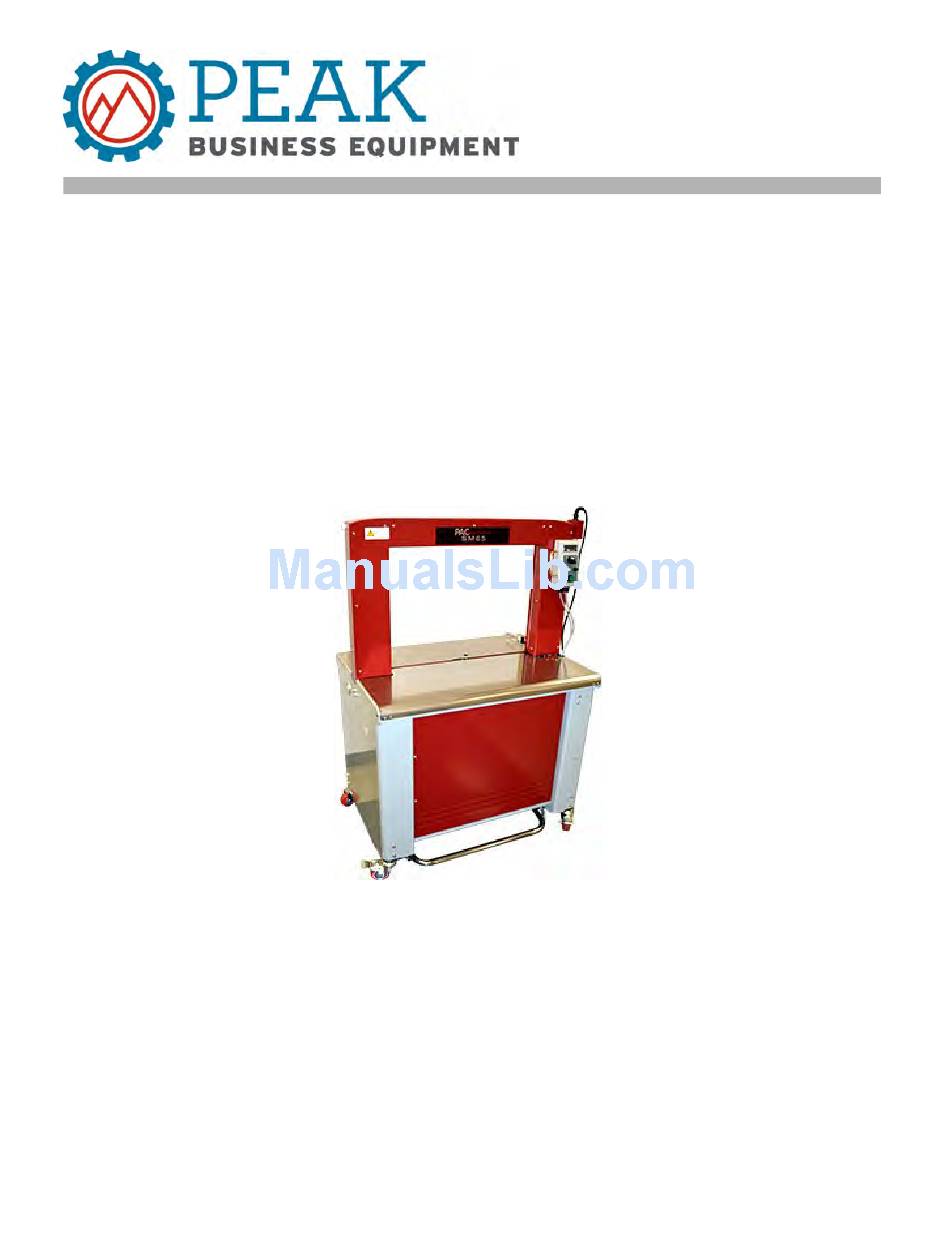

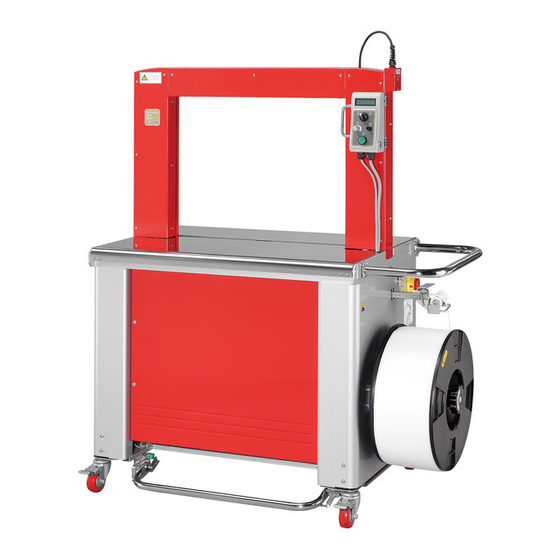

Page 1 Peak Business Equipment - www.peak.bz Phone: 888-584-7272 Fax: 314-209-7282 Email: orders@peak.bz www.peak.bz PAC SM65 Strapping Machine Operation Manual Spare Parts Manual Peak Business Equipment, Inc. Ph. 888-584-7272 Fax. 314-209-7282 orders@peak.bz...
Page 2 Important Note: Some manufacturers will not ship parts outside our service area. Please confirm before filling out the form. Part # Description Price Total Avail* * If limited quantities available, we will show the quantity here. Peak Business Equipment, Inc. Ph. 888-584-7272 Fax. 314-209-7282 orders@peak.bz...
Page 3 Peak Business Equipment - www.peak.bz TP-702 Original Instruction...
Page 4: Table Of Contents
Peak Business Equipment - www.peak.bz CONTENTS PART I General Safety Instructions ............... A1 1.1 Basic Operation ................. A1 1.2 Basic Safety Precautions ............A1 1.3 Safety Instructions Governing Specific Operational Phases ..A2 1.4 Warning of Electrical Dangers ..........A3 1.5 Grounding Instructions Shall Include the Following ....
Page 5: Table Of Contents
Peak Business Equipment - www.peak.bz Preparation Before Operating the Machine........A11 3.1 Shipping ...................A11 3.2 Transportation & Centre of Gravity .........A11 3.3 Construction Layout ..............A12 3.4 Installation................A13 3.5 Operation Space ..............A15 3.6 Operating Elements ..............A16 3.7 Instructions for Loading PP Strap..........A18 3.8 Auto Strap Feeding Process.............
Page 6 Peak Business Equipment - www.peak.bz 6. Troubleshooting................A32 7. Maintenance ..................A34 PART II 1. Wiring Diagram ……………………………………………………..B1 PART III 1. Strapping Head Unit ………………………...………………………C1 2. Bandway Unit ……………………………………………..……….C43 3. Accumulator Unit ………………………………………………….C67 4. Reel Control Group ………………………………………………..C93 5. Body Frame Unit ………………………………………………..C101...
Page 7 Peak Business Equipment - www.peak.bz PART I...
Page 8: General Safety Instructions
Peak Business Equipment - www.peak.bz 1 General Safety Instructions 1.1 Basic Operation Read the operation and safety manual prior to using the strapping machine.  The operation and safety manual should remain attached to the machine at all times. ...
Page 9: Safety Instructions Governing Specific Operational Phases
Peak Business Equipment - www.peak.bz 1.3 Safety Instructions Governing Specific Operational Phases Avoid unsafe operation of the equipment.  The machine is only to be operated when it is in good running order. Only operate the  equipment in a safe manner; all protective and safety devices must be in place and fully functional.
Page 10: Warning Of Electrical Dangers
Peak Business Equipment - www.peak.bz 1.4 Warning of Electrical Dangers Immediately remove power to the machine in case of trouble in the electrical system.  Replace a fuse with one with the same style and ratings; pay particular attention to matching the specified current.
Page 11: Before Operating
Peak Business Equipment - www.peak.bz 1.6 Before Operating Read the instruction manual before operating the machine for your safety.  Wear eye protection and safety gloves before operating this machine.  Eye protection must be worn Safety gloves must be worn Verify that the power line voltage is correct.
Page 12: Signs And Symbols
Peak Business Equipment - www.peak.bz 1.9 Signs and Symbols Meaning Symbol Warning for dangerous voltage! Contact with live electrical parts will result in severe injury or death. Warning for hot surface! Welding area is approximately 270 520℉ Allow sufficient time for the heater to cool down before any work in welding area.
Page 13: Machine Information
Peak Business Equipment - www.peak.bz 2 Machine Information 2.1 Areas of Application The strapping machine is to be used for strapping packages, cartons, paper boxes, newspapers, magazines and those materials using a polypropylene (PP) strapping for stabilizing purposes when in transportation. Be careful for rigidity of working materials, and don’t try to pack agri-foodstuffs or other such material.
Page 14: Storage
Peak Business Equipment - www.peak.bz The user should refer to a professional expert or relevant authority to prevent the dangerous substance/ gas emitted by suitable means according to local /national environmental/health codes/regulations. 2.3 Storage The store room must be dry.
Page 15: Safety Devices
Peak Business Equipment - www.peak.bz 2.5 Safety Devices Danger! Operate the machine only when all safety devices are at their place and are functioning correctly. The machine has been constructed in accordance with the applicable legal regulations. The machine is reliable in operation. Nevertheless the machine may constitute a danger if it is operated in improper or undue condition.
Page 16: Technical Specification
Peak Business Equipment - www.peak.bz If it is necessary to make adjustments inside the machine during operation, after a strap jam for example, the rear table top can be unscrewed. Observe caution as the machine is still fully functional with the covers removed. When the front table top is opened, safety switch B6 is activated.
Page 17 Peak Business Equipment - www.peak.bz 2.6.2 Technical Data Strap width 5mm, 6mm, 9mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Minimum – 820mm (32.3”) Table height Maximum –...
Page 18: Preparation Before Operating The Machine
Peak Business Equipment - www.peak.bz 3 Preparation Before Operating the Machine 3.1 Shipping The equipment is delivered in transport units. Each transport unit is loaded onto a wooden pallet, secured by polyester strapping. 3.2 Transportation & Centre of Gravity The machine must be secured on a pallet for transportation.
Page 19: Construction Layout
Peak Business Equipment - www.peak.bz Danger to Lift! Suspend loads can fall down. By inappropriate mounting or fracture of hoisting device the load can fall down and cause serious injuries or death. Do not step under suspended loads! Use appropriate hoisting devices and fasteners.
Page 20: Installation
Peak Business Equipment - www.peak.bz 15. Feed Motor M2 16. Tension Motor M3 17. Strap Accumulator Motor M4 18. Automatic Feed Motor M5 19. Proximity Sensor SQ1 20. Proximity Sensor SQ2 21. Proximity Sensor SQ3 22. Fan (M11) 23. Heater 24.
Page 21 Peak Business Equipment - www.peak.bz c. Have M7-4-101200 Shaft threading from inside of the machine and then lift the Reel Group and move the Gas Spring to make the PIN also goes through the hole and use 2 Allan Key with 3mm to fix THS0508N+PW05+SW05 all together.
Page 22: Operation Space
Peak Business Equipment - www.peak.bz 4. After positioning the machine ready for working, be sure to lock two front casters (with brake) to avoid machine’s movements. 5. When moving the machine, be sure to un-lock the two lockable casters. Re-lock the two casters after re-positioning the machine.
Page 23: Operating Elements
Peak Business Equipment - www.peak.bz 3.6 Operating Elements 1. Main Power Switch: Provides the machine with power. Switch to “1” position for turning the main power on. After strapping, switch it to “0” to turn off the machine. 2. LCD Display: Indicates strapping condition of machine and error massages.
Page 24 Peak Business Equipment - www.peak.bz 7. Reel Release Switch: To release the dispenser for easily taking out strapping from it. 8. Foot Bar (Front): To initiate a strapping cycle. To clear up machine fault. (reset) 9. Foot Pedal Switch (Option): To initiate a strapping cycle.
Page 25: Instructions For Loading Pp Strap
Peak Business Equipment - www.peak.bz 11. Foot Bar (Rear)(Option): To initiate a strapping cycle. To clear up machine fault. (reset) 3.7 Instructions for Loading PP Strap 3.7.1 Specifications Polypropylene Strap Width: 5, 6 or 9mm Thickness: 0.35-0.65 mm (0.014” –0.026”) Note: Strap coil should not be heavier than 12kg (27 lbs).
Page 26 Peak Business Equipment - www.peak.bz 3.7.2 Strap Reel Installation 1. Open the side door on the right of the machine (fig. 1). 2. Lift the reel handle up all the way to the end (fig. 1). 3. Release the Reel Nut Handle by Handle pressing and turning it to the left.
Page 27: Auto Strap Feeding Process
Peak Business Equipment - www.peak.bz 3.8 Auto Strap Feeding Process 1. Turn Main Power Switch on the right side of machine to the right (at 1 position), and press Start Switch. 2. Open the side door on the right. 3. Press “Reel Release Switch A” and pull out around 90cm strap.
Page 28 Peak Business Equipment - www.peak.bz Guide roller D Lever F Roller E Fig. e Fig. f Fig. g Caution: If strap is fed more than 6cm ahead the rollers, it could make Auto Strap Feeding failed. 8. Close the side door and press Start Switch. Machine will complete the Auto Strap Feeding in 5 sec.
Page 29: Operating The Machine
Peak Business Equipment - www.peak.bz 4. Operating the Machine Switch Main Power Switch to After switching on the strapping machine, heater Position “1” starts to warm up and LCD display continues to be on until the heater reaches its operating temperature (about 2 minutes).
Page 30: Function Encoder
Peak Business Equipment - www.peak.bz 4.3 Function Encoder Ready LCD display will show various timers such as cooling time, timer 1, timer 2…etc. After pressing the function encoder for over 2 seconds, Press encoder turn the knob to choose the timer needed to be over 2S changed.
Page 31: Adjustments
Peak Business Equipment - www.peak.bz 5. Adjustments 5.1 Strap Amount in the Accumulator Box The machine has been already well set for storing enough amount of strap in accumulator Box. However, some adjustments may be required, depending on the actual quality or thickness of the strap used.
Page 32: Adjustment For Feeding Pressure To The Accumulator Box
Peak Business Equipment - www.peak.bz 5.2 Adjustment for Feeding Pressure to the Accumulator Box The machine has been already well set for enough feeding pressure offering enough strength for pulling strap from strap coil to accumulator box. It might be necessary for some adjustments to increase feeding pressure if you are using smooth strap.
Page 33: Adjustment For Heater Temperature
Peak Business Equipment - www.peak.bz 5.3 Adjustment for Heater Temperature The machine has been already well set for proper heater temperature. It might be necessary to do some adjustments according to temperature in working environment, and the quality of P.P. strap to ensure better sealing efficiency.
Page 34 Peak Business Equipment - www.peak.bz 2. Adjusting “M7-1-311500 Adjusting Plate” only for 5mm and 6mm. Loosen #25 HBS0412N×2 to remove #11 M7-1-310001 Upper Guide Ass'y (For 5-6mm) from the machine. Then loosen FMS0408×4 on it and take a piece of p.p.
Page 35 Peak Business Equipment - www.peak.bz 3. Adjusting “Right Strap Guide” Loosen the screws on the “Right Strap Guide” and take it out. Then loosen the 2 screws B (HBS0408N) and adjust A according to the strap. Be sure D is about 0.1mm wider than the strap.
Page 36: Adjustment For Feeding/Reversing Pressure
Peak Business Equipment - www.peak.bz 5. Adjusting Strap Amount in the Accumulator Box Different strap widths might have effects on the strap amount in the accumulator box. Please do the adjustment according to 5.1 if necessary. 5.5 Adjustment for Feeding/Reversing Pressure The upper table rear was screwed by captive screws.
Page 37 Peak Business Equipment - www.peak.bz 1. Adjusting the Pressure for Feeding The machine is already well set for proper feeding pressure. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments for feeding pressure are still necessary.
Page 38: Adjustment On Tensioning Rollers For High Tension
Peak Business Equipment - www.peak.bz 5.6 Adjustment on Tensioning Rollers for High Tension The machine is already well set for proper pressure for high tension. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments on pressure for high tension might be necessary.
Page 39: Troubleshooting
Peak Business Equipment - www.peak.bz 6. Troubleshooting The LCD display would flash and show failure message when machine is not working due to malfunction. Message shown on the LCD could be follows: 1. Reminder message: a. Push Start: Please press the Start Switch to make machine function. This is especially necessary after the Safety Switch is released or after you just turn on the machine.
Page 40 Peak Business Equipment - www.peak.bz ○ ○ b-1. Open Upper Table Front Ass'y M7-5-210020. b-2. Lift up the Lever ○ (M7-2-101400/M7-2-101410) with left hand and take out the Cover ○ (M7-1-311220) for the Upper Guide with right hand at the same time.
Page 41: Maintenance
Peak Business Equipment - www.peak.bz 7. Maintenance Warning: Before any maintenance or repairs on the machine, set the Main Power Switch to "O" (OFF). Wait about 5 minutes for cooling down the heater to avoid burns with this area. 1. Cleaning and Lubrication The high reliability and long service life of the strapping machine will depend on regular cleaning and maintenance.
Page 42 Peak Business Equipment - www.peak.bz Weekly: Lubricate front bar, press bar, rear bar and shafts in arch weekly. Please refer to the following mesh areas for instruction. Before lubricating, be sure to clean the parts first to avoid mixing oil and debris which might have a bad effect on machine’s function.
Page 43 Peak Business Equipment - www.peak.bz 6 Months : (or 500,000 strapping cycles) Check heating element, replace and re-adjust it if necessary. Check strap cutter in sealing head, replace it if necessary. Check if the connector at wiring housing to printed circuit board is firmly fixed.
Page 44 Peak Business Equipment - www.peak.bz 3. After you loosen the nuts, turn the Heater Bracket back to its original position. 4. Take out the Heater Ass’y and make sure the insulations stay intact. If any of insulation fall and get broken, please replace with new one to avoid welding problem.
Page 45 Peak Business Equipment - www.peak.bz...
Page 46 Peak Business Equipment - www.peak.bz PART II...
Page 47: Wiring Diagram
Peak Business Equipment - www.peak.bz 1. Wiring Diagram -B1-...
Page 48 Peak Business Equipment - www.peak.bz -B2-...
Page 49 Peak Business Equipment - www.peak.bz -B3-...
Page 50 Peak Business Equipment - www.peak.bz -B4-...
Page 51 Peak Business Equipment - www.peak.bz -B5-...
Page 52 Peak Business Equipment - www.peak.bz -B6-...
Page 53 Peak Business Equipment - www.peak.bz -B7-...
Page 54 Peak Business Equipment - www.peak.bz -B8-...
Page 55 Peak Business Equipment - www.peak.bz -B9-...
Page 56 Peak Business Equipment - www.peak.bz -B10-...
Page 57 Peak Business Equipment - www.peak.bz -B11-...
Page 58 Peak Business Equipment - www.peak.bz PART III...
Page 59 Peak Business Equipment - www.peak.bz...
Page 60: Strapping Head Unit
Peak Business Equipment - www.peak.bz STRAPPING HEAD UNIT M7-1-900062 M7-1-900072 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-900062 Strapping Head Unit (For 5-6mm) M7-1-900072 Strapping Head Unit (For 9mm) M7-1-100022 Cam Group (For 5-6mm) SEE PAGE C3 M7-1-100040 Cam Group (For 9mm)
Page 61 Peak Business Equipment - www.peak.bz...
Page 62 Peak Business Equipment - www.peak.bz CAM GROUP M7-1-100022 M7-1-100040 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-100022 Cam Group (For 5-6mm) M7-1-100040 Cam Group (For 9mm) M7-1-101100 Strapping Head Frame M7-1-101200 Guide Ejector Plate (L) M7-1-101300 M7-1-101400 Ejector Plate (R) M7-1-101500...
Page 63 Peak Business Equipment - www.peak.bz CAM GROUP M7-1-100022 M7-1-100040 REF. PART NO. DESCRIPTION Q'TY REMARKS HN08 HN, M8 THS0508N THS, M5×8 (N) SW, M3 SW03 SW, M3 (Option) SW05 SW, M5 SW06 SW, M6 SW08 SW, M8 PW03 PW, M3 (Option)
Page 64 Peak Business Equipment - www.peak.bz -C6-...
Page 65 Peak Business Equipment - www.peak.bz...
Page 66 Peak Business Equipment - www.peak.bz 1-1-1 GEAR BOX AND CAM ASS'Y M7-1-110001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-111100 Retracting Cam M7-1-111200 Tension Cam M7-1-111300 Heater Cam M7-1-111400 Front Bar Cam M7-1-111500 Press Bar Cam M7-1-111600 Rear Bar Cam M7-1-111701...
Page 67 Peak Business Equipment - www.peak.bz...
Page 68 Peak Business Equipment - www.peak.bz 1-1-2 M1 MOTOR ASS'Y M7-1-120000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-121100 Gear Box Support M7-1-221100 M1 Motor HBS0520N HBS, M5×20 (N) SW05 SW, M5 KYC0210 Key, 2×10 -C10-...
Page 69 Peak Business Equipment - www.peak.bz...
Page 70 Peak Business Equipment - www.peak.bz 1-1-3 SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-130002 Slide Table Frame Ass'y (For 5-6mm) M7-1-130030 Slide Table Frame Ass'y (For 9mm) M7-1-131102 Slide Table Frame M7-1-131200 Shaft Switch Lever...
Page 71 Peak Business Equipment - www.peak.bz...
Page 72 Peak Business Equipment - www.peak.bz 1-1-4 HEATER ARM ASS'Y M7-1-140000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-141100 Heater Crank M7-1-141200 Heater Shaft M7-1-141200S Heater Shaft (Stainless Steel Model)(Option) M7-1-141300 Heater Bracket M7-1-141300S Heater Bracket (Stainless Steel Model)(Option) M7-1-141400 Terminal Bracket...
Page 73 Peak Business Equipment - www.peak.bz...
Page 74 Peak Business Equipment - www.peak.bz 1-1-5 EXHAUST FAN ASS'Y M7-1-150000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-151100 Fan Bracket T5-1-12370 T7-6-10930 Fan Cover TMS0412N TMS, M4×12 (N) HBS0410N HBS, M4×10 (N) SW04 SW, M4 PW04 PW, M4 HN04 HN, M4...
Page 75 Peak Business Equipment - www.peak.bz...
Page 76 Peak Business Equipment - www.peak.bz 1-1-6 BLOCK ASS'Y T7-1-16000 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-1-10890 Block BR635ZZ Bearing, 635ZZ SP0516 Spring Pin, 5×16 -C18-...
Page 77 Peak Business Equipment - www.peak.bz...
Page 78 Peak Business Equipment - www.peak.bz BAR GUIDE GROUP M7-1-200000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-201100 Bar Guide M7-1-201200 Bar Guide Lid M7-1-201200S Bar Guide Lid (Stainless Steel Model)(Option) M7-1-201300 Cutter Holder M7-1-201300EN Cutter Holder (Stainless Steel Model)(Option) M7-1-201400 Strap Guide...
Page 79 Peak Business Equipment - www.peak.bz...
Page 80 Peak Business Equipment - www.peak.bz 1-2-1 FRONT BAR ASS'Y M7-1-210001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-210001 Front Bar Ass'y M7-1-210001S Front Bar Ass'y (Stainless Steel Model)(Option) M7-1-211101 Front Bar M7-1-211101S Front Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078...
Page 81 Peak Business Equipment - www.peak.bz...
Page 82 Peak Business Equipment - www.peak.bz 1-2-2 PRESS BAR ASS'Y M7-1-220000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-220000 Press Bar Ass'y M7-1-220000S Press Bar Ass'y (Stainless Steel Model)(Option) M7-1-221200 Press Bar M7-1-221200S Press Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078...
Page 83 Peak Business Equipment - www.peak.bz...
Page 84 Peak Business Equipment - www.peak.bz 1-2-3 REAR BAR ASS'Y M7-1-230000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-230000 Rear Bar Ass'y M7-1-230000S Rear Bar Ass'y (Stainless Steel Model)(Option) M7-1-231100 Rear Bar M7-1-231100S Rear Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078...
Page 85 Peak Business Equipment - www.peak.bz...
Page 86 Peak Business Equipment - www.peak.bz FEED GROUP M7-1-300002 M7-1-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-300002 Feed Group (For 5-6mm) M7-1-300012 Feed Group (For 9mm) M7-1-301300 Bearing Housing M7-1-301400 Guide Wheel (For 5-6mm) Guide Wheel (For 9mm) M7-1-301410 M7-1-301500 Spacer (For 5-6mm)
Page 87 Peak Business Equipment - www.peak.bz...
Page 88 Peak Business Equipment - www.peak.bz 1-3-1 UPPER GUIDE ASS'Y M7-1-310001 M7-1-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-310001 Upper Guide Ass'y (For 5-6mm) M7-1-310001S Upper Guide Ass'y (Stainless Steel Model) (For 5-6mm)(Option) M7-1-310011 Upper Guide Ass'y (For 9mm) M7-1-310011S Upper Guide Ass'y (Stainless Steel Model)
Page 89 Peak Business Equipment - www.peak.bz...
Page 90 Peak Business Equipment - www.peak.bz 1-3-2 ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-320001 Assistant Roller Ass'y (For 5-6mm) M7-1-320011 Assistant Roller Ass'y (For 9mm) M7-1-321100 Assistant Roller Bracket (For 5-6mm) M7-1-321100EN Assistant Roller Bracket (Stainless Steel...
Page 91 Peak Business Equipment - www.peak.bz...
Page 92 Peak Business Equipment - www.peak.bz 1-3-3 FEEDING ARM ASS'Y M7-1-330000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-331100 Feeding Arm M7-1-331200 Linkage M7-1-331300 Shaft M7-1-331400 Collar M7-1-331500 Spring Hook T7-1-64130 Return Spring BR6901ZZ Bearing, 6901ZZ HBS0616N HBS, M6×16 (N) HBS0640N HBS, M6×40 (N) PMS0420 PMS, M4×20...
Page 93 Peak Business Equipment - www.peak.bz...
Page 94 Peak Business Equipment - www.peak.bz 1-3-4 RETRACTING ARM ASS'Y M7-1-340000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-341100 Retracting Arm M7-1-341200 Shaft TA-073 Spring Hook BR635ZZ Bearing, 635ZZ Metal Bushing, 1015 MB1015 HBS0516N HBS, M5×16 (N) HB0612 HB, M6×12 SW05 SW, M5...
Page 95 Peak Business Equipment - www.peak.bz...
Page 96 Peak Business Equipment - www.peak.bz TENSION GROUP M7-1-400002 M7-1-400012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-400002 Tension Group (For 5-6mm) M7-1-400012 Tension Group (For 9mm) M7-1-401100 Tension Guide Wheel (For 5-6mm) M7-1-401100S Tension Guide Wheel (Stainless Steel Model) (For 5-6mm)(Option)
Page 97 Peak Business Equipment - www.peak.bz...
Page 98 Peak Business Equipment - www.peak.bz 1-4-1 TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-410001 Tension Crank Ass'y (For 5-6mm) M7-1-410011 Tension Crank Ass'y (For 9mm) M7-1-411100 Assistant Roller (For 5-6mm) M7-1-411100S Assistant Roller (Stainless Steel Model)
Page 99 Peak Business Equipment - www.peak.bz...
Page 100 Peak Business Equipment - www.peak.bz 1-4-2 TENSION ARM ASS'Y M7-1-420001 M7-1-420011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-420001 Tension Arm Ass'y M7-1-420011 Tension Arm Ass'y (For 9mm, Tension 45kg) (Option) M7-1-421101 Tension Arm M7-1-421200 Shaft M7-1-421400 Spring Support M7-1-421510 Spring...
Page 101 Peak Business Equipment - www.peak.bz...
Page 102 Peak Business Equipment - www.peak.bz BANDWAY UNIT M7-2-900002 M7-2-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-900002 Bandway Unit (For 5-6mm) M7-2-900002S Bandway Unit (Stainless Steel Model) (For 5-6mm) M7-2-900012 Bandway Unit (For 9mm) M7-2-900012S Bandway Unit (Stainless Steel Model) (For 9mm)
Page 103 Peak Business Equipment - www.peak.bz...
Page 104 Peak Business Equipment - www.peak.bz ARCH GROUP M7-2-100000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-100000 Arch Group M7-2-100000S Arch Group (Stainless Steel Model) M7-2-101300 Rod (For 550W) M7-2-101310 Rod (For 650W) M7-2-101320 Rod (For 850W) M7-2-101330 Rod (For 1050W) M7-2-101340...
Page 105 Peak Business Equipment - www.peak.bz ARCH GROUP M7-2-100000 REF. PART NO. DESCRIPTION Q'TY REMARKS BRNAST6 Bearing, Nast6 (For 850W~1650W) MB0806 Metal Bushing, 0806 KYA050510 Key, 5×5×10 HBS0516N HBS, M5×16 (N) HBS0516S HBS, M5×16 (Stainless Steel Model) HBS0616N HBS, M6×16 (N)(For 400H~800H) HBS0620N HBS, M6×20 (N)
Page 106 Peak Business Equipment - www.peak.bz -C48-...
Page 107 Peak Business Equipment - www.peak.bz...
Page 108 Peak Business Equipment - www.peak.bz BANDWAY GROUP M7-2-200002 M7-2-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-200002 Bandway Group (For 5-6mm) M7-2-200002S Bandway Group (Stainless Steel Model) (For 5-6mm) M7-2-200012 Bandway Group (For 9mm) M7-2-200012S Bandway Group (Stainless Steel Model) (For 9mm)
Page 109 Peak Business Equipment - www.peak.bz BANDWAY GROUP M7-2-200002 M7-2-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS SW06S SW, M6 (Stainless Steel Model) PW06A PW, M6 (A) PW06AS PW, M6 (A)(Stainless Steel Model) PW06C PW, M6 (C)(For 550W~1050W) PW, M6 (C)(For 1250W/1650W)
Page 110 Peak Business Equipment - www.peak.bz -C52-...
Page 111 Peak Business Equipment - www.peak.bz...
Page 112 Peak Business Equipment - www.peak.bz 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-210002 Strap Track Frame Ass'y (For 5-6mm) M7-2-210002S Strap Track Frame Ass'y (Stainless Steel Model)(For 5-6mm) M7-2-210012 Strap Track Frame Ass'y (For 9mm)
Page 113 Peak Business Equipment - www.peak.bz 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-2-20172 Spring T7-2-20172S Spring (Stainless Steel Model)(Option) T7-2-20180 Bracket T7-2-20380 Washer ( 5× 14)(For 550W~1050W) Washer ( 5× 14)(For 1250W/1650W) T7-2-20171 Spring (For 1250W/1650W)
Page 114 Peak Business Equipment - www.peak.bz -C56-...
Page 115 Peak Business Equipment - www.peak.bz...
Page 116 Peak Business Equipment - www.peak.bz ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-300001 Arch Cover Group M7-2-300001S Arch Cover Group (Stainless Steel Model) M7-2-301101 Arch Cover RH (For 400H) M7-2-301101S Arch Cover RH (Stainless Steel Model) (For 400H)
Page 117 Peak Business Equipment - www.peak.bz ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-2-20470 Support Rod (For 1250W/1650W) M7-2-301400 Arch Cover LH (For 400H) M7-2-301400S Arch Cover LH (Stainless Steel Model) (For 400H) M7-2-301410 Arch Cover LH (For 500H)
Page 118 Peak Business Equipment - www.peak.bz ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-301600 Arch M7-2-301600S Arch (Stainless Steel Model) M7-2-301700 Block (For 850W~1650W) LA-40170 Label LA-40005 Label HBS0412N HBS, M4×12 (N)(For 550W~1050W) HBS0508N HBS, M5×8 (N)(For 850W/1050W/1650W) HBS0508S HBS, M5×8 (Stainless Steel Model)
Page 119 Peak Business Equipment - www.peak.bz ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS PW04 PW, M4 (For 550W~1050W) PW05 PW, M5 (For 550W/650W/1250W) PW, M5 (For 850W/1050W/1650W) PW05S PW, M5 (Stainless Steel Model) (For 850W/1050W/1650W) PW06A PW, M6 (A)(For 550W~1050W)
Page 120 Peak Business Equipment - www.peak.bz -C62-...
Page 121 Peak Business Equipment - www.peak.bz...
Page 122 Peak Business Equipment - www.peak.bz 2-3-1 BLOCK ASS'Y M7-2-310000 (For 550W~1050W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-301200 Block BR635ZZ Bearing, 635ZZ HBS0516N HBS, M5×16 (N) PW05 PW, M5 SW05 SW, M5 -C64-...
Page 123 Peak Business Equipment - www.peak.bz...
Page 124 Peak Business Equipment - www.peak.bz 2-4-1 CONNECTING ROD GROUP M7-2-400010 (For 850W/1050W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-401210 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block M7-2-401500 Bracket (Left) M7-2-401600 Bracket (Right) M7-2-401700 Collar T7-2-20560 Swivel Head, NHS06 MB1715 Metal Bushing, 1715 HSS0506GN HSS, M5×6 (G)(N)
Page 125 Peak Business Equipment - www.peak.bz...
Page 126 Peak Business Equipment - www.peak.bz 2-4-2 CONNECTING ROD GROUP M7-2-400000 (For 1250W/1650W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-401100 Bracket M7-2-401200 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block TC-025 Spring H42-1227 Washer T7-2-20560 Swivel Head, NHS06 MB1512 Metal Bushing, 1512 HBS0620N HBS, M6×20 (N)
Page 127 Peak Business Equipment - www.peak.bz...
Page 128 Peak Business Equipment - www.peak.bz ACCUMULATOR UNIT M7-3-900002 M7-3-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-900002 Accumulator Unit (For 5-6mm, 550W) M7-3-900002S Accumulator Unit (Stainless Steel Model) (For 5-6mm, 550W) M7-3-900012 Accumulator Unit (For 9mm, 550W) M7-3-900012S Accumulator Unit (Stainless Steel Model)
Page 129 Peak Business Equipment - www.peak.bz ACCUMULATOR UNIT M7-3-900002 M7-3-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300032 Accumulator Box Group (For 5-6mm, 650W~1050W) M7-3-300032S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 650W~1050W) M7-3-300042 Accumulator Box Group (For 9mm, 650W~1050W) M7-3-300042S Accumulator Box Group (Stainless Steel...
Page 130 Peak Business Equipment - www.peak.bz -C70-...
Page 131 Peak Business Equipment - www.peak.bz...
Page 132 Peak Business Equipment - www.peak.bz STRAP AMOUNT CONTROL GROUP M7-3-100000 M7-3-100010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-100000 Strap Amount Control Group (For 5-6mm, 550W~1050W) M7-3-100010 Strap Amount Control Group (For 9mm, 550W~1050W) M7-3-100030 Strap Amount Control Group (For 5-6mm,...
Page 133 Peak Business Equipment - www.peak.bz...
Page 134 Peak Business Equipment - www.peak.bz AUTO STRAP FEEDING GROUP M7-3-200001 M7-3-200011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-200001 Auto Strap Feeding Group (For 5-6mm, 550W~1050W) M7-3-200011 Auto Strap Feeding Group (For 9mm, 550W~1050W) M7-3-200031 Auto Strap Feeding Group (For 5-6mm,...
Page 135 Peak Business Equipment - www.peak.bz AUTO STRAP FEEDING GROUP M7-3-200001 M7-3-200011 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0408N TMS, M4×8 (N) HBS0516N HBS, M5×16 (N) HBS0508N HBS, M5×8 (N)(For 5-6mm, 550W~1050W) HBS, M5×8 (N)(For 5-6mm, 1250W/1650W) HBS0512N HBS, M5×12 (N)(For 9mm, 550W~1050W) HBS, M5×12 (N)(For 9mm, 1250W/1650W)
Page 136 Peak Business Equipment - www.peak.bz -C76-...
Page 137 Peak Business Equipment - www.peak.bz...
Page 138 Peak Business Equipment - www.peak.bz 3-2-1 ROLLER ASS'Y M7-3-210001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-211101 Bracket M7-3-211200 Roller M7-3-211300 Collar BR686ZZ Bearing, 686ZZ H44-10950 Washer HBS0630HN HBS, M6×30 (H)(N) HN06 HN, M6 -C78-...
Page 139 Peak Business Equipment - www.peak.bz...
Page 140 Peak Business Equipment - www.peak.bz 3-2-2 MOVABLE STRAP GUIDE ASS'Y M7-3-220000 M7-3-220010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-220000 Movable Strap Guide Ass'y (For 5-6mm) M7-3-220010 Movable Strap Guide Ass'y (For 9mm) M7-3-221101 Rotary Arm M7-3-221200 Spacer M7-3-221300 Link M7-3-221400...
Page 141 Peak Business Equipment - www.peak.bz...
Page 142 Peak Business Equipment - www.peak.bz 3-2-3 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-230000 M4 Motor Ass'y (For 5-6mm) M7-3-230010 M4 Motor Ass'y (For 9mm) Accumulator Main Roller (For 5-6mm) M7-3-231100 M7-3-231110 Accumulator Main Roller (For 9mm)
Page 143 Peak Business Equipment - www.peak.bz...
Page 144 Peak Business Equipment - www.peak.bz 3-2-4 ASSISTANT ROLLER SHAFT ASS'Y T7-3-20080 T7-3-20081 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-3-20080 Assistant Roller Shaft Ass'y (For 5-6mm) T7-3-20081 Assistant Roller Shaft Ass'y (For 9mm) Shaft T7-3-20150 T7-3-20160 Assistant Roller (For 5-6mm) T7-3-20162...
Page 145 Peak Business Equipment - www.peak.bz...
Page 146 Peak Business Equipment - www.peak.bz ACCUMULATOR BOX GROUP M7-3-300002 (For 550W~1050W) M7-3-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300002 Accumulator Box Group (For 5-6mm, 550W) M7-3-300002S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 550W) Accumulator Box Group (For 9mm, 550W)
Page 147 Peak Business Equipment - www.peak.bz ACCUMULATOR BOX GROUP M7-3-300002 (For 550W~1050W) M7-3-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS HBS0625N HBS, M6×25 (N)(For 5-6mm, 550W) HBS, M6×25 (N)(For 5-6mm, 650W~1050W) HBS, M6×30 (N)(For 9mm, 550W) HBS0630N HBS, M6×30 (N)(For 9mm, 650W~1050W) HBS, M6×40 (N)
Page 148 Peak Business Equipment - www.peak.bz -C88-...
Page 149 Peak Business Equipment - www.peak.bz...
Page 150 Peak Business Equipment - www.peak.bz ACCUMULATOR BOX GROUP M7-3-300053 (For 1250W/1650W) M7-3-300063 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300053 Accumulator Box Group (For 5-6mm, 1250W/1650W) M7-3-300053S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 1250W/1650W) M7-3-300063 Accumulator Box Group (For 9mm,...
Page 151 Peak Business Equipment - www.peak.bz...
Page 152 Peak Business Equipment - www.peak.bz 3-3-1 AUTO STRAP EJECTING ASS'Y M7-3-310002 M7-3-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-310002 Auto Strap Ejecting Ass'y (For 5-6mm) M7-3-310011 Auto Strap Ejecting Ass'y (For 9mm) M7-3-312700 Sensor Bracket M7-3-312800 Inlet Guide (For 5-6mm)
Page 153 Peak Business Equipment - www.peak.bz...
Page 154 Peak Business Equipment - www.peak.bz REEL CONTROL GROUP M7-4-100001 M7-4-100011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-100001 Reel Control Group (For 200mm) SEE PAGE C95 M7-4-100011 Reel Control Group (For 150mm)(Option) -C94-...
Page 155 Peak Business Equipment - www.peak.bz...
Page 156 Peak Business Equipment - www.peak.bz REEL CONTROL GROUP M7-4-100001 M7-4-100011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-100001 Reel Control Group (For 200mm) M7-4-100011 Reel Control Group (For 150mm)(Option) M7-4-101101 Inner Flange (For 200mm) T7-4-10112 Inner Flange (For 150mm)(Option) M7-4-101200 Shaft...
Page 157 Peak Business Equipment - www.peak.bz...
Page 158 Peak Business Equipment - www.peak.bz 4-1-1 OUTER FLANGE ASS'Y M7-4-110001 M7-4-110010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-110001 Outer Flange Ass'y (For 200mm) M7-4-110010 Outer Flange Ass'y (For 150mm)(Option) M7-4-111101 Outer Flange (For 200mm) T7-4-10122 Outer Flange (For 150mm)(Option) M7-4-111200...
Page 159 Peak Business Equipment - www.peak.bz...
Page 160 Peak Business Equipment - www.peak.bz 4-1-2 REEL CRANK ASS'Y M7-4-120001 M7-4-120011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-120001 Reel Crank Ass'y (For 200mm) M7-4-120011 Reel Crank Ass'y (For 150mm)(Option) M7-4-121100 Reel Crank M7-4-121200 Support Shaft (For 200mm) M7-4-121301 M7-4-121311 Shaft (For 150mm)(Option)
Page 161 Peak Business Equipment - www.peak.bz...
Page 162 Peak Business Equipment - www.peak.bz BODY FRAME UNIT M7-5-900002 M7-5-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-900002 Body Frame Unit (For 5-6mm, 550W) M7-5-900002S Body Frame Unit (Stainless Steel Model) (For 5-6mm, 550W) M7-5-900012 Body Frame Unit (For 9mm, 550W)
Page 163 Peak Business Equipment - www.peak.bz BODY FRAME UNIT M7-5-900002 M7-5-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-100022 Body Frame With Foot Bar Group (For 1250W/1650W) M7-5-100022S Body Frame With Foot Bar Group (Stainless Steel Model)(For 1250W/1650W) M7-5-200002 Cover Group (For 5-6mm, 550W)
Page 164 Peak Business Equipment - www.peak.bz BODY FRAME UNIT M7-5-900002 M7-5-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-300021 Extension Table Group (For 5-6mm, 1050W/1650W) M7-5-300021S Extension Table Group (Stainless Steel Model) (For 5-6mm, 1050W/1650W) M7-5-300031 Extension Table Group (For 9mm, 1050W/1650W)
Page 165 Peak Business Equipment - www.peak.bz...
Page 166 Peak Business Equipment - www.peak.bz BODY FRAME WITH M7-5-100002 FOOT BAR GROUP M7-5-100012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-100002 Body Frame With Foot Bar Group (For 550W) M7-5-100002S Body Frame With Foot Bar Group (Stainless Steel Model)(For 550W) M7-5-100012...
Page 167 Peak Business Equipment - www.peak.bz BODY FRAME WITH M7-5-100002 FOOT BAR GROUP M7-5-100012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-110002 Foot Bar Ass'y (For 550W) SEE PAGE C109 Foot Bar Ass'y (For 550W)(Option) M7-5-110002S Foot Bar Ass'y (Stainless Steel Model)
Page 168 Peak Business Equipment - www.peak.bz BODY FRAME WITH M7-5-100002 FOOT BAR GROUP M7-5-100012 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0406 TMS, M4×6 TMS, M4×6 (Option) SW05 SW, M5 (For 1250W/1650W) SW06 SW, M6 SW, M6 (Option) SW06S SW, M6 (Stainless Steel Model)
Page 169 Peak Business Equipment - www.peak.bz...
Page 170 Peak Business Equipment - www.peak.bz 5-1-1 FOOT BAR ASS'Y M7-5-110002 M7-5-110012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-110002 Foot Bar Ass'y (For 550W) M7-5-110002S Foot Bar Ass'y (Stainless Steel Model) (For 550W) Foot Bar Ass'y (For 1250W/1650W) M7-5-110012 M7-5-110012S Foot Bar Ass'y (Stainless Steel Model)
Page 171 Peak Business Equipment - www.peak.bz 5-1-1 FOOT BAR ASS'Y M7-5-110002 M7-5-110012 REF. PART NO. DESCRIPTION Q'TY REMARKS SW06 SW, M6 SW06S SW, M6 (Stainless Steel Model) SW, M5 SW05 SW05S SW, M5 (Stainless Steel Model) PW, M5 PW05 PW05S PW, M5 (Stainless Steel Model)
Page 172 Peak Business Equipment - www.peak.bz -C112-...
Page 173 Peak Business Equipment - www.peak.bz...
Page 174 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-200002 Cover Group (For 5-6mm, 550W) M7-5-200002S Cover Group (Stainless Steel Model) (For 5-6mm, 550W) M7-5-200012 Cover Group (For 9mm, 550W) M7-5-200012S Cover Group (Stainless Steel Model)
Page 175 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-102100 Handle (Option) M7-6-102100S Handle (Stainless Steel Model)(Option) Cover (For 550W/650W) M7-5-201600 M7-5-201600S Cover (Stainless Steel Model) (For 550W/650W) Table Support M7-5-201701 M7-5-201701S...
Page 176 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-2-10280 Block (For 550W/650W) T7-2-10281 Block (For 850W/1050W) T6-6-60130 HBS0508N HBS, M5×8 (N)(For 850W/1050W) HBS0508S HBS, M5×8 (Stainless Steel Model) (For 850W/1050W) HBS0516N HBS, M5×16 (N)
Page 177 Peak Business Equipment - www.peak.bz...
Page 178 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200062 (For 1250W/1650W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-200062 Cover Group (For 5-6mm, 1250W) M7-5-200062S Cover Group (Stainless Steel Model) (For 5-6mm, 1250W) M7-5-200072 Cover Group (For 9mm, 1250W) M7-5-200072S Cover Group (Stainless Steel Model)
Page 179 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200062 (For 1250W/1650W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-230061 Upper Table Rear Ass'y (For 1250W) SEE PAGE C127 M7-5-230061S Upper Table Rear Ass'y (Stainless Steel Model)(For 1250W) M7-5-230071 Upper Table Rear Ass'y (For Photo Eye)
Page 180 Peak Business Equipment - www.peak.bz COVER GROUP M7-5-200062 (For 1250W/1650W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS THS0630N THS, M6×30 (N) THS0630S THS, M6×30 (Stainless Steel Model) FLG05 FLG, M5 HN06 HN, M6 SW05 SW, M5 (For 1250W) SW, M5 (For 1650W)
Page 181 Peak Business Equipment - www.peak.bz...
Page 182 Peak Business Equipment - www.peak.bz 5-2-1 UPPER TABLE FRONT ASS'Y M7-5-210001 (For 550W/650W) M7-5-210011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-210001 Upper Table Front Ass'y (For 5-6mm, 550W) M7-5-210001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 550W) Upper Table Front Ass'y (For 9mm, 550W)
Page 183 Peak Business Equipment - www.peak.bz...
Page 184 Peak Business Equipment - www.peak.bz 5-2-2 UPPER TABLE FRONT ASS'Y M7-5-220001 (For 850W~1650W) M7-5-220011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-220001 Upper Table Front Ass'y (For 5-6mm, 850W~1050W) M7-5-220001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 850W/1050W) M7-5-220011 Upper Table Front Ass'y (For 9mm,...
Page 185 Peak Business Equipment - www.peak.bz 5-2-2 UPPER TABLE FRONT ASS'Y M7-5-220001 (For 850W~1650W) M7-5-220011 REF. PART NO. DESCRIPTION Q'TY REMARKS T6-5-11120 Table Roller (250mm)(For 850W/1050W) Table Roller (250mm)(For 1250W/1650W) T6-5-11121 Table Roller (250mm)(Stainless Steel Model) (For 850W/1050W) Table Roller (250mm)(Stainless Steel Model)
Page 186 Peak Business Equipment - www.peak.bz -C126-...
Page 187 Peak Business Equipment - www.peak.bz...
Page 188 Peak Business Equipment - www.peak.bz 5-2-3 UPPER TABLE REAR ASS'Y M7-5-230001 (For 850W~1650W) M7-5-230011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-230001 Upper Table Rear Ass'y (For 850W/1050W) M7-5-230001S Upper Table Rear Ass'y (Stainless Steel Model) (For 850W/1050W) M7-5-230011 Upper Table Rear Ass'y (For Photo Eye)
Page 189 Peak Business Equipment - www.peak.bz 5-2-3 UPPER TABLE REAR ASS'Y M7-5-230001 (For 850W~1650W) M7-5-230011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-231191S Upper Table Rear (For Photo Eye)(Stainless Steel Model)(For 1650W)(Option) M7-6-102100 Handle (Option) M7-6-102100S Handle (Stainless Steel Model)(Option) T6-5-11120 Table Roller (250mm)(For 850W/1050W)
Page 190 Peak Business Equipment - www.peak.bz -C130-...
Page 191 Peak Business Equipment - www.peak.bz...
Page 192 Peak Business Equipment - www.peak.bz EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W) M7-5-300011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-300001 Extension Table Group (For 5-6mm, 850W) M7-5-300001S Extension Table Group (Stainless Steel Model) (For 5-6mm, 850W) M7-5-300011 Extension Table Group (For 9mm, 850W)
Page 193 Peak Business Equipment - www.peak.bz EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W) M7-5-300011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-310011 Upper Table Front Ass'y (For 9mm, 1050W/1650W) M7-5-310011S Upper Table Front Ass'y (Stainless Steel Model)(For 9mm, 1050W/1650W) M7-5-320001 Upper Table Rear Ass'y (For 1050W/1650W)
Page 194 Peak Business Equipment - www.peak.bz -C134-...
Page 195 Peak Business Equipment - www.peak.bz...
Page 196 Peak Business Equipment - www.peak.bz 5-3-1 UPPER TABLE FRONT ASS'Y M7-5-310001 (For 1050W/1650W) M7-5-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-310001 Upper Table Front Ass'y (For 5-6mm, 1050W/1650W) M7-5-310001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 1050W/1650W) M7-5-310011 Upper Table Front Ass'y (For 9mm,...
Page 197 Peak Business Equipment - www.peak.bz...
Page 198 Peak Business Equipment - www.peak.bz 5-3-2 UPPER TABLE REAR ASS'Y M7-5-320001 (For 1050W/1650W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-320001 Upper Table Rear Ass'y (For1050W/1650W) M7-5-320001S Upper Table Rear Ass'y (Stainless Steel Model)(For 1050W/1650W) M7-5-321101 Upper Table Rear M7-5-321101S Upper Table Rear (Stainless Steel Model)
Page 199 Peak Business Equipment - www.peak.bz...
Page 200 Peak Business Equipment - www.peak.bz PEDAL CONTROL SET T7-6-40001 (OPTION) REF. PART NO. DESCRIPTION Q'TY REMARKS T6-6-10350 Connector (Foot Switch) T7-5-20130 Micro Switch TMS0308N TMS, M3×8 (N) TMS0308S TMS, M3×8 (Stainless Steel Model) -C140-...
Page 201 Peak Business Equipment - www.peak.bz...
Page 202 Peak Business Equipment - www.peak.bz ELECTRIC CONTROL UNIT M7-6-900004 M7-6-900014 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-900004 Electric Control Unit (For 220V~ 240V, 550W) M7-6-900004S Electric Control Unit (Stainless Steel Model) (For 220V~ 240V, 550W) M7-6-900014 Electric Control Unit (For 110V, 550W)
Page 203 Peak Business Equipment - www.peak.bz ELECTRIC CONTROL UNIT M7-6-900004 M7-6-900014 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-200013S Electric Control Group (Without Wire) (Stainless Steel Model)(For 110V) M7-6-300003 Wires Group (For 550W) SEE PAGE C153 M7-6-300013 Wires Group (For 650W~1050W) M7-6-300023...
Page 204 Peak Business Equipment - www.peak.bz -C144-...
Page 205 Peak Business Equipment - www.peak.bz...
Page 206 Peak Business Equipment - www.peak.bz CONTROL PANEL GROUP M7-6-100030 M7-6-100040 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-100030 Control Panel Group (Europe)(For 550W) M7-6-100030S Control Panel Group (Europe)(Stainless Steel Model)(For 550W) M7-6-100040 Control Panel Group (Europe) (For 650W~1650W) M7-6-100040S Control Panel Group (Europe)(Stainless Steel...
Page 207 Peak Business Equipment - www.peak.bz CONTROL PANEL GROUP M7-6-100030 M7-6-100040 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0308N TMS, M3×8 (N) TMS0312 TMS, M3×12 FHS0416S FHS, M4×16 (SUS) FMS0508N FMS, M5×8 (N) FMS0508S FMS, M5×8 (Stainless Steel Model) SW03 SW, M3...
Page 208 Peak Business Equipment - www.peak.bz -C148-...
Page 209 Peak Business Equipment - www.peak.bz...
Page 210 Peak Business Equipment - www.peak.bz ELECTRIC CONTROL GROUP M7-6-200003 M7-6-200013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-200003 Electric Control Group (For 220V~ 240V) M7-6-200003S Electric Control Group (Without Wire) (Stainless Steel Model)(For 220V~240V) M7-6-200013 Electric Control Group (For 110V) M7-6-200013S...
Page 211 Peak Business Equipment - www.peak.bz ELECTRIC CONTROL GROUP M7-6-200003 M7-6-200013 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0412N TMS, M4×12 (N) TMS0420N TMS, M4×20 (N) TMS0420S TMS, M4×20 (Stainless Steel Model) HBS0540N HBS, M5×40 (N) HBS0540S HBS, M5×40 (Stainless Steel Model) HBS0510N HBS, M5×10 (N)
Page 212 Peak Business Equipment - www.peak.bz -C152-...
Page 213 Peak Business Equipment - www.peak.bz...
Page 214 Peak Business Equipment - www.peak.bz WIRES GROUP M7-6-300003 M7-6-300013 (1 OF 2) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-300003 Wires Group (For 550W) M7-6-300013 Wires Group (For 650W~1050W) M7-6-300023 Wires Group (For 1250W/1650W) EW720105BX12 Wire Ass'y X12 (Control Panel)(For 550W)
Page 215 Peak Business Equipment - www.peak.bz WIRES GROUP M7-6-300003 M7-6-300013 (1 OF 2) REF. PART NO. DESCRIPTION Q'TY REMARKS EW720005B005 Wire Ass'y (Foot Bar (Rear))(Option) M7-6-300200 Proximity Sensor Set (Foot Bar (Rear))(Option) SEE PAGE C109 -C155-...
Page 216 Peak Business Equipment - www.peak.bz -C156-...
Page 217 Peak Business Equipment - www.peak.bz...
Page 218 Peak Business Equipment - www.peak.bz WIRES GROUP M7-6-300003 M7-6-300013 (2 OF 2) REF. PART NO. DESCRIPTION Q'TY REMARKS EW720005BM04 Wire Ass'y X4 (Power for M4/M5 PCB) EW720005BM01 Wire Ass'y X1 (Power for M4/M5)(For 550W) EW720006CM01 Wire Ass'y X1 (Power for M4/M5)
Page 219 Peak Business Equipment - www.peak.bz...
Page 220 Peak Business Equipment - www.peak.bz PHOTO EYE TIMER BOX GROUP M7-6-400000 (OPTION) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-401100 M7-6-401200 P.C. Board EW720005B006 Wire Ass'y M7-6-400100 Photo Eye Timer Box Ass'y M7-6-301200 Photo Eye (PH1) SEE PAGE C3 T5-4-10222 Knob (Hole 6.0)
