Summary of Contents for miniland baby 89119-2

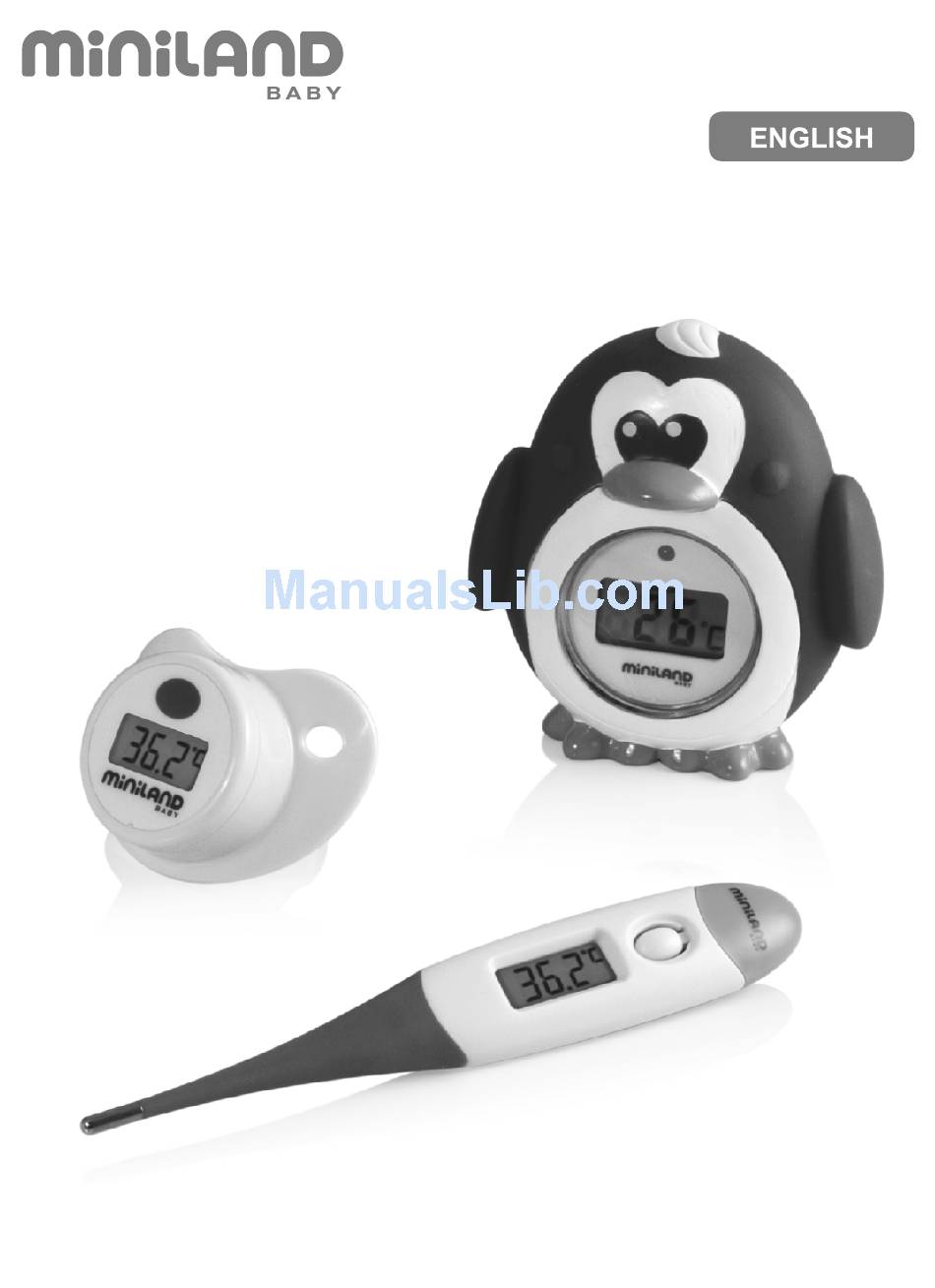

  • Page 1 89119-3 89119-2 89119-1 www.minilandbaby.com...
  • Page 2 English INDEX 1. INTRODUCTION 2. CONTENTS 3. BODY THERMOMETER 4. PACIFIER THERMOMETER 5. BATH THERMOMETER 6. BATTERY & PRODUCT DISPOSAL INFORMATION 1. INTRODUCTION Congratulations on the purchase of this kit of thermometers that includes a body thermometer, a bath thermometer and a pacifier thermometer. Before using this kit, please read this manual carefully.
  • Page 3 English 3.2. PRODUCT FEATURES 3.2.1. PARTS DESCRIPTION 1. Probe 2. Probe cover 3. Display LCD 4. ON / OFF Button 5. Battery cover 3.3. INSTRUCTIONS FOR USE 1. Ensure that the thermometer has been turned off before taking the temperature. Press and release the power button (4).
  • Page 4: Methods Of Use

    English 3.3.1. METHODS OF USE When measuring the body temperature, always take the measurement from the same part of the body and at the same time of day. Whichever method is used, it is recommended to avoid eating or drinking any liquids, exercising, taking showers or baths, or smoking for 15 minutes prior to use.
  • Page 5: Replacing The Battery

    English 3.4. MAINTENANCE 3.4.1. CLEANING 1. Clean the thermometer probe before and after use by wiping it with medical alcohol 95% and then rinse with plenty of water. 2. When taking continuous measurements, we recommend using a probe cover, which should not to be reused. 3.4.2.
  • Page 6: Normalized Symbols

    English 3.5.1. NORMALIZED SYMBOLS · Attention: Read the operating Instructions for use! · Applied part of type BF · Disposal in accordance with Directive 2002/96/EC (WEEE) · Complies with the European Medical Device Directive (93/42/EEC) and amended by directive 2007/47/ECrequirements. 0434 Notified body 0434: Det Norske Veritas Certification AS ·...
  • Page 7: Method Of Use

    English 4.2. PRODUCT FEATURES 4.2.1. PARTS DESCRIPTION 1. ON / OFF Button 36.8 2. LCD Display 3. Sensor 4. Cover 4.3. INSTRUCTIONS FOR USE Place the pacifier in your child’s mouth before turning it on. 1. Press and release the power button (1). A short beep will be heard and 188.8 all the symbols will be turned on for 1 second to show that all parts of the LCD are functioning properly,...
  • Page 8 English Notes: - A normal temperature may vary slightly from one person to another and vary according to the time of day. - This method produces approximately the same temperature as a temperature taken orally with the body thermometer. - Cleaning is required before every measurement. - Measurement is inaccurate when the battery is low.
  • Page 9 English 4.5.1. NORMALIZED SYMBOLS · Attention: Read the operating Instructions for use! · Applied part of type BF · Disposal in accordance with Directive 2002/96/EC (WEEE) · Complies with the European Medical Device Directive (93/42/EEC) and amended by directive 2007/47/ECrequirements. 0434 Notified body 0434: Det Norske Veritas Certification AS ·...
  • Page 10: How To Replace The Battery

    English 5.2. PRODUCT FEATURES 5.2.1. PARTS DESCRIPTION 1. Display LCD 2. Alarm indicator 3. Battery compartment 4. Sensor Front Rear CLOSE OPEN 5.3. INSTRUCTIONS FOR USE The main function of this penguin is to measure the bath water temperature. It floats and is waterproof.
  • Page 11 English CR2032 CLOSE OPEN CLOSE OPEN 5.5. TECHNICAL SPECIFICATION - Measurement range: 0ºC~50ºC / 32ºF~122ºF - Measuring time: 2 seconds - Accuracy: +/-1 ºC (+/-2ºF) - Resolution: 1ºC / 1.8ºF - Storage temperature: -10ºC~60ºC / 14ºF~140ºF - Power: 1xCR2032 - Battery life: about 1 year (based on 1 hour using per day) - Display unit ºC or ºF (factory setting only) - High temperature alarm ≧39ºC 6.
  • Page 12 Cotronic Technology Ltd. Floor 4~6, Block 7, West of ZhouShi Road, XiXiang Street, BaoAn Zone, Shenzhen, Guangdong, China Locus Electronic Limited EC REP 28 Eustace Crescent, Rochester, Kent, ME2 2GL, U.K. Ref. 89119-1 Ref. 89119-2 Ref. 89119-3 0434 0434 260514...
