JCM UAC™ Device
JCM is a registered trademark of JCM American Corporation. All other product names
mentioned herein may be registered trademarks or trademarks of their respective companies.
™
®
©
Furthermore,
,
and
are not always mentioned in each case throughout this publication.
925 Pilot Road, Las Vegas, Nevada 89119
Office & Technical Support: (800) 683-7248 (option 1 after hours), FAX: (702) 651-0214
E-mail: techsupport@jcmglobal.com
Part No. 960-100194R_Rev. 3
Operator Guide
September, 2016
®
http://www.jcm-american.com
© 2016 JCM American Corporation
8
September, 2016
JCM UAC
Operational Instructions
This document contains information for configuring and operating the JCM
™
Universal Acceptor Connector
(UAC) Device.
™
The UAC
is a TTL and RS-232 to USB Protocol Converter that allows a JCM
Product to directly connect to a PC using its standard USB Communications
Port. JCM Products utilize either an Opto-isolated Current Loop (TTL) or an
RS-232 Protocol for communication.
™
The UAC
eliminates Jumper changing, Power Supply re-configuration, RS-232
Circuit Board removal, or using other complicated harness configurations to
connect a Banknote Acceptor to a Computer for testing operations.

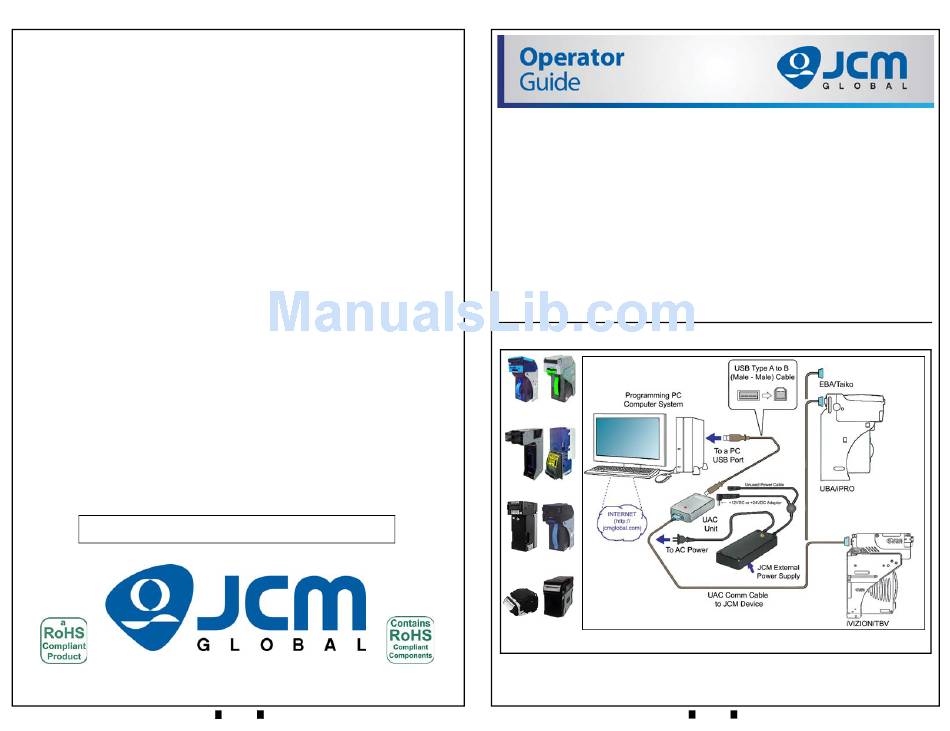

Figure 1 illustrates the primary component parts of a JCM UAC
Typical UBA & iVIZION
Units (Not Included)
Typical TBV & DBV-30x
Units (Not Included)
Typical EBA & iPRO Units
(Not Included)
Typical Taiko & Vega Units
(Not Included)
Typical UAC Installation Equipment & Cable Requirements
Figure 1 Primary UAC Kit Interconnection Scheme
Part No. 960-100194R_Rev. 3
Operator Guide
™
Device
™
Kit.
1
© 2016 JCM American Corporation
®
Advertisement
Table of Contents
Summary of Contents for JCM JCM UAC
- Page 1 ™ The UAC is a TTL and RS-232 to USB Protocol Converter that allows a JCM Product to directly connect to a PC using its standard USB Communications Port. JCM Products utilize either an Opto-isolated Current Loop (TTL) or an ...
- Page 2 EBA-3x/EBA-40 Test Adaptor Cable 960-100194R UAC Operators Guide * JAC Product Numbers designate products developed by JCM American Corporation in the USA and, JCMG EDP Product Numbers beginning with the letter “G” designate products developed by JCM-E Germany. Part No. 960-100194R_Rev. 3 ©...
- Page 3 ™ ™ Table 4 provides a cross reference comparison list of UAC Part Descriptions Figure 2 illustrates the primary component parts of a typical JCM UAC Kit. ™ related to various JCM Products that are supported with the UAC Table 4 Part Number Cross Reference List...
- Page 4 4. Follow the prompts, selecting the Folder directory where the Drivers were stored • Output: +12VDC 3.5A or +24VDC 3.0A from the previous step. One of the above two DC Voltage Levels is acceptable to most JCM Acceptors. ™ Documentation for the UAC Drivers is available at the following location: ...
