Summary of Contents for Aven Mighty cam eidos
-

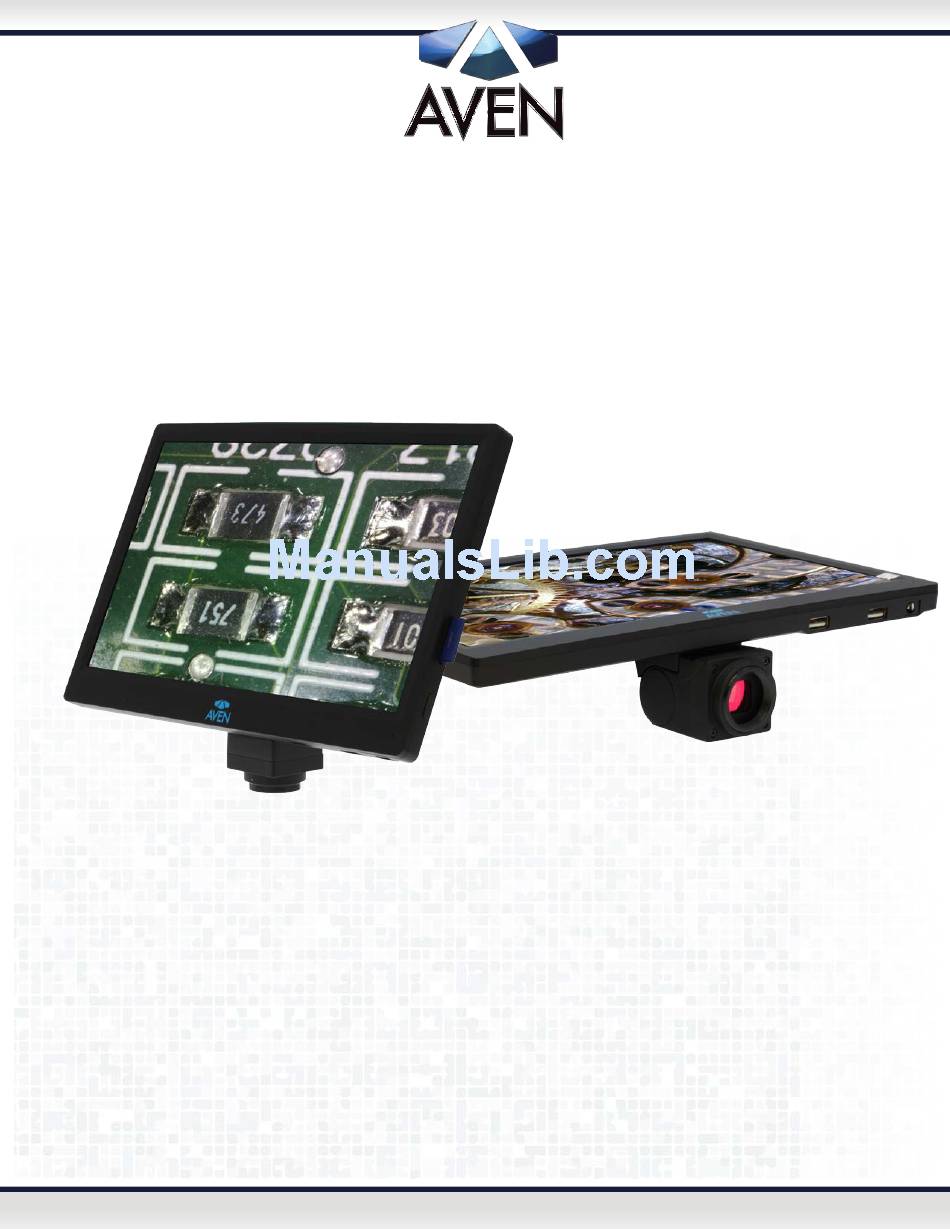

Page 1: User Manual
Mighty Cam Eidos Integrated 2M Color CMOS Camera / 11.6” 1080p Monitor item # 26100-260 User Manual Email | sales@aveninc.com Web | aveninc.com fax | 734-973-0097 Phone | 734.973.0099... - Page 2 Mighty Cam Eidos User Manual EIDOS: An Introduction Thank you for your purchase of Aven’s Eidos. This integrated HD camera system can be mounted to any microscope or video lens with a C/CS mount. Allows operators to view high definition images at a high frame rate of 60fps while looking straight ahead at a monitor.
- Page 3 Mighty Cam Eidos User Manual Use this icon to restore factory settings at any time. Camera Settings Menu: Setting Automatic or Manual Exposure and White Balance Automatic Exposure Adjust your exposure preferences using this menu. Checking the box confirms you are using the Automatic Exposure option. For Manual Exposure, simply uncheck the box.
- Page 4 Mighty Cam Eidos User Manual Click to adjust the white balance. To default to the Automatic White Balance Mode, click check the white box. Grid Menu Navigate to the main menu by clicking this icon: Move cursor to the right edge of the screen and click to display...
- Page 5 Mighty Cam Eidos User Manual Displays current line color If desired, you may hide the reticle menu by moving the mouse cursor from the right edge of the screen. This automatically hides the reticle menu—but make sure to save your settings first.
- Page 6 Mighty Cam Eidos User Manual Use this menu to make color corrections and adjustments: III. Icon Definitions Primary Main Menu Email | sales@aveninc.com Web | aveninc.com fax | 734-973-0097 Phone | 734.973.0099 [TYPE HERE]...
- Page 7 Mighty Cam Eidos User Manual Use this to zoom in Use this to zoom out Use for a vertical reflection of your image Use for a mirror image Use to freeze image Adjust grayness within your image High Dynamic Range—use for a...
- Page 8 Mighty Cam Eidos User Manual Format SD Card Use to Adjust Settings Use to Adjust Cross-hairs Email | sales@aveninc.com Web | aveninc.com fax | 734-973-0097 Phone | 734.973.0099 [TYPE HERE]...
