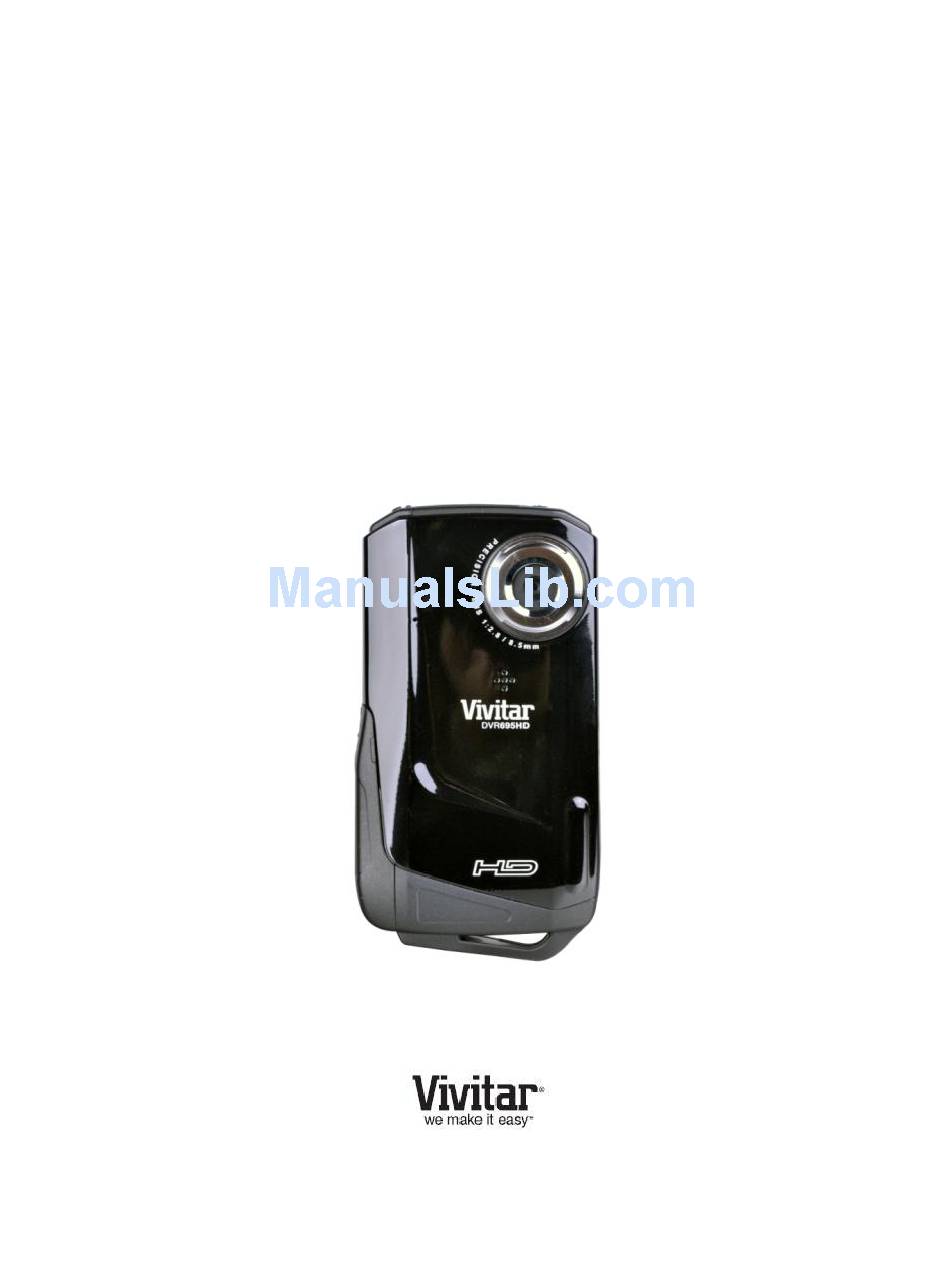

Page 1: User Manual
DVR 695HD Digital Camcorder User Manual © 2009-2012 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. -
Page 2: Table Of Contents
Contents Introduction ..........................3 Getting to Know Your Camcorder ....................3 What’s Included ......................... 4 Parts of the Camcorder ......................5 Initial Camcorder Setup ......................6 Main Camcorder Modes ......................10 Camcorder Technical Specifications ..................11 Computer System Requirements ..................... 12 Powering the Camcorder On/Off .................... -
Page 3: Introduction
Thank you for purchasing this digital camcorder. Everything you need to take quality digital photos and videos is included with your camcorder. Vivitar makes capturing those special moments as easy as possible. Please read this manual carefully first in order to get the most out of your digital camcorder. -
Page 4: What's Included
What’s Included 1. Digital Camcorder 2. USB cable 3. Vivitar Experience Image Manager Software Installation CD 4. Neck Strap NOTE: Micro SD Memory Card and batteries not included. -
Page 5: Parts Of The Camcorder
Parts of the Camcorder Item Part Function USB Interface Transfers photo and video files to the computer via USB cable. Memory Card Slot Insert Micro SD card for digital file storage. Connects the camcorder via HDMI cable (included in some versions of the HDMI Port camcorder) for HDTV connection. -
Page 6: Initial Camcorder Setup
Initial Camcorder Setup Installing the Batteries Installing the Memory Card Insert 2 x AA (1.5V) batteries. Alkaline batteries recommended (not Micro SD Memory Card (up to 16GB) included). needed for normal use. Turning On the Camcorder Using the Camcorder... - Page 7 Powering the Camcorder ON Battery Installation Make sure the batteries have been inserted properly into your digital camcorder. Use 2x AA (1.5V) batteries. Alkaline batteries are recommended. (Batteries not included.) 1. Release and open the battery compartment door. 2. Install the batteries into the battery compartment as illustrated above. 3.
- Page 8 Micro SD Memory Card Make sure a Micro SD card up to 16GB has been properly inserted into your camcorder. Class 4 or above SD card is recommended. Micro SD Memory card not included. You must insert the Micro SD Memory Card in order to record and store your VIDEOS and PICTURES.
- Page 9 IMPORTANT: The Micro SD memory card must be formatted before capturing videos and photographs. If your SD card is new, or if it was used with other camcorders or devices, you need to FORMAT the card - see simple steps below. If the SD card was previously used, make sure to save all needed photos and videos before formatting the SD card.
-
Page 10: Main Camcorder Modes
Main Camcorder Modes Your digital camcorder has different modes for the various camcorder functions. Video Capture Mode Use this mode to capture videos with your digital camcorder. This is the default mode when the camcorder is powered ON. To take a video, aim your camcorder as desired and press the Shutter button to start recording. -
Page 11: Camcorder Technical Specifications
Camcorder Technical Specifications Image Sensor CMOS Sensor 720P (1280x720), up to 30fps; WVGAP30 (848x480), up to 30fps; Video Resolution VGA (640x480), up to 30fps; QVGA (320x240), up to 30fps 12.0 Mega pixel (4032 x3024), 8.0 Mega pixel (3264x2448), Photo Resolution 5.0 Mega pixel (2592x1944), 3.0 Mega pixel (2048x1536), VGA (640 x480 ) File Format... -
Page 12: Computer System Requirements
Computer System Requirements To be able to download photos and videos to your WINDOWS OS or MACINTOSH OS computer using the Vivitar Experience Image Manager Software, you will need the following minimum configuration: WINDOWS OS Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 ... -
Page 13: Powering The Camcorder On/Off
Powering the Camcorder On/Off Make sure the batteries have been inserted properly into your digital camcorder. Make sure the Micro SD card has been inserted properly into your camcorder. Micro SD card up to 16GB - not included. Please see Initial Camcorder Setup for more information. -
Page 14: Changing Camcorder Mode
Changing Camcorder Mode Your camcorder has three main modes: Video Capture Mode - Use this mode to capture videos with your camcorder. Photo Capture Mode - Use this mode to capture photos with your camcorder. Playback Mode (for photos and videos) - Use this mode to view the photos and videos you have already taken with your camcorder. -
Page 15: Video Capture Mode
Video Capture Mode The Video Capture Mode allows you to capture videos with your digital camcorder. When the camcorder is first powered ON, the camcorder will be in Video Capture Mode. Taking a Video Power on your camcorder. Use the LCD display to direct the camcorder at the scene you would like to capture. Press the UP or DOWN button to Zoom In or Zoom Out in order to better set the... -
Page 16: Playback Mode (Videos & Photos)
Playback Mode (Videos & Photos) The Playback Mode allows you to review and delete videos and photos that you’ve already captured with you camcorder. Entering Playback Mode When you first turn on the camcorder, the camcorder will be in Video Capture Mode by default. - Page 17 Playing Videos on Your Camcorder Selecting your video: Once in Playback Mode, press the UP or DOWN button to scroll through the captured images until you find the video you would like to view. Videos appear with the Video icon on the top-left of the LCD screen.
- Page 18 Viewing your photos as a Slide Show: The Slide Show feature enables you to playback all your captured still images automatically. Once in Playback Mode, press the UP or DOWN button to select a photo. Press the MENU button and select ‘Playback’...
- Page 19 NOTE: To exit the Delete Menu at any time and return to the Playback Mode, press the MENU button. Images that are protected/locked cannot be deleted. First unlock the image, and then delete the image. Protecting Images (Videos & Photos) Press the Playback button to enter the Single View Playback Mode.
-
Page 20: Status Icon Description
Status Icon Description The following icons appear on the LCD screen and indicate the selected menu options and camcorder status. Item Function Description Photo Capture Mode Video Capture Mode Mode Playback Mode: Video Playback Mode: Video: Photo Anti-Shake Shows Anti-Shaking ON/OFF. Photo Mode: Number of pictures that have been taken. - Page 21 Shows Face/Smile Detect ON/OFF. Shows Smile Detection Face/Smile Detect Shows Face Detection Micro SD Card Indicates that the Micro SD card is inserted and will be Indication used as storage for PHOTOS and VIDEOS. Battery power is full. Battery Indicator Battery power is empty.
-
Page 22: Navigating The Menus
Navigating the Menus Each camcorder mode has a set of menus specific to that mode. In addition, the menu options include general camcorder setup settings. To access these menus: Press the MENU button to open the Main Menu options for the current mode. Press the UP or DOWN button to scroll between the various Main Menu options for... -
Page 23: Menu Options
Menu Options The following are the menu options that appear in your camcorder’s Video Capture Mode, Photo Capture Mode, Playback Mode and Setup Mode: Video Capture Mode Menus To enter the Video Capture Mode Menus: While in Video Capture Mode, press the MENU button and use the UP or DOWN button to select ‘Video’... - Page 24 Photo Capture Mode Menus To enter the Photo Capture Mode Menus: While in Photo Capture Mode, press the MENU button and use the UP or DOWN button to select ‘Still’ ( Press the OK button to enter the Photo Capture Mode Menu options. Photo Capture Mode- Photo Setting Menu Options: Self-Timer 2S Timer...
- Page 25 Face Detect The Face Detect feature when selected allows the camcorder to use a subject’s face as the basis for balancing the other colors and focus in the camera’s display. This Face and Smile detection feature is meant to ensure that the color and Face Detection setting.
- Page 26 Playback Mode Menus To enter the Playback Mode Menus: While in Playback Mode, press the MENU button and use the UP or DOWN button to select ‘Playback’ ( ). Press the OK button to enter the Playback Mode Menu options. Playback Mode- Playback Setting Menu Options: Deletes selected (current) video Delete...
- Page 27 Video Capture Mode and Photo Mode Effect Menus To enter the general effect settings for both Video and Photo Capture Modes: While in Video/Photo Capture Mode or Playback Mode, press the MENU button and use button to select ‘Effect’ ( the UP or DOWN Press the OK...
- Page 28 Exposure The Light Exposure setting helps you control the amount of light that enters your camcorder’s lens. ±1/3 This setting should be adjusted when the environment is lighter or darker than normal. ±2/3 When the environment has more light than is Changes the level of exposure ±1 needed, reduce the exposure setting (by using...
- Page 29 General Camcorder Setup Menus To enter the general settings for your camcorder: While in Video/Photo Capture Mode or Playback Mode, press the MENU button and use button to select ‘Setup’ ( the UP or DOWN Press the OK button to enter the Setup Menu options. Camcorder Setup Menus: Date/Time Year, Month,...
- Page 30 Frequency The options in the Frequency menu Setting for European electricity 50Hz represent the frequency of the frequency. electrical current in fluorescent lighting sources in your locale. If your camcorder is set to a frequency that does not match your country’s electric Setting for American electricity 60Hz current, you may see waves on the...
-
Page 31: Installing The Software
CD/DVD drive and click on “Setup.exe” to launch the installer. 3. On Macintosh: Click the icon that appears on the desktop to install the Vivitar Experience Image Manager. 4. If you do not have internet access at the time of inserting the CD-ROM, connect to the internet and then click the “Install Vivitar Experience Image Manager”... -
Page 32: Connecting The Camcorder To The Computer
On PC and Macintosh: Click the “I accept the terms of this license agreement” and then click “Next” to continue. 10. On PC only: Let the “Vivitar Experience Image Manager” installer create the folder to where the program will be installed, and then click “Install”. -
Page 33: Connecting The Camcorder To The Hdtv
Connecting the Camcorder to the HDTV When you wish to view on High Definition (HD) TV, please use an HDMI cable (purchased separately) and connect as shown below: Set your HDTV to the corresponding HDMI INPUT (review TV Manual if needed) and use camcorder buttons in the same way as you use camcorder during PLAYBACK mode. -
Page 34: Getting Photos And Videos From Your Camcorder To Your Computer
Getting Photos and Videos from your Camcorder to Your Computer The SD card must be inserted in the digital video camcorder. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. 1. -
Page 35: Getting Started
Use automatic “Geotagging” with built in Google Maps For more details on how to use the Vivitar Experience Image Manager open the Help file or click the “Take a Tour” button on the application’s Home screen. Transferring Images Manually Transferring Photos and Videos: WINDOWS OS Use the supplied USB cable to connect your camcorder to your computer. - Page 36 Transferring Photos and Videos: MACINTOSH OS Use the supplied USB cable to connect your camcorder to your computer. The camcorder automatically powers on and enters the USB mode. ‘Mass Storage’ appears on the LCD. The camcorder’s device icon appears on the desktop. Click on the device icon and open the DCIM folder and the folder inside to view the media files.
-
Page 37: Camcorder Maintenance
Camcorder Maintenance The digital camcorder is a delicate device. Please handle your camcorder with care to avoid damaging it. Do not expose your camcorder to heat sources. Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year from the time of purchase. -
Page 38: Technical Support
For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831, in Australia call 1800-006-614. If you would like to call from anywhere else, please visit www.vivitar.com for your local toll free number. - Page 39 Q: Cannot turn ON the camcorder The Cause: Low battery power. Battery not inserted properly. The Solution: Replace with new 2x AA alkaline batteries. Check that the batteries are correctly aligned when installed. Q: VIDEO or PICTURES cannot be saved when you are taking them. The Cause: Micro SD card has not been installed.
- Page 40 Q: Blurry images The Cause: The HD camcorder is not held steady during recording The lens of HD camcorder is dirty. The Solution: Hold the HD camcorder steady when taking pictures, wait to hear the beep sound Clean the lens with soft dry cloth. DVR695HD-1.0-101712-TA FW V0.26...
