Quad monitor

Advertisement

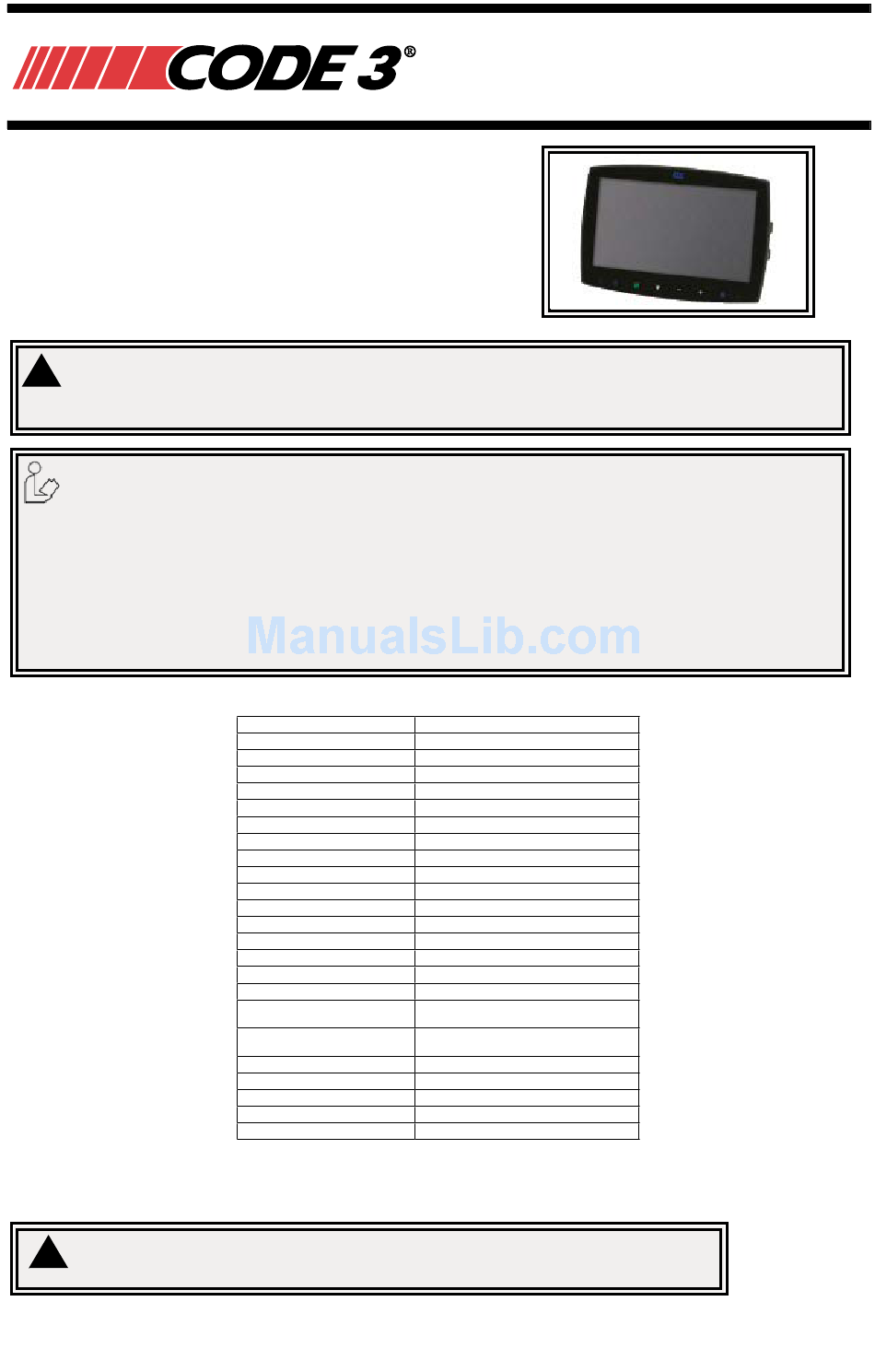

The CC7000-QM Monitor from Code 3 is designed to provide a driver
with video and audio from up to four cameras individually or together
on a split screen for ultimate driver awareness. When properly
installed and used in conjunction with vehicle mirrors, Code 3's
CC7000-QM assists drivers during hazardous parking and backing
situations. This manual provides information about installation,
function, safety, maintenance, replacement parts and warranty.
!
WARNING!
Failure to install or use this product according to manufacturers recommendations may result in property damage, serious injury, and/or death to
those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understand the safety information
contained
1.
Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to ensure
the safety of you and those you are seeking to protect.
2.
Exercise caution when working with live electrical connections.
3.
This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,
which can cause personal injury and/or severe vehicle damage, including fire.
4.
Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance of the
system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing
eye contact with the roadway.
5.
It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle operator
should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors), people,
vehicles or other obstructions.

Specifications:

Installation, Wiring and Function
!
Caution! When drilling into any vehicle surface, make sure that the area is free from any electrical wires, fuel lines,
vehicle upholstery, etc. that could be damaged.
920-0497-00 Rev. A
Monitors
Controller
Voltage
Power Consumption
Mirror Imaging
Split Screen Feature
AV Compatible
DVR Compatible
Audio
Contrast/Brightness
Light Sensor
Camera Selection
Connection: CAM
Connection (Monitor Pigtail)
Connection: CB
Housing
Mounting
Mech. Vibration
Weight
Dimensions (WxHxD)
Operating Temp
Remote Control
Approvals

Installation Instructions

CC7000-QM Monitor
EC7003-QM 7" LCD Monitor
7" LCD Color, 16:9
4 Camera
12-24VDC
25 W Max
Yes (via Camera and Monitor Switch)
Yes
Yes
No
Yes
Yes
Day/Night Auto Dim
1-4 Via Trigger Wires
Female 4 Pin Threaded
Male 22 Pin
N/A
Plastic
Permanent - HD (2 bracket options
provided)
Pedestal Bracket - 3G
Cradle Bracket - 8G
1.26 lbs
7.21"x5.04"x1.24"
4°F to 158°F
Yes
FCC, CE, RoHS
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC7000-QM and is the answer not in the manual?

Questions and answers

Summary of Contents for Code 3 CC7000-QM

  • Page 1: Installation Instructions

    Installation Instructions CC7000-QM Monitor The CC7000-QM Monitor from Code 3 is designed to provide a driver with video and audio from up to four cameras individually or together on a split screen for ultimate driver awareness. When properly installed and used in conjunction with vehicle mirrors, Code 3’s CC7000-QM assists drivers during hazardous parking and backing situations.
  • Page 2 Notes: 1. Larger wires and tight connections will provide longer service life for components. For high current wires it is recommended that terminal blocks or soldered connections be used with shrink tubing to protect the connections. Do not use insulation displacement connectors (e.g., 3M Scotchlock type connectors) 2.
  • Page 3 Monitor: Model CC7000-QM WARNING! To prevent accidental shock, DO NOT OPEN THE MONITOR CASE. Opening the monitor case will expose the inside of the monitor to conditions that could adversely affect performance. Any evidence of tampering with sealed components will void the warranty.
  • Page 4 WARNING! 1. Please align the remote control with the remote signal receiver window to operate. 2. Never disassemble the remote control or allow it to drop or get wet. Monitor Parts Identification CC7000-QM EC7003-M Color LCD Screen Remote Signal IR Receiver...
  • Page 5: Menu Operation

    Menu Operation Press the Menu button on the remote control or the Menu button on the monitor screen. Use the Up & Down arrow on the remote control or the down arrow on the monitor screen to toggle between menus. Use Volume Up on the remote control or the + button on the monitor screen to select highlighted menu or Volume Down on the remote control or the –...
  • Page 6 MAIN MENU SYSTEM SETUP REC-V OUT (see selection below) CAMERA SETUP AUTO-SCAN (ON/OFF) CAMERA NAME SCAN DELAY (select scan delay) SETUP JUMP KEY (see selection below) SYSTEM SETUP P-ON (see selection below) TRIGGER SETUP BEEP (ON/OFF) TRIGGER PRIORITY SYSTEM (PAL/NTSC) SPLIT SETUP DIMMER...
  • Page 7 MAIN MENU TRIGGER PRIORITY CAMERA SETUP CAMERA NAME PRIORITY (FRONT/BACK/SPLIT/LEFT/RIGHT) SETUP PRORITY (FRONT/BACK/SPLIT/LEFT/RIGHT) SYSTEM SETUP PRIORITY (FRONT/BACK/SPLIT/LEFT/RIGHT) TRIGGER SETUP PRIORITY (FRONT/BACK/SPLIT/LEFT/RIGHT) TRIGGER PRIORITY PRIORITY (FRONT/BACK/SPLIT/LEFT/RIGHT) SPLIT SETUP RESET TRIGGER PRIORITY: To set camera trigger priority. SPLIT SETUP SPLIT SETUP MAIN MENU SPLIT SPLIT SCREEN...
  • Page 8: Product Returns

    *Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.;...
