Summary of Contents for Nomix Frontline Classic
- Page 1 The original low volume TDC herbicide application system INSTRUCTIONS...
-
Page 2: Table Of Contents
Backpack and herbicide box Pacing control Spray width control LCD readout Onboard electronics Flow rate Section 5: Preparing the Frontline Classic for Use Personal Protective Equipment (PPE) Inserting the battery Connecting the herbicide box Priming Selecting a disc Calibrating Section 6:... -
Page 3: Introduction

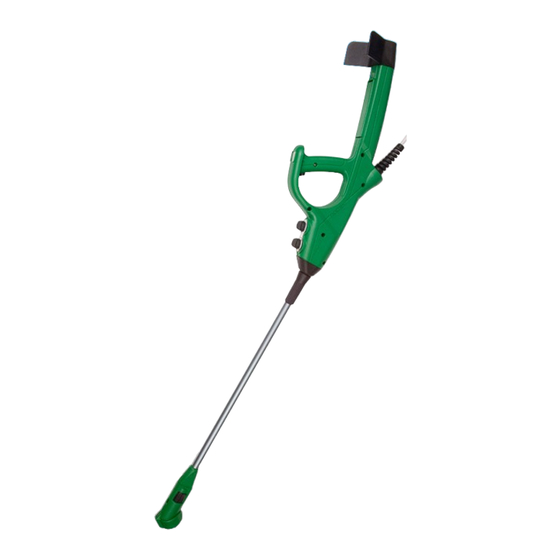

Section 1: Introduction The Frontline Classic is a lightweight hand-held low volume herbicide applicator, designed for use with our range of Nomix Total Droplet Control (TDC) herbicides. Nomix TDC is a unique system, combining pre-mixed, highly effective herbicides with easy to use, efficient applicators. -
Page 4: Component List
Section 2: Component List Spray head a) Flow rate window b) Flow rate indicator c) Flow rate control Control panel a) Spray width control b) Pacing control Trigger LCD readout Spiral disc Square disc Serrated disc Disc ejector tool... - Page 5 Battery charger Car charger* Backpack Box connector a) Feed tube b) C-clip c) Connector Calibration cup Carry case* * These items do not form part of our standard components. They can be purchased from Nomix Enviro. Please telephone 01264 388050.
-
Page 6: Quick Start
Section 3: Quick Start Charge the battery for a minimum of eight hours Attach the shaft Select an approved Nomix TDC herbicide Shake the herbicide box vigorously for at least one minute, in a circular motion Place the herbicide box in... - Page 7 Prime your Frontline Classic Before calibrating the Frontline Classic you will need to select a disc. Do not attach the disc until calibration is complete Spiral - Narrow spray Square - Medium Spray Serrated - Wide Spray Calibrate your Frontline Classic...
-
Page 8: Controls And Features
Section 4: Controls and Features Battery and charger Please Note: The battery must be charged before connecting it to the handset. Always connect the battery before connecting the herbicide pack. • Plug the charger supplied into a mains outlet (do not switch on). •... -
Page 9: Shaft
The electronic single function (on/off) trigger mechanism ensures fast and accurate application. Press the trigger to start spraying and again to stop. Backpack and herbicide box The Frontline Classic should only be used with approved Nomix TDC herbicides, carried in a Nomix backpack. -
Page 10: Pacing Control
Section 4: Controls and Features (cont.) Pacing control • When in the ‘OFF’ position, the usage clock is visible on the LCD readout for a short time. • The calibrate position disables the motor whilst calibrating. • The other positions are used to set the lance to beep, indicating when to step to maintain the walking pace. -
Page 11: Lcd Readout
LCD readout The LCD readout is activated when the spray width control is set or the trigger button is pressed. Press the trigger to power the lance functions and allow chemical to flow to the spray head. • Battery Information: The five battery segments display the amount of battery charge remaining... -
Page 12: Onboard Electronics
Section 4: Controls and Features (cont.) • Clock: The clock enables you to measure the hours of operation To display the hours of operation, set the spray width and pacing controls to ‘OFF’ Hours will show on the LCD readout for approximately 3 seconds The clock is activated when the spray button is pressed... -
Page 13: Personal Protective Equipment (Ppe)
Section 5: Preparing for use Personal Protective Equipment (PPE) The minimum PPE recommended for use is: • Coveralls • Suitable protective gloves • Wellington boots. Always refer to the herbicide product label for the recommended PPE. Inserting the battery • Check the handset controls are in the ‘OFF’... -
Page 14: Connecting The Herbicide Box
Section 5: Preparing for use (cont.) Connecting the herbicide box to the lance • Select an approved TDC herbicide. • Read the label for full product information and application rates. • Shake the herbicide box vigorously for at least one minute in a circular motion. -
Page 15: Selecting A Disc
• Ensure there is no disc attached. If a disc is present, remove it using the disc ejector tool. • Turn the spray width control to the ‘OFF’ position. • Turn the pacer control to the calibrate position. • Set the flow rate indicator to ‘Prime’. -
Page 16: Calibrating
Section 5: Preparing for use (cont.) Calibrating The Operator should carry out a full calibration procedure according to the corresponding product label. This should take account of: • Walking Speed: This should be accurately measured. The Pacing Control on the applicator will assist with determining accurate walking speed. - Page 17 Example: For a walking speed of 3.2 kph, product application rate 10 litres per hectare, spray width of 60cm: 3.2 x 10 x 60 / 120 = 16 ml/30 seconds The product label will give a guide as to the best applicator settings to be used, in order to achieve the correct flow rate, as determined by the above formula.
-
Page 18: Spraying
If the spray pattern is being affected by wind, do not spray until the wind drops. Optimum Spray Pattern Just a few drops of Nomix TDC herbicide will control weeds. This is the optimum spray pattern. •... -
Page 19: Cleaning The Frontline Classic
Section 7: Cleaning Please Note: You MUST clean the Frontline Classic at the end of each day’s spraying and also before using a different herbicide. The ONLY way to clean the lance is with specially formulated Nomix Universal Cleaner. Always refer to the Code of Practice for full instructions on the cleaning of herbicide application equipment. - Page 20 • Run cleaner through the lance with the settings in the Prime position until liquid runs clear. Spray on an approved site or collect the liquid for disposal. DO NOT allow contaminated cleaner to drain back into the cleaner pack. •...
-
Page 21: Storing The Frontline Classic
• An applicator carry case is available for purchase from Nomix Enviro. Nomix Enviro recommends that this equipment is serviced annually. Where possible, servicing should be completed at the end of the spraying season. -
Page 22: Safety Tips
‘OFF’ position before draining chemical back into the herbicide box. • Take care not to spill herbicide. Always test the Frontline Classic in a bunded area or on waste ground, away from ponds, drains, streams and ditches. •... -
Page 23: Troubleshooting
Limits on warranties and liabilities as well as necessary cautions are on the product labels. Nomix and Nomix Enviro are trademarks of Frontier Agriculture Ltd. For further information contact Nomix Enviro on 01264 388050. - Page 24 Nomix Enviro A division of Frontier Agriculture Ltd The Grain Silos Weyhill Road Andover Hampshire SP10 3NT 01264 388050 01522 866176 nomixenviro@frontierag.co.uk www.nomix.co.uk ALWAYS READ THE LABEL USE PESTICIDES SAFELY...
