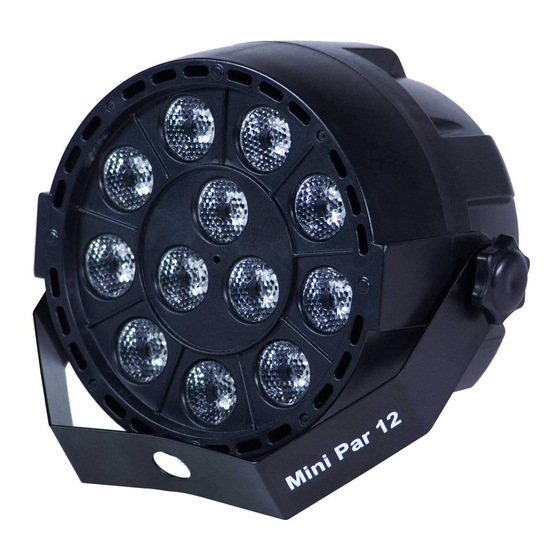

Solena Mini Par 12 User Manual

12*1w rgbw indoor led par light
Hide thumbs

Advertisement

Quick Links

Download this manual
Mini Par 12
12*1W RGBW Indoor LED Par Light
User's Manual
ATTENTION: Read this manual before using. Do not attempt to open the housing or repair
this device by yourself without contact us!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini Par 12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solena Mini Par 12

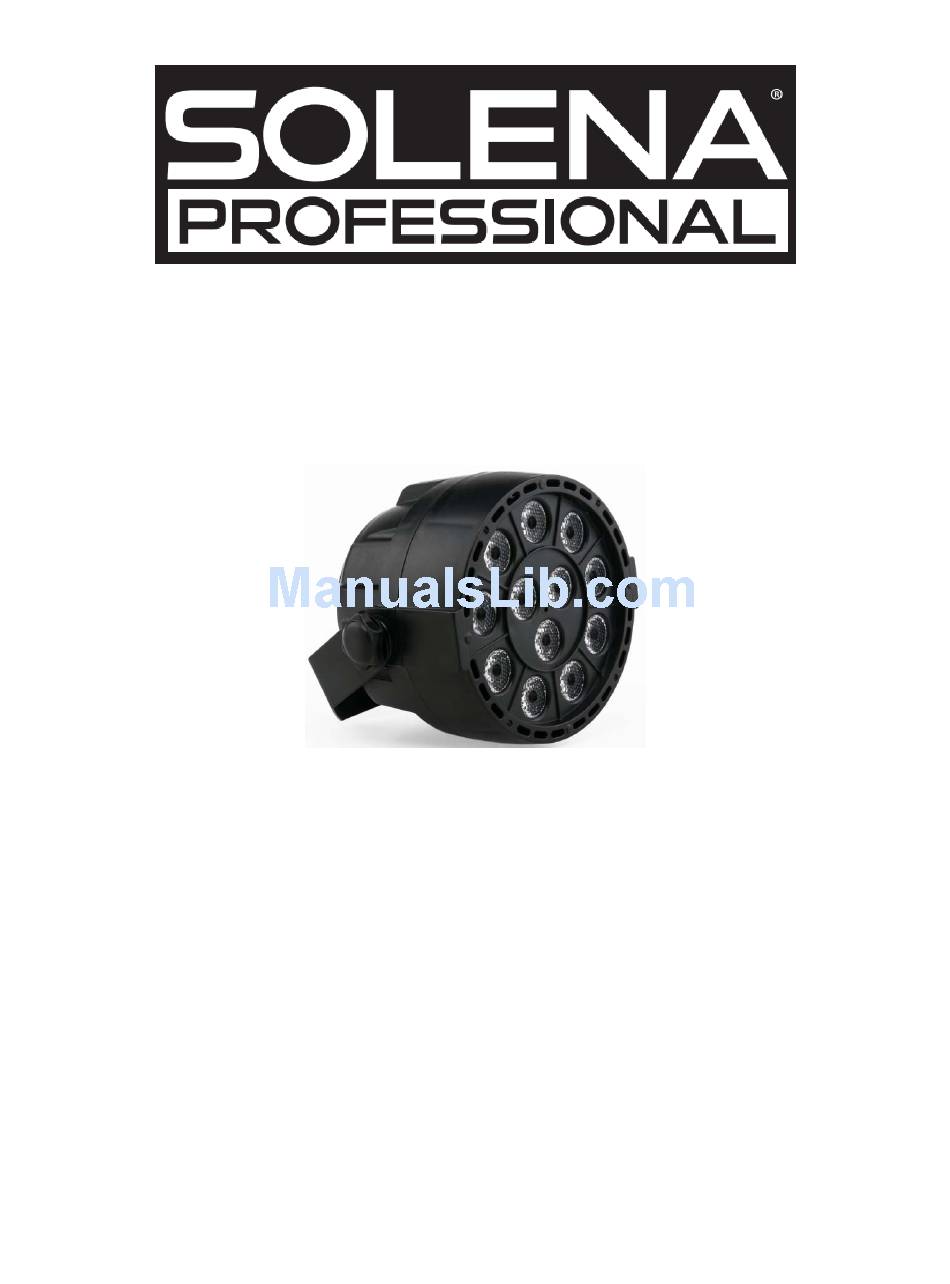

  • Page 1 Mini Par 12 12*1W RGBW Indoor LED Par Light User's Manual ATTENTION: Read this manual before using. Do not attempt to open the housing or repair this device by yourself without contact us!

  • Page 2: General Instructions

    General Instructions Unpacking: Thank you for purchasing this product. Please read user guide for safety and operations information before using the product. Keep this manual for future reference. This product can create perfect light programs and effects since it has passed a series of strictly tests before delivery. Please check the attachments listed on the page after opening the carton.
  • Page 3 This product is for indoor use only! Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic objects. Make sure there are no flammable materials close to the fixture(s) while operating. Please prevent this light away from electrical shock When hanging this fixture, always secure it to a fastening device using a safety cable (not provided).

  • Page 4: Technical Specification

    LED Expected Lifespan LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is significantly reduced.

  • Page 5: Function & Setting

    Fixture A ppearance 1. LED bulbs, 2. hanging handle, 3. LCD Digital display 4. key menu: me nu, enter, up, down,5. DMX linking XLR IN/OUT, .Power source Function & Setting Sound Active The change of the LED pattern is controlled by sound, that is, the rhythm of the sound control the effect of the changing light pattern.
  • Page 6 AUTO Auto cycles the built-in programs without being controll ed externally. It has no light OFF. Stand-Alone Operation (Sound Active, AUTO mode) The mode allows a single unit to react to the beat of the music i n the master mode. 1.
  • Page 7 Universal DMX Operation (DMX mode) The system only accepts the DMX512 signal of internat ional standard to control the system. This mode allows you to use universal DMX-512 console to operate. 1. Install the units in a suitable position (laying or appending). 2.
  • Page 8 Value Channel Function Description 0-31 Color controlled by CH1 to CH5, no all color change 32-95 Static color selecti on CC01—CC16 with 15 colors controlled by CH7 96-143 Color change RonGup –RdownGon – GonBup— GdownBon --RupBon-- RonBdown 144-191 RonGup--RdownGon--GonWup--GdownWon-- BupWon--BonWdown--GupBon--GonBdown-- RupGonWup--RonGdownWon--RdownWon-- GupBupWon--GdownBonWdown--RupBon-- Color change...
  • Page 9 LCD Digital Display MENU: Function mode selection, such as DMX512/Masterslav e, AUTO strobe, Sound Active Strobe, Constant light on, brightness adjustment DOWN/UP: previous or next, increase or decrease nter: confirm and save the selection LCD Digital Display Chart r000-r255 r000-r255 rgbu g000-g255 b000-b255...
  • Page 10 Sod1 Soud Sod5 d001-d512 d001-d512 SLAu CH05 CH08 001----100 SEnS LCD Digital Operation Details (1) Color brightness adjustment r000-r255 r000-r255 rgbu g000-g255 g000-g255 b000-b255 b000-b255 u000-g255 u000-g255 S 00-S 16 * On the MENU [rgbu], press ENTER to set color selection *Press UP/DOWN, then press ENTER to set color brightness adjustment.
  • Page 11 *Press S00-S16 to set strobe speed. Value to 00, no strobe; value 01-16, strobe speed is 1HZ-16HZ. 2) Static color Sett CoLo CC01-CC15 * On the MENU [CoLo], press ENTER for color setting * Press UP/DOWN, value 01-1 5, it has 14 kinds of static color selections. Press ENTER to save the setting, press MENU to the previous se tting.
  • Page 12 (4) SOUND mode Set ting Sod1 Soud Sod3 * Under [Soud]，press ENTER into SOUND running mode * Press UP/DOWN to select (Sod 1---Sod3) 3 kinds of Sound running modes. Press ENTER to save the selection. Press MENU to the previos selection. * Digital dis play function details: Sod1...

  • Page 13: Troubleshooting

    * Under [CH]，press ENTER into DMX512 channel setting. * Press UP/DOWN to select ch annel CH06 or CH24，press ENTER to save the selection. Press MENU to the previous setting. (8) Sound sensitivity setting *Under [SEnS], press ENTER into Sound sensitivity setting *Press UP/DOWN to increase/decrease sensitivity value 001—100, press ENTER to save the setting.
