Summary of Contents for Silent Call Communications MR1214-MC

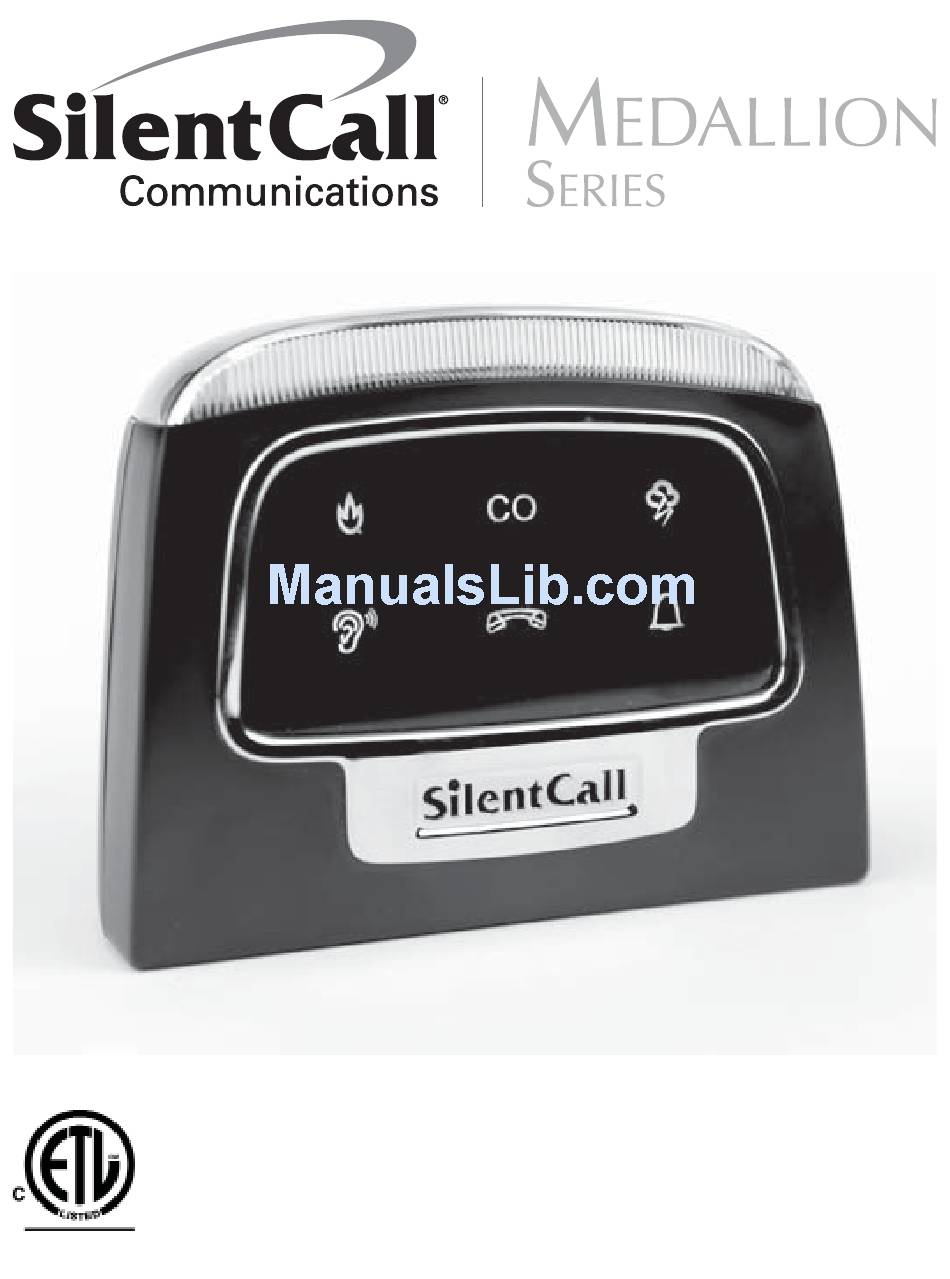

- Page 1 ECEIVER Installation and Operation Manual Model # MR1214-MC Document # 3126052 108124 418 MH ECEIVER...
-
Page 3: Installation
General: The Mini Receiver is a 418 MHz wireless alerting device equipped with 24 hour battery backup. Main Power is supplied using a Silent Call 18 watt AC/DC Wall mount Adapter P/N 890007-2. The Mini Medallion Series Receiver can store up to 20 from a possi- ble one million, Silent Call 418 MHz Medallion Series transmitter address codes. -
Page 4: Erase Memory
mitting) for the receiver to memorize the code of the transmitter. The transmitter can be activated by pressing the test button on the corresponding transmitter. When the receiver receives the transmitted signal, it will memorize the code. The receiver should activate and fl... -
Page 5: Battery Replacement
Mini Receiver operating on Main power and the amber LED is ON or blinks, indicates a failure of the unit. Return the MR1214-MC with AC/DC adapter to the manufacturer for repair. Battery Replacement: The MR1214-MC Mini Receiver has a UNITECH 12VDC 800maH Ni-MH back-up battery. -
Page 6: Operation
Set the receiver on a fl at surface and position it with the front facing you. Take the front plastic cover removed in step 2, and align it with the back cover and squeeze the bottom portion of the two together. The top will not snap into place because the top lens cover is in the way. - Page 7 SD4-MC/FA3-MC/FA4-MC Transmitter detects a Smoke/Fire warning Operational and Performance TESTING: Test the MR1214-MC after installation, repositioning of the receiv- er, associated transmitters are relocated, battery is replaced, the unit is repaired, or the receiver back-up battery is replaced. Test the Mini Receiver Fire/Smoke and CO alerts once a week to ensure...
- Page 8 Receiver operation. Accessory transmitters programmed into the Mini can be tested at the user’s discrepancy. IMPORTANT: The Environment and Building Materials may affect the receiver reception. Locate Silent Call Medallion Series Trans- mitters and Receivers in an area away from High Wattage appli- ances and objects made from metals or alloys.
- Page 9 • Mini Receiver TOP THREE LED’S are fl ashing at a 1.5HZ rate. • Appropriate Mini Receiver RED FIRE or CO Alert is illumi- nated. • Bed Vibrator is Pulsing appropriate tactile code as listed in Optional Bed Vibrator Auxiliary Output section. •...
-
Page 10: Specifications
SPECIFICATIONS: Frequency: 418 MHz Power Adapter: Grand Power Model PA1015-3HU AC to DC Adapter. Input: 100~240 VAC 50~60Hz 0.4A Output: 16.0 VDC 1.12A, 18 Watts Max. 12 VDC Backup Battery: Unitech 800 mAH Ni-MH Battery. P/N BU-12 WARNING: Use only Battery specifi ed in marking. Use of a different battery will have a detrimental effect on alarm operation. -
Page 12: Technical Support
fi ve years from the date of initial purchase. During that time, the unit will be repaired or replaced free of charge when shipped prepaid to Silent Call Communications. This warranty is void if the defect is caused by customer abuse or...
