Summary of Contents for Ezonusa EV-207

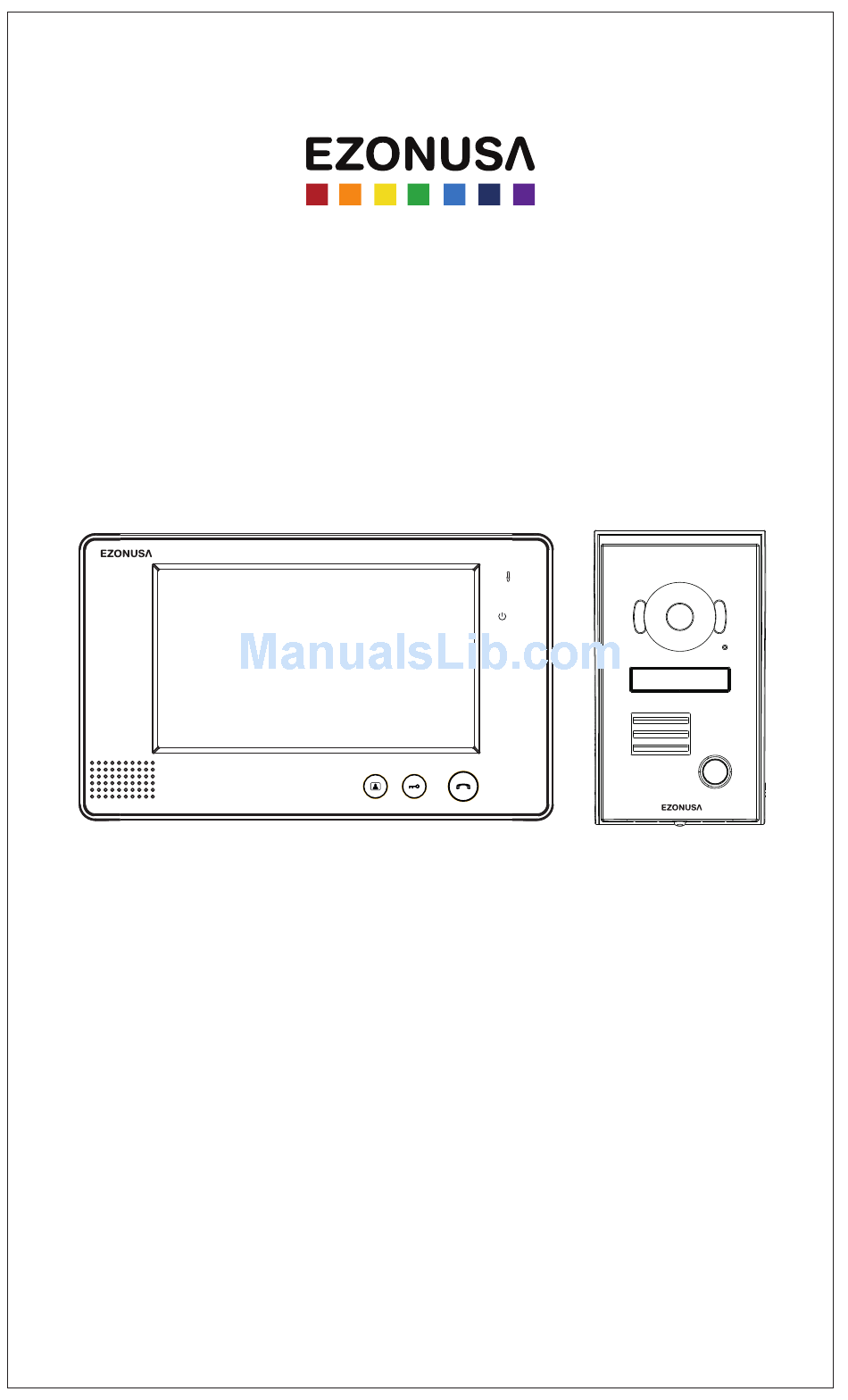

- Page 1 Home Automation System Color Video Phone & Door Camera USER GUIDE EV-207 Please review all included documentation and use the product as intended. Safety precautions must be followed to avoide personal injury or property damage.
- Page 2 VIDEO DOOR PHONE DIAGRAM FOR OPERATION MICROPHONE POWER INDICATOR LIGHT Press TALK button to start and end a conversation with a visitor. Talking time lasts 120 seconds Press MONITOR button to monitor outside. The audio will be mute by default. Monitoring time lasts 40 seconds CHROMA ADJUSTER BRIGHTNESS ADJUSTER...
-
Page 3: Wiring Diagram
Terminals 1 & 2 of the door camera connects to CAMERA terminals 1 & 2 of the VDP accordingly. The lock connects to terminals 3 & 4 of the door camera. EV-207 kit includes 15M wire. For extension to 15-50M, please use 18AWG wire; for extension to 50-100M, please use 16AWG wire. - Page 4 -41°F to 104°F (-5°C to 40°C) EZONUSA EV-207 Door Camera Resolution CMOS more than 380 TV line Dimension 107 x 183 x 55mm (WxHxD) Working Temperature -68°F ~ 122°F (-20°C ~50°C) EZONUSA, INC. 333 SYLVAN AVE, SUITE LL11, ENGLEWOOD CLIFFS, NJ 07632 www.ezonusa.com | info@ezonusa.com...
