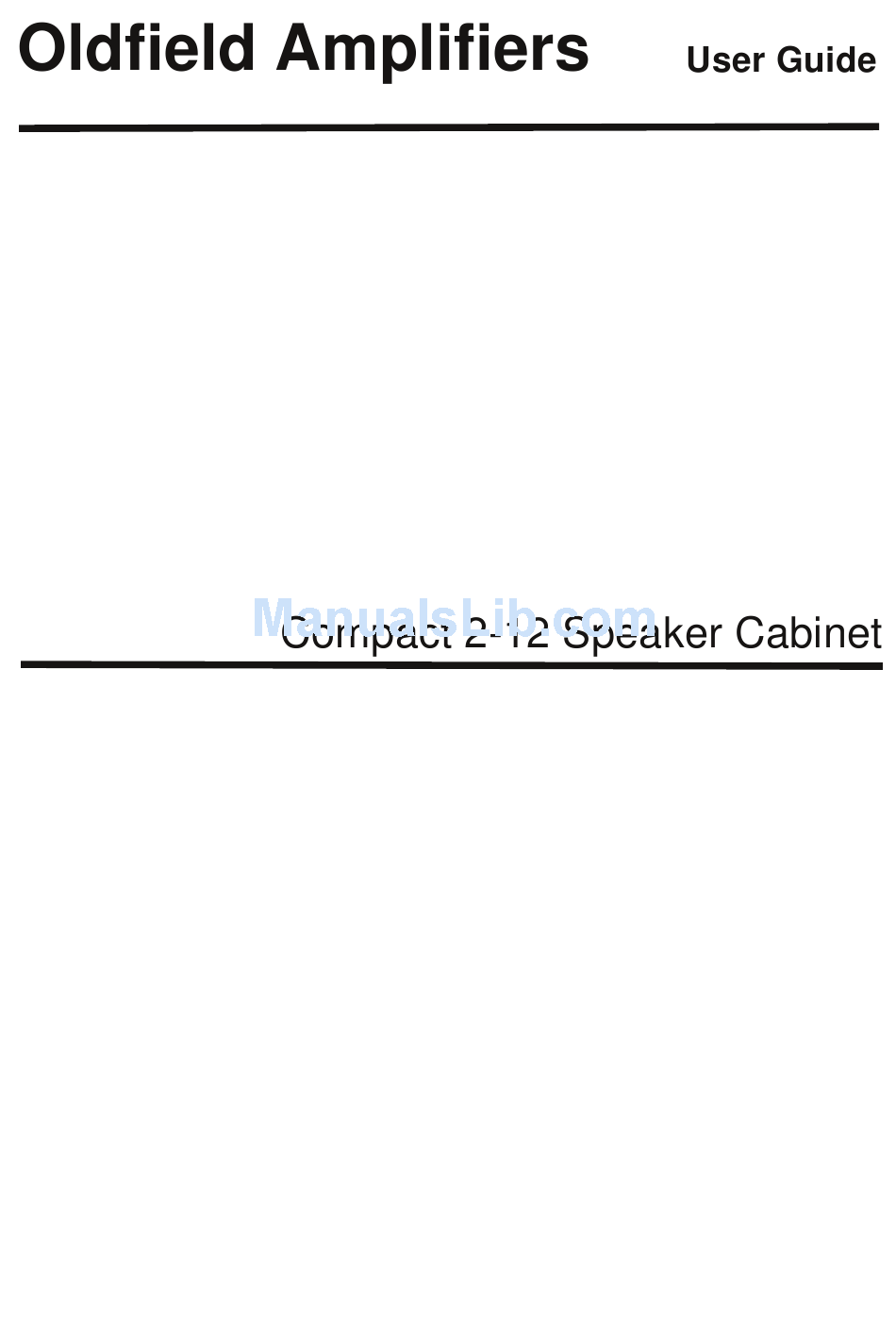

Summary of Contents for OldfieldAmplifiers Compact 2-12
- Page 2 The Oldfield 2x1 2 speaker cabinet has some unique features not found on most other cabinets. This makes the cabinet very versatile and able to adapt to many different playing situations and amplifier connections. - Small in size, huge in performance - Split back allows the cabinet to be used as an open back or a closed back style.
- Page 3 When looking at the back of the speaker cabinet you will notice that the cabinet s back is split into three separate parts. This allows the player to use the cabinet as a closed back cabinet or an open back cabinet. The middle panel is the key to the configuration. Install the middle panel for closed back operatipn and remove it for open back operation.
- Page 4 Your Oldfield Compact 2x1 2 cabinet utilizes a smart input jack in order to give you a number of different speaker configurations. See the examples on the following pages.
- Page 5 Speaker Cabinet Wiring Examples One Head - Both Speakers Set Head To 4 Ohms...
- Page 6 Speaker Cabinet Wiring Examples One Head - Both Speakers Set Head To 1 6 Ohms...
- Page 7 Speaker Cabinet Wiring Examples One Head - Right Speaker Set Head To 8 Ohms...
- Page 8 Speaker Cabinet Wiring Examples One Head - Left Speaker Dummy Speaker Cable Set Head To 8 Ohms...
- Page 9 Speaker Cabinet Wiring Examples Two Heads - Each With It s Own Speaker Set Head To 8 Ohms Set Head To 8 Ohms...
