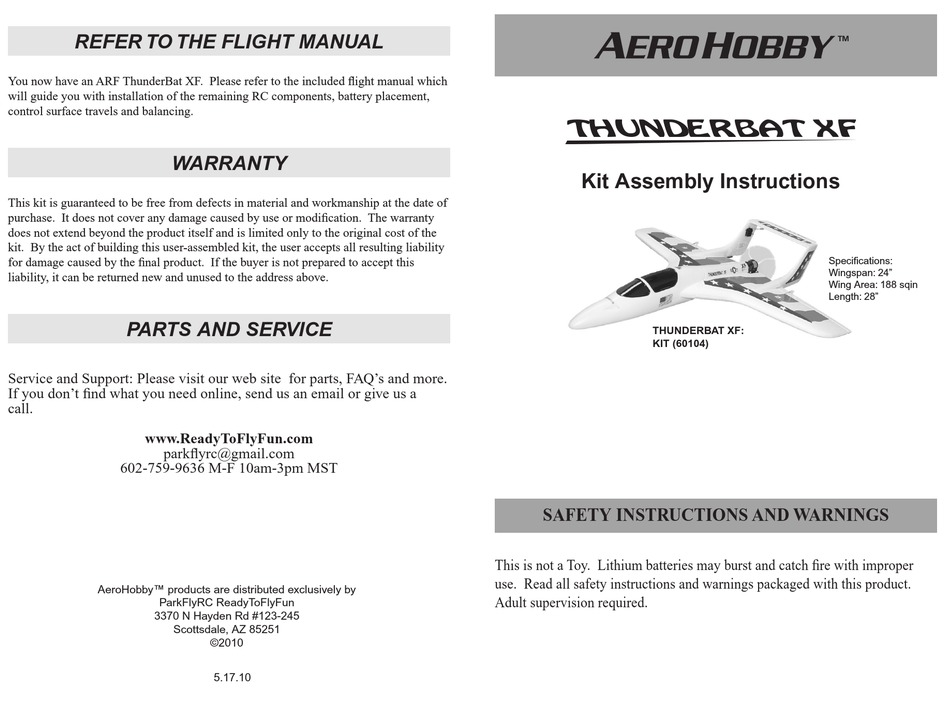

REFER TO THE FLIGHT MANUAL
You now have an ARF ThunderBat XF. Please refer to the included flight manual which
will guide you with installation of the remaining RC components, battery placement,
control surface travels and balancing.
WARRANTY
This kit is guaranteed to be free from defects in material and workmanship at the date of
purchase. It does not cover any damage caused by use or modification. The warranty
does not extend beyond the product itself and is limited only to the original cost of the
kit. By the act of building this user-assembled kit, the user accepts all resulting liability
for damage caused by the final product. If the buyer is not prepared to accept this
liability, it can be returned new and unused to the address above.
PARTS AND SERVICE
Service and Support: Please visit our web site for parts, FAQ's and more.
If you don't find what you need online, send us an email or give us a
call.
www.ReadyToFlyFun.com
parkflyrc@gmail.com
602-759-9636 M-F 10am-3pm MST
AeroHobby™ products are distributed exclusively by
ParkFlyRC ReadyToFlyFun
3370 N Hayden Rd #123-245
Scottsdale, AZ 85251
©2010
5.17.10
Kit Assembly Instructions
THUNDERBAT XF:
KIT (60104)
SAFETY INSTRUCTIONS AND WARNINGS
This is not a Toy. Lithium batteries may burst and catch fire with improper
use. Read all safety instructions and warnings packaged with this product.
Adult supervision required.
Specifications:
Wingspan: 24"
Wing Area: 188 sqin
Length: 28"
Advertisement
Table of Contents
Related Manuals for Aerohobby thunderbat xf
Summary of Contents for Aerohobby thunderbat xf
- Page 1 REFER TO THE FLIGHT MANUAL You now have an ARF ThunderBat XF. Please refer to the included flight manual which will guide you with installation of the remaining RC components, battery placement, control surface travels and balancing. WARRANTY Kit Assembly Instructions This kit is guaranteed to be free from defects in material and workmanship at the date of purchase.
- Page 2 28mm motor recommended. (Outrunner propulsion shown) Congratulations and thank you for purchasing the ThunderBat XF KIT. Before com- pleting the final assembly of your new airplane, please carefully read these instructions in their entirety.
- Page 3 INSTALLING THE SERVOS Set the servos to center from the transmitter, or use a servo tester. Fit the output arms on the servos at 90˚ to the case sides. If using CA glue, wrap adhesive tape around each servo, or shrink a heat-shrink sleeve around the case. This helps prevent adhesive from entering the servo.
- Page 4 DECALS & FLYING PERFORMANCE Cut out each decal with no more than a 1/4” border margin. Apply the decals first while the surfaces are clean. Start with the fuselage nose and turtle deck decals and then the tail set and under wing decals. This will help prepare you for the largest and most difficult wing decal set which is best left for last.
