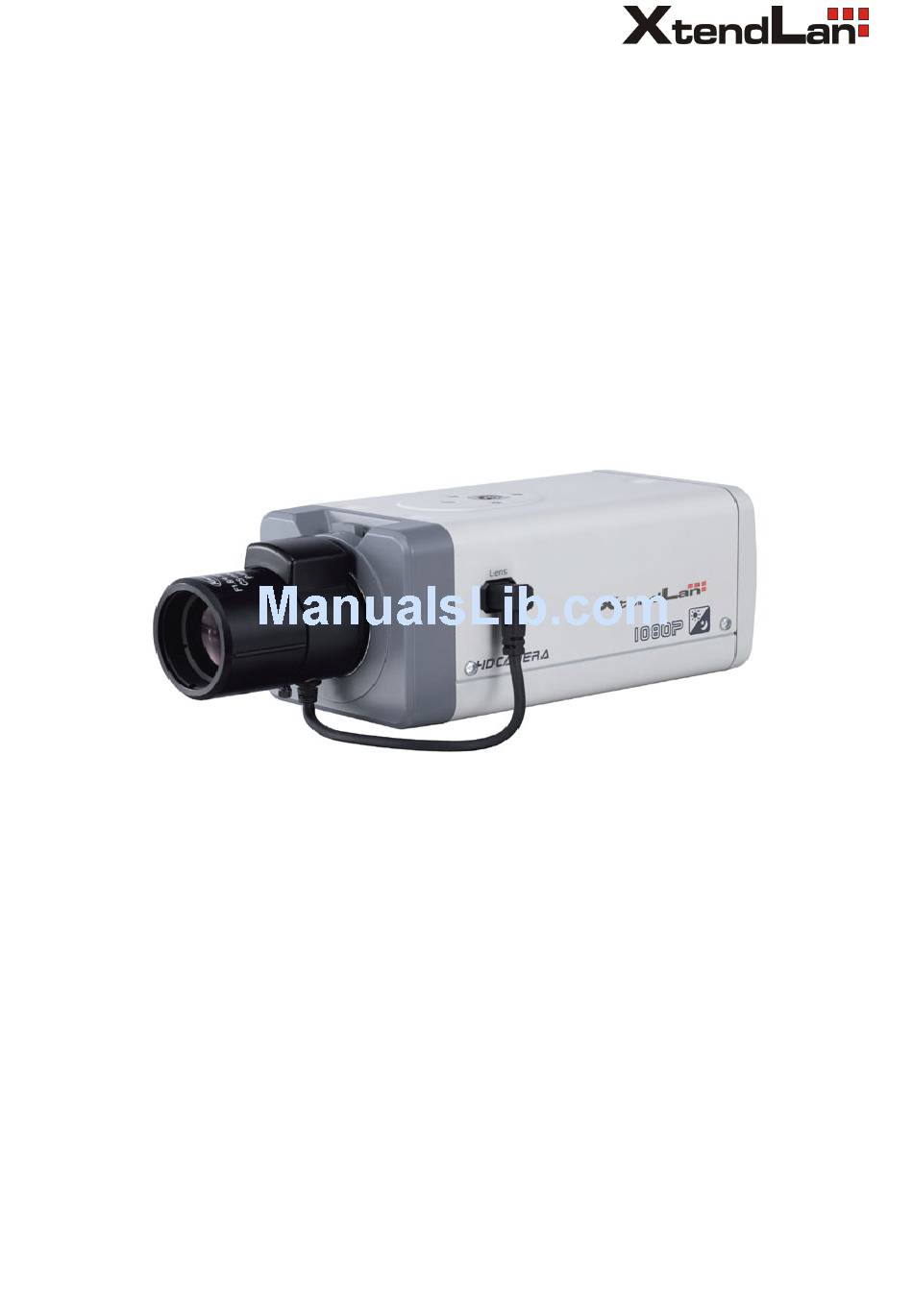

HDC-BOX320OIW HD-SDI Digital Camera User's Manual Version 1.0...
Page 2
Welcome Thank you for purchasing our camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
Page 3
Important Safeguards and Warnings 1.Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. Before you replace the SD card, please unplug the power cable and then remove the shell We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
Backlight compensation: screen auto split to realize backlight Assistant compensation to adjust the bright. Function Support auto iris function. 1.3 Specifications 1.3.1 Performance Please refer to the following sheet for performance specification. Model HDC-BOX320OIW Parameter High performance processor Main Processor 1/2.8-inch CMOS Image Sensor 2048(H)*1536(V) Pixel Day/Night Support day/night mode switch and IR-CUT at the same time.
Weight Support various installation modes(Enclosure and bracket is optional) Installation 1.3.2 Factory Default Setup Please refer to the following sheet for factory default setup information. Function Item Name HDC-BOX320OIW Configuration Type COM Setup COM No. COM01 Baud rate 115200 Parity...
2 Framework 2.1 Rear Panel This series camera real panel is shown as below. See Figure 2-1. Figure 2-1 Please refer to the following sheet for detail information. Interface Name Connector Function AC 24V/ DC 12V Power port Power port. Input 12V DC or AC 24V STATUS...
Page 9
Green light Hardware indication light. It is on after the hardware loaded successfully. Yellow light Software indication light. It is on after the software loaded successfully. Reserved port I/O port Alarm input ground end. RS485 port RS485_A port. It is to control the 458 tool to set the video parameter.
for at least 5 seconds, system can restore factory default setup. Yellow light flikers. HD-SDI Send out the SDI video stream conforming to the HD- SDI specifications. Please make sure the device is securely earthed to prevent the thunderstorm strike. 2.2 Side Panel Please refer to the following interface for side panel dimension information.
3 Installation 3.1 Lens Installation 3.1.1 Auto Aperture Lens Please follow the steps listed below for auto aperture lens installation. The interface is shown as in Figure 3-1 and Figure 3-2. Remove the CCD protection cap of the device, and then line up the lens to the proper installation position.
Figure 3-2 3.1.3 Remove Lens Please follow the steps listed below to remove lens. The interface is shown as in Figure 3-3. Turn the lens counter clockwise and then remove it from the camera. Unplug the auto lens cable socket from the auto lens connector. If you are using the manual aperture lens, please skip to the following step.
4 HDC Configuration Tool 4.1 Overview You can use HDC configuration tool to set the device parameter and upgrade the system. 4.2 Operation Double click the “485Configs.exe” icon; you can see an interface is shown as in Figure 4-1. In the device interface, you can view COM setup, parameter setup, OSD, upgrade information and etc.
Page 16
Figure 4-3 You can refer to the following sheet for detailed information. Item Note Select the corresponding COM number. COM Setup Baud rate Default value is 115200 (Read-only) Parity None Data bit Default value is 8 (Read-only). Stop bit Default value is 1 (Read-only). Current status Display the corresponding COM status.
Page 17
1/50s, 1/120s, … Customized zone: After you selected current mode, you can see there is a period setup interface. System can auto adjust in the period you specified. Customized value: After you selected the mode, you can see the time period setup interface. You can input the shutter value in the current interface.
Appendix Toxic or Hazardous Materials or Elements Component Name Toxic or Hazardous Materials or Elements Cr VI PBDE Circuit Board Component ○ ○ ○ ○ ○ ○ Device Construction Material ○ ○ ○ ○ ○ ○ Wire and Cable ○ ○...
