Summary of Contents for Watersports Innovations boost box WSI 1103

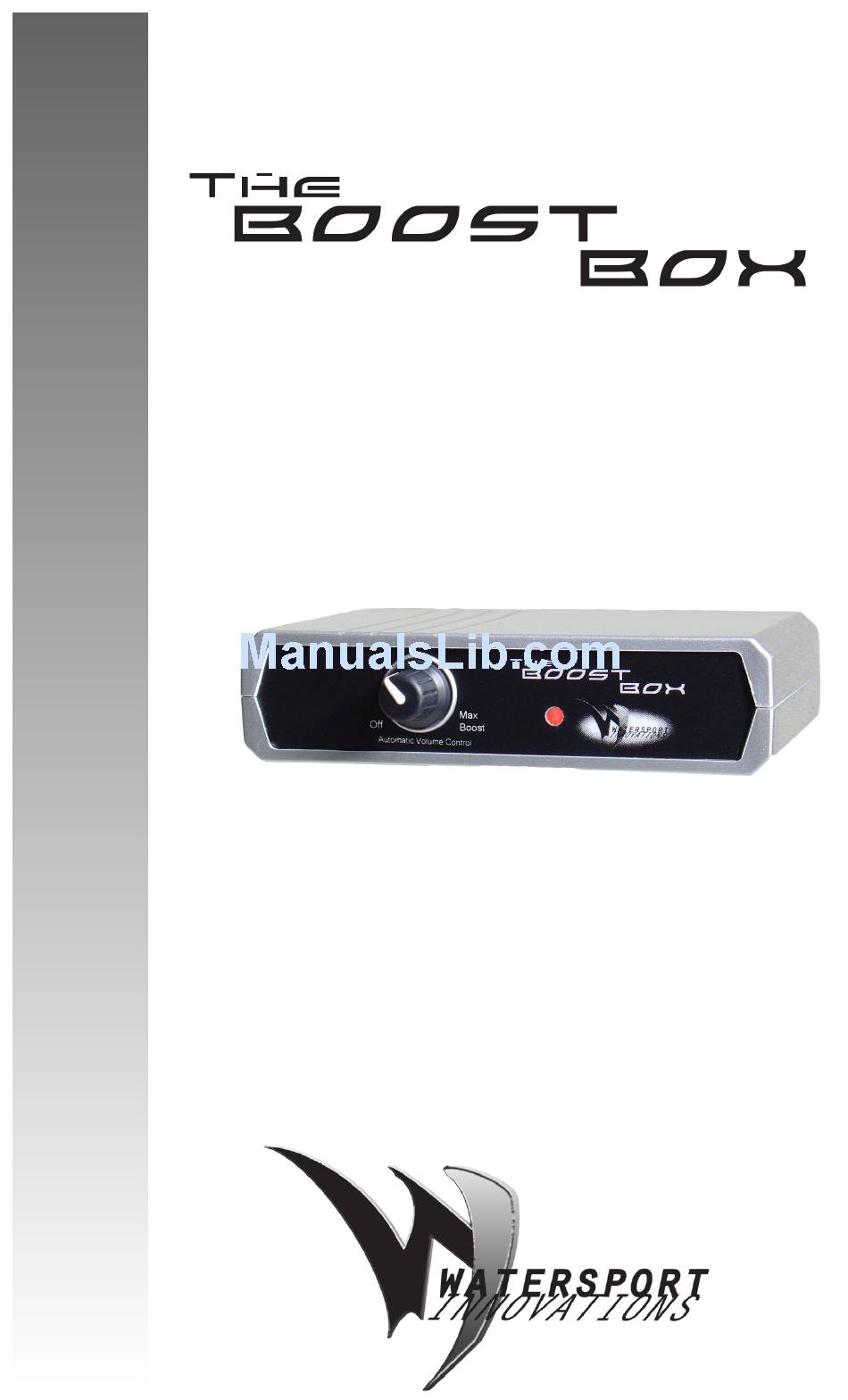

- Page 1 AutomAtic Volume control for BoAt StereoS WSI 1103 Controller for Clarion Marine Stereos Installation & Operation Instructions www.watersportinnovations.com...
-
Page 2: Table Of Contents
Contents Installation Instructions ..........1 Chapter 1 Control Unit .............2 Power Cable ............4 Stereo Control Cable ..........5 Programming the Boost Box ........7 Using the Boost Box ..........8 Chapter 2 Calibration ...............9 Troubleshooting Guide ..........10 Chapter 3 Release of Liability ..........11 Chapter 4 Warranty ..............12... -
Page 3: Chapter 1 Installation Instructions
Installation Instructions Read through all instructions before installing. The Boost Box is designed to install easily on almost any boat with little or no wiring modifications. Simply attach the Control Unit to the boat with the enclosed Velcro tape, connect the Power Cable to the boat’s 12-volt power, and route the Stereo Control Cable to the boat’s stereo. -
Page 4: Control Unit
Step 1 – Control Unit Installation The Control Unit must be mounted with the control knob facing the driver, and the unit must be mounted within 10° of level with respect to the boat’s waterline. The unit can be mounted either horizontal or vertical (see figures below). Attach the Control Unit to the boat with the enclosed Velcro tape, in a convenient location near the driver. - Page 5 NOte: If the unit is not mounted properly, it will not properly sense the boat’s acceleration. Below are some examples of InCORRECT mounting of the Control Unit. InCORRECT! Knob is facing up but should be facing the driver. Centerline (front to back) of the Control Unit is perpendicular, but should be parallel, to the boat’s waterline.
-
Page 6: Power Cable
Step 2 – Power Cable Installation The Power Cable plugs into the back of the Control Unit, as shown below, and the free end is wired into the boat’s 12-volt power. Connect the red wire to power and the black wire to ground. -
Page 7: Stereo Control Cable
Step 3 – Universal IR Stereo Control Cable Installation The Stereo Control Cable plugs into the back of the Boost Box Control Unit, and the transmitter is affixed directly to the IR receiver on the face of the stereo. Step 3 –... - Page 8 Step 3 (alternate) – Remote Control Cable Installation The stereo control cable connects the Boost Box to the 5-pin wired remote control port on the rear of the stereo. The smaller, 3.5mm plug connects to the Boost Box and the larger 5-pin plug connects to the stereo.
-
Page 9: Programming The Boost Box
Step 4 – Programming the Boost Box imPortAnt note: Please read steps 1-7 below before beginning the programming sequence, as they must be performed in the correct order and without delay. the sequence may be re-started at any time by turning the Boost Box off and disconnecting. -
Page 10: Chapter 2 Using The Boost Box
S Y S T E M S , I N C . O. Box 550 104 Celtic Circle Madison, Alabama 35758 PROOF FOR APPROVAL Using The Boost Box Customer Part #: The Boost Box label LASI Item #: SS3578-001 art rev 001 Part Size: 4.27˝... -
Page 11: Calibration
CAlIBRATIOn: The Control Unit automatically calibrates (resets) its internal sensors every time it is turned on. This precisely calibrates the sensors to the boat’s level position in the water. To calibrate the Boost Box: 1. Ensure the boat is in flat water with no rolling waves. 2. -
Page 12: Chapter 3 Troubleshooting Guide
Troubleshooting Guide Below are some possible conditions and solutions. COndITIOn SOlUTIOn Unit will not turn on. Check to ensure Power Cable is firmly plugged into Control Unit. Ensure power cable is properly wired to battery’s 12- volt DC power. Unit turns on, but The Control Unit is not sensing the boat volume does not boat’s acceleration. -
Page 13: Release Of Liability
Release of Liability AssumptION Of RIsk IMPORTAnT – YOU MUST REAd THIS The Boost Box is a high performance mechanism designed solely for use with water ski and wakeboard boats operating under ideal, calm conditions utilizing a spotter and all other safety crew and requirements of tournament water skiing. -
Page 14: Warranty
lIMITEd WARRAnTY During the first 12 months from date of original retail purchase, any Boost Box component that fails due to defects in materials or workmanship will be repaired or replaced at the option of Watersport Innovations at no charge. Warranty excludes components damaged by improper installation or improper use of boat. - Page 15 enjoy the ride!
