Summary of Contents for Arxceo ALLY IP1000

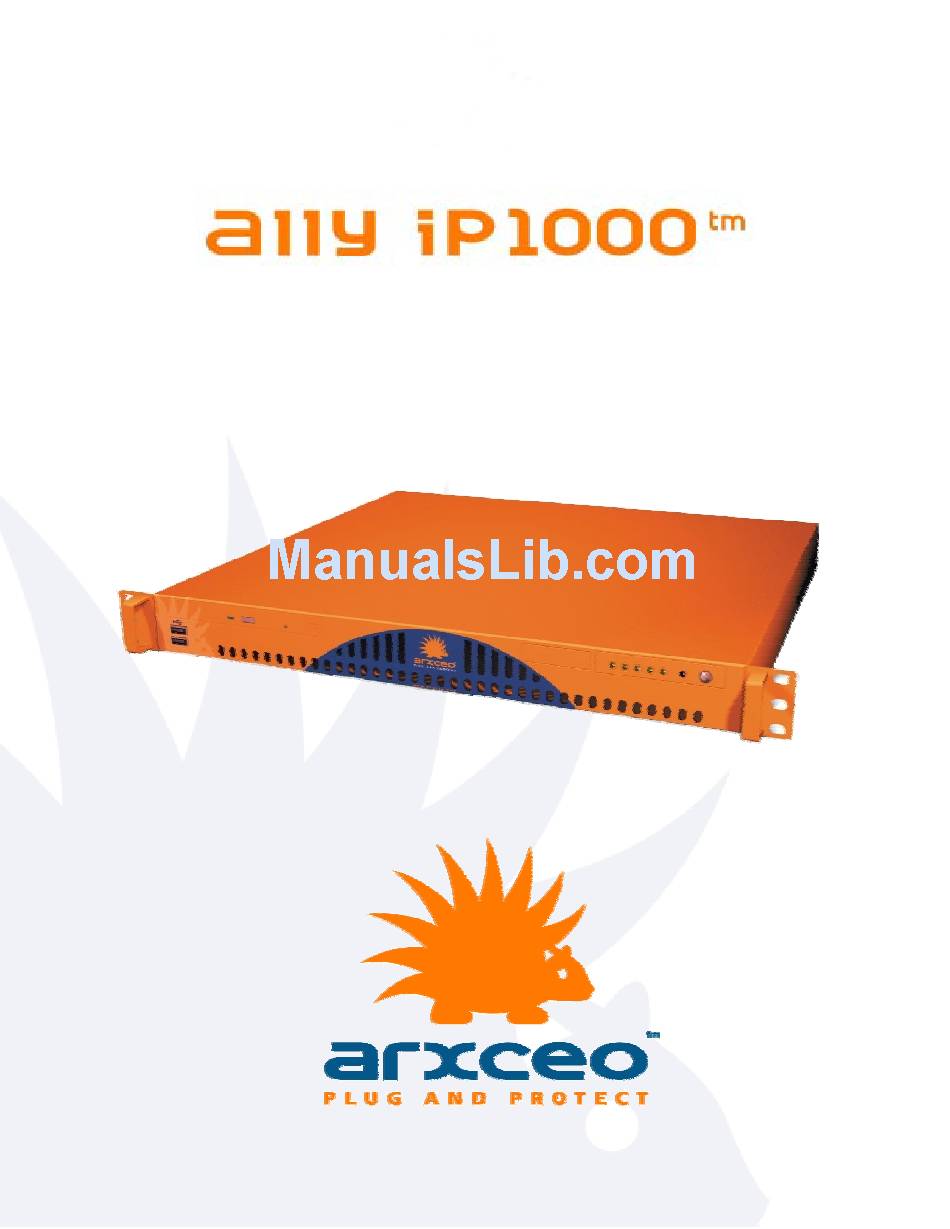

Page 1 User Guide...
Page 2 Arxceo disclaims any proprietary interest in brands, trademarks and trade names other than its own. Arxceo believes the information in this publication to be accurate as of its publication and is not responsible for inadvertent errors.
Page 3: Table Of Contents
Table of Contents Ally IP1000 Placement ................... 4 Connection ......................5 Ally IP1000 Back Panel ..................6 Management ......................7 Command Line Management .................. 8 Confirmation ......................8 Intrusion Protection Information ................. 10 Reviewing Intrusion Messages in the Event Log........... 12 Appendix A......................
Page 4: Ally Ip1000 Placement
Arxceo authorized reseller or Arxceo Technical Support if you have any questions about the installation. NOTE: As you begin the Ally IP1000 installation, there will be a brief Internet service outage while the Ally IP1000 is being inserted into the network. However, the NetFailOpen™...
Page 5: Connection
Connection The first step in protecting your environment is to connect the Ally IP1000 to the network. Each connector is detailed in the diagram and table below. BEFORE YOU BEGIN – NetFailOpen Cabling Requirements: The Ally IP1000 NetFailOpen feature ensures network traffic will continue flowing in the case of a system component failure or power loss.
Page 6: Ally Ip1000 Back Panel
Using the following diagram and table, insert the Ally IP1000 into your network. Ally IP1000 Back Panel Ally IP1000 Back Panel Connectors Connector Description Network Adapter 1 Connect this network interface to your “outside” “Outside” Adapter Internet access point. Network Adapter 2 Connect this network interface to your “inside”...
Page 7: Management
DHCP if desired. Select “Apply”. This will cause the web browser system to lose access to the Ally IP1000 if you have changed the IP address to match your out-of-band address scheme.
Page 8: Command Line Management
The next step to Plug and Protect™ is to ensure no known, or trusted, IP Address has been “blacklisted” based on the default Ally IP1000 configuration. Once the Ally IP1000 has been online for approximately two minutes, perform the following from the Ally Management...
Page 9 1. Review Blacklist: Perform the steps listed above in order to see IP Addresses that have been blacklisted. 2. Review Ally IP1000 Statistics: The current Ally IP1000 statistics counters can be viewed from the Ally Management Console “Statistics” page or by entering the “AllyRTCfg –...
Page 10: Intrusion Protection Information
Intrusion Protection Information The Ally IP1000 is now protecting your network and will provide protection message information on a variety of intrusions. The following table lists and describes each type of intrusion and details the protections provided through the default Ally IP1000 configuration.
Page 11 IP and TCP fields to prevent session hijacking. Windows XP nodes sitting behind a typical firewall have a 12% likelihood of being hijacked. With an Ally IP1000 in place, this likelihood drops to a 0.00001% chance of success. Worm Mitigation Worms typically propagate by scanning for the next target victim.
Page 12: Reviewing Intrusion Messages In The Event Log
2. The Windows Event Viewer will be displayed. 3. Click on the “System” log. Ally IP1000 messages can be identified by the word “Ally” in the SOURCE column. The Ally IP1000 Message Number will be in the EVENT column. Message details can be viewed by clicking on the message.
Page 13: Appendix A
The Ally IP1000 records configuration information and intrusion protection notifications in the system event log. The table below lists each message that may be generated by the Ally IP1000. The number and the associated Message Content text will appear in the event log entry.
Page 14 Ally IP1000 Notification Message Types Message Number - Type Message Content Configuration Fragmented packets are (‘passed through IP Fragment Policy without analysis’ or ‘discarded’). If discarded, fragmented packets (‘are’ or ‘are not’) logged. Configuration Packets with invalid TCP flags (‘are’ or ‘are Log Invalid TCP Flags not’) logged.
Page 15 Ally IP1000 Notification Message Types Message Number - Type Message Content Configuration ICMP Echo Reply packets are (‘passed through ICMP Echo Reply Policy without analysis’ or ‘discarded’). Configuration ICMP Destination Unreachable packets are ICMP Destination Unreachable Policy (‘passed through without analysis’ or ‘discarded’).
Page 16 Ally IP1000 Notification Message Types Message Number - Type Message Content Configuration The permanent blacklist and/or whitelist has Permanent Blacklist/Whitelist been (‘updated’ or ‘initialized’). Configuration Normal startup for the (Device ALLY) driver has Normal Start completed. Detection The IP address (IP Address) was added to the Dynamic Blacklist Add (‘inside’...
Page 17 Ally IP1000 Notification Message Types Message Number - Type Message Content Configuration Event (‘Console User’ or User Name) set the (‘inside’ Set Adapter Number or ‘outside’ or ‘management’) adapter to network interface number ‘Network Interface Number). Configuration Event (‘Console User’ or User Name) changed the...
Page 18: Appendix B
The Ally IP1000 can be configured through the Ally Management Console from a web browser or additionally through the AllyRTCfg command line program from the local console.
Page 19 Ally IP1000 Factory Default Configuration Configuration Possible Default Intrusion Implication Mgmt. AllyRTCfg Parameter Settings Console Option Page Remote System Any unsigned 3600 The Ally IP1000 discovers General -sit Timeout 32-bit seconds information about systems on the Filtering integer (1 hour)
Page 20 Ally IP1000 Factory Default Configuration Configuration Possible Default Intrusion Implication Mgmt. AllyRTCfg Parameter Settings Console Option Page Maximum Any unsigned outside) and for requests received -mco Number of 32-bit on the Outside Adapter (outside- Policy Outside-to- integer to-inside). Inside Concurrent...
Page 21 Port Scan ! SYN This option determines whether -psb Method ! ACK the Ally IP1000 will detect port Policy scans by counting the number of initial TCP connection request packets (SYN) received from a system or the number of three-...
Page 22 (MSS + 40 = maximum packet size). The Ally IP1000 limits the MSS values to a specified range. This feature helps prevent an attacker from consuming excessive network...
Page 23 Ally IP1000 Factory Default Configuration Configuration Possible Default Intrusion Implication Mgmt. AllyRTCfg Parameter Settings Console Option Page DNS Tunneling ! Enabled Enabled There are applications that allow Detection ! Disabled network conversations to be Policy clandestinely established using DNS traffic. The Ally detects this...
Page 24 Ally IP1000 Factory Default Configuration Configuration Possible Default Intrusion Implication Mgmt. AllyRTCfg Parameter Settings Console Option Page ICMP ! Discard All Discard All Discard ICMP Destination ICMP Destination ! Allow All Unreachable packets to prevent Policy Unreachable certain Denial of Service (DoS) Policy attacks.
Page 25: Appendix C
Detection and Information messages in the event log. Any Ally IP1000 message that is written to the event log can be optionally sent to the configured SNMP and/or Syslog servers. The disposition of each message type can be individually specified.
Page 26 Command Line Options for Notification Messaging Message Number - Type Enable/Disable Generate Generate in Event Log SNMP Alert Syslog Message AllyRTCfg AllyAgentCfg AllyAgentCfg option option option Configuration Inside and Outside Adapters -man -may Configuration Management Adapter Configuration -mmon -mmoy Mode Configuration Inside Authentication -mdn...
Page 27 Command Line Options for Notification Messaging Message Number - Type Enable/Disable Generate Generate in Event Log SNMP Alert Syslog Message AllyRTCfg AllyAgentCfg AllyAgentCfg option option option Configuration ICMP Destination Unreachable Policy Configuration ICMP Port Unreachable Policy Configuration ICMP Source Quench Policy Configuration ICMP Redirect Policy Configuration...
Page 28 Command Line Options for Notification Messaging Message Number - Type Enable/Disable Generate Generate in Event Log SNMP Alert Syslog Message AllyRTCfg AllyAgentCfg AllyAgentCfg option option option Configuration Blacklist Time Period Detection -mbln -mbly Dynamic Blacklist Add Detection Dynamic Blacklist Remove Information -mrn -mry...
Page 29: Customer Support
Customer Support Please contact your Authorized Arxceo Reseller for hardware and software support for your Ally IP1000. Additional information is available on our website at www.arxceo.com; Further support or additional questions may be directed to support@arxceo.com or by calling 866-4ARXCEO.
Page 30: Product Specifications
Arxceo Corporation. Other product names are trademarks of their respective owners. Arxceo believes the information in this publication to be accurate as of its publication date. Arxceo is not responsible for inadvertent errors. © 2005 Arxceo Corporation, Huntsville, AL 35806.
Page 31: License Agreement
You, and are not considered part of the Software. Your license to MSXPE is your sole source of license, rights, remedies, warranties, and benefits related to MSXPE. You agree to all of the terms of the MS EULA, and agree with ARXCEO that you will comply with all such terms.
Page 32 Support Term. At any time, regardless of whether a Support Term is then in effect, in the event that any part or all of the Software, or any of the Third Party Products, in ARXCEO’s sole judgment...
Page 33 BUSINESS PROFITS, LOSS OF DATA OR INFORMATION, DATA OR EQUIPMENT FAILURE, OR LOSS OF USE, EVEN IF ARXCEO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 9. Indemnity: You agree to defend, indemnify, and hold harmless ARXCEO and its officers, agents, employees, directors,...
