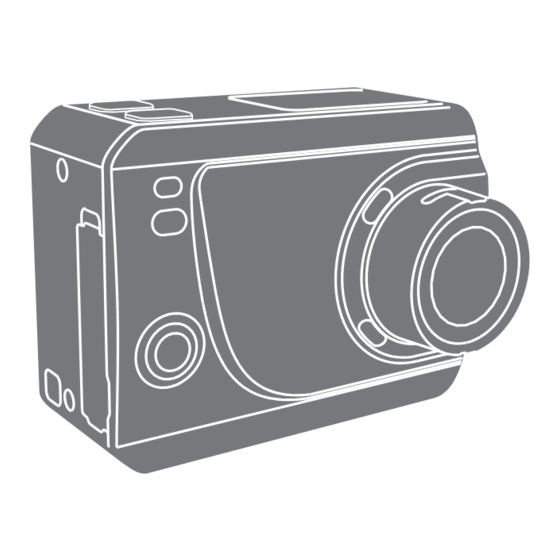

GEQNAUTE G-Eye 500 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
G-Eye 500

TABLE OF CONTENTS

CAMERA OVERVIEW ........................................................ 2
FIRST STEPS .................................................................... 4
Charging the battery ......................................................................... 4
Inserting the micro SD card.............................................................. 4
Using a waterproof case ................................................................... 4
USING THE CAMERA ....................................................... 5
Turning on .......................................................................................... 5
Turning off .......................................................................................... 5
Recording a video.............................................................................. 6
Taking photos .................................................................................... 6
Enabling/Disabling Wi-Fi .................................................................. 6
CONFIGURING THE CAMERA .......................................... 7
Changing modes................................................................................ 7
Configuring video modes ................................................................. 8
Configuring photo modes ................................................................. 9
General settings .............................................................................. 10
Default settings ................................................................................ 11
TRANSFERRING FILES .................................................. 12
DISPLAYING PHOTOS / VIDEOS ON A TV ...................... 12
ATTACHING A STICKER PAD ......................................... 12
PRECAUTIONS FOR USE ................................................ 13
WARRANTIES, LEGAL NOTICES .................................... 14
Limited liability ................................................................................ 14
Warranty ........................................................................................... 14
Legal notices .................................................................................... 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Eye 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEQNAUTE G-Eye 500

  • Page 1: Table Of Contents

    G-Eye 500 TABLE OF CONTENTS CAMERA OVERVIEW ............2 FIRST STEPS ..............4 Charging the battery ................. 4 Inserting the micro SD card.............. 4 Using a waterproof case ..............4 USING THE CAMERA ............5 Turning on ..................5 Turning off ..................5 Recording a video................

  • Page 3: Camera Overview

    CAMERA OVERVIEW End video recording button/ Wi-Fi activation (press and hold) Shutter button LCD screen Recording indicator light Wi-Fi status indicator light Mini-USB port Lens MicroSD card slot On/Off/ Stop recording button Red light (power / charging) Green light (video recording/ data transfer) Standard screw thread (Kodak) Microphone...

  • Page 4: Lcd Screen

    LCD SCREEN 1080P- 60 100-0088 2H30 Icons Functions Video recording mode Photo mode 1080P-60 Video resolution Photo resolution 100-0088 Number of saved files 00:00:01 Recording time 02:30 Remaining recording time 1888 Remaining number of photos Wi-Fi Ambient light measurement mode Battery level...

  • Page 5: First Steps

    FIRST STEPS CHARGING THE BATTERY INSERTING THE MICRO SD CARD Compatible cards: Class 10 MicroSD cards from 8Gb to 64Gb. USING A WATERPROOF CASE Anti-fog paper (sold separately) The waterproof case has been specially designed for your G-EYE camera. It is waterproof up to 100 meters, and also provides shock protection.

  • Page 6: Using The Camera

    gasket and reinstall in the correct direction. In order to limit the presence of fog or condensation in the case caused by Î Î temperature differences between the inside and outside of the case, we strongly recommend that you place anti-fog paper in the case every time you use it.

  • Page 7: Recording A Video

    2H30 2H30 2. STOP 100-0088 1888 1. START The GEONAUTE G-EYE 500 camera is equipped with 2 TV standards, PAL and NTSC, which you can choose between in the general settings (see page 10). TAKING PHOTOS 1080P- 60 100-0088 2H30...

  • Page 8: Configuring The Camera

    Once Wi-Fi is activated, you can choose to: Control and configure your camera from your smartphone by downloading the Î Î 'G-Eye APP', available on GOOGLE PLAY (Android) and APPLE STORE (iOS). When the Wi-Fi is activated, the camera broadcasts a Wi-Fi hotspot. The network name (SSID) is the name of the camera, and the default password is: 00000000.

  • Page 9: Configuring Video Modes

    CONFIGURING VIDEO MODES 1080P- 60 00:00:00 Press and Press once Press once hold 2H30 Menus Options Classic video mode (sound and image) Video mode without sound Audio recording only Time-lapse video Time interval between video mode images: 1/2/5/10/30 sec. Video self timer Video time delay: 5/10/20 sec.

  • Page 10: Configuring Photo Modes

    Menus Options Insertion of the date Enable/disable insertion of the date into the video. Feature not available in 720 p 100/120 FPS or when using WVGA. The number of frames per second (fps) can change depending on the TV standard selected (see page 10).

  • Page 11: General Settings

    GENERAL SETTINGS 100-0088 Press and Press once Press once hold 1888 Menus Options Beep Enable/disable beep: OFF: no beep MIDDLE: 50% volume STANDARD: 100% volume LED indicators Enable/disable camera status indicators. Display info Enable/disable display of contextual information on the screen when taking TITLE photos.

  • Page 12: Default Settings

    Menus Options RESET Return to default settings (see page 11). Firmware Camera software version number. version Ver:C.E2.20 Feature for use with the G-EYE2 LCD BACKPACK accessory. The camera automatically adjusts the ISO sensitivity based on the amount of ambient light. In PAL format (50 Hz) the frame rate (images per second) will be 25/50/100 FPS depending on the chosen resolution.

  • Page 13: Transferring Files

    TRANSFERRING FILES Then retrieve the files as if they were on a USB drive. DISPLAYING PHOTOS / VIDEOS ON A TV Using a mini-USB/COMPOSITE AUDIO VIDEO cable and the "G-Eye 2 LCD" accessory (these two products are sold separately), you can display your photo and video content on your television.

  • Page 14: Precautions For Use

    PRECAUTIONS FOR USE -10°C 45°C -50°F 113°F Handle the device with care. Do not drop or expose it to serious impacts. Î Î Caution, this product is not waterproof without its waterproof case. Do not Î Î expose it to water or submerge it. For greater safety, do not touch the buttons while in use.

  • Page 15: Warranties, Legal Notices

    LEGAL NOTICES EC DECLARATION OF CONFORMITY OXYLANE hereby declares that the G-EYE 500 device complies with essential requirements and with other relevant stipulations of the 1999/5/ EC directive. The EC declaration of conformity is available at the following web link: www.geonaute.com/en/ec-declaration-conformity.
  • Page 16 IMPORTADO PARA BRASIL POR IGUASPORT Ltda CNPJ : 02.314.041/0001-88 540-0011 大阪市中央区農人橋1-1-22 大江ビル10階 ナチュラムイーコマース株式会社 Импортер: ООО «Октоблу», 141031, Россия, Московская область, Мытищинский район, МКАД 84-й км., ТПЗ «Алтуфьево», владение 3, строение 3, +7(495)6414446 для занятий спортом 台灣迪卡儂有限公司 台灣台中市408南屯區大墩南路379號 諮詢電話: (04) 2471-3612 TURKSPORT Spor Urünleri Sanayi ve Ticaret Ltd.
