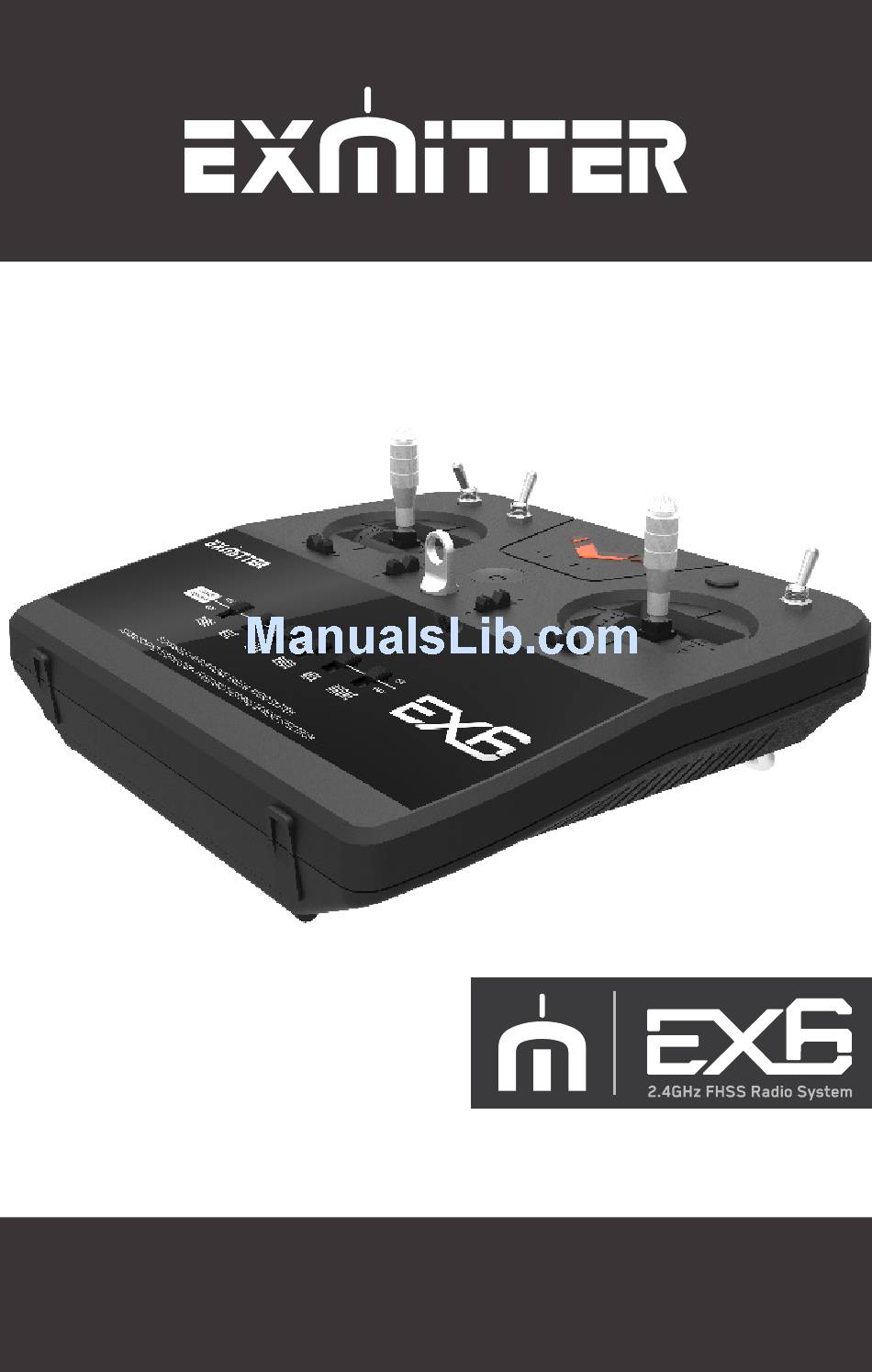

- Page 1 EXMITTER -- Professional Remote Control Products Expert...
-
Page 2: Safety Precautions
Do not attempt to disassemble , use with incompatible components or augment product in any way without the approval of VolantexRC Co., Ltd.. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. - Page 3 Transmitter Details ON/OFF Indicator Dual Rate Switch Function 3-Switch Channel 5 Channel 6 Elevator Throttle Trim Trim Rudder Aileron Trim Trim Servo Reverse Mix-Function Swiches Swiches EXMITTER EX6 Digital Radio System...
-
Page 4: Install Batteries
; Press and hold the button for 2 second to turn off the transmitter Low Voltage Alarm When the battery voltage drops below 4.3 volts, an alarm will sound and the voltage LEDs will flash. EXMITTER EX6 Digital Radio System... - Page 5 3. Loose the bind button and wait for about 5 seconds. 4. The receiver LED will keep flashing, means it is binding. 5. After the receiver LED stop flashing, it means the binding is done. EXMITTER EX6 Digital Radio System...
- Page 6 Mixing combines the function of ailerons with the function of the elevator to allow precise control of both roll and pitch for delta wing aircraft. To activate the elevon mix, move the mix switch to the on (upper) position. EXMITTER EX6 Digital Radio System...
- Page 7 Channel 5 for another three different functions. Note: This function is designed for APM system, compatible to some other auto pilot system,but not guaranteed. 3-Switch Channel 5 Dual Rate Function DRONE Mode Switch EXMITTER EX6 Digital Radio System...
-
Page 8: Digital Trims
Throttle Trim Elevator Trim Aileron Trim Rudder Trim Mode 2 Throttle Trim Elevator Trim Aileron Trim Rudder Trim Mode 1 EXMITTER EX6 Digital Radio System... - Page 9 3. After finished, push elevator trin&throttle trim to upper position to exit back to normal mode. Retreatable Antenna The EX6 comes with a retreatable antenna. When transporting, you can rotate it down at rear place to save space. EXMITTER EX6 Digital Radio System...
- Page 10 After the range check, fully extend the anternna. EXMITTER EX6 Digital Radio System...
- Page 11 Low battery voltage Charge your battery responding during Loose or damaged wires or connectors Check the wires and connection between operation between battery and receiver the battery and receiver. Repair or replace wires and/or connectors EXMITTER EX6 Digital Radio System...
- Page 12 © 2014 2015 Volantexrc Co.,Ltd. EXMITTER EX6 Digital Radio System...
