Fredenstein Bento 6D Operating Manual

Module carrier

Bento 6D Rev. A

Module Carrier

Operating Manual

Table of Contents

Need help?

Do you have a question about the Bento 6D and is the answer not in the manual?

Page 1 Bento 6D Rev. A Module Carrier Operating Manual...

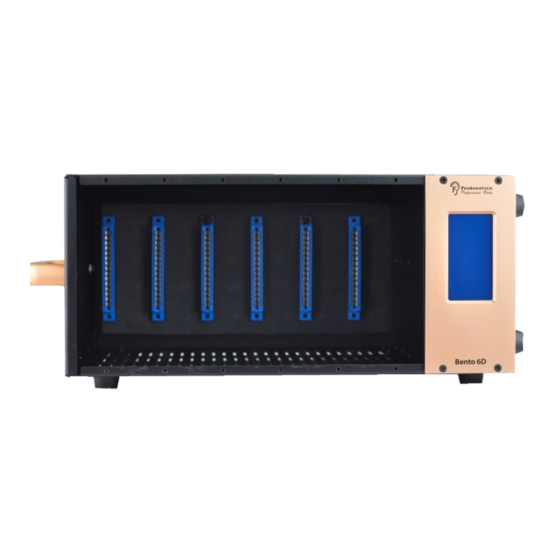

Page 2 Fredenstein Bento 6D Rev. A Module Carrier The Fredenstein Bento 6D is a high performance portable module carrier for Fredenstein Series 600 modules or API-500 compatible plug-in cards. The unit accepts a maximum of 6 modules. The Bento 6D features several important upgrades compared with third party products: Universal power supply: Mains voltages range from 90V AC to 240V AC, 50 to 60 Hz.
Page 3 For Fredenstein modules, both need to be in the ON (upper) position. Operation: After installation of the modules connect the mains cord to the Bento 6D IEC socket located on the back-panel and than connect the mains cable to a grounded outlet. Now turn the Bento 6 on by operating the I/O switch (also part of the IEC socket on the back).
Page 4 AUX In - Pin 10 Main In + Pin 11 AUX In + Pin 12 +16V Supply Pin 13 Supply Ground Pin 14 -16V Supply Pin 15 +48V Supply Fredenstein Bento 6D Rev. A Manual V1.1 February 24, 2015 Page 3...
Page 5 Pin 9 Digital Interconnect 3 Pin 10 Pin 11 Pin 12 +16V Supply Pin 13 Supply Ground Pin 14 -16V Supply Pin 15 +48V Supply NC = Not-Connected Fredenstein Bento 6D Rev. A Manual V1.1 February 24, 2015 Page 4...
Page 6 Contact Info: Fredenstein Professional Audio by Orion Communication 7F-1, No. 582, Ruei Guang Rd. Neihu District Taipei 114 Taiwan Phone : + 886-2-2657-2618 Email : info@fredenstein.com www.fredenstein.com...
