Ex-Sight.Com 1202HD Quick Installation Manual

Fullhd 30 fps h.264 ip camera with rs-485, dio, analog out, dc iris, usb, poe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Quick Installation Guide

This manual has been designed to guide you through basic installation, configuration and the webpage access
settings of the device.
Step1. Install the lens
1. Place the lens mount to the camera and
tighten the mount by turning clockwise.
2. Connect the lens cable to the 4-pin auto
iris connector on the side of the camera.
3. Manually adjust the zoom and focus of the
image with the zoom lever and focus lever on
the lens mount. (Refer to the manual
provided with your lens.)
!
Caution
NC1202HD Ver1.0
Make sure that the light sensor is not blocked by lens cable or other objects.

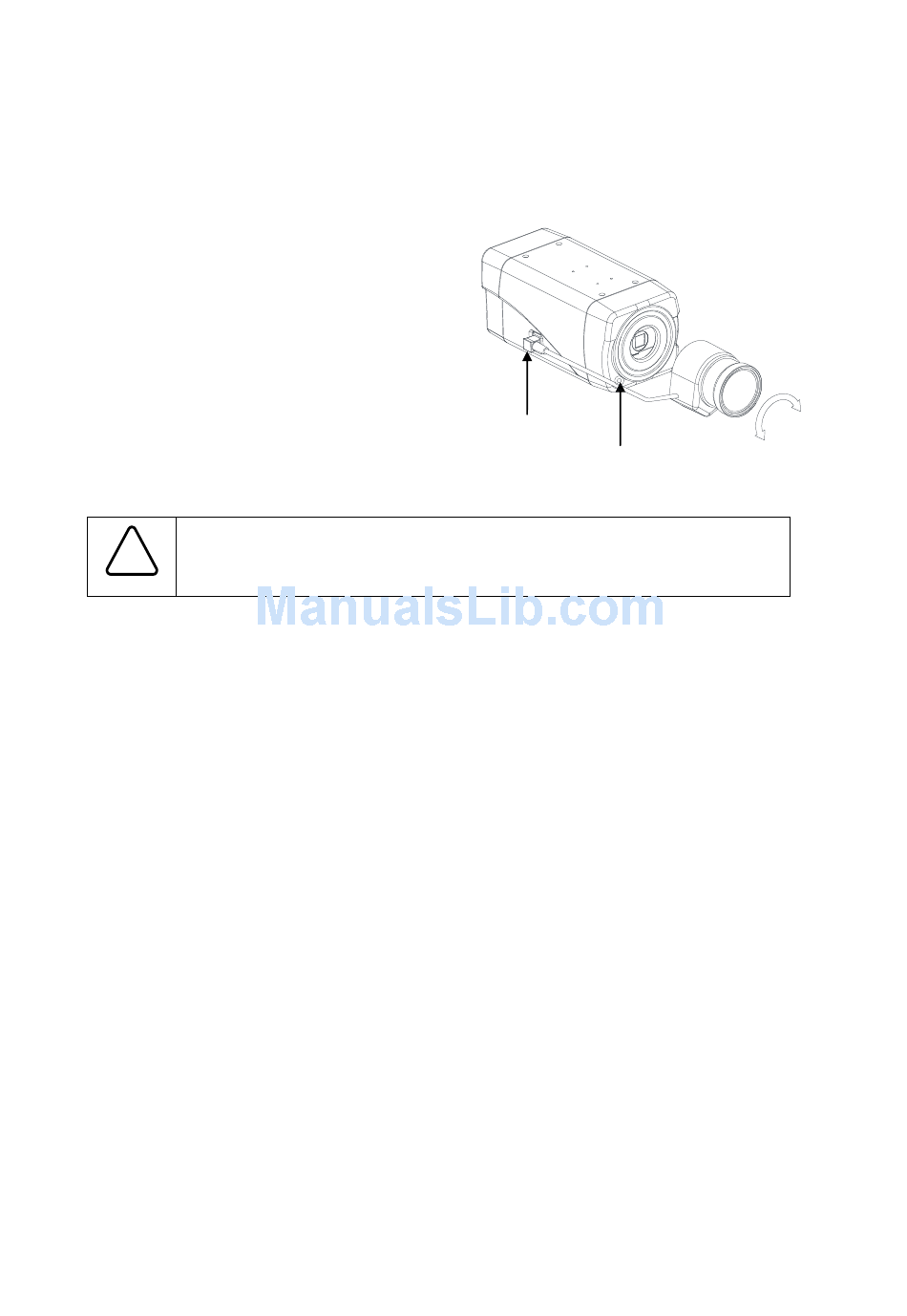

Auto Iris Lens
Connector
Light Sensor
1
