Summary of Contents for Zero88 Zero Wire DMX

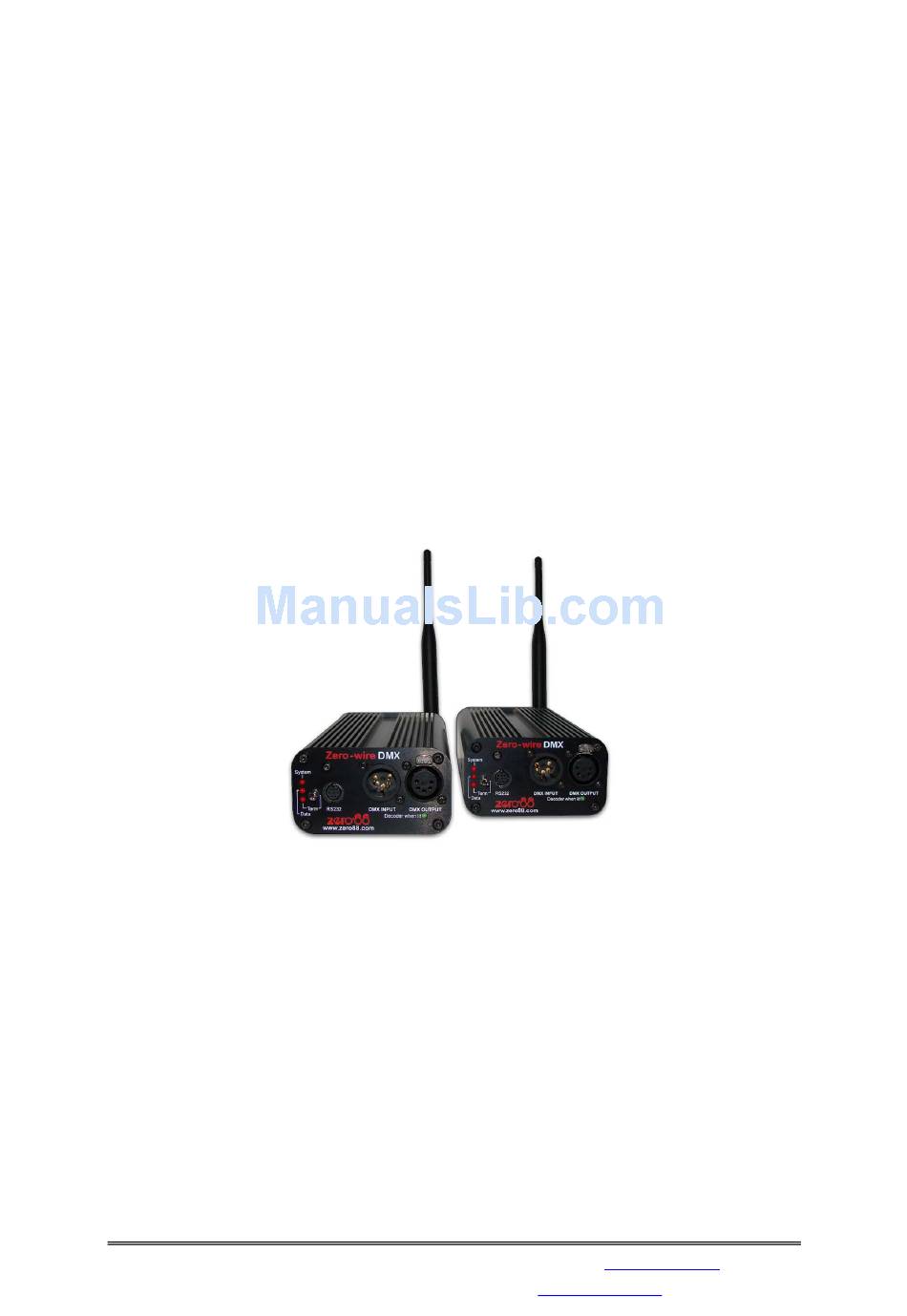

- Page 1 Zero Wire DMX Operators Manual Zero 88, Usk House, Llantarnam Park, Cwmbran, Gwent, NP44 3HD, UK www.zero88.com Tel: +44 (0) 1633 838088 Fax: +44 (0) 1633 867880 Email: sales@zero88.com Stock No: 73-776-00 IM8352 Iss. 01...
-
Page 2: Table Of Contents
1. Introduction - Page 2 INTRODUCTION HOW TO SET UP A ZERO WIRE DMX SYSTEM Working with the Boxes Specification Connecting a Box to a PC WORKING WITH A WAP Configuring the WAP A NOTE ON OTHER WIRELESS NETWORKS. RUNNING A SHOW... -
Page 3: Introduction
1. Introduction - Page 3 Introduction Zero Wire DMX is designed to allow users to construct a wireless DMX network and enable the use of DMX devices where DMX over wire is not possible. Zero Wire DMX is designed to allow people everywhere to use IEEE standard of 802.11 Wireless Ethernet as a transport mechanism for USITT DMX 512. -
Page 4: How To Set Up A Zero Wire Dmx System
RS232 Programming Cable Overview: • Zero Wire DMX Box: A device that takes in USITT DMX 512 and converts the data into IP (Internet Protocol) packets embedded within Ethernet Frames for delivery across a wireless Ethernet system. One box is configured to act as an encoder and one as a decoder. To enable the system to work from the box the following steps need to be followed: •... -
Page 5: Connecting A Box To A Pc
The options are defined below: IP Address This is the units IP address. One of the benefits of the Zero Wire DMX system is that it uses full IP addresses which allowing the routing of the DMX data across all kinds of networks both switched and unswitched. -
Page 6: Subnet Mask
2. How to set up a Zero Wire DMX system - Page 6 192.168.X.1 through 192.168.X.250 are valid. It is possible that X can be configured to something other than 1, but the default is 1 and we strongly recommend that you keep with this unless there are good reasons to change. Only Advanced users should ever change the value of X 192.168.1.255 is a reserved address and as such should never be used as an IP address of... -
Page 7: Encoder
2. How to set up a Zero Wire DMX system - Page 7 web server is kept enabled. Universe This is a number set by the user to distinguish one DMX universe from another when running multiple universes of DMX over the same wireless network. This parameter can be set from one to ten. -
Page 8: Working With A Wap
This ability to change channels during the show and ‘on the fly’ is one of the great advantages of the Zero Wire DMX system above other similar systems and above traditional older wireless systems. - Page 9 3. Working with a WAP - Page 9 A final note on changing the channels. Although channels 1 and 2 are numerically different the physical frequencies which they represent overlap. Depending on which other wireless networks are in use in the local area, you may need to reconfigure the units to respond to different channels.
-
Page 10: A Note On Other Wireless Networks
If a cable can be run safely then this will inherently be more secure than any wireless system, however if there is the risk of damage to the cable or running it is impossible then the Zero Wire DMX system gives you a highly secure system. -
Page 11: System Configuration Options
6. System Configuration Options - Page 11 System Configuration Options Simple point to point (AdHoc) DMX to Light DMX From Desk Encode Decode Simple point to point (Infrastructure) DMX From Desk Decoder (Wireless Access Point) Encoder Simple point to multi point (Infrastructure) Decode DMX From Desk Decoder... -
Page 12: Desk To Multi Point (Infrastructure)
6. System Configuration Options - Page 12 Desk to multi point (Infrastructure) Decode CAT5 Cable Link Ethernet From Desk (LeapFrog 48/96 or Frog2) Decoder (Wireless Access Point) Multiple Universe through 1 WAP (Infrastructure) DMX to Lights DMX From Desk Universe 1 Universe 1 Universe 1 Universe 2... -
Page 13: Multiple Universes Split Across Multiple Waps (Infrastructure)
6. System Configuration Options - Page 13 Multiple universes split across multiple waps (Infrastructure) DMX to Lights DMX from Desk Universe 1 Universe 1 Universe 1 Universe 2 Universe 2 Universe 3 Universe 3 Universe 4 Universe 4 Decoder Encoder (Wireless Access Points) Extending WAP’s using cable DMX to Light... - Page 14 © Zero 88 2007. All third party trade marks acknowledged. For news, views and Zero 88 Tel: +44 (0)1633 838088 the latest software visit Usk House Fax: +44 (0)1633 867880 the Zero 88 Product Llantarnam Park email: sales@zero88.com Support Forum at: Cwmbran Web: www.zero88.com Gwent NP44 3HD support.zero88.com...
