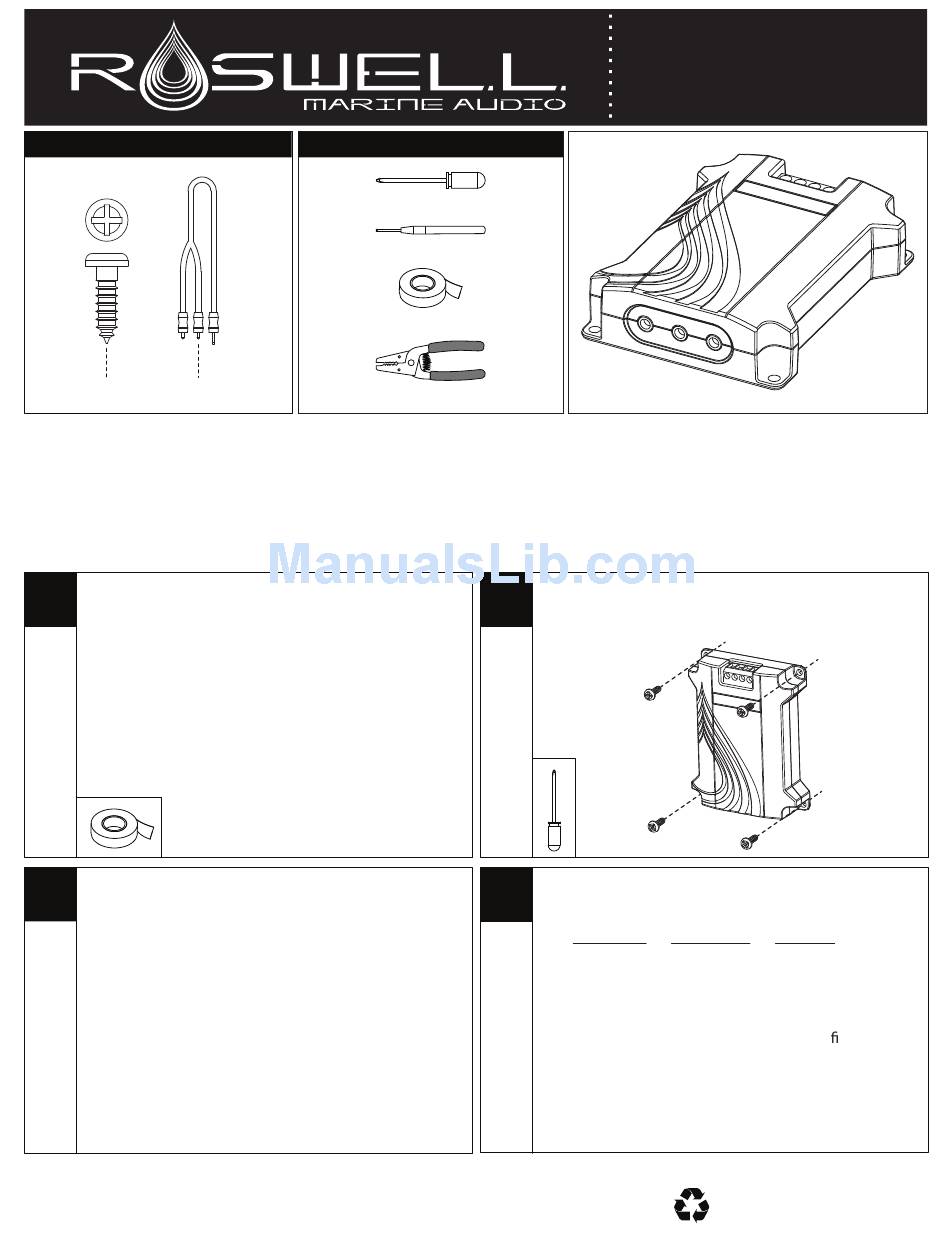

Cybox Parts & Hardware
A
3.5MM to
x4
RCA Cable
PLEASE NOTE: The Cybox Bluetooth device utilizes a line driver that produces a high voltage output
to provide a top quality listening experience. If you intend on using the Cybox as an auxiliary input,
please be aware that is has an integrated switch that can be used to lower the output voltage of the
Cybox if necessary. See page 4 for more information.
INSTALLING THE CYBOX AS A STANDALONE UNIT
A
Disconnect positive cable(s) from battery/batteries.
Tape the end(s) with electrical tape to prevent an
accidental short circuit.
C
Install a switch or locate an existing one to power on
the Cybox. This 12V+ wire will run from the switch to
the "R" terminal on the Cybox.
www.roswellwakeair.com
If you have any questions please call : 1-855-962-WAKE(9253)
Tools Required
Phillips Screwdriver
Precision Screwdriver
Electrical Tape
Wire Strippers
B
D
Bluetooth Interface
Installation Instructions

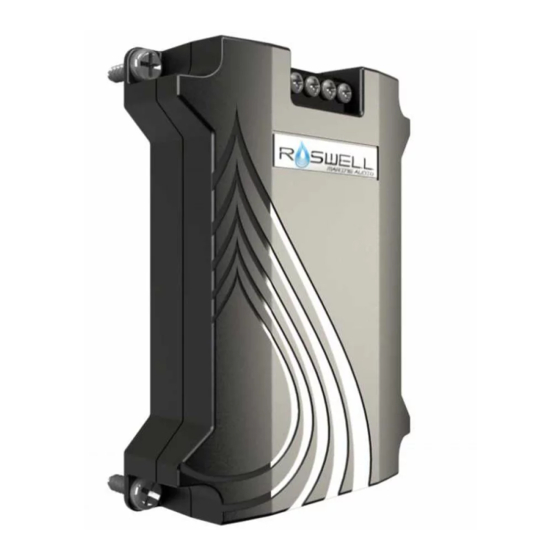

Find a suitable location to mount your Cybox. Ensure
that it is installed in an area that will stay dry and keep
the wires from being snagged or pulled out.
Connect the power wires as shown below:
Cybox Port
Wire Colour
B+
Yellow
B–
Black
R
Red
DR
Blue
Please Note: The 12V+ should come from a 3a inline fuse.
Note: Roswell recommends using marine-quality 18AWG
wire for connecting to your Cybox. Ensure all wires are
secure by giving each one a gentle pull after tightening.
Cybox
Function
Constant 12V +
Ground
Switched 12V+
Delayed remote
to ampli er
Rev. 10-Jul-14
Pg. 1/4
Advertisement
Summary of Contents for Roswell Cybox
- Page 1 PLEASE NOTE: The Cybox Bluetooth device utilizes a line driver that produces a high voltage output to provide a top quality listening experience. If you intend on using the Cybox as an auxiliary input, please be aware that is has an integrated switch that can be used to lower the output voltage of the Cybox if necessary.
- Page 2 STANDALONE UNIT Marine Audio Dealer and asking for part # C720-0003. NOTE: to reduce the risk of a ground loop, which can negatively a ect sound quality, please ensure the Cybox and all audio components share a common ground point.
- Page 3 (auxiliary input). B– AUXILIARY-INPUT DEVICE NOTE: to reduce the risk of a ground loop, which can negatively a ect sound quality, please ensure the Cybox and all audio components share a common ground point. PAIRING: Open the Bluetooth settings on your device.
- Page 4 3. Make sure you have paired the Roswell Cybox. 4. Make sure the distance between your device and the Cybox is not greater than 20 feet (6 M). 5. Check to make sure that the Cybox is connected to your audio system.
