Operating Instructions

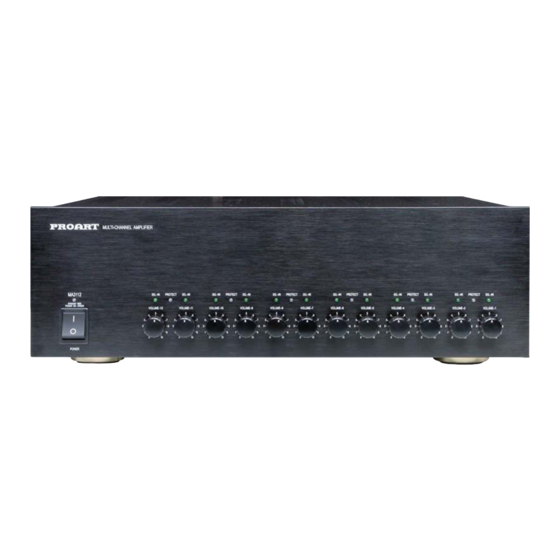

A 5024 Multi-Zone Amplifier

Overview

Congratulations on purchasing the A 5024 multichannel
amplifier. It is suitable as a stand alone system for multi
room (multi zone) installations, or for connection to an
A 5020 matrix controller for more advanced audio
switching (contact your dealer for more information on
the A 5020).
The A 5024 provides up to 6 stereo speaker zones or 12
mono speaker zones or a combination of both.
Each zone can be configured to accept either a dedicated,
or common input source.
Any combination can be used allowing for instance
background music to be playing in dining room & enter-
taining areas while home theatre effects are playing in
the lounge.
The BUSS input is best used when it is connected to an
audio switching device such as a home theatre receiver.
This allows you to quickly switch audio sources across
multiple zones at once.

Features

• 6 stereo speaker zones or 12 mono speaker zones or a
combination of both. Each rated at 40W into 8Ω
speakers.
• Each pair of amplifiers are bridgeable delivering
120W into 8Ω.
• Each amplifier has a choice between shared BUSS or
individual zone inputs.
• Common BUSS output allows infinite number of
amplifiers to be used.
• The unit can be powered up via signal detection or
external trigger (5-24V DC).
• Signal LED for each channel
• Amplifier "protect" LED per amplifier pair
• 12 individual volume controls
• Input signal limiter.

Installation

The amplifier can be configured in a number of different
configurations. Please consult the configuration dia-
grams on pages 2, 3 & 4 as a guide for setting up your
system.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A 5024 and is the answer not in the manual?

Questions and answers

Summary of Contents for PROART A 5024

  • Page 1: Operating Instructions

    • Each amplifier has a choice between shared BUSS or individual zone inputs. The A 5024 provides up to 6 stereo speaker zones or 12 • Common BUSS output allows infinite number of mono speaker zones or a combination of both.

  • Page 2: Specifications

    Proart Multizone Audio Distribution System SYSTEM OPERATION CD Player CONFIGURATION 1 This system can be configured to operate in 3 differ- Stereo output 40W ent modes. These are selected via the rear mounted Dedicated source 3 position power switch, marked ON, Auto, 5-24V.
  • Page 3 Proart Multizone Audio Distribution System CONFIGURATION 3 Stereo output 40W ZONE-1 ZONE-2 Common BUSS input source Home Theatre Receiver 1. Set “bridged” switch to stereo IN-1 IN-2 2. Set BUSS switch for Zone 1 to L BUSS BUSS SW-1 BUSS SW-2 3.
  • Page 4 Proart Multizone Audio Distribution System CD Player Home Theatre Receiver ZONE-1 ZONE-2 ZONE-3 ZONE-4 ZONE-5 ZONE-6 ZONE-7 ZONE-8 ZONE-9 ZONE-10 ZONE-11 ZONE-12 AUTO 5-24V DC BUSS IN-3 IN-4 BUSS SW-1 BUSS SW-2 BUSS SW-3 BUSS SW-4 BUSS SW-5 BUSS SW-6...
