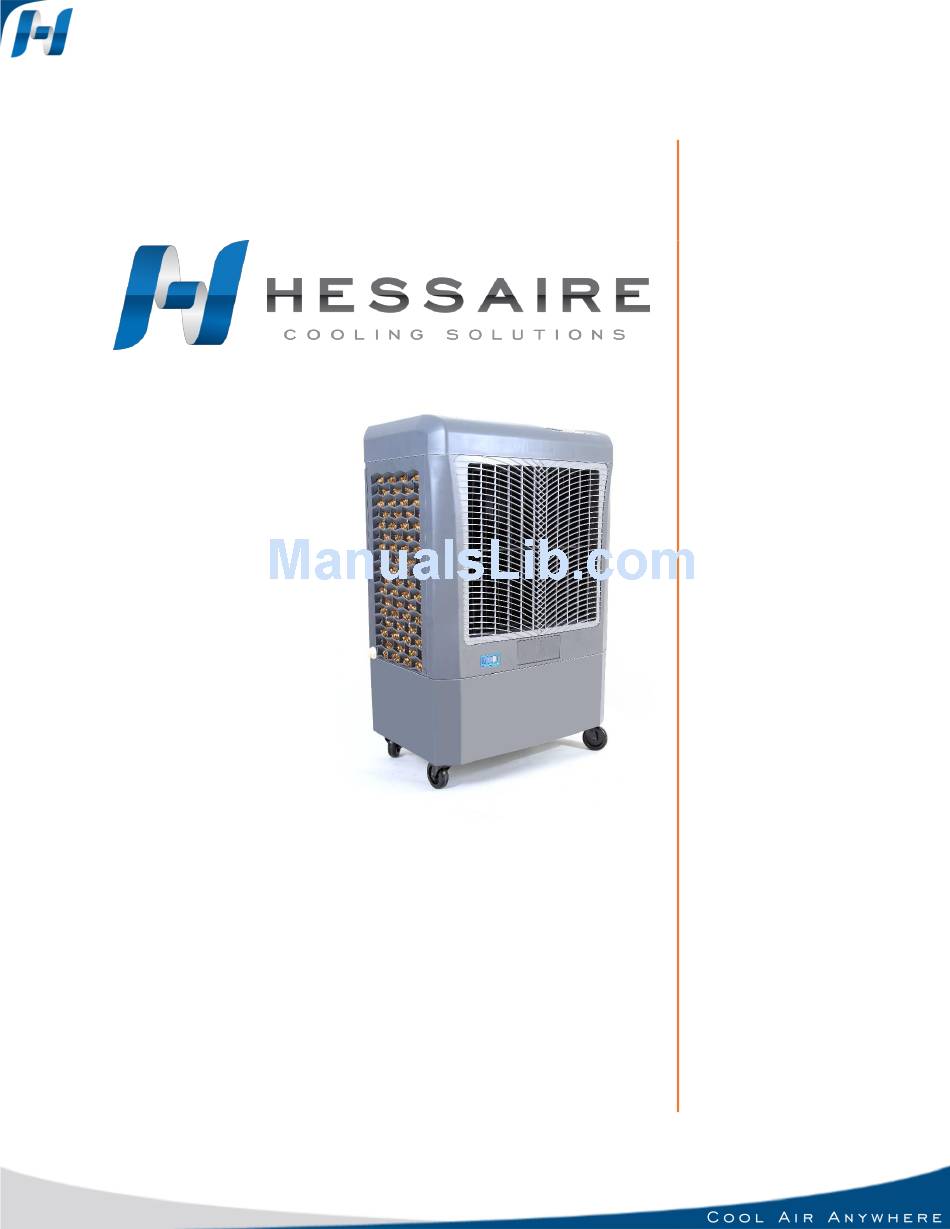

Use and Care Manual
Evaporative
cooling
works on the principle of
heat
absorption
by
moisture
evaporation.
Simply
put,
heat
is
removed from the air as
water evaporates. You
feel this principle in
action when you step out
of a swimming pool or
shower and feel cool as
water evaporates from
the surface of your skin.
Your evaporative cooler
works
on
the
same
principle. The fan pulls
hot outside air through
the wet cooling pads,
where the air is cooled by
evaporation
and
then
discharged
from
the
cooler
Manual update 2016
MC37/MFC3600
SETUP INSTRUCTIONS
Advertisement
Related Manuals for Hessaire MC37
Summary of Contents for Hessaire MC37
- Page 1 Your evaporative cooler works same principle. The fan pulls hot outside air through the wet cooling pads, where the air is cooled by evaporation then discharged from cooler Manual update 2016 MC37/MFC3600 SETUP INSTRUCTIONS...
-
Page 2: Please Read This First
We have parts and expert support that can help you. We value your business and are here to help and can ship any replacement or warranty parts to you quickly so your Hessaire mobile cooler can keep you cool. - Page 3 Use all precautions and disconnect from power source before performing any maintenance. Getting started Tools / Materials Contents: Needed: Evaporative Cooler Drill with #2 Phillip’s bit Hardware Bag (1) Or Phillip’s head Casters (4) screwdriver Operating Instructions Evaporative cooling works on the principle of heat absorption by moisture evaporation. Simply put, heat is removed from the air as water evaporates.
-
Page 4: Evaporative Cooler
3. Return transportation costs. All return transportation costs are the responsibility of the purchaser. Damaged Shipments: Hessaire is not responsible for damaged shipments or shortages resulting from carrier mishandling. Notify your carrier’s office immediately to file a claim. Keep damaged goods and containers for inspection until advised by the carrier as to disposal. -
Page 5: Section 3 Getting Start
Section 3 Getting start Key operational points: 1. Your cooler must be positioned in front of an open window or door if it is to operate effectively. 2. Always ensure that there is another open window or door through which the air can exhaust from the room. - Page 6 Safety Rules 1. Read and follow all instructions, cautions, and warnings. Failure to do so could result in personal injury, death or property damage. 2. Make sure the electrical power source conforms to the requirement of the evaporative cooler(s) as well as local codes. 3.
- Page 7 Section 4A Cooler set up and Operation Hessaire Coolers are pre-assembled and ready to Operate. Simply remove the packaging and then carefully remove the unit from the box. Install Casters as in Diagram 3. Lock the 2 locking wheels before filling and turning on fan to keep the cooler from moving from the air velocity.
- Page 8 Connecting to a power supply. Plug the Hessaire cooler into any 115 volt power supply. It is permissible to use extension cords when needed. It is not recommended to use a GFCI circuit usually found in garage or patio areas. These outlets/circuits are sensitive and may trip inadvertently to the cooler in normal operation.
- Page 9 Rotary switch./Motor Speed Has 7 positions. (Clockwise from OFF ) Fan off, High Fan with Pump, Med Fan with Pump, Low Fan with Pump, Pump only, Low Fan w/o Pump, Med Fan w/o Pump ,High Fan w/o Pump . Middle rocker switch Controls the fan Oscillation Power Switch Controls power to the main controls, it will be lit when it is in the on position, dark when off.
-
Page 10: Cooler Maintenance
Cleaning cooler and pads At regular intervals your Hessaire Mobil cooler should be shut down and disconnected from power supply. The water tank should be drained of dirty water and sprayed out with fresh water and refilled. - Page 11 Draining the cooler tank Unscrew drain cap from drain assemble and drain away water. You may tip the unit carefully to the drain side to help drain all the water out. Removal and replacement of Xel50 cooling media. The cooling pads are made from a special resin impregnated craft paper specially designed for evaporative cooling.
- Page 12 2. Remove the switch control panel from the top of cooler, by inserting a small screwdriver into the tap slots and pop loose. 3. The pump is connected to the control via the white plastic clip. Disconnect the pump clip and feed the plastic clip through the control box into the cooler.
- Page 13 QUICK TROUBLESHOOTING TABLE Problem Cause/Remedy 1. Cooler fails to work at all 1.1 Check that the unit is plugged properly 1.2 Check the POWER switch, push it to "ON" 1.3 The TIMER switch is "OFF", turn it to "ON" 1.4 Make sure cooler is not plugged into a tripped GFIC outlet. If so reset GFCI or move to non GFCI outlet 2.
