Summary of Contents for Maintronic PAC3200

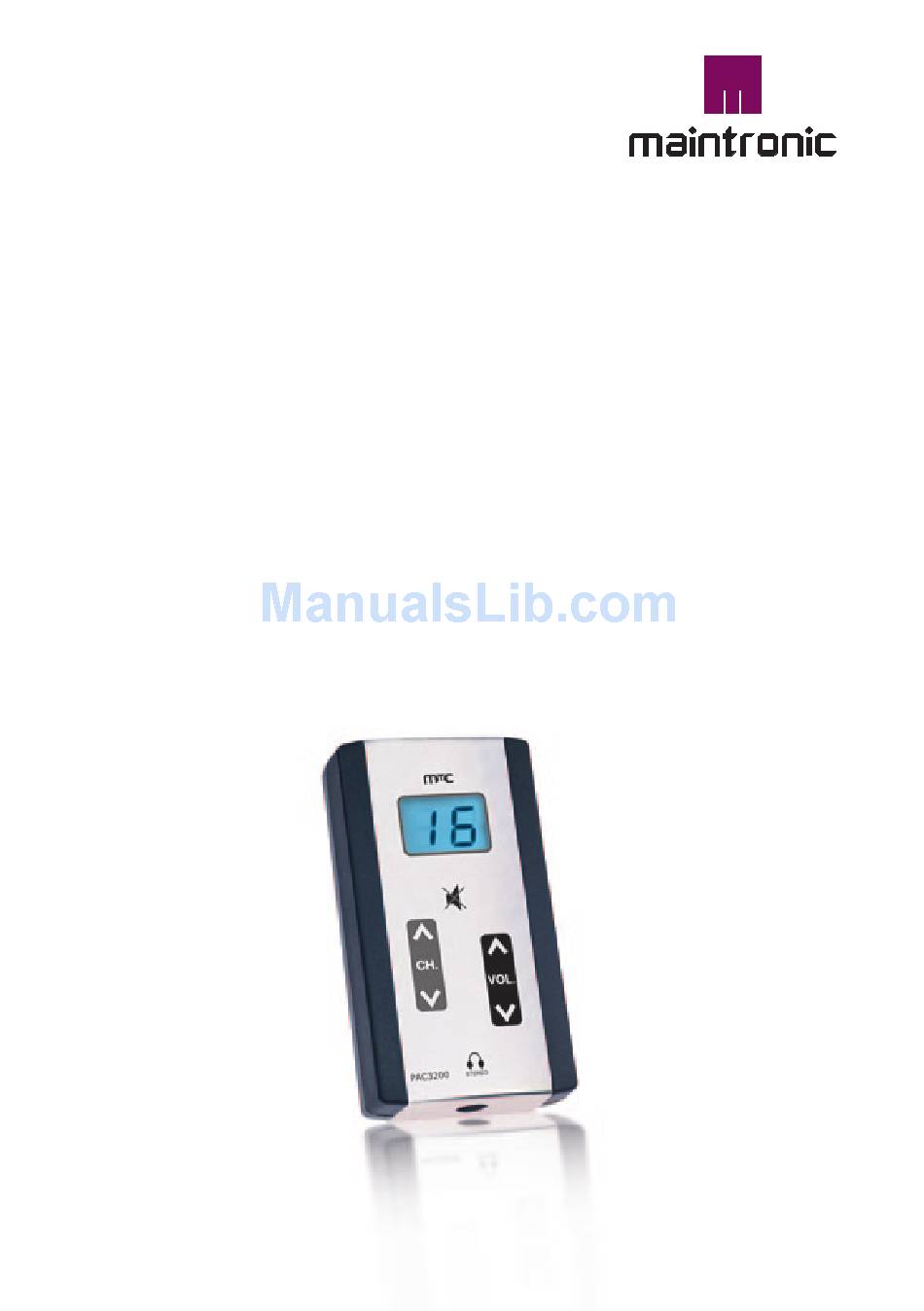

- Page 1 Manual PAC3200 wireless Cardio Sound System www.maintronic.de...
-
Page 2: Safety Instructions
Safety instructions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN UNIT! Servicing of these productunits must only be performed by qualified personnel. The unit should be serviced by qualified personnel ATTENTION when: • objects have fallen or liquid has been spilled For your own safety, read all instructions and into the unit information in this manual before using the... -
Page 3: System Parts
4 channel UHF transmitter unit with power supply 1.4 PAC mounting kit PAC - Spez. mounting device for vertical mounting 1.5 power supply unit for PAC3200 optional input 230V ~, output 8V-/300mA, with temperature fuse, exit-sided connecting cable 2m with connector RJ12... - Page 4 PAC3000 assembling layout TX800 Transmitter for TX800 TX800 Sender an unlimited number of Sender Sender panels TX800 Transmitter for TX800 Transmitter for TX800 TX800 an unlimited number of an unlimited number of Sender Sender panels panels...
- Page 5 Power supply PAC3200 Panel Important ! 8.1 Take cover down carefully and put the cutted conductor into the disignated connec- tion slot. 8.2 Finally fix the downwarded part of the chassis carefully and close the top cover again.
- Page 6 Installation TX1 4.1 adjust channel open the cover, choose the channel with the turning switch Connect transmitter to the TX1 module Connect Chinch Cable to sound source (TV, radio or receiver) Connect enclosed power supply unit to the TX1 module. 4.2 Turn sound source on and adjust it to the right volume.
- Page 7 Installation TX800 5.1 Connecting the antenna please take attention that it will be vertical. Connect Chinch Cable to sound source (TV, radio or receiver) 5.2 Turn sound source on and adjust it to the right volume. 5.3 Turn PAC3000 panel on and plug headpo- ne into channel1.
- Page 8 Mounting of client panels 5.1 Curve fastener carefully down with a screwdriver 5.2 Put fastener into device and push it care- fully to the back, until it locks in 5.3 Suitable for 2 or 3 mounting straps. 5.4 Mounting the metal device: meassure the required length, which you need for fixing and add 50mm to the deter- mined rate.
- Page 10 Crimping the telephone Plug-in A: knife A C B B: isulation cutter C: Crimping module Cut cable rectangular to crimping tool. cable let the cable touch the chosen part (distance holder), then move it carefully under the knife forward and backward. knife Pull cable away from the distance holder.
-
Page 11: Frequency Chart
863,900 864,200 864,450 864,700 864,950 Technical dates TX1: Technical dates PAC3200: powercomsumption (max): 120 mA RF-emission (at 50 Ohm): > 20mW DC range : min 5V max 9V DC NF-input resistance: > 2 kOhm Distortion: <0,3% NF-input Level RMS: 15 mV 1,5V... - Page 12 Programming PAC3200 Panel 9.1 Starting programming: Press the 3 signed buttons in the shown se- quence and keep holding them. The number of saved programs is on the display (max32) and the point on the right side of the display lights up slowly (each second) 9.2 Set number of programs...
