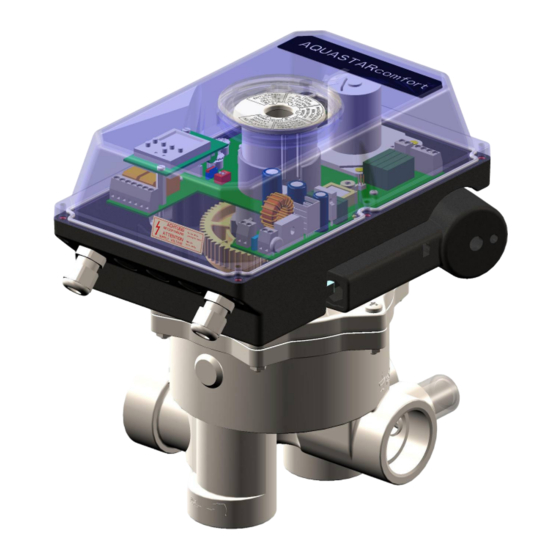

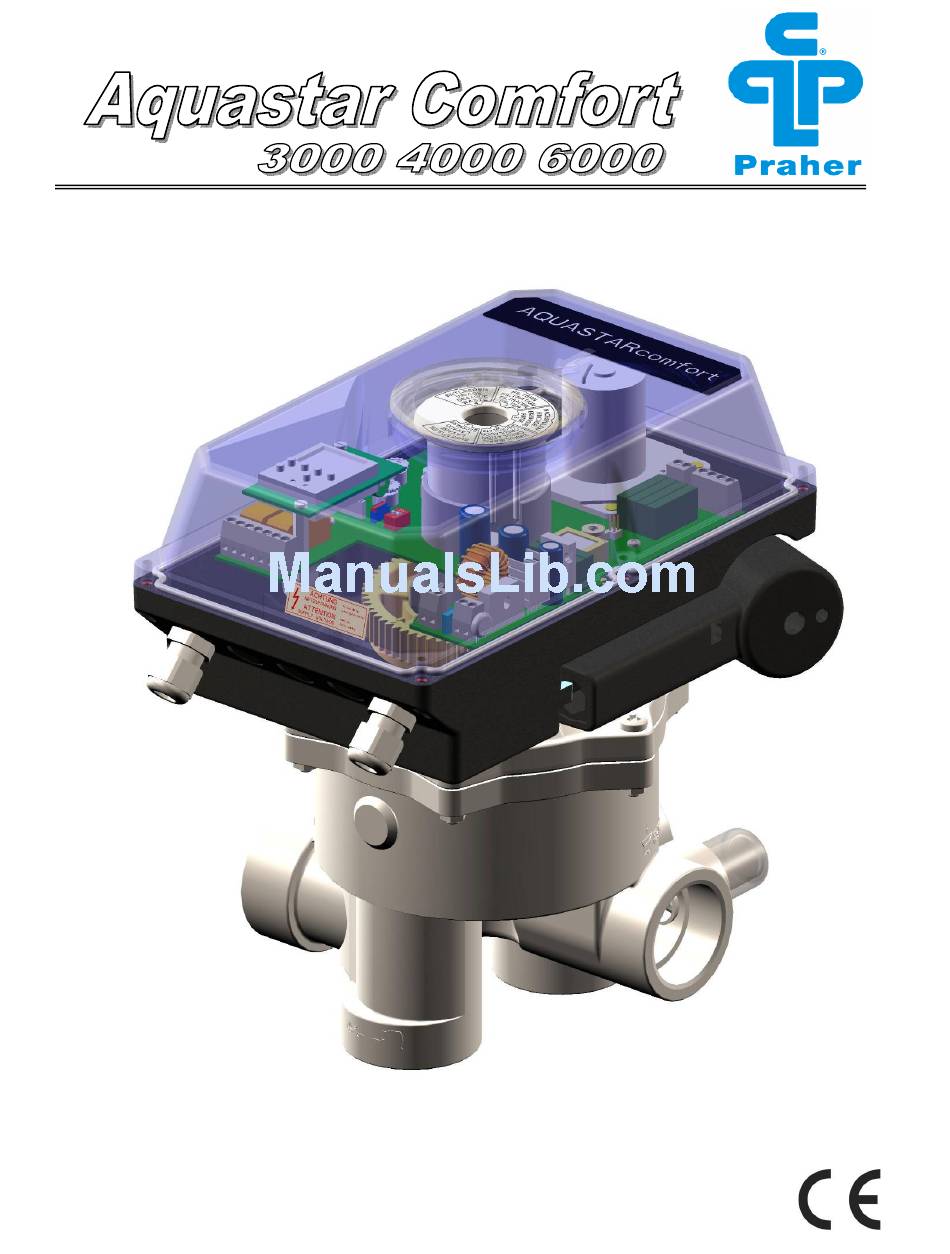

- Page 1 Zertifiziert nach certified acc. to EN ISO 9001:2000...
-
Page 2: Table Of Contents
12. Function of membrance keyboard ..........9 12.1 Circulation ....................9 13. Setting of times................10 13.1 Setting of delay time ..................10 13.2 Setting of backwash time ................10 13.3 Setting of rinsing time ................10 14. Setting of the electric pressure switch ........10 www.praher.com... - Page 3 19. Dimensions ................... 20 20. Exploded view drawing Aquastar Comfort......... 21 21. Manual Override ................22 20.1 Dismantling....................22 21.1 Installation ....................23 22. Special Models Aquastar Comfort ..........24 22.1 Aquastar Comfort 3500................24 22.2 Aquastar Comfort 4500................24 22.3 Aquastar Comfort 6500................24 www.praher.com...
-
Page 4: Copyrights
1. Copyrights This operation manual contains copyright protected information. All rights reserved to Praher Kunststofftechnik GmbH. This operation manual is designed for use by operating personnel only. Copying, reproduction or translation of the present document into other languages in whole or in part is subject to express written permission by Praher Kunststofftechnik GmbH. -
Page 5: Warranty And Liability
3 mm from the mains. Pay attention that the supply voltage is correctly protected and an earth-leakage circuit breaker ≤ 30 mA is installed. • Only use the equipment in dry rooms, in which no combustible gasses and vapors are present. www.praher.com... -
Page 6: Residual Risk
(lever switch). 7. General PRAHER Aquastar controls are significant technical products, which are manufactured with high accuracy to the most modern technical production methods. Entitled complaints will naturally be rectified as fast as possible if they occur. The equipment has a warranty after valid European law. -
Page 7: Designated Use
→ towards sewer 6-way valve type: 11/2“, 2“ and 3“ Connections: Thread or solvent socket (all connections open) Max. operation pressure: ABS 11/2“, 2“, 3“ → 3,5 bar GFK 11/2“, 2“ → 6 bar / GFK 3“ → 5 bar www.praher.com... -
Page 8: Cycle Sequence
Changeover ca. 45 sec. Filter - Backwash Backwash 50 sec. - 9 min. Changeover ca.35 sec Backwash time – Rinsing Rinsing 25 sec. – 200 sec. Changeover ca.25 sec Rinsing – Filter Cycle time 3 min – 40 min. www.praher.com... -
Page 9: Function Of Membrance Keyboard
ATTENTION! After simultaneous pressing of the keys first the LED of “TESTBUTTON” is illuminated and then the ‘WASTE’ LED, briefly. Only then the LED of the “TESTBUTTON” starts blinking and the Aquastar goes to position ‚circulate’ After “CIRCULATE“ is finished, press OFF • Go to basic position www.praher.com... -
Page 10: Setting Of Times
• Changeover 02 from 2 – 5,75 bar pressure (bar) Raster Changeover 01 Changeover 02 2,25 2,75 3,25 Pressure Switch 3,75 4,25 4,75 5,25 5,75 The pressure values are tested and set but can slightly vary due to manometer tolerances! www.praher.com... -
Page 11: Programming The Digital Clock For The Aquastar Comfort
Confirm chosen item Make choice and confirm Press short = +1 Change request in Read-mode Press long (~ 2 sec) = +5 Do not execute command Press short = -1 Execute command Press long (~ 2 sec) = -5 Delete www.praher.com... -
Page 12: Operation Mode
Press 2x = FIX OFF Press 3x = back to Auto mode 15.3 First operation – Choose menu language Info: The clock is shipped in auto mode with pre-set time, date and menu language English. 15.4 Create a new program www.praher.com... - Page 13 (+/-) and confirm with OK Input hour for OFF command (+/-) and confirm with OK Input minute for OFF command (+/-) and confirm with OK Program is stored Program goes to READ, NEW, DEL. More programs can now be created. www.praher.com...
-
Page 14: Viewing And Adapting A Program
- It is possible to delete all programs by pressing Y - By pressing N single programs can be deleted 15.7 Delete single programs Info: When deleting single programs all subsequent program steps are deleted (i.e. PO1 ON and PO2 OFF). www.praher.com... -
Page 15: Setting Of Date And Clock
15.8 Setting of date and time Info: Date and time are pre-set by factory. Setting of AM/PM (12 hours/24 hours display www.praher.com... -
Page 16: Changeover Summer/Winter Time
The changeover is done at the same set weekday in the same week of the month. Example: 21.03. Start Summer Time 31.10. Start Winter Time Attention: During changeover procedure no changes at the clock must be done! www.praher.com... -
Page 17: Electric Connection
During the whole cycle [18→19] is interconnected. 18 19 Connection of more valves. Technical data. Voltage: MVO 12-230VAC, 12-34VDC Protection rate: IP 65 Frequency: 50/60 HZ Max. own consumption: ~ 4 Watt / 12 Watt 11/2“, 2“, ~ 4Watt / 20 Watt 3“ www.praher.com... -
Page 18: Connecting Diagram For Pump
Nachspülauslösung (6*) (3*) (2*) Versorgungsspannung Extern Electricity supply 12 - 230VAC Pos.1 Pos.2 Pumpe 12 - 34VDC Kugelhahn Fa. Praher Pump Ballvalve max. 4 A max. 8 A Relais Relais Pumpe Ballvalve Pump Kugelhahn Fuse Sicherung Anschlußplan Connecting diagram... -
Page 19: Control Board
18. Control Board www.praher.com... -
Page 20: Dimensions
19. Dimensions Side Mount Top Mount 1 ½“ SM 1 ½“ TM 2“ SM 3“ SM 99,5 29,5 31,5 85,5 61,5 59,5 163,5 41,5 87,5 18,5 18,5 62,5 www.praher.com... -
Page 21: Exploded View Drawing Aquastar Comfort
Aquastar body bottom Emergency handle Gear motor Pressure switch control 10. Pump end switch 11. 6V Valve ND 11/2“,2“,3“ 12. Valve plate with O-rings and spring 13. Valve coupling 14. Pressure hose with union 15. Control board 16. Digital clock www.praher.com... -
Page 22: Manual Override
Lower the system pressure prior to using the emergency handle The emergency handle is not designed to replace the electric drive. In order to secure proper function of the emergency handle it should not be used permanently! 20.1 Dismantling www.praher.com... -
Page 23: Installation
21.1 Installation Attention: During installation screw tight the sight glass in the lid (pict. 8) in order to secure tightness of the Aquastar Comfort www.praher.com... -
Page 24: Special Models Aquastar Comfort
Mo-Fr same and Sa-Sun same or each day different times. Integrated clock for filter control (channel 2) Settings: each day the same, Mo-Fr same and Sa-Sun same or each day different times. Picture: 2-channel clock www.praher.com... - Page 25 Notizen Notes www.praher.com...
