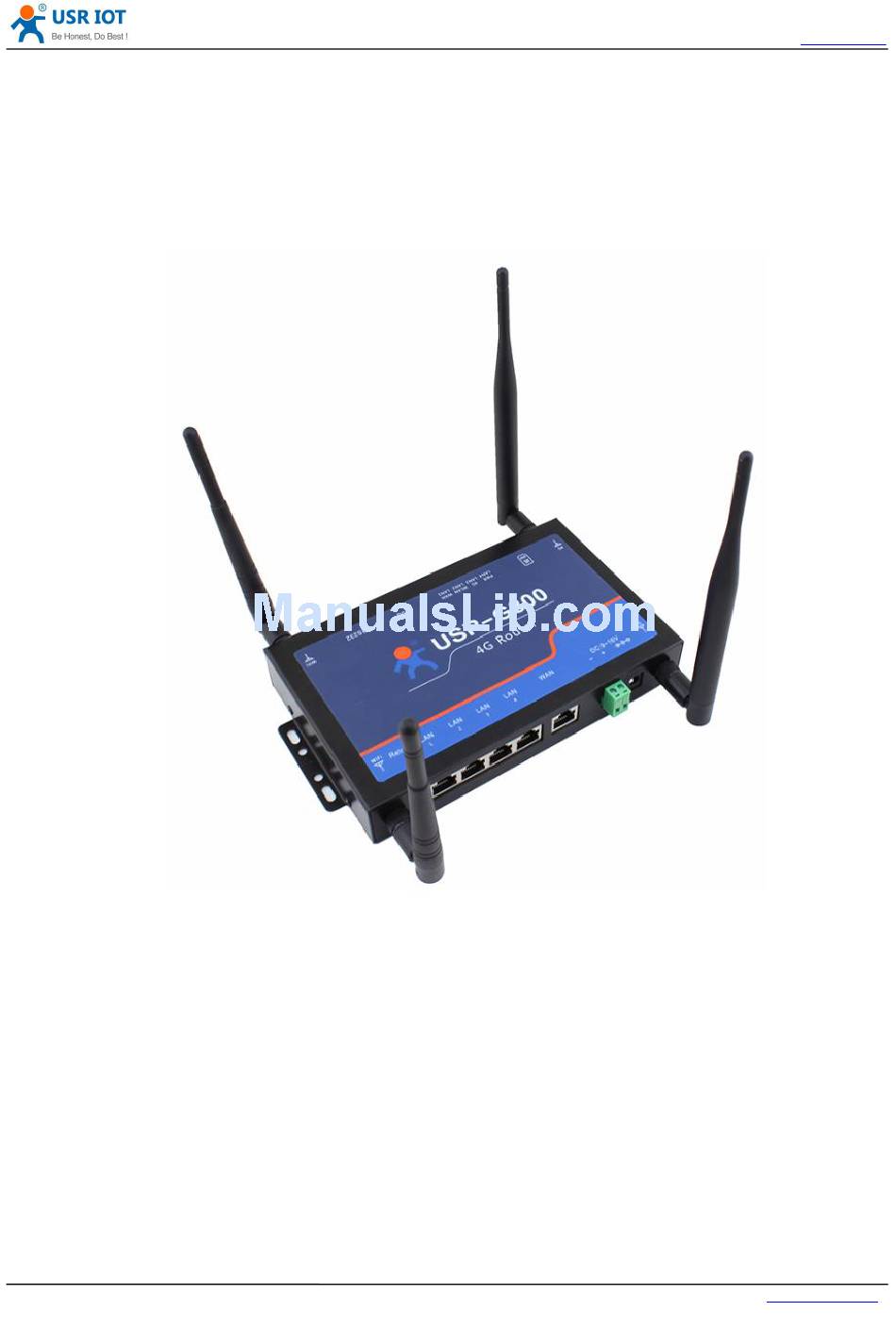

- Page 1 USR-800-42 User Guide h.usriot.com USR-G800-42 User Manual File Version: V1.0.5 Jinan USR IOT Technology Limited 1/ 32 www.usriot.com...
-
Page 2: Table Of Contents
3.14. Reset by webpage..........................24 3.15. Restart..............................25 4. Setting Method..............................25 4.1. Web page Configuration......................... 25 4.2. Web page Introduction..........................26 4.3. Setup Software............................28 5. Contact.................................. 32 6. Disclaimer................................32 7. Update................................... 32 Jinan USR IOT Technology Limited 2/ 32 www.usriot.com... -
Page 3: Quick Start
1. Quick Start USR-G800-42 is a 4G wireless router which provides a solution for user’s device to access 4G network. It is based on industrial high-performance embedded structure. And plays an important role in data transmission fields such as smart home, industrial control etc. -
Page 4: Network Connection
4.Configure PC’s network connection. Choose to obtain IP automatically, such as the below: 5. Power on router by DC 12V 6. Indicate that the connection is successful when indicating light of USR-G800-42 starts to blink Jinan USR IOT Technology Limited 4/ 32 www.usriot.com... -
Page 5: Data Transmission Test
USR-800-42 User Guide h.usriot.com 1.3. Data Transmission Test Parameter of USR-G800-42: Parameter Primary Value User’s Name root Password root Self IP Address 192.168.1.1 Enter http://192.168.1.1 to open web page of router: Jinan USR IOT Technology Limited 5/ 32 www.usriot.com... -
Page 6: Product Introduction

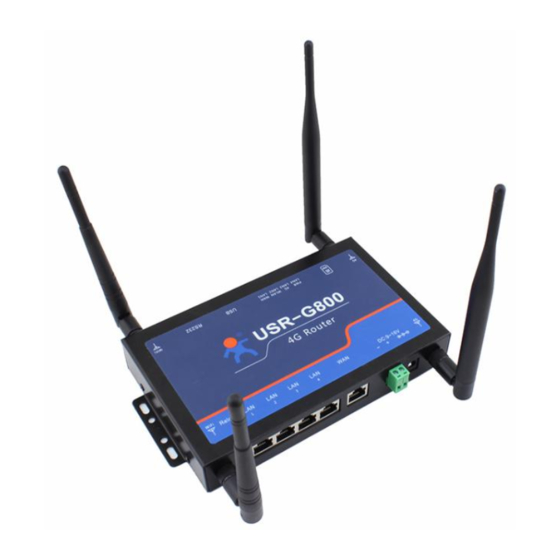

2. Product Introduction USR-G800-42 is a 4G wireless router which provides a solution for user’s device to access 4G network. It is based on industrial high-performance embedded structure. And plays an important role in data transmission fields such as smart home, industrial control etc. -
Page 7: Usr-G800-42 Parameter
Button Reload A key to restore factory setting Indicating light Status Power, WIFI, 4G, WAN*1，LAN*4 Serial port RS232 DB9 Male Plug, RS232 power level Data transparent transmission between Function RS232 and Ethernet Jinan USR IOT Technology Limited 7/ 32 www.usriot.com... - Page 8 175mA 289mA LAN Port on full-speed communication DC12V 169mA 245mA Consumption value is obtained under 12V power supply and full-speed working: Average consumption: 2.1W; Max consumption: 3.5W. Average current:175mA; Maximum current: 289mA. Jinan USR IOT Technology Limited 8/ 32 www.usriot.com...
-
Page 9: Hardware Description
10/100Mbps,support Auto MDI/MDIX LAN Port（1~4） 10/100Mbps,support Auto MDI/MDIX RS232 port, data transmitted between DB9 Male Port serial and ethernet USB Port Reserved 8 indicating lights,details please refer Indicating light to 3.7 chapter Jinan USR IOT Technology Limited 9/ 32 www.usriot.com... - Page 10 WIFI antennas *2, near to reload key WIFI antenna and DB9 port Antenna for 4G module, near to SIM 3/4G full frequency antenna card and power supply <Note> Please note that the difference between WIFI and 4G antenna. Jinan USR IOT Technology Limited 10/ 32 www.usriot.com...
-
Page 11: Size Description
Sheet metal casing, PCB is fastened onto the bottom with screws Settled holes for C45 Din rail in the two sides Size at 207 * 113 * 35mm ( Not including power termial, antenna) Jinan USR IOT Technology Limited 11/ 32 www.usriot.com... -
Page 12: Product Function
USR-800-42 User Guide h.usriot.com 3. Product Function This chapter introduces all function of USR-G800-42, basic frame: 3.1. 4G Interface USR-G800-42 support 4G communication module interface which can be used to visit outer networks. Jinan USR IOT Technology Limited 12/ 32 www.usriot.com... - Page 13 USR-800-42 User Guide h.usriot.com Jinan USR IOT Technology Limited 13/ 32 www.usriot.com...
-
Page 14: Lan Interface
WCDMA: Band 1 / 8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: Band 3/8 Protocol should be chosen for DHCP (default selection) Router will prefer using 4G network, and then WAN port 3.2. LAN Interface Jinan USR IOT Technology Limited 14/ 32 www.usriot.com... -
Page 15: Dhcp Function
IP address automatically <Noted> Start & end address and address lease time of DHCP pool can be adjusted. Scope of default DHCP 192.168.1.100 - 192.168.1.250. Default lease time is 12 hours Jinan USR IOT Technology Limited 15/ 32 www.usriot.com... -
Page 16: Wan Interface
Support DHCP client and static IP The way to obtain default IP is DHCP client 3.4. WLAN Network It mean Local wireless local area network. Web page as below: Jinan USR IOT Technology Limited 16/ 32 www.usriot.com... - Page 17 USR-800-42 User Guide h.usriot.com Default parameter: Default Parameter Value USR-G800-XXXX SSID XXXX is MAC address Password 12345678 Channel Auto Band Width 40MHz Encryption WPA2-PSK Revise SSID in the below position: Jinan USR IOT Technology Limited 17/ 32 www.usriot.com...
-
Page 18: Serial To Ethernet Function
This WLAN port and LAN port is interchangeable Coverage area of WIFI is 180M 3.5. Serial to Ethernet Function USR-G800-42 supports transparent transmission mode, data can be transmitted between serial port and ethernet. 18/ 32 Jinan USR IOT Technology Limited www.usriot.com... - Page 19 <Note> Four work mode in transparent transmission: TCP Server TCP Client UDP Server UDP Client Support Modbus TCP Configure band rate, data bit, parity bit and stop bit Jinan USR IOT Technology Limited 19/ 32 www.usriot.com...
-
Page 20: Reset Button
Corresponding WAN/LAN indicating light will twinkle when cable is inserted and the network device on the other side is also working; It will not blink if only inserting the cable Power light will blink all the time Jinan USR IOT Technology Limited 20/ 32 www.usriot.com... -
Page 21: Firmware Update
USR-800-42 User Guide h.usriot.com 3.8. Firmware Update USR-G800-42 support upgrade firmware via Web page, as below: <Note> Upgrade firmware will last 30s-50s, please re-enter web page after 30s Retain configuration or not can be selected Do not cut off power supply or pull out RJ45 cable when upgrade firmware ... -
Page 22: Host Name Function
USR-800-42 User Guide h.usriot.com 3.9. Host Name Function USR-G800-42 can analyze the user-defined domain name. Such as: Set host name as “USR”, IP address 192.168.0.9. Then mapping relation between host name and IP address can be realized. Note: This function can only be effective after restarting the router. -
Page 23: Host Name And Time Zone Setting
USR-800-42 User Guide h.usriot.com 3.11. Host name and Time Zone Setting USR-G800-42’s default host name is USR-G800; Time zone is Asia/Beijing. User can modify it according to the actual situation. 3.12. NTP Parameter Setting USR-G800-42 can make network timing. Default status is enable NTP client. And can set candidate NTP server. -
Page 24: User Name And Password
Download backups, means downloading the concurrent router’s parameter configuration files which can be used for backing up parameter setting. Upload backups, means backed-up parameter files can be uploaded into router and take effect. Jinan USR IOT Technology Limited 24/ 32 www.usriot.com... -
Page 25: Restart
Router will start completely and successfully after about 30-40 seconds. 4. Setting Method 4.1. Web page Configuration Connect USR-G800-42 with PC by LAN port or WLAN (WIFI), and then enter web page to configure. Please refer to following default parameter: Parameter... -
Page 26: Web
USR-800-42 User Guide h.usriot.com 4.2. Web page Introduction Status Page It mainly shows device name, firmware version, firewall, router table and current running state. Jinan USR IOT Technology Limited 26/ 32 www.usriot.com... - Page 27 User can configure LAN port, WAN port, WIFI parameter and DHCP/DNS on this page. Serial to Web page It used for setting parameter of Serial -Ethernet, including work mode, local port, remote port and IP Jinan USR IOT Technology Limited 27/ 32 www.usriot.com...
-
Page 28: Setup Software
USR-800-42 User Guide h.usriot.com System Page User can configure password, NTP time, firmware updated and restart. 4.3. Setup Software Download setup software from the below link: http://www.usriot.com/usr-g800-setup-software/ Jinan USR IOT Technology Limited 28/ 32 www.usriot.com... - Page 29 Click SSH connection, “Connecting…” will be hinted, “Connected” will be hinted for successful connection. Click “Show” button, if reading successfully, corresponding data will be updated in the left side and “OK” will be hinted in the right side Jinan USR IOT Technology Limited 29/ 32 www.usriot.com...
- Page 30 ( User can also input “reboot” in send box to realize long-distance restart). Upgrade firmware. Please click the button “update” in the top right corner to update new firmware. Firmware is stored under “Root Directory/Firmware” Details as below: Jinan USR IOT Technology Limited 30/ 32 www.usriot.com...
- Page 31 USR-800-42 User Guide h.usriot.com Export and Import for parameter configuration files. Export and Import configuration files are under “Root Directory/etc/config” Jinan USR IOT Technology Limited 31/ 32 www.usriot.com...
-
Page 32: Contact
USR-800-42 User Guide h.usriot.com 5. Contact Company: Jinan USR IOT Technology Limited Address: Floor 11, Building1, No.1166 Xinluo Street, Gaoxin Distric, Jinan, Shandong, China Tel: 86-531-55507297, 86-531-88826739 http://www.usriot.com Web: http://h.usriot.com Support : sales@usr.cn, tec@usr.cn Email: 6. Disclaimer This file never granted any permission of intellectual property right, and never expressed or hinted, or banned to post or other modes to grant any intellectual property right permission.
