SA 2100
Quick Start Guide

Advertisement

loading

Summary of Contents for Ignite SA 2100

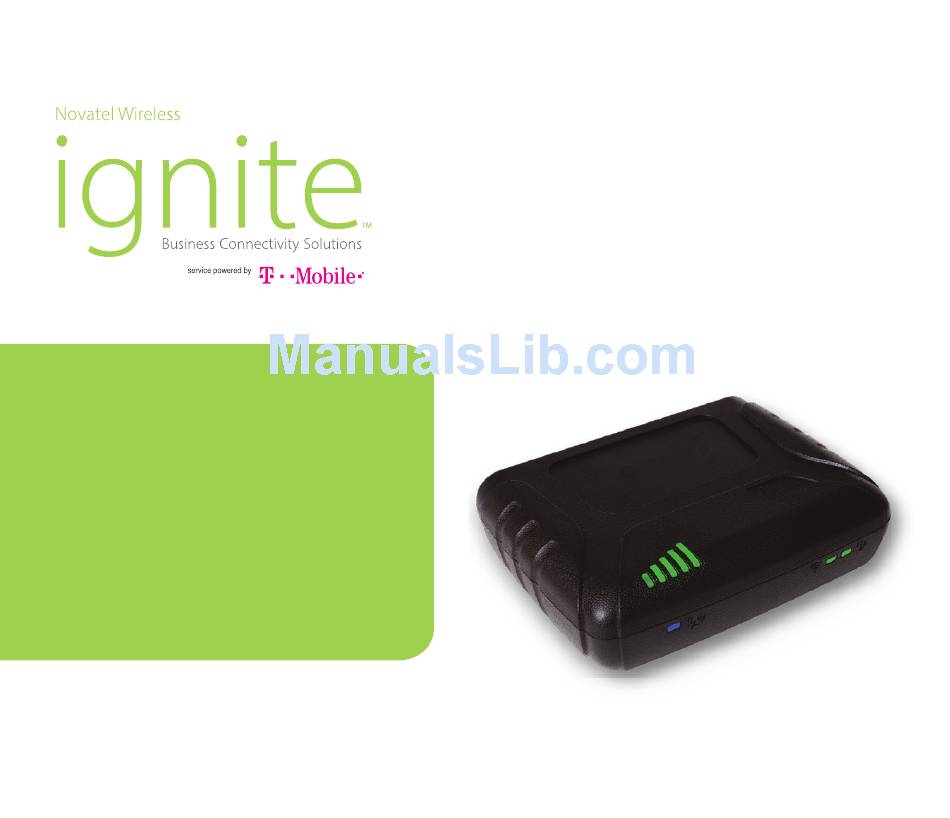

  • Page 1 SA 2100 Quick Start Guide...

  • Page 2: Getting Started

    8 Pin IO connector (includes power) Green Signal Signal strength Cellular antenna connector RF2 All LEDs turn off after 10 seconds when no device is connected. The Power LED is the only LED that operates while the SA 2100 is operating on battery power.

  • Page 3: Device Setup

    2. Connect the cellular antennas to the RF1 and RF2 connectors. 3. Connect the power cable to the I/O connector on the SA 2100 and the power supply. Connect the power supply to a wall outlet.
  • Page 4 USING THE SA 2100 WEB INTERFACE TO CUSTOMIZE SETTINGS You can access and customize your SA 2100 settings from the SA 2100 Web Interface. To customize your SA 2100 settings: 1. Browse to on any connected device to access the http://my.sa2100/...
  • Page 5 SA2100 configuration CONFIGURING THE SA 2100 The SA 2100 can be configured as the primary or failover connection. You can optimize the device settings for your application using the SA 2100 Web Interface as described in “Customize Settings. ” Using the SA 2100 as a failover connection: The SA 2100 can be configured to perform Network Address Translation (NAT) or to operate in IP Passthrough mode.
  • Page 6 • Connect up to 10 Wi-Fi devices • Ethernet connectivity • Crossroads online monitoring utility: ignite.novatelwireless/crossroads • Cellular antenna ports • GPS • Business continuity with backup battery • Advanced security features For more information about the SA 2100 features, visit ignite.novatelwireless.com.
  • Page 7 SA 2100 ACCESSORIES • (2) External cellular antennas • Ethernet cable • Power supply and AC cable • Wall mounting bracket (installed in place of stock battery cover) (bracket) (attached) • Backup battery (stock battery cover, included, not installed)

  • Page 8: Customer Support

    (electronic, mechanical, photocopying, recording or otherwise), or for any purpose without the express written permission of Novatel Wireless, Inc. Novatel Wireless and Ignite are trademarks or registered trademarks of Novatel Wireless, Inc. in the United States. FW9199B...
