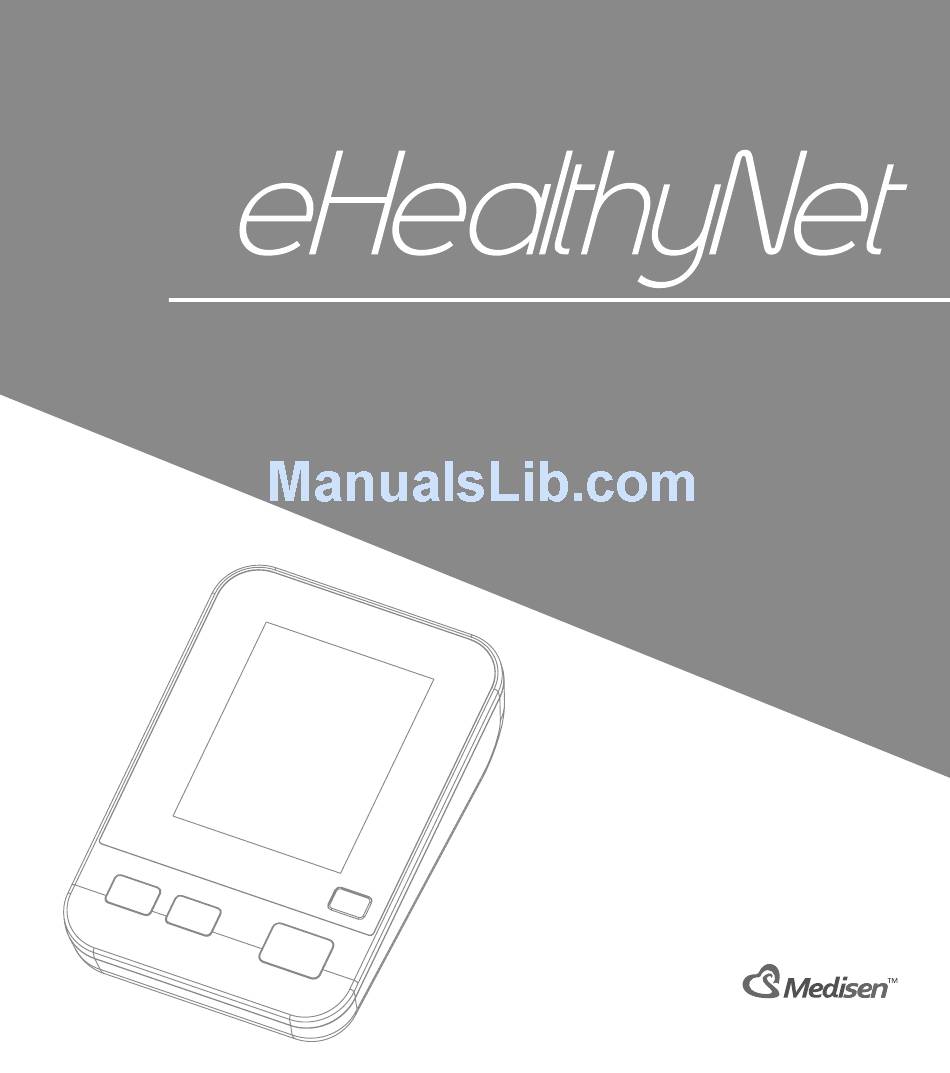

Page 1 Upper Arm Blood Pressure Monitor MBP-012-B User Manual...
Page 3: Table Of Contents
TABLE OF CONTENT INTRODUCTION ..........4 PACKAGE CONTENT ........4 INTENDED USE ..........5 PARTS ............5 HARDWARE SET UP ........6 eHealthyNet APP ..........7 MODE SETTING ..........9 MEASUREMENT .......... 12 ABOUT BLOOD PRESSURE ....... 15 SPECIFICATION .......... 17 SAFETY PRECAUTIONS ......
Page 4: Introduction
INTRODUCTION Thank you for purchasing the eHealthyNet Upper Arm Blood Pressure Monitor. The eHealthyNet Upper Arm Blood Pressure Monitor is compact and easy to use that uses the oscillometric principle to measure your blood pressure data. The monitor works with your mobile de- vice to track your blood pressure data and share it with your family via eHealthyNet App.
Page 5: Intended Use
INTENDED USE The eHealthyNet Upper Arm Blood Pressure Monitor is intended for use at home or medical center. It is a non-invasive blood pressure monitoring system de- signed to measure the systolic and diastolic blood pres- sures and pulse rate of an adult individual with an inflat- able cuff wrapped around the upper arm.
Page 6: Hardware Set Up
Air Tube Cuff HARDWARE SET UP Connect the cuff to monitor Plug the air tube into the socket on the left side of the monitor. Use only the cuff provided in this package. Batteries Remove the battery cover. Insert 4 AA batteries into the compartment.
Page 7: Ehealthynet App
AC Adapter Requirements Output voltage: 6V ± 5% Max. output current: At least 600 mA Plug polarity: <+> inner Plug External diameter: 5.5mm ± 0.1 mm Plug Internal diameter: 2.1mm ± 0.1 mm eHealthyNet APP Download eHealthyNet App The App is available in both Google Play and Apple App Store.
Page 8 Connect the monitor with mobile devices Switch “bluetooth” on under the “Settings” menu on IOS or Andriod devices. Select the “Measure” button in the main screen and then “+” button in the upper right corner. Press and hold the Bluetooth Button on the monitor until you see a bluetooth sign appears on screen.
Page 9: Mode Setting
After successful pairing, select the paired device under “Measure” Button of the App. And Press Start/Stop Button on the monitor to start measure- ment. MODE SETTING Measurement Unit Press Setting (SET) Button when power is off, the screen displays as the picture below, press Memory (MEM) Button to switch between mmHg (Default) and KPa units.
Page 10 User Press SET Button when it is in Measurement Unit Set- ting Mode, the screen displays as the picture below, press MEM Button to switch between User1 and User2. Date Press SET Button when it is in User Setting Mode, press it 3 times to enter Date Setting Mode in a sequence: Year Month...
Page 11 Year Setting Month Setting Day Setting Time Press SET Button when it is in Day Setting Mode, press it 2 times to enter Time Setting Mode in a sequence: Hour Minute In each time pressing SET Button, the screen displays as the pictures from left to right in the next page, press MEM Button to increase the value by 1.
Page 12: Measurement
Minute Setting Hour Setting MEASUREMENT Pre-measurement Keep calm for 5 - 10 minutes before measurements, avoid eating, drinking, smoking, exercising and having bath. Any of these activities may influence the blood pressure. Body Posture Be seated with your feet flat on the floor without crosing your legs.
Page 13 The Middle of the cuff should be in the same level of the right atrium of your heart. Apply The Cuff Pull the cuff end through the metal ring at the other end. Wrap a bare upper arm with the cuff, adjust its position 2 to 3 cm above the elbow joint and make sure the air tube facing up.
Page 14 Take Measurements with Mobile Devices Switch on bluetooth, launch the “eHealthyNet” App in your mobile device. Select the paired monitor under “Measure” Button of the App. And Press Start/Stop Button on the monitor to start measurement. Take Measurements without Mobile Devices The monitor can work without pairing with a mobile de- vice.
Page 15: About Blood Pressure
ABOUT BLOOD PRESSURE The World Health Organization (WHO) and Internation- al Society of Hypertension (ISH) have created the fol- lowing guide to classify and assessing high blood pres- sure. Please note that other factors such as Diabetes, obesity, smoking and drinking alcohol may influence the blood pressure.
Page 16 Blood Pressure SYS BP DIA BP Color Classification mmHg mmHg indicator Optimal <120 <80 Green Normal 120-129 80-84 Green High-Normal 130-139 85-89 Yellow Mild Hypertension 140-159 90-99 Orange Moderate Hypertension 160-179 100-109 Orange Severe Hypertension ≥180 ≥110 Note: This chart is not intended to provide a basis for any type of emergency condition or diagnosis based on the color indicator;...
Page 17: Specification
SPECIFICATION Product Name Upper Arm Blood Pressure Monitor Model MBP-012-B Oscillometric Method, automatic Measurment Mechanism inflation and measurement. Size L139mm x W85mm x H45mm Weight Approximate 254g Display LCD Digital Display Power Source 4 AA Batteries Pressure 0-299 mmHg Measurement...
Page 18: Safety Precautions
SAFETY PRECAUTIONS Read all of the information in the User Manual and other provided instructions before operating the monitor. Consult your physician if there is any concern about using the monitor. Do not use the monitor in a moving vehicle as it may lead to inaccurate result.
Page 19: Care & Maintenance
The product might not meet its performace spec- ifications if not stored or used within the specified range of temperature, relative humidity and air pressure in the section “SPECIFICATION”. Please do not share your cuff with other person to avoid any cross-infection. CARE &...
Page 20: Troubleshooting
Storage Store the monitor in a dry and clean environment, avoid direct sunlight (see the storing environmental condition in the section “SPECIFICATION”). Remove the batteries if the monitor will not be used in 3 months. TROUBLESHOOTING Error Sign Error signs are displayed on the monitor’s screen if there are abnormalities during measurement.
Page 21: Warranty
Sign Cause Correction Wrap the cuff properly. Error during inflation Check if the connector of the cuff’s air tube is detached. Keep calm for 5 - 10 mins before measurement. Repeat a measurement after 30 Abnormal Blood Pressure minutes of rest, if the abnormalty persist for 3 times of measure- ments, contact your physician.
Page 22: Explanation Of Symbol
and your only remedy under the warranty. EXPLANATION OF SYMBOL Symbol for “WARNING” Symbol for “TYPE B APPLIED PART” Symbol for “ENVIRONMENTAL PROTECTION” Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Page 23: Electromagnetic Compatibility Information
Symbol for “CE MARK” - Conforms to essential requirements of the Medical Device Directive 93/42/EEC. ELECTROMAGNETIC COMPATIBILITY INFORMATION Guidance and manufacturer’s declaraiton - electromagnetic immunity The upper arm blood pressure monitor is inteded for use in the electromagnetic environment specified be- low.
Page 26 Guidance and manufacturer’s declaraiton - electromagnetic emissions The upper arm blood pressure monitor is inteded for use in the electromagnetic environment specified be- low. The customer of the user of the upper arm blood pressure monitor should assure that it is used in such an environment...
Page 27 Recommended separation distances between portable and mobile RF communi- cations equipment and the blood pressure monitor The upper arm blood pressure monitor is inteded for use in an electromagnetic environment in which raid- ted RF disturbances are controlled. The customer or the user of the blood pressure monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communica-...
Page 28 For transmitters rated at a maxlmum output power not listed above, the recommended separation distanced in meters (m) can be estimated using the equation appli- cable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter In watts (W) according to the transmitter manufacturer.
