Application
These sensors provide electronic sensing of room
temperature at wall locations for use with
microprocessor-based energy management systems,
including TAC NETWORK 8000
suffix).
Features
•
±0.36% accuracy over 100°F operating span.
•
±0.045% drift per year maximum over 100°F span.
•
-850 units include TAC NETWORK 8000 shunt
resistor.
•
10K¾ @ 77°F thermistor sensor.
Applicable Literature
•
TAC Environmental Controls Cross-Reference
Guide, F-23638
•
TAC Environmental Controls Reference Manual, F-
21683
•
TAC Environmental Controls Application Manual, F-
21335
•
TAC Pneumatic Products Catalog, F-27383
•
TAC NETWORK 8000 Hardware Installation
Practices Manual, F-23061
Printed in U.S.A. 8-06
TAC
1354 Clifford Avenue
P. O. Box 2940
Loves Park, IL 61132-2940
www.tac.com
®
(units with -850
© Copyright 2006 TAC All Rights Reserved.
TS-5711-770, -850 Series
TS-57011-770, -850 Series
TS-57031, TS-57031-850
Electronic Room Temperature Sensors
General Instructions
9 0
8 0
7 0
6 0
5 0

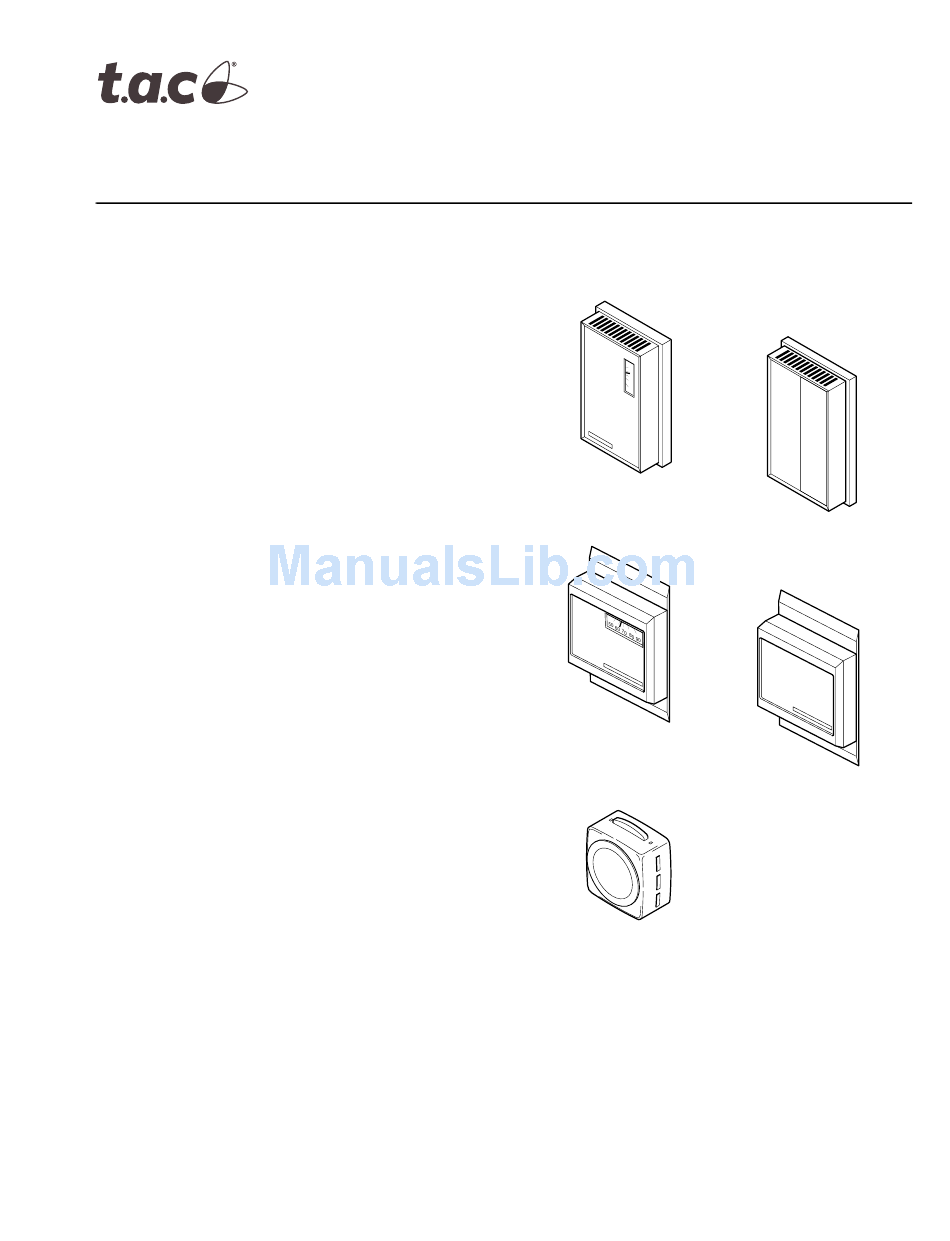

TS-5711-770
TS-57011-770
TS-57031
TS-57031-850
TS-5711-850
TS-57011-850
F-23837-5
Advertisement
Table of Contents
Related Manuals for t.a.c. TS-5711-770 850 Series
Summary of Contents for t.a.c. TS-5711-770 850 Series
- Page 1 TS-5711-770, -850 Series TS-57011-770, -850 Series 1354 Clifford Avenue TS-57031, TS-57031-850 P. O. Box 2940 Loves Park, IL 61132-2940 www.tac.com Electronic Room Temperature Sensors General Instructions Application These sensors provide electronic sensing of room temperature at wall locations for use with microprocessor-based energy management systems, ®...
-
Page 2: Specifications
SPECIFICATIONS Sensor Inputs Connections: Coded screw terminals. Environment Ambient Temperature Limits: Shipping, -40 to 160°F (-40 to 71°C). Operating, 40 to 140°F (4 to 60°C). Humidity: 5 to 95% RH, non-condensing. Locations: NEMA Type 1. Options for Temperature Sensors For the desired option, add the corresponding dash number suffix (-XXX) to the base part number of the temperature sensor. -
Page 3: Typical Application
Table-1 Specifications. Cover Thermometer Cover Temperature Sensing Element Dimensions Maximum Error Part Number H x W x D Resistance Range Display Description Brand Name Resistance Over 100°F in. (mm) Change (55.6°C) Span Thermistor 10,000 ¾ TS-5711-770 55 to 85°F Analog Robertshaw at 77°F (25°C) 4-3/8 x 2-3/4... -
Page 4: Installation
INSTALLATION Inspection Inspect the package for damage. If damaged, notify the appropriate carrier immediately. If undamaged, open the package and inspect the device for obvious damage. Return damaged products. Requirements • Job wiring diagrams • Tools (not provided): – Digital Volt-ohm Meter (DVM) –... - Page 5 Mounting Dimensions 2-7/8 (73) 1-7/16 (37) 4-7/16 (113) 4-3/8 3-9/32 (111) (83) Centered Depth = 1-5/8 (43) 1-5/8 2-3/4 (43) (70) Dimensions shown are in inches (mm). Figure-2 Dimensions for Mounting TS-5711-770 and TS-5711-850 Series on American Standard 2" x 4" Electrical Box. 3-1/4 3-1/4 (83)
- Page 6 1-13/16 (46) 1-3/8 (35) 2 (51) Centered 1-1/4 (32) (22) 2 (51) 1-13/16 (46) Dimensions shown are in inches (mm). Figure-5 Dimensions for Mullion Mounting TS-57031 and TS-57031-850. Mounting TS-5711-770 and TS-5711-850 Sensor on American Standard 2" x 4" Electrical Box 1.
- Page 7 Mounting TS-57011-770 or TS-57011-850 Series Sensor on American Standard 2" x 4" Electrical Box 1. Remove the sensor cover from the base plate, according to the following: a. Insert the blade of a small-bladed screwdriver into the cover latch slot in the bottom of the sensor cover (see Figure-7 ).
- Page 8 American Standard Wire Feedthrough Electrical Box Opening Mounting Screws (2) (furnished) Wall Plate Terminal Block Base Plate Printed Circuit Board Cover Latch Sensing Element Cover Figure-8 Mounting of TS-57011-770 or TS-57011-850 Series on 2" x 4" Electrical Box. 6. Connect the wires to the terminal block on the base plate. See the wiring diagrams in Figure-1 .
- Page 9 Mounting TS-57011-770 or TS-57011-850 Series Sensor on European 1/4 DIN Standard Electrical Box 1. Remove the sensor cover from the base plate, according to the following: a. Insert the blade of a small-bladed screwdriver into the cover latch slot in the bottom of the sensor cover (see Figure-7 ).
- Page 10 European 1/4 DIN Wire Feedthrough Standard Electrical Box Opening Mounting Screws (2) (not furnished) Cover Terminal Block Base Plate Printed Circuit Cover Board Latch Sensing Element Figure-10 Mounting Procedure for European 1/4 DIN Electrical Box. 5. Using two appropriately sized mounting screws (not provided), mount the base plate onto the 1/4 DIN electrical box.
- Page 11 Mullion Mounting TS-57031 and TS-57031-850 1. Using a 0.062" Allen wrench (tool number N2-4), turn the cover set screw clockwise into the base plate, to release the sensor cover. Remove the sensor cover. Refer to Figure- 11 . #6 Mounting Screws (2) Base Plate (not furnished) Printed Circuit...
-
Page 12: Maintenance
Wiring Caution: • Do not use unshielded sensor cable in the same conduit with 120/240 Vac power wiring, or in areas with high RFI/EMI generating devices. • Shielded cable must be used when it is necessary to install the sensor leads in the same conduit with power wiring, or when it is known that devices generating high RFI/EMI are near.
