Summary of Contents for GemOro PLATINUM PRO1000V

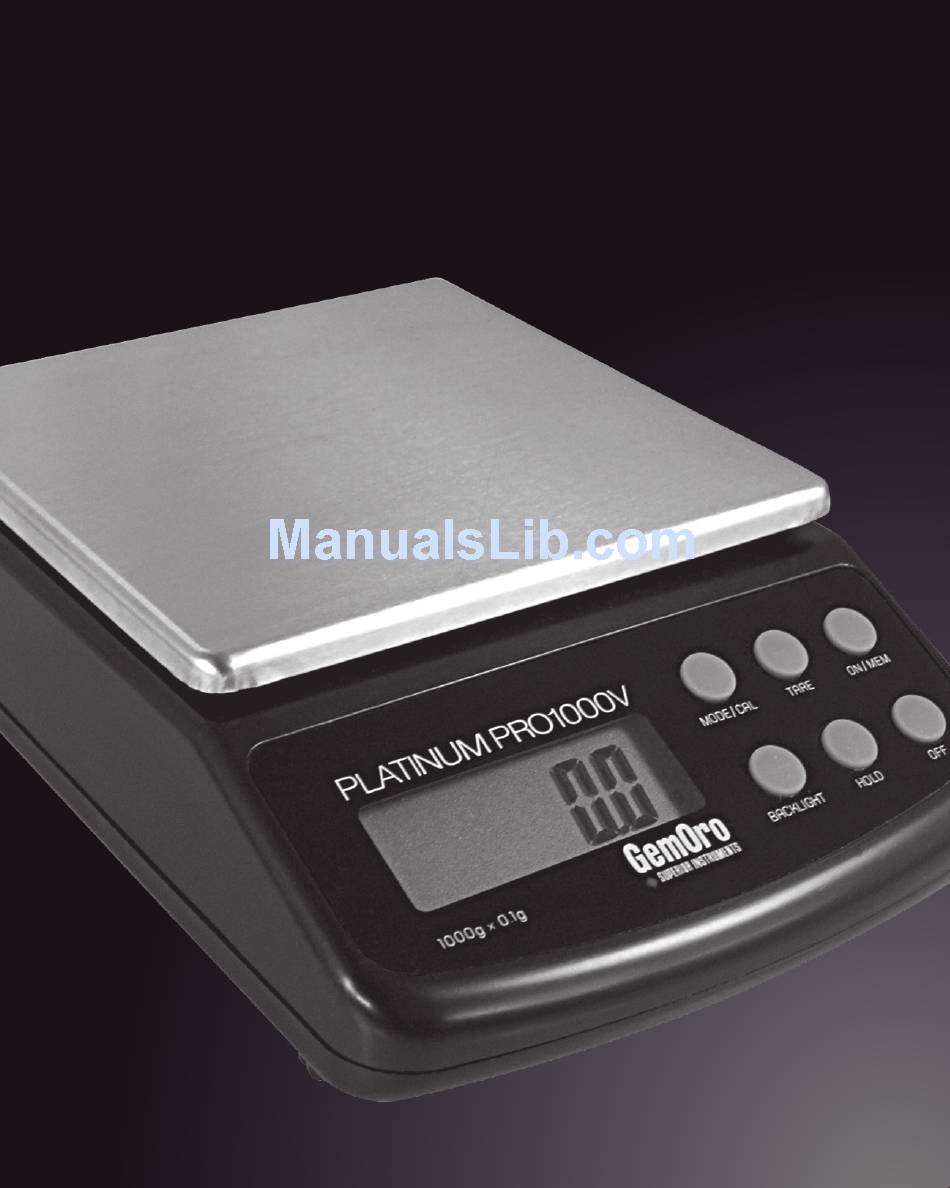

- Page 1 PLATINUM PRO1000V DIGITAL COUNTERTOP / PORTABLE BALANCE...
- Page 2 The Platinum PRO1000V weighs in g, oz, dwt, ozt, ct, gn and features a blue extra large backlit LCD display, large rectangular shaped stainless steel weighing platform, contemporary design with a durable, long-life ABS body.
- Page 3 INSTRUCTIONS FOR USE Before using the PRO1000V, to activate the installed batteries, remove the plastic tab that serves as the battery insulator power discharge protector located on the battery terminal inside of the battery compartment. With the stainless steel weighing platform positioned onto the PRO1000V, gently rotate the scales weighing platform clockwise to reveal the scales bubble balance leveling indicator...
- Page 4 0.0g or press the ON/ MEM button once to turn the scale off since both of these steps will subtract the weight from its memory. 3. MODE/CAL - To change the scales unit of GEMORO PLATINUM PRO1000V...
-
Page 5: Specifications
measure, simply push the MODE/CAL button to change from g, oz, dwt, ozt, ct, gn and Parts Counting. To calibrate the scale, please refer to the CALIBRATION PROCEDURE section noted below. 4. HOLD - Push this button to maintain the display weight for a prolonged period for easy reading. -
Page 6: Power Installation
Not Legal for Trade POWER INSTALLATION Optional AC Adaptor Operation • CAUTION: Use only the UL Listed GemOro 6V AC adaptor Item #9756. This universal adaptor is designed to specifically work with the PRO1000V balance. The unique feature of the PRO1000V... -
Page 7: Calibration Procedure
Battery Operation • When removing the battery cover, be certain not to apply excessive force or pressure onto the weighing platform or damage may occur to the scales load cell and void the warranty. To activate the installed batteries, remove the plastic tab which serves as the battery insulator power discharge protector located on the battery terminal inside of the battery compartment and then replace the battery... - Page 8 5. The display will then show “F” which indicates that the calibration procedure has been successful. If “E” appears on the display instead of “F”, this indicates that an error has occurred in the calibration procedure and the calibration procedure should be repeated. GEMORO PLATINUM PRO1000V...
- Page 9 6. Then by pressing the tare button the balance will return to its active weighing mode. COUNTING FEATURE The Parts Counting feature within your scale can be really handy if you are in need of counting a large number of small items (example: silver bead, findings, gold chains, etc.) very quickly and accurately.
- Page 10 TARE button to zero the weight of the scoop from its display. Then continue pressing the MODE/CAL button until the rEF 5 is displayed and the scale may then begin its counting feature while using the scoop as needed. GEMORO PLATINUM PRO1000V...
-
Page 11: Memory Function
MEMORY FUNCTION 1. After turning the scale on, press the TARE button to bring the display back to zero. 2. Place a scoop or item to be weighed onto the weighing platform and when the displayed weight of the item is stable, press the ON/MEM button once. -
Page 12: Warranty
No contaminated scale will be accepted and if received GEMORO PLATINUM PRO1000V... - Page 13 in this condition it will automatically be destroyed with no recourse from its owner, while the warranty replacement will be revoked. This scale is not intended for illegal use. Note: Please fill out the Warranty Registration form on our website to be eligible for warranty coverage: www.gemoroproducts.com/warrantyregistration INSTRUCTION MANUAL...
- Page 14 GemOro 10455 Olympic Drive Dallas, Texas 75220 USA Tel 800.527.0719 or 214.351.0380 Fax 800.832.9871 or 214.351.1903 www.gemoroproducts.com Email: gemoroservice@sykessler.com...
