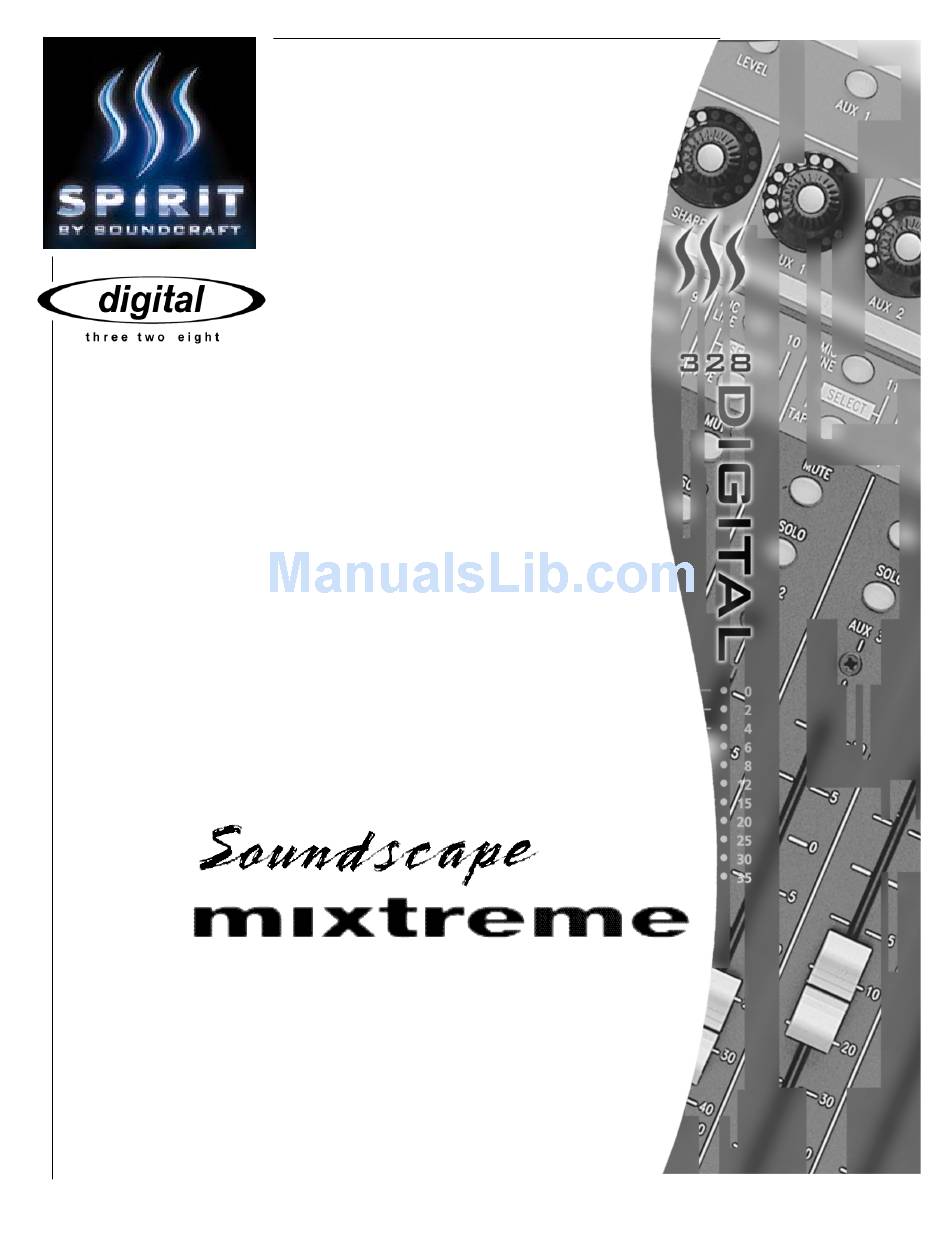

- Page 1 V 2.0 Setup Guide Setup Guide Setup Guide Setup Guide Revised: 04-12-00...
- Page 2 Soundscape Soundscape Mixtreme Setup Guide Mixtreme Setup Guide Mixtreme Setup Guide Mixtreme Setup Guide Contents: 1 1 1 1 Connecting The System 2 2 2 2 Digital 328 Setup 3 3 3 3 Mixtreme Setup Soundscape Mixtreme 1.2 Setup Guide...
- Page 3 Connecting The System Connecting The System Connecting The System Connecting The System Audio Connections Audio Connections Audio Connections Audio Connections Connections Connections Connections Connections Connect audio connections as shown in the diagram below. TDIF cables must be connected from the 2 TDIF ports of the Mixtreme card to the 2 TDIF ports of the 328. The Mixtreme card is available with an S/PDIF option.
- Page 4 Scroll down once more and set the '<Tape 25-32>' settings to the same settings as in the '<Tape 17-24>' pages, as described above. <Tape Ch17->24 > Bank Source:TDIF <Tape Ch17->24 > Wordlength: Soundscape Mixtreme 1.2 Setup Guide...
- Page 5 <Tape Ch17->24 > S/Rate Flag:44k1 <Tape Ch25->32 > Bank Source:TDIF <Tape Ch25->32 > Wordlength: <Tape Ch25->32 > S/Rate Flag:44k1 S/PDIF Input S/PDIF Input S/PDIF Input S/PDIF Input The 328 S/PDIF input can be routed to any one of the following inputs: Stereo Input 1;...
- Page 6 If the S/PDIF input is not required, NOWHERE should be selected in the NOTE menu. < SPDIF Input > < SPDIF Input > Route To: STE-1 Route To: FX-1 < SPDIF Input > < SPDIF Input > Route To: 2TRK Route To:NOWHERE Soundscape Mixtreme 1.2 Setup Guide...
- Page 7 Mixtreme Setup Mixtreme Setup Mixtreme Setup Mixtreme Setup Wordclock Wordclock Wordclock Wordclock The Mixtreme must be set up to receive the wordclock transmitted by the 328. Open the Mixtreme mixer from via the Mixtreme icon on the Windows Taskbar. Under the Settings menu, set the Master Clock to TDIF Master Clock A. To save these settings, click on the ‘Settings’...
- Page 8 Mixtreme card. A basic setup utilising all 16 inputs and outputs is shown below. The mixer can be fully customized depending on the required configuration - consult the Mixtreme manual for more information. Soundscape Mixtreme 1.2 Setup Guide...
- Page 9 Spirit Digital 328 v2...
- Page 10 Spirit by Soundcraft Harman International Industries Ltd., Cranborne House, Cranborne Road, Potters Bar, Herts EN6 3JN, England. Tel: +44 (0)1707 665000 Fax: +44 (0)1707 665461 web: http://www.spiritbysoundcraft.com e-mail: spiritsupport@soundcraft.com spiritdig@harman.com (US) Soundscape Mixtreme 1.2 Setup Guide...
